| Komerční kód: | ARF 246 REFRIGERATOR |
| Kód 12NC: | 850324601000 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné lednice s mrazákem |
| Další podobné modely: | 850324601001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

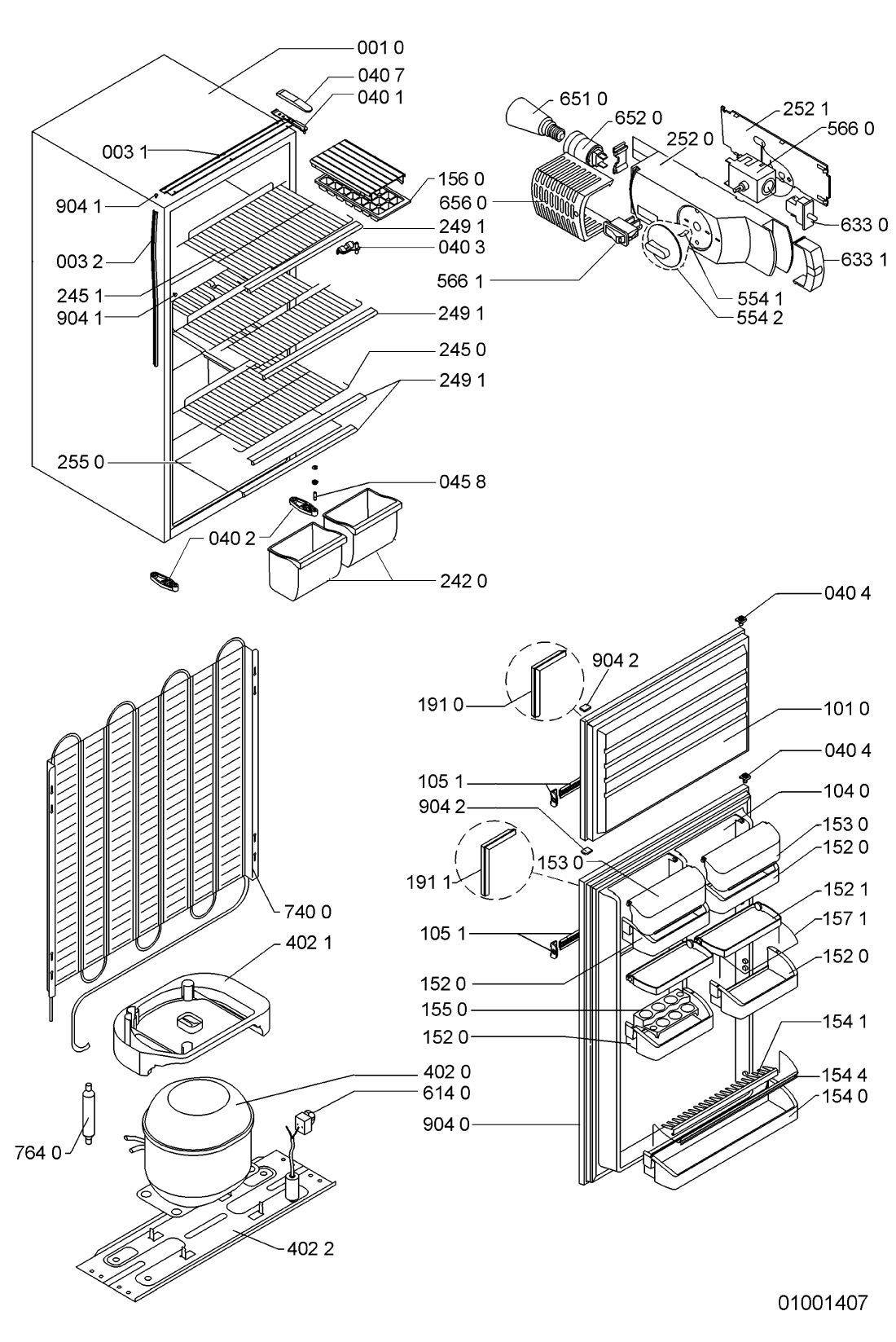

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0010 WHR46241 |
C00574839
481244011028 |
Cabinet. | Na dotaz | Zadat poptávku | |
| 0031 WHR46241 |
C00500877
481246049503 |
Trim | Na dotaz | Zadat poptávku | |
| 0032 WHR46241 |
C00486982
481991100019 |
Trim | Na dotaz | Zadat poptávku | |
| 0401 WHR46241 |
C00214999
481991100005 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 0402 WHR46241 |
C00490897
481991100016 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 0403 WHR46241 |
C00215444
481991100064 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 0404 WHR46241 |
C00215159
481246228335 |
Bushing | Na dotaz | Zadat poptávku | |
| 0407 WHR46241 |
C00486981
481991100004 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 0458 WHR46241 |
C00215001
481991100006 |
Pivot | Na dotaz | Zadat poptávku | |
| 1010 WHR46241 |
C00486983
481991100029 |
Door freezer | Na dotaz | Zadat poptávku | |
| 1040 WHR46241 |
C00622727
481991100027 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 1051 WHR46241 |
C00493050
481231018749 |
Friction plate ,KIT | Na dotaz | Zadat poptávku | |
| 1520 WHR46241 |
C00489041
481241828673 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1521 WHR46241 |
C00490898
481991100062 |
Tray | Na dotaz | Zadat poptávku | |
| 1530 WHR46241 |
C00575072
481991100063 |
Lid | Na dotaz | Zadat poptávku | |
| 1540 WHR46241 |
C00500827
481241879976 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 1541 WHR46241 |
C00484770
481240448849 |
Trim Grid | Na dotaz | Zadat poptávku | |
| 1544 WHR46241 |
C00215015
481991100011 |
Rod long | Na dotaz | Zadat poptávku | |
| 1550 WHR46241 |
C00492854
481991100008 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 1560 WHR46241 |
C00215423
481991100041 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 1571 WHR46241 |
C00215021
481991100017 |
BAR-COMMODITY RACK | Na dotaz | Zadat poptávku | |
| 1910 WHR46241 |
C00574964
481246818239 |
Magnetic seal refr.. | Na dotaz | Zadat poptávku | |
| 1911 WHR46241 |
C00490173
481246818241 |
Magnetic seal freezing | Na dotaz | Zadat poptávku | |
| 2420 WHR46241 |
C00490899
481991100067 |
Crisper | Na dotaz | Zadat poptávku | |
| 2450 WHR46241 |
C00488364
481991100012 |
Grid | Na dotaz | Zadat poptávku | |
| 2451 WHR46241 |
C00488365
481991100013 |
Grid | Na dotaz | Zadat poptávku | |
| 2490 WHR46241 |
C00215014
481991100009 |
Bottle holder | Na dotaz | Zadat poptávku | |
| 2491 WHR46241 |
C00215020
481991100015 |
Trim grid | Na dotaz | Zadat poptávku | |
| 2520 WHR46241 |
C00484031
481246228587 |
Casing | Na dotaz | Zadat poptávku | |
| 2521 WHR46241 |
C00486985
481991100038 |
Cover thermost. | Na dotaz | Zadat poptávku | |
| 2550 WHR46241 |
C00374267
481991100014 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 4020 WHR46241 |
C00215785
481236138074 |
Compressor TLES9KK.2 | Na dotaz | Zadat poptávku | |
| 4021 WHR46241 |
C00216223
481241879777 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 4022 WHR46241 |
C00500793
481240448902 |
Support compressor | Na dotaz | Zadat poptávku | |
| 5541 WHR46241 |
C00492003
481249268196 |
Spring THERMOSTAT | Na dotaz | Zadat poptávku | |
| 5542 WHR46241 |
C00500811
481241278859 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 5660 WHR46241 |
C00215198
481991100046 |
Thermostat 077B 6549 | Na dotaz | Zadat poptávku | |
| 5661 WHR46241 |
C00215410
481227618464 |
SWITCH FAST FREEZE | Na dotaz | Zadat poptávku | |
| 6140 WHR46241 |
C00574671
481212158138 |
Relay | Na dotaz | Zadat poptávku | |
| 6330 WHR46241 |
C00417525
482000021338 |
Switch light | Na dotaz | Zadat poptávku | |
| 6330 WHR46241 |
C00494990
481991100043 |
Kit Thermostat, lamp + lamp switch | Na dotaz | Zadat poptávku | |
| 6331 WHR46241 |
C00216227
481991100044 |
BUTTON LIGHT SWITCH | Na dotaz | Zadat poptávku | |
| 6510 WHR46241 |
C00488454
481213488044 |
Lamp | Na dotaz | Zadat poptávku | |
| 6520 WHR46241 |
C00215030
481225518265 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 6560 WHR46241 |
C00485953
481246098056 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 7400 WHR46241 |
C00548560
481991100069 |
Condenser. | Na dotaz | Zadat poptávku | |
| 7640 WHR46241 |
C00574980
481252648116 |
Dryer. | Na dotaz | Zadat poptávku | |
| 9040 WHR46241 |
C00215557
481253598093 |
Stopper | Na dotaz | Zadat poptávku | |
| 9041 WHR46241 |
C00490982
481226318005 |
Pivot | Na dotaz | Zadat poptávku | |
| 9042 WHR46241 |
C00215160
481246228336 |
Bushing | Na dotaz | Zadat poptávku | |
