WHIRLPOOL AWE 7728
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWE 7728 |
| Kód 12NC: | 859377240080 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 859367329084, 859377203084, 859377240084, 859377838080, 859377203080, 859377810072, 859367329080, 859377810070 |
Potřebujete servis? Jsme tady pro Vás

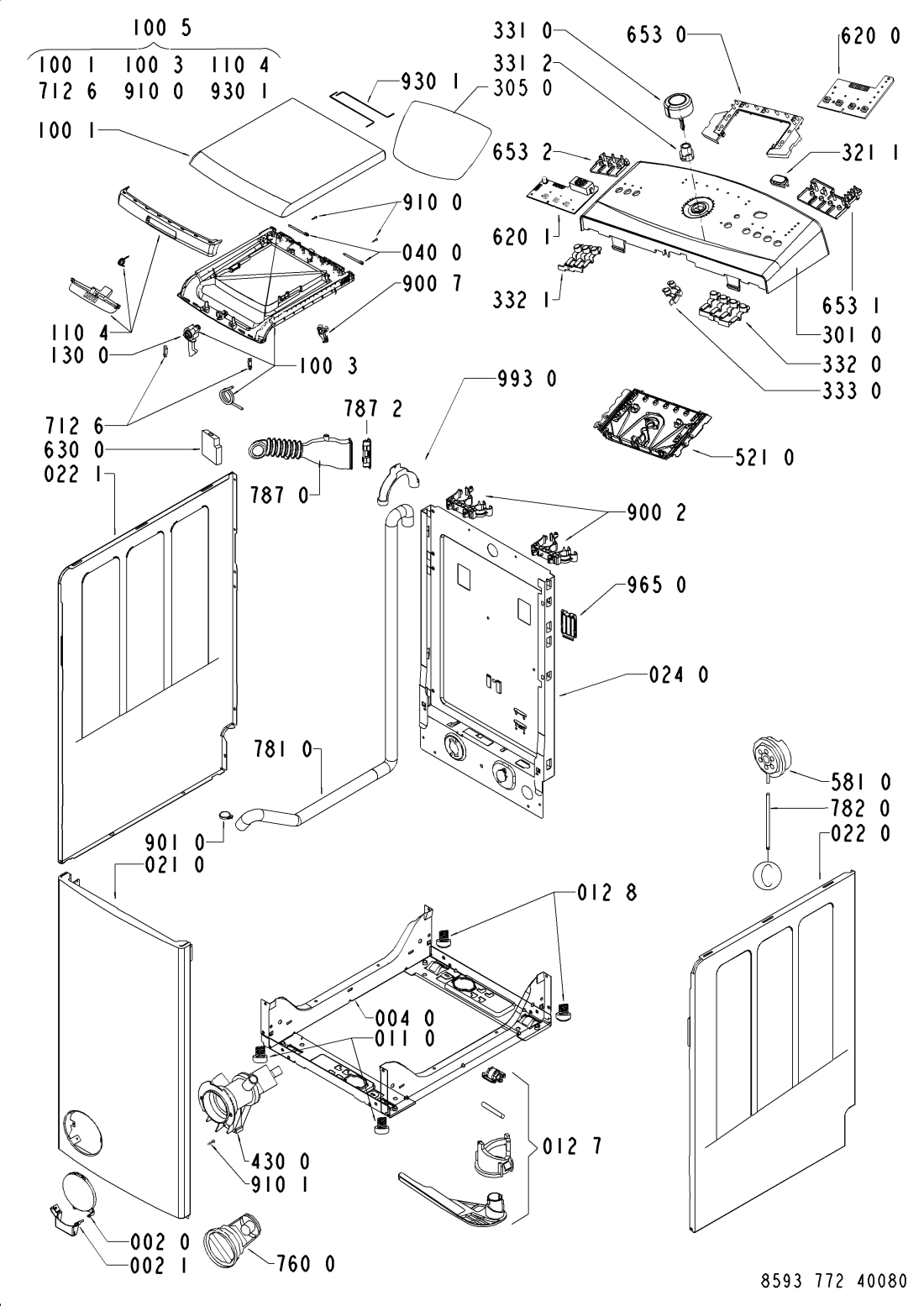

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR55321 |
C00330217
481245938057 |
kryt filtru GW | 733 Kč
€ 32.20 |
||
| 002 1 WHR55321 |
C00330219
481245938058 |
ZAVES PLAST | 175 Kč
€ 7.70 |
||
| 004 0 WHR55321 |
C00327947
481244010727 |
ram zakladni skrine | 1 191 Kč
€ 52.40 |
||
| 010 0 WHR55321 |
C00330234
481245948219 |
Frame inner,soft open | Na dotaz | Zadat poptávku | |
| 010 1 WHR55321 |
C00328071
481244011663 |
ram pracky bily GW | 3 161 Kč
€ 138.90 |
||
| 011 0 WHR55321 |
C00313162
481246248054 |
Noha pračky přední | 637 Kč
€ 28.00 |
||
| 012 7 WHR55321 |
C00327327
481231018497 |
Podvozek výsuvný | 594 Kč
€ 26.10 |
||
| 012 8 WHR55321 |
C00340790
481252878046 |
noha pracky zadni | 675 Kč
€ 29.70 |
||
| 021 0 WHR55321 |
C00327949
481244010742 |
stena predni GW | 3 503 Kč
€ 154.00 |
||
| 022 0 WHR55321 |
C00327950
481244010743 |
stena bocni pravaGW | 3 518 Kč
€ 154.60 |
||
| 022 1 WHR55321 |
C00327951
481244010744 |
Side panel left GW | Na dotaz | Zadat poptávku | |
| 024 0 WHR55321 |
C00328060
481244011638 |
Rear panel | Na dotaz | Zadat poptávku | |
| 040 0 WHR55321 |
C00329711
481241719155 |
Čep pantu dveří vrchem plněných praček Whirlpool, Indesit AWT 2284, AWT 2050, BTW L50300 | 83 Kč
€ 3.60 |
||
| 061 0 WHR55321 |
C00330989
481246688466 |
zavazi leve k remen. | 1 454 Kč
€ 63.90 |
||
| 061 1 WHR55321 |
C00330988
481246688465 |
Závaží pravé | 1 714 Kč
€ 75.30 |
||
| 081 4 WHR55321 |
C00464844
481252918061 |
tlmic | Na dotaz | Zadat poptávku | |
| 086 2 WHR55321 |
C00314527
481240118412 |
pojistka tlumice | 584 Kč
€ 25.70 |
||
| 086 4 WHR55321 |
C00312814
481252918045 |
kolik tlum.pruzny | 729 Kč
€ 32.00 |
||
| 086 5 WHR55321 |
C00311472
481252918052 |
Damper f. Shock absorber | Na dotaz | Zadat poptávku | |
| 100 1 WHR55321 |
C00327952
481244010745 |
kryt dveri pracky GW-vyřazeno | 2 227 Kč
€ 97.90 |
||
| 100 3 WHR55321 |
C00316122
481244011824 |
dvere pracka vnitrni cast | Na dotaz | Zadat poptávku | |
| 100 5 WHR55321 |
C00314482
481244010747 |
Dveře pračky komplet GW 747 | 2 445 Kč
€ 107.50 |
||
| 110 4 WHR55321 |
C00315094
481249818248 |
Rukojeť dveří pračky | 1 525 Kč
€ 67.00 |
||
| 130 0 WHR55321 |
C00316880
481241719156 |
Hák uzávěru dveří GW | 837 Kč
€ 36.80 |
||
| 191 0 WHR55321 |
C00342115
481246668749 |
Door bellow | Na dotaz | Zadat poptávku | |
| 191 1 WHR55321 |
C00345877
481249298012 |
spona TVO kov.FR | 462 Kč
€ 20.30 |
||
| 191 2 WHR55321 |
C00316017
481246688703 |
tmel tesnici Allianc | Na dotaz | Zadat poptávku | |
| 200 0 WHR55321 |
C00329867
481241818748 |
nadrz - sestavaAWT | 3 771 Kč
€ 165.80 |
||
| 201 0 WHR55321 |
C00316104
481244011798 |
Bočnice nádrže | 2 821 Kč
€ 124.00 |
||
| 220 0 WHR55321 |
C00381630
481241818595 |
Drum soft op. 210 mm | Na dotaz | Zadat poptávku | |
| 221 1 WHR55321 |
C00320417
481231018843 |
Zavírání bubnu vrchem plněné pračky - sada | Na dotaz | Zadat poptávku | |
| 223 0 WHR55321 |
C00315124
481941849713 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 223 1 WHR55321 |
C00327820
481241848605 |
Žebro bubnu pračky Whirlpool - vyvažovací | 459 Kč
€ 20.20 |
||
| 271 0 WHR55321 |
C00315247
481235818206 |
Řemen vícekl. 1236J4 | Na dotaz | Zadat poptávku | |
| 272 0 WHR55321 |
C00332382
481252888111 |
Řemenice bubnu | 1 726 Kč
€ 75.90 |
||
| 290 0 WHR55321 |
C00312292
481253268078 |
Těsnění bočnice | 586 Kč
€ 25.80 |
||
| 301 0 WHR55321 |
C00425698
480111100843 |
control panel AWE 7728 | Na dotaz | Zadat poptávku | |
| 305 0 WHR55321 |
C00462598
481245310574 |
Insert panel Set-language pack | Na dotaz | Zadat poptávku | |
| 321 1 WHR55321 |
C00378567
481245217694 |
Window DOMINO WH, Remaining time | Na dotaz | Zadat poptávku | |
| 331 0 WHR55321 |
C00310970
481241458306 |
Knoflík programátoru , volič programu AWO/D , AWE , AWZ | 149 Kč
€ 6.50 |
||
| 331 2 WHR55321 |
C00311525
481241458307 |
Unašeč knoflíku AWO/D | 405 Kč
€ 17.80 |
||
| 332 0 WHR55321 |
C00329326
481241029501 |
Tlačítka pračky Whirlpool | 618 Kč
€ 27.20 |
||
| 332 1 WHR55321 |
C00377610
481241029502 |
tlačítka | 107 Kč
€ 4.70 |
||
| 333 0 WHR55321 |
C00329327
481241029503 |
Tlačítko pračky Whirlpool start/reset | 188 Kč
€ 8.30 |
||
| 400 0 WHR55321 |
C00320982
480111100816 |
Motor | Na dotaz | Zadat poptávku | |
| 421 0 WHR55321 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 421 2 WHR55321 |
C00329010
481240438679 |
Držák | 169 Kč
€ 7.40 |
||
| 430 0 WHR55321 |
C00310950
480110100001 |
Pump,draining | Na dotaz | Zadat poptávku | |
| 451 0 WHR55321 |
C00318278
481225928919 |
Heating element 2050W, 230V + NTC | Na dotaz | Zadat poptávku | |
| 490 0 WHR55321 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 490 1 WHR55321 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 26.00 |
||
| 521 0 WHR55321 |
C00320336
481221470658 |
Control unit Eureka | Na dotaz | Zadat poptávku | |
| 521 0 WHR55321 |
C00425702
480111100847 |
Control unit DOMINO, programmed | Na dotaz | Zadat poptávku | |
| 571 0 WHR55321 |
C00317274
481228128468 |
Ventil napouštěcí 2cestný, přímý | 1 134 Kč
€ 49.80 |
||
| 571 1 WHR55321 |
C00309494
481228118069 |
kryt | 125 Kč
€ 5.50 |
||
| 581 0 WHR55321 |
C00311217
481227128554 |
Presostat pračky | 218 Kč
€ 9.60 |
||
| 620 0 WHR55321 |
C00309387
481223958076 |
jednotka ovladaci+di | 4 042 Kč
€ 177.70 |
||
| 620 1 WHR55321 |
C00309354
481223958046 |
jednotka ovladaci | 3 526 Kč
€ 155.00 |
||
| 623 3 WHR55321 |
C00309486
481241818621 |
senzor bubnu-brzda | Na dotaz | Zadat poptávku | |
| 630 0 WHR55321 |
C00327239
481227138366 |
Door lock 3 Pol | Na dotaz | Zadat poptávku | |
| 653 0 WHR55321 |
C00455001
481213418079 |
Light guide | Na dotaz | Zadat poptávku | |
| 653 1 WHR55321 |
C00326823
481213418078 |
svetlovod | 481 Kč
€ 21.10 |
||
| 653 2 WHR55321 |
C00455021
481213448375 |
tlacitko | 149 Kč
€ 6.50 |
||
| 691 0 WHR55321 |
C00313117
481228219485 |
senzor NTC | 729 Kč
€ 32.00 |
||
| 701 0 WHR55321 |
C00315515
481253029329 |
Hose, inlet EN 11770 Reflex | Na dotaz | Zadat poptávku | |
| 702 2 WHR55321 |
C00309480
481253029453 |
hadice | Na dotaz | Zadat poptávku | |
| 707 0 WHR55321 |
C00313624
481252648244 |
Box + tryska awt | 435 Kč
€ 19.10 |
||
| 707 1 WHR55321 |
C00332331
481252648049 |
Spona boxu trysky | 168 Kč
€ 7.40 |
||
| 712 4 WHR55321 |
C00313977
481241868302 |
zaslepka prepadu | 762 Kč
€ 33.50 |
||
| 712 6 WHR55321 |
C00315600
481241868164 |
Příchytka násypka | 453 Kč
€ 19.90 |
||
| 712 9 WHR55321 |
C00312698
481241868404 |
Soap dispenser | Na dotaz | Zadat poptávku | |
| 753 0 WHR55321 |
C00327860
481241868182 |
Vzdušník | 262 Kč
€ 11.50 |
||
| 754 0 WHR55321 |
C00332430
481253029267 |
Hadice nádrž - čerpadlo pračky Whirlpool, Indesit, Bauknecht | 727 Kč
€ 32.00 |
||
| 754 1 WHR55321 |
C00309391
481253028832 |
Kulička hadice mezi vanou a čerpadlem pračky Whirpool | 1 173 Kč
€ 51.60 |
||
| 760 0 WHR55321 |
C00314663
481248058403 |
Filtr čerpadla pračky Whirlpool, Indesit AWE , TDLR | 209 Kč
€ 9.20 |
||
| 781 0 WHR55321 |
C00315302
481953029035 |
Hadice výtoková | 302 Kč
€ 13.30 |
||
| 782 0 WHR55321 |
C00332431
481253029268 |
Hadice k presostatu pračky Whirlpool, Bauknecht, Indesit | 182 Kč
€ 8.00 |
||
| 787 0 WHR55321 |
C00309498
481253029462 |
hadice odparovaci | 370 Kč
€ 16.30 |
||
| 787 2 WHR55321 |
C00309402
481253029463 |
Cover exhaust hose | Na dotaz | Zadat poptávku | |
| 794 0 WHR55321 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 5.20 |
||
| 900 0 WHR55321 |
C00332920
481940118686 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 900 2 WHR55321 |
C00309497
481225518304 |
drzak | 530 Kč
€ 23.30 |
||
| 900 3 WHR55321 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 8.70 |
||
| 900 6 WHR55321 |
C00317886
481240018048 |
kolik plast | 290 Kč
€ 12.70 |
||
| 900 7 WHR55321 |
C00343339
481240118447 |
Clamp top frame | Na dotaz | Zadat poptávku | |
| 901 0 WHR55321 |
C00328877
481240118462 |
Spona vytokovej hadi | 145 Kč
€ 6.40 |
||
| 910 0 WHR55321 |
C00318431
481250248347 |
sroub CCTFI 3,5x14 | 165 Kč
€ 7.30 |
||
| 910 1 WHR55321 |
C00332152
481250238151 |
Šroubek (4x14) vrchem plněné pračky Whirlpool AWE 50510, AWT 2284, AWT 8123 D. | 112 Kč
€ 4.90 |
||
| 910 3 WHR55321 |
C00312644
481250218404 |
Šroub řemenice 6mm | 151 Kč
€ 6.60 |
||
| 910 4 WHR55321 |
C00318381
481250218423 |
Šroub PT 7x15 | 126 Kč
€ 5.50 |
||
| 910 5 WHR55321 |
C00332112
481250218705 |
Screw M8x35 | Na dotaz | Zadat poptávku | |
| 910 6 WHR55321 |
C00332171
481250518367 |
Nut push in M 8 | Na dotaz | Zadat poptávku | |
| 921 0 WHR55321 |
C00314517
481240018047 |
Washer | Na dotaz | Zadat poptávku | |
| 930 1 WHR55321 |
C00318211
481249248171 |
Pružiny dveří - torzní (sada) | 240 Kč
€ 10.50 |
||
| 930 2 WHR55321 |
C00314200
481249248086 |
Pružina agregátu | 709 Kč
€ 31.20 |
||
| 941 1 WHR55321 |
C00315098
481252028002 |
Ložisko 6203 SKF 2Z C3 | 301 Kč
€ 13.20 |
||
| 941 2 WHR55321 |
C00456985
481231019268 |
Bearing | Na dotaz | Zadat poptávku | |
| 953 0 WHR55321 |
C00319719
481232568001 |
Těsnění bubnu VA 22 | 21 Kč
€ 0.90 |
||
| 953 1 WHR55321 |
C00309364
481252028073 |
pouzdro kluzne | 748 Kč
€ 32.90 |
||
| 953 2 WHR55321 |
C00320179
481253068017 |
O-Ring | Na dotaz | Zadat poptávku | |
| 962 0 WHR55321 |
C00331020
481244098342 |
Cover for Motor | Na dotaz | Zadat poptávku | |
| 965 0 WHR55321 |
C00309419
481246279974 |
zaslepka - krytka transportní lišty pro vrchem plněné pračky Whirlpool | 174 Kč
€ 7.60 |
||
| 993 0 WHR55321 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 4.20 |
||
| 993 1 WHR55321 |
C00327583
481229018031 |
Clamp heatingelement+screw | Na dotaz | Zadat poptávku | |
| 999 WHR55321 |
C00364608 | Testprogram WHP | Na dotaz | Zadat poptávku | |
