WHIRLPOOL AWM 282
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AWM 282 |
| Kód 12NC: | 857028263000 |
| I.C. kód: | 857028263003 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 857028263000, 857028201000 |
Potřebujete servis? Jsme tady pro Vás

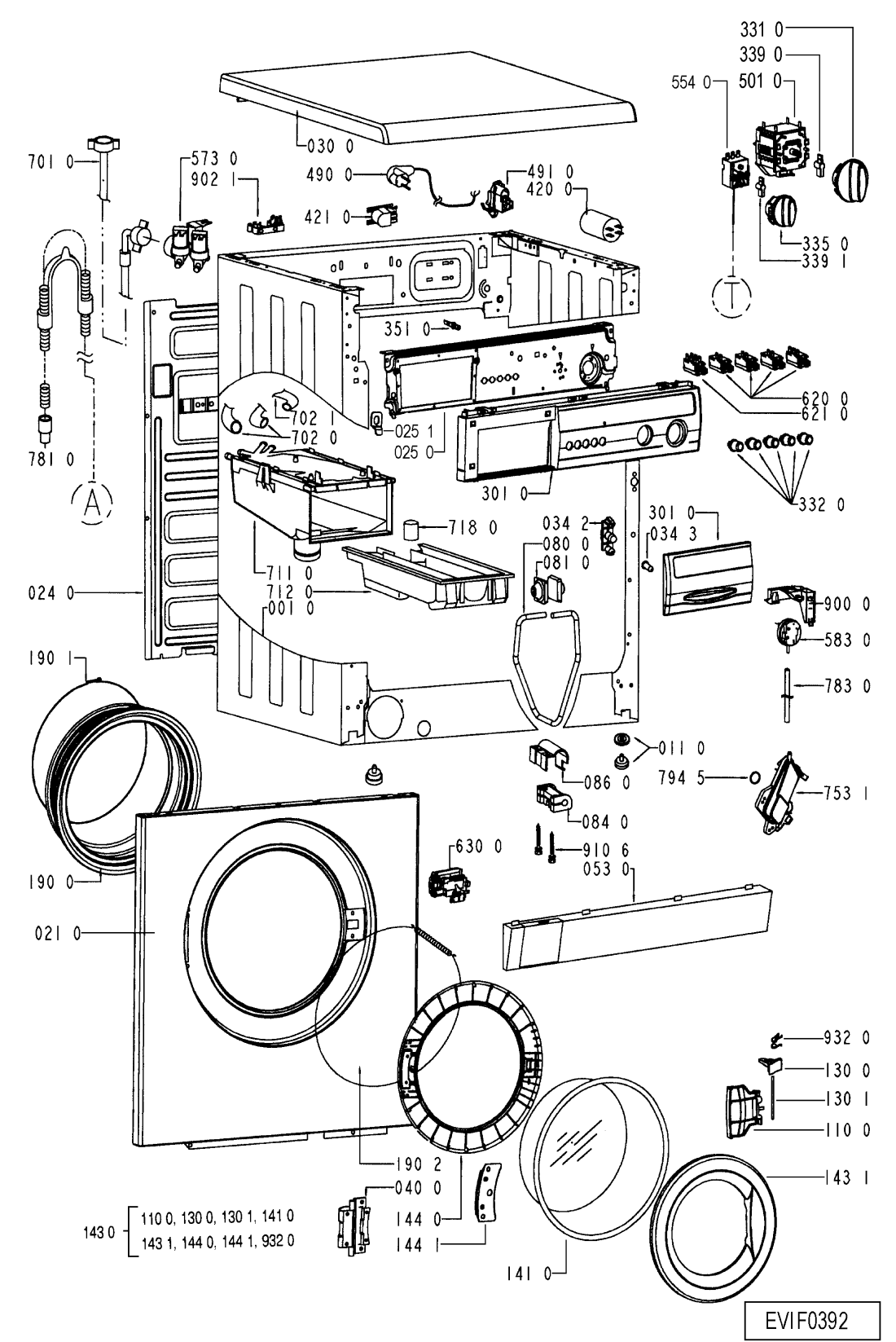

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR99714 |
C00482922
481244010889 |
skrin pracky | 5 542 Kč
€ 243.60 |
||
| 011 0 WHR99714 |
C00498912
481931038995 |
Nozka pracky - Tatra kov N | Na dotaz | Zadat poptávku | |
| 021 0 WHR99714 |
C00340657
481244010888 |
stena predni GW | 3 233 Kč
€ 142.10 |
||
| 024 0 WHR99714 |
C00341562
481944019897 |
Panel rear | Na dotaz | Zadat poptávku | |
| 025 0 WHR99714 |
C00492365
481944019898 |
Prednß liÜta s tesnenÝm | Na dotaz | Zadat poptávku | |
| 025 1 WHR99714 |
C00339610
481245219849 |
Holder Frontpanel | Na dotaz | Zadat poptávku | |
| 030 0 WHR99714 |
C00594584
481244010848 |
Table top WH GW. | Na dotaz | Zadat poptávku | |
| 034 2 WHR99714 |
C00341034
481949268458 |
Držák přední stěny pračky | 39 Kč
€ 1.70 |
||
| 034 3 WHR99714 |
C00499595
481953268243 |
P#zdro prednej steny | Na dotaz | Zadat poptávku | |
| 040 0 WHR99714 |
C00339862
481941719232 |
zaves dveri pracky | 1 026 Kč
€ 45.10 |
||
| 053 0 WHR99714 |
C00555273
481244010887 |
Plinth | Na dotaz | Zadat poptávku | |
| 061 0 WHR99714 |
C00343090
481946689453 |
Counter weight ,top | Na dotaz | Zadat poptávku | |
| 061 1 WHR99714 |
C00343091
481946689454 |
Counter weight ,bottom | Na dotaz | Zadat poptávku | |
| 080 0 WHR99714 |
C00336126
481949268215 |
tlumic treci sestava | Na dotaz | Zadat poptávku | |
| 081 0 WHR99714 |
C00340703
481946648115 |
Friction plate | Na dotaz | Zadat poptávku | |
| 083 1 WHR99714 |
C00340704
481946238925 |
plech ke trecim dest | 357 Kč
€ 15.70 |
||
| 084 0 WHR99714 |
C00336288
481946248049 |
tlumic gumovy tl. | Na dotaz | Zadat poptávku | |
| 086 0 WHR99714 |
C00498986
481940118607 |
PRICHYTKA TLMICA TATRA N | Na dotaz | Zadat poptávku | |
| 110 0 WHR99714 |
C00318864
481249878299 |
ovladac dveri | 1 009 Kč
€ 44.40 |
||
| 130 0 WHR99714 |
C00555213
481241738019 |
nahradene 481941738117 | Na dotaz | Zadat poptávku | |
| 130 1 WHR99714 |
C00318868
481953538062 |
osa uzaveru dve | 471 Kč
€ 20.70 |
||
| 141 0 WHR99714 |
C00587382
481945069806 |
Sklo dvierok | Na dotaz | Zadat poptávku | |
| 143 0 WHR99714 |
C00485296
481245058811 |
Dvierka zostava WH | Na dotaz | Zadat poptávku | |
| 143 1 WHR99714 |
C00340312
481245948176 |
Rám dveřívnější | 880 Kč
€ 38.70 |
||
| 144 0 WHR99714 |
C00319328
481253228943 |
priruba dveri GW | 1 607 Kč
€ 70.60 |
||
| 144 1 WHR99714 |
C00337775
481946689077 |
Plate door frame | Na dotaz | Zadat poptávku | |
| 190 0 WHR99714 |
C00557569
481946818344 |
nahradene 481246668775 | Na dotaz | Zadat poptávku | |
| 190 1 WHR99714 |
C00335943
481949238119 |
spona TVO - vnitřní | 416 Kč
€ 18.30 |
||
| 190 2 WHR99714 |
C00335945
481949268515 |
spona TVO predni st. | Na dotaz | Zadat poptávku | |
| 200 0 WHR99714 |
C00494614
481941818371 |
nadrz | 3 424 Kč
€ 150.50 |
||
| 201 0 WHR99714 |
C00585391
481246448113 |
dno nadrze | 2 892 Kč
€ 127.10 |
||
| 201 1 WHR99714 |
C00336858
481953288052 |
obruc nadrze | Na dotaz | Zadat poptávku | |
| 201 2 WHR99714 |
C00558031
481246448114 |
nahradene 481246448113 | Na dotaz | Zadat poptávku | |
| 210 0 WHR99714 |
C00378120
481953578164 |
nosic bubnu | 1 796 Kč
€ 78.90 |
||
| 220 0 WHR99714 |
C00341198
481941818291 |
Drum | Na dotaz | Zadat poptávku | |
| 220 1 WHR99714 |
C00591497
481941818367 |
nahrada 4812 418 18624 | Na dotaz | Zadat poptávku | |
| 228 0 WHR99714 |
C00337799
481241818212 |
Podložka | 440 Kč
€ 19.30 |
||
| 271 0 WHR99714 |
C00375178
481935818115 |
remen klinovy 3L476 | 803 Kč
€ 35.30 |
||
| 272 0 WHR99714 |
C00378112
481952888119 |
remenice bubnu | Na dotaz | Zadat poptávku | |
| 292 0 WHR99714 |
C00320302
481946669797 |
Gasket | Na dotaz | Zadat poptávku | |
| 301 0 WHR99714 |
C00759105
481245212368 |
Control panel AWM 282 | Na dotaz | Zadat poptávku | |
| 331 0 WHR99714 |
C00373802
481241259008 |
Knob,timer WH GWWH GW | Na dotaz | Zadat poptávku | |
| 332 0 WHR99714 |
C00591638
481241029097 |
3ush button round GW. | Na dotaz | Zadat poptávku | |
| 335 0 WHR99714 |
C00594577
481241259007 |
Knob thermostat WH GW. | Na dotaz | Zadat poptávku | |
| 339 0 WHR99714 |
C00378075
481941328037 |
unasec knofliku | 437 Kč
€ 19.20 |
||
| 339 1 WHR99714 |
C00344646
481241318198 |
Adapter f. button | Na dotaz | Zadat poptávku | |
| 351 0 WHR99714 |
C00490309
481913448531 |
Signálka 0/1242-244 | 462 Kč
€ 20.30 |
||
| 401 0 WHR99714 |
C00594523
481936158276 |
motor 2/16 500 ot. | 5 594 Kč
€ 245.90 |
||
| 401 1 WHR99714 |
C00491466
481236248433 |
Puzdro motora awv 403 N | Na dotaz | Zadat poptávku | |
| 401 2 WHR99714 |
C00484771
481240468028 |
Gumene puzdro motora | Na dotaz | Zadat poptávku | |
| 420 0 WHR99714 |
C00484204
481912118314 |
kondenzator 16 mF | 735 Kč
€ 32.30 |
||
| 421 0 WHR99714 |
C00326769
481212118142 |
Interf.filter 1,00 uF1,00 uF. | Na dotaz | Zadat poptávku | |
| 430 0 WHR99714 |
C00314221
481936018189 |
Pump, draining | Na dotaz | Zadat poptávku | |
| 451 0 WHR99714 |
C00636114
481925928932 |
Topení pračky 2050 W | Na dotaz | Zadat poptávku | |
| 490 0 WHR99714 |
C00319798
481932118291 |
Cable UK | Na dotaz | Zadat poptávku | |
| 491 0 WHR99714 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 26.00 |
||
| 501 0 WHR99714 |
C00378035
481928218773 |
programator | 5 134 Kč
€ 225.70 |
||
| 551 3 WHR99714 |
C00503092
481228228251 |
Thermostat - 35/60#C - 9267603 | Na dotaz | Zadat poptávku | |
| 554 0 WHR99714 |
C00378020
481927129081 |
Termostat kapilární pračky Whirlpool 30-80 °C | 2 012 Kč
€ 88.40 |
||
| 573 0 WHR99714 |
C00481807
481928128236 |
ventil 3-cest. | 1 510 Kč
€ 66.40 |
||
| 583 0 WHR99714 |
C00492222
481927129082 |
presostat | 1 639 Kč
€ 72.00 |
||
| 620 0 WHR99714 |
C00494581
481941029125 |
spinac tlacitkovy | 460 Kč
€ 20.20 |
||
| 621 0 WHR99714 |
C00378066
481941029126 |
Spínač síťový universální pro pračky a myčky | 237 Kč
€ 10.40 |
||
| 630 0 WHR99714 |
C00320399
481927618416 |
blokovani dveri | 915 Kč
€ 40.20 |
||
| 701 0 WHR99714 |
C00557593
481953029034 |
Pr#vodov# hadica so sitkom | Na dotaz | Zadat poptávku | |
| 702 0 WHR99714 |
C00339270
481953028793 |
Hose insideinside | Na dotaz | Zadat poptávku | |
| 702 1 WHR99714 |
C00494705
481953028717 |
Hadica k ventilu S | Na dotaz | Zadat poptávku | |
| 708 1 WHR99714 |
C00341276
481953028868 |
Hadice násypka - nádrž pračky Whirlpool, Bauknecht, Ignis | 853 Kč
€ 37.50 |
||
| 711 0 WHR99714 |
C00500967
481941818369 |
NASYPKA 3 kom | Na dotaz | Zadat poptávku | |
| 712 0 WHR99714 |
C00481314
481241879682 |
zasuvka nasypky | 626 Kč
€ 27.50 |
||
| 718 0 WHR99714 |
C00492603
481952648551 |
Nahradene 481241878984 S | Na dotaz | Zadat poptávku | |
| 753 1 WHR99714 |
C00312723
481941868234 |
vzdusnik | 949 Kč
€ 41.70 |
||
| 754 0 WHR99714 |
C00499557
481952648255 |
hadica nadrz cerpadlo-TATRA GUM./TEX | Na dotaz | Zadat poptávku | |
| 781 0 WHR99714 |
C00315302
481953029035 |
Hadice výtoková | 302 Kč
€ 13.30 |
||
| 783 0 WHR99714 |
C00318250
481953029036 |
Hose pressostat | Na dotaz | Zadat poptávku | |
| 787 0 WHR99714 |
C00339383
481953028904 |
hadice vrapova | 378 Kč
€ 16.60 |
||
| 794 5 WHR99714 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 5.20 |
||
| 900 0 WHR99714 |
C00327120
481225518205 |
Držák presostatu pračky Whirlpool | 211 Kč
€ 9.30 |
||
| 901 0 WHR99714 |
C00309461
481940118529 |
Spona nádrž-čerpadlo | 199 Kč
€ 8.70 |
||
| 901 1 WHR99714 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 10.30 |
||
| 901 3 WHR99714 |
C00343407
481940118882 |
Spona násypka - nádr | 464 Kč
€ 20.40 |
||
| 901 6 WHR99714 |
C00343362
481940118436 |
Spona nádrž-čerpadlo | 263 Kč
€ 11.60 |
||
| 902 1 WHR99714 |
C00327119
481225518204 |
Vnější držák hadic pračky Whirlpool | 421 Kč
€ 18.50 |
||
| 910 6 WHR99714 |
C00336706
481950238005 |
sroub tlumice | 122 Kč
€ 5.40 |
||
| 912 2 WHR99714 |
C00336468
481931038685 |
SPOJOVACI MATERIÁL T | 343 Kč
€ 15.10 |
||
| 914 0 WHR99714 |
C00379244
481950518376 |
matice remenice | 167 Kč
€ 7.30 |
||
| 931 0 WHR99714 |
C00336064
481949238138 |
pruzina zavesna | 327 Kč
€ 14.40 |
||
| 932 0 WHR99714 |
C00317751
481949268666 |
Pružina uzávěru dveří | 420 Kč
€ 18.50 |
||
| 941 0 WHR99714 |
C00344369
481952018041 |
Bearing ball 6203-2Z | Na dotaz | Zadat poptávku | |
| 941 1 WHR99714 |
C00484481
481952018042 |
lozisko 6202 | Na dotaz | Zadat poptávku | |
| 951 0 WHR99714 |
C00378095
481946818343 |
Gufero 22x40x10 CC | Na dotaz | Zadat poptávku | |
| 952 0 WHR99714 |
C00340421
481946669882 |
tesneni termostatu | 405 Kč
€ 17.80 |
||
| 990 0 WHR99714 |
C00341619
481931039124 |
Spoj. mat. hor. prot | 456 Kč
€ 20.00 |
||
| 990 1 WHR99714 |
C00341620
481931038684 |
sada na zajištění | 887 Kč
€ 39.00 |
||
| 990 2 WHR99714 |
C00344679
481931039099 |
Accessories CROSSPIECE | Na dotaz | Zadat poptávku | |
