BAUKNECHT KVIC 2867 LH REFRIGERATORS BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KVIC 2867 LH REFRIGERATORS BK |
| Kód 12NC: | 855066316030 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

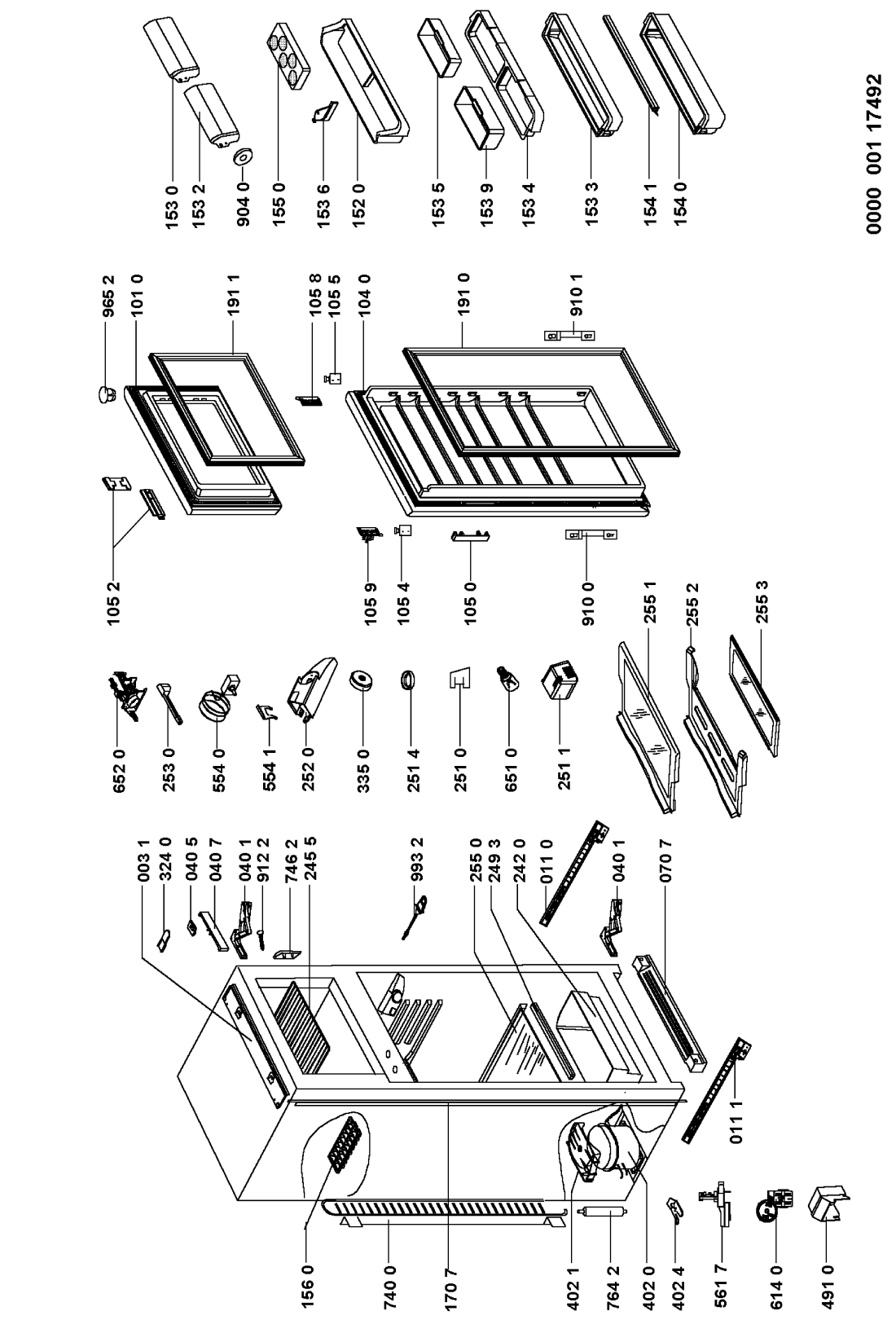

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR86374 |
C00553708
481246058311 |
FASTENER.. | Na dotaz | Zadat poptávku | |
| 011 0 WHR86374 |
C00319497
481246248064 |
noha vest.chladnicky | 554 Kč
€ 22.00 |
||
| 011 1 WHR86374 |
C00319499
481246248065 |
noha vest.chladnicky | 533 Kč
€ 21.10 |
||
| 040 1 WHR86374 |
C00555008
481231028061 |
ZAVES SPODNY | Na dotaz | Zadat poptávku | |
| 040 5 WHR86374 |
C00329177
481240478334 |
Spacer Decorplate | Na dotaz | Zadat poptávku | |
| 040 7 WHR86374 |
C00327816
481241848473 |
Záslepka | 278 Kč
€ 11.00 |
||
| 070 7 WHR86374 |
C00340263
481244088105 |
sokl | 220 Kč
€ 8.70 |
||
| 101 0 WHR86374 |
C00590818
481944268675 |
Door,freezer. | Na dotaz | Zadat poptávku | |
| 104 0 WHR86374 |
C00590819
481944268683 |
Door,refriger.. | Na dotaz | Zadat poptávku | |
| 105 0 WHR86374 |
C00497041
481244028839 |
COVER | Na dotaz | Zadat poptávku | |
| 105 2 WHR86374 |
C00315571
481931039838 |
posouvac-sada | Na dotaz | Zadat poptávku | |
| 105 4 WHR86374 |
C00332368
481252838057 |
Držák pravý | 427 Kč
€ 16.90 |
||
| 105 5 WHR86374 |
C00332367
481252838056 |
Držák levý | 1 202 Kč
€ 47.70 |
||
| 105 8 WHR86374 |
C00329033
481240448619 |
Držák pravý | 1 048 Kč
€ 41.60 |
||
| 105 9 WHR86374 |
C00329032
481240448618 |
Držák levý | 1 202 Kč
€ 47.70 |
||
| 152 0 WHR86374 |
C00557459
481941879617 |
Door,dairy upper.. | Na dotaz | Zadat poptávku | |
| 153 0 WHR86374 |
C00557518
481944278319 |
Door,flap right.. | Na dotaz | Zadat poptávku | |
| 153 2 WHR86374 |
C00557519
481944278321 |
Door,flap left.. | Na dotaz | Zadat poptávku | |
| 153 3 WHR86374 |
C00590544
481241848413 |
NAHRADA 481241848662 | Na dotaz | Zadat poptávku | |
| 153 4 WHR86374 |
C00318440
481241828136 |
Door,dairy | 1 349 Kč
€ 53.50 |
||
| 153 5 WHR86374 |
C00590512
481241828135 |
Door,dairy. | Na dotaz | Zadat poptávku | |
| 153 6 WHR86374 |
C00490729
481944278145 |
Separator | Na dotaz | Zadat poptávku | |
| 153 9 WHR86374 |
C00590511
481241828134 |
Door,dairy. | Na dotaz | Zadat poptávku | |
| 154 0 WHR86374 |
C00553532
481241848469 |
Bottle shelf WH.. | Na dotaz | Zadat poptávku | |
| 154 1 WHR86374 |
C00527881
481241848471 |
Bottle holder green green | Na dotaz | Zadat poptávku | |
| 155 0 WHR86374 |
C00329909
481241828013 |
Holder, eggs (6 pcs.) | Na dotaz | Zadat poptávku | |
| 156 0 WHR86374 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 170 7 WHR86374 |
C00557543
481946078572 |
TRIM.. | Na dotaz | Zadat poptávku | |
| 191 0 WHR86374 |
C00380262
481946818266 |
Magnetic seal refrigerator | Na dotaz | Zadat poptávku | |
| 191 1 WHR86374 |
C00384440
481946818259 |
Magnetic seal freezer | Na dotaz | Zadat poptávku | |
| 242 0 WHR86374 |
C00590800
481941879572 |
Crisper. | Na dotaz | Zadat poptávku | |
| 245 5 WHR86374 |
C00488258
481945868052 |
Grid | Na dotaz | Zadat poptávku | |
| 249 3 WHR86374 |
C00316803
481946089247 |
Trim | Na dotaz | Zadat poptávku | |
| 251 0 WHR86374 |
C00328840
481238028018 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR86374 |
C00316270
481244078294 |
stinidlo osvetleni | 849 Kč
€ 33.70 |
||
| 251 4 WHR86374 |
C00330117
481245828001 |
Gasket lamp holder | Na dotaz | Zadat poptávku | |
| 252 0 WHR86374 |
C00343909
481246279653 |
Cabinet lamp / thermos | Na dotaz | Zadat poptávku | |
| 253 0 WHR86374 |
C00344553
481253598053 |
ovladac spinace osv. | 34 Kč
€ 1.30 |
||
| 255 0 WHR86374 |
C00374284
481946678402 |
Krycí deska - sklo | 1 840 Kč
€ 73.00 |
||
| 255 1 WHR86374 |
C00553736
481246678364 |
Shelf plate glass 3.2.. | Na dotaz | Zadat poptávku | |
| 255 2 WHR86374 |
C00590560
481241879734 |
Shelf plate. | Na dotaz | Zadat poptávku | |
| 255 3 WHR86374 |
C00590561
481241879735 |
Shelf plate. | Na dotaz | Zadat poptávku | |
| 324 0 WHR86374 |
C00342500
481244028856 |
krytka | 89 Kč
€ 3.50 |
||
| 335 0 WHR86374 |
C00338427
481241358891 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR86374 |
C00320271
481236038651 |
Kompresor | 3 887 Kč
€ 154.20 |
||
| 402 1 WHR86374 |
C00319510
481241878958 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 402 4 WHR86374 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.80 |
||
| 491 0 WHR86374 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 0 WHR86374 |
C00311608
481927129054 |
Thermostat A13-0447-33 | Na dotaz | Zadat poptávku | |
| 554 1 WHR86374 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.70 |
||
| 561 7 WHR86374 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 614 0 WHR86374 |
C00317615
481969028198 |
Monoblock | Na dotaz | Zadat poptávku | |
| 651 0 WHR86374 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR86374 |
C00327118
481225518203 |
objimka zarovky | 930 Kč
€ 36.90 |
||
| 740 0 WHR86374 |
C00587457
481951148627 |
Condenser. | Na dotaz | Zadat poptávku | |
| 746 2 WHR86374 |
C00590577
481244028998 |
Support. | Na dotaz | Zadat poptávku | |
| 764 2 WHR86374 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 904 0 WHR86374 |
C00333158
481946818282 |
Podložka distanční | 351 Kč
€ 13.90 |
||
| 910 0 WHR86374 |
C00329031
481240448617 |
Držák pravý | 129 Kč
€ 5.10 |
||
| 910 1 WHR86374 |
C00329034
481240448622 |
Držák levý | 226 Kč
€ 9.00 |
||
| 912 2 WHR86374 |
C00345735
481250218392 |
Screw M5 X 16 | Na dotaz | Zadat poptávku | |
| 965 2 WHR86374 |
C00336009
481946248186 |
Stopper | Na dotaz | Zadat poptávku | |
| 993 2 WHR86374 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 155 Kč
€ 6.10 |
||
| 993 9 WHR86374 |
C00490365
481931039403 |
Door revers.Kit (n.shown) | Na dotaz | Zadat poptávku | |
| 999 WHR86374 |
C00723903 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
