BAUKNECHT TRK5970 TUMBLE DRYER BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | TRK5970 TUMBLE DRYER BK |
| Kód 12NC: | 856059712000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Sušičky |
| Další podobné modely: | 856059717010, 856059716000, 856059720000, 856059729000 |
Potřebujete servis? Jsme tady pro Vás

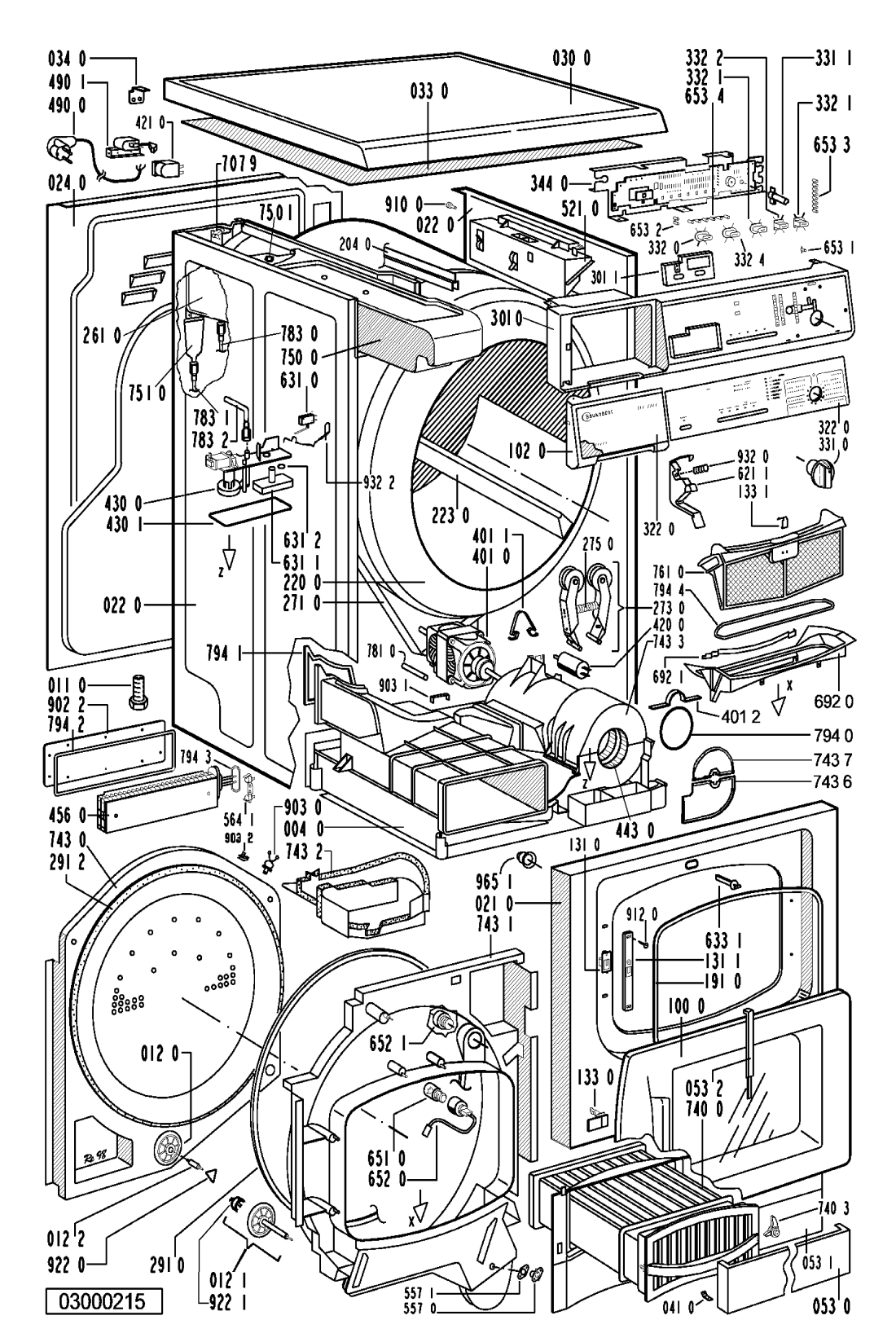

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR64149 |
C00344303
481244019471 |
Bottom | Na dotaz | Zadat poptávku | |
| 011 0 WHR64149 |
C00312250
481250018054 |
Nastavitelná noha sušičky Whirlpool AZA 799, DDLX 70112, FFT M11 8X3B BE. | 59 Kč
€ 2.60 |
||
| 012 0 WHR64149 |
C00311093
481252878033 |
kolecko bubnu | 1 271 Kč
€ 55.90 |
||
| 012 1 WHR64149 |
C00311104
481252898003 |
Kolečko bubnu | 1 383 Kč
€ 60.80 |
||
| 012 2 WHR64149 |
C00316679
481252028068 |
osa kolecka zadniho | 381 Kč
€ 16.70 |
||
| 021 0 WHR64149 |
C00340678
481244018924 |
Front | Na dotaz | Zadat poptávku | |
| 022 0 WHR64149 |
C00341500
481244019445 |
Panel side | Na dotaz | Zadat poptávku | |
| 024 0 WHR64149 |
C00341540
481244019467 |
Panel rear from 98/34 | Na dotaz | Zadat poptávku | |
| 024 0 WHR64149 |
C00497931
481244019441 |
STENA ZADNA DO33/98 AWZ121 N | Na dotaz | Zadat poptávku | |
| 030 0 WHR64149 |
C00335652
481244019446 |
TABLE TOP | Na dotaz | Zadat poptávku | |
| 033 0 WHR64149 |
C00337800
481244018568 |
Plate | Na dotaz | Zadat poptávku | |
| 034 0 WHR64149 |
C00340984
481241778015 |
Fastener Tabletop | Na dotaz | Zadat poptávku | |
| 041 0 WHR64149 |
C00497777
481241718812 |
drzak soklu | Na dotaz | Zadat poptávku | |
| 053 0 WHR64149 |
C00337674
481244019336 |
sokl susicky kovovy | 26 103 Kč
€ 1,147.40 |
||
| 053 1 WHR64149 |
C00337721
481244019443 |
sokl susicky plast | 1 377 Kč
€ 60.50 |
||
| 053 2 WHR64149 |
C00338395
481241728042 |
Lever,fastener plinth | Na dotaz | Zadat poptávku | |
| 100 0 WHR64149 |
C00342129
481244019452 |
Door | Na dotaz | Zadat poptávku | |
| 102 0 WHR64149 |
C00339302
481245219522 |
Door flap | Na dotaz | Zadat poptávku | |
| 131 0 WHR64149 |
C00317473
481227138362 |
Door lock | Na dotaz | Zadat poptávku | |
| 131 1 WHR64149 |
C00342436
481241718797 |
Cover plate | Na dotaz | Zadat poptávku | |
| 133 0 WHR64149 |
C00341450
481241728054 |
Pin door | Na dotaz | Zadat poptávku | |
| 133 1 WHR64149 |
C00338336
481241728056 |
Lock Bag filter | Na dotaz | Zadat poptávku | |
| 191 0 WHR64149 |
C00498454
481246668461 |
tesneni dveri | 637 Kč
€ 28.00 |
||
| 204 0 WHR64149 |
C00337108
481246638014 |
OCHRANA AWZ565 | 431 Kč
€ 18.90 |
||
| 220 0 WHR64149 |
C00311837
481241818177 |
Buben sušičky | 4 185 Kč
€ 184.00 |
||
| 223 0 WHR64149 |
C00341180
481241888017 |
Drum lifter | Na dotaz | Zadat poptávku | |
| 261 0 WHR64149 |
C00342779
481241878952 |
Case | Na dotaz | Zadat poptávku | |
| 271 0 WHR64149 |
C00312959
481235818156 |
Řemen sušičky 1951 H7 | 143 Kč
€ 6.30 |
||
| 273 0 WHR64149 |
C00311000
481235818055 |
kladka napinaci | 1 126 Kč
€ 49.50 |
||
| 275 0 WHR64149 |
C00345784
481249268129 |
pruzina napin. kladk | Na dotaz | Zadat poptávku | |
| 291 0 WHR64149 |
C00313025
481246668561 |
tesneni bubnu predni | 1 262 Kč
€ 55.50 |
||
| 291 2 WHR64149 |
C00315965
481246668562 |
Gasket Drum rear | Na dotaz | Zadat poptávku | |
| 301 0 WHR64149 |
C00343247
481245219381 |
Control panel cpl | Na dotaz | Zadat poptávku | |
| 301 1 WHR64149 |
C00498146
481245219367 |
Frame | Na dotaz | Zadat poptávku | |
| 322 0 WHR64149 |
C00592343
481245219934 |
Insert panel TRK 5970. | Na dotaz | Zadat poptávku | |
| 331 0 WHR64149 |
C00338580
481241348222 |
Knob | Na dotaz | Zadat poptávku | |
| 331 1 WHR64149 |
C00344652
481241348239 |
Adapter | Na dotaz | Zadat poptávku | |
| 332 0 WHR64149 |
C00343985
481227618259 |
Button start | Na dotaz | Zadat poptávku | |
| 332 1 WHR64149 |
C00344051
481227618262 |
TLACITKO | 145 Kč
€ 6.40 |
||
| 332 2 WHR64149 |
C00344052
481227618263 |
Button | Na dotaz | Zadat poptávku | |
| 332 4 WHR64149 |
C00482536
481227618261 |
Button | Na dotaz | Zadat poptávku | |
| 344 0 WHR64149 |
C00342151
481221478182 |
Display board high | Na dotaz | Zadat poptávku | |
| 401 0 WHR64149 |
C00497525
481236118188 |
MOTOR AWZ565 N | Na dotaz | Zadat poptávku | |
| 401 1 WHR64149 |
C00315365
481240118421 |
spona motoru | 248 Kč
€ 10.90 |
||
| 401 2 WHR64149 |
C00343344
481240118229 |
SPOJKA | 317 Kč
€ 13.90 |
||
| 420 0 WHR64149 |
C00311778
481212118144 |
Kondenzator 10mF | 349 Kč
€ 15.30 |
||
| 421 0 WHR64149 |
C00313712
481212118161 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 430 0 WHR64149 |
C00313737
481236018377 |
PUMP CONDENSEWATER | Na dotaz | Zadat poptávku | |
| 430 1 WHR64149 |
C00340581
481246628104 |
tesneni | 189 Kč
€ 8.30 |
||
| 443 0 WHR64149 |
C00497526
481236118189 |
VRTULKA VENTIL?TORA AWZ470 **plastN | Na dotaz | Zadat poptávku | |
| 456 0 WHR64149 |
C00316129
481225928678 |
HEATING ELEMENT 2200 W | Na dotaz | Zadat poptávku | |
| 490 0 WHR64149 |
C00319506
481232118043 |
Connect.cable 5m | Na dotaz | Zadat poptávku | |
| 490 0 WHR64149 |
C00316354
481232118042 |
Connect.cable 3m | Na dotaz | Zadat poptávku | |
| 490 1 WHR64149 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 26.00 |
||
| 521 0 WHR64149 |
C00342650
481221478338 |
Control board TRK | Na dotaz | Zadat poptávku | |
| 557 0 WHR64149 |
C00335526
481227128209 |
Termostat sušičky Whirlpool, Bauknecht 145 °C | 691 Kč
€ 30.40 |
||
| 557 1 WHR64149 |
C00340582
481253058069 |
Gasket | Na dotaz | Zadat poptávku | |
| 564 1 WHR64149 |
C00313080
481225928681 |
Sestava termostatů sušičky prádla Whirlpool, Bauknecht | 793 Kč
€ 34.90 |
||
| 621 1 WHR64149 |
C00335733
481227018001 |
Switch lever Doorswitch | Na dotaz | Zadat poptávku | |
| 631 0 WHR64149 |
C00338100
481227138076 |
Microswitch | Na dotaz | Zadat poptávku | |
| 631 1 WHR64149 |
C00318395
481236018374 |
plovak | 693 Kč
€ 30.50 |
||
| 631 2 WHR64149 |
C00315269
481236058093 |
tesneni | Na dotaz | Zadat poptávku | |
| 633 1 WHR64149 |
C00316629
481227618271 |
kolik | Na dotaz | Zadat poptávku | |
| 651 0 WHR64149 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR64149 |
C00341824
481213428056 |
Osvětlení komplet | 1 050 Kč
€ 46.20 |
||
| 652 1 WHR64149 |
C00342519
481213428055 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 653 1 WHR64149 |
C00338348
481213448213 |
Light guide on/off | Na dotaz | Zadat poptávku | |
| 653 2 WHR64149 |
C00497248
481213448209 |
Light guide | Na dotaz | Zadat poptávku | |
| 653 3 WHR64149 |
C00497249
481213448211 |
Light guide vertical | Na dotaz | Zadat poptávku | |
| 653 4 WHR64149 |
C00497250
481213448212 |
Light guide horizontal | Na dotaz | Zadat poptávku | |
| 692 0 WHR64149 |
C00340755
481248058079 |
filtr sušičky | 1 092 Kč
€ 48.00 |
||
| 692 1 WHR64149 |
C00311657
481227858001 |
senzor vlhkosti | 1 134 Kč
€ 49.80 |
||
| 707 9 WHR64149 |
C00337380
481253048165 |
TRUBKA AWZ565 | 581 Kč
€ 25.50 |
||
| 740 0 WHR64149 |
C00339965
481251148202 |
kondenzator | 3 771 Kč
€ 165.80 |
||
| 740 3 WHR64149 |
C00339997
481252518002 |
Handle looking | Na dotaz | Zadat poptávku | |
| 743 0 WHR64149 |
C00343140
481253048155 |
Conveyor | Na dotaz | Zadat poptávku | |
| 743 1 WHR64149 |
C00344580
481231018442 |
Air guide Kit with holKit with hole | Na dotaz | Zadat poptávku | |
| 743 2 WHR64149 |
C00498634
481253048126 |
Cover bar | Na dotaz | Zadat poptávku | |
| 743 3 WHR64149 |
C00341064
481246448092 |
Fan box | Na dotaz | Zadat poptávku | |
| 743 6 WHR64149 |
C00336504
481253048158 |
SEPARATOR LOWER | Na dotaz | Zadat poptávku | |
| 743 7 WHR64149 |
C00498637
481253048204 |
SEPARATOR UPPER upper | Na dotaz | Zadat poptávku | |
| 750 0 WHR64149 |
C00335602
481241878951 |
Tank Condenswater | Na dotaz | Zadat poptávku | |
| 750 1 WHR64149 |
C00337202
481253028856 |
Water guide | Na dotaz | Zadat poptávku | |
| 751 0 WHR64149 |
C00337222
481253048166 |
SPOJKA AWZ565 | 1 914 Kč
€ 84.10 |
||
| 761 0 WHR64149 |
C00320129
481248058081 |
Filter Bag | Na dotaz | Zadat poptávku | |
| 781 0 WHR64149 |
C00341125
481253028243 |
Hadice výtoková - sušička 1,5m | 308 Kč
€ 13.50 |
||
| 783 0 WHR64149 |
C00339391
481253028854 |
Hose bottom-inflow | Na dotaz | Zadat poptávku | |
| 783 1 WHR64149 |
C00339255
481253028855 |
Hose reflow | Na dotaz | Zadat poptávku | |
| 783 2 WHR64149 |
C00339259
481253028853 |
Hose pump-bottom | Na dotaz | Zadat poptávku | |
| 794 0 WHR64149 |
C00498447
481246628109 |
"""KRUZOK """"O"""" AWZ565 | Na dotaz | Zadat poptávku | |
| 794 1 WHR64149 |
C00373766
481246628103 |
Gasket heater channel | Na dotaz | Zadat poptávku | |
| 794 2 WHR64149 |
C00336536
481246698935 |
Sealing Heater holder | Na dotaz | Zadat poptávku | |
| 794 3 WHR64149 |
C00320041
481246698937 |
Sealing | Na dotaz | Zadat poptávku | |
| 794 4 WHR64149 |
C00340495
481246668547 |
tesneni | 784 Kč
€ 34.50 |
||
| 902 2 WHR64149 |
C00339599
481225638004 |
Holder heater | Na dotaz | Zadat poptávku | |
| 903 0 WHR64149 |
C00332660
481253228028 |
SPONA PLASTOVA | 227 Kč
€ 10.00 |
||
| 903 1 WHR64149 |
C00497549
481240118228 |
Fastener. | Na dotaz | Zadat poptávku | |
| 903 2 WHR64149 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 910 0 WHR64149 |
C00336554
481250238057 |
Screw Torx 4,2x13 | Na dotaz | Zadat poptávku | |
| 912 0 WHR64149 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 6.20 |
||
| 922 0 WHR64149 |
C00311927
481253258005 |
pojistka kolecka sus | Na dotaz | Zadat poptávku | |
| 922 1 WHR64149 |
C00320733
481253258007 |
pojistka kolecka sus | 275 Kč
€ 12.10 |
||
| 932 0 WHR64149 |
C00497339
481227818001 |
Spring | Na dotaz | Zadat poptávku | |
| 932 2 WHR64149 |
C00335668
481931039726 |
SPONA PRUZNA AWZ | 665 Kč
€ 29.20 |
||
| 965 1 WHR64149 |
C00342821
481246279651 |
Cap Frosty | Na dotaz | Zadat poptávku | |
