| Komerční kód: | AGS777/WP convection oven top control |
| Kód 12NC: | 856377701000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás

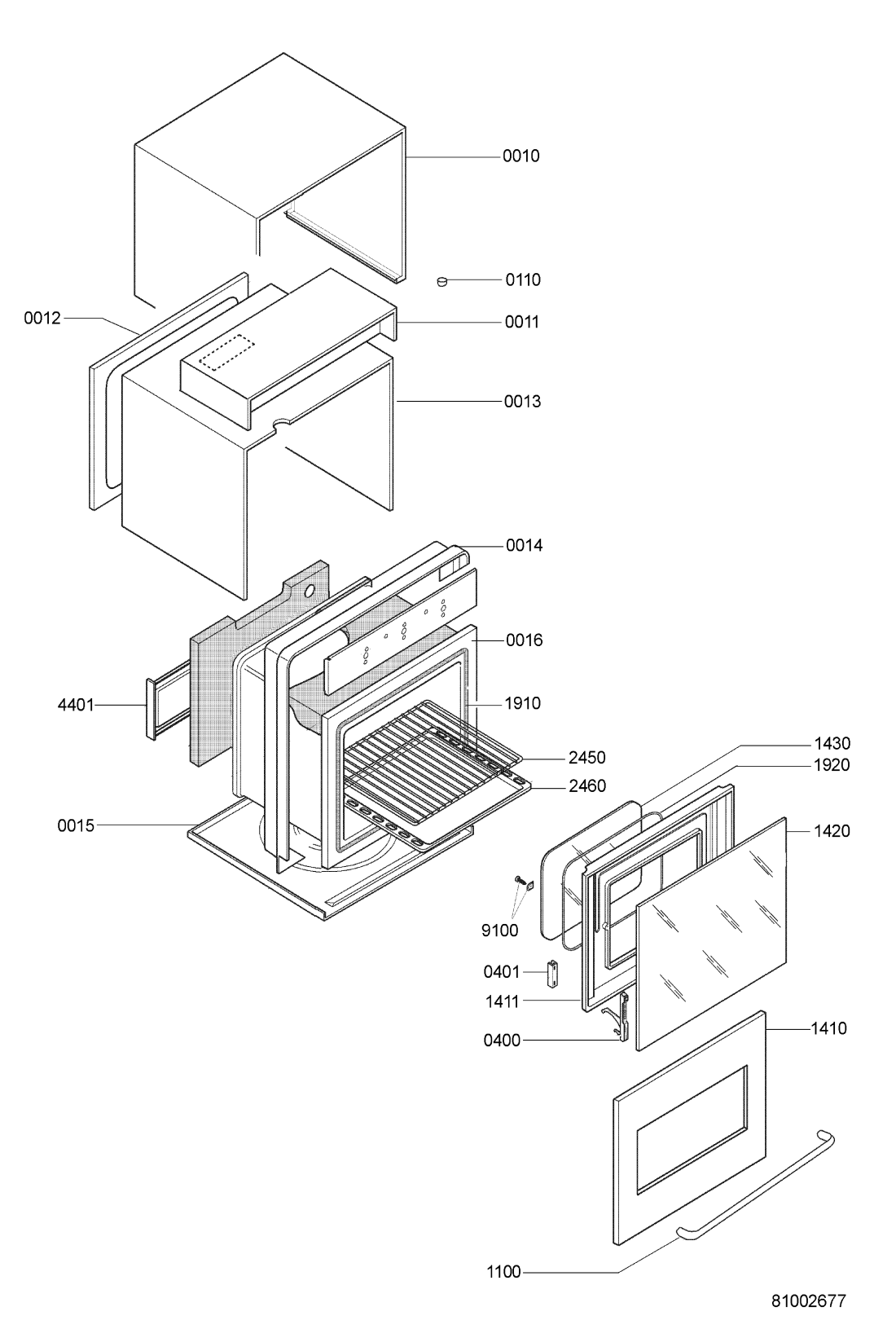

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR74548 |
C00592999
483286001462 |
Casing | Na dotaz | Zadat poptávku | |
| 001 1 WHR74548 |
C00593000
483286001463 |
Panel | Na dotaz | Zadat poptávku | |
| 001 2 WHR74548 |
C00592968
483286001294 |
Rear panel | Na dotaz | Zadat poptávku | |
| 001 3 WHR74548 |
C00592969
483286001295 |
Oven inner frame | Na dotaz | Zadat poptávku | |
| 001 4 WHR74548 |
C00593001
483286001464 |
Frame | Na dotaz | Zadat poptávku | |
| 001 5 WHR74548 |
C00592972
483286001298 |
Panel bottom | Na dotaz | Zadat poptávku | |
| 001 6 WHR74548 |
C00592973
483286001299 |
Frame | Na dotaz | Zadat poptávku | |
| 011 0 WHR74548 |
C00592966
483286001292 |
Foot | Na dotaz | Zadat poptávku | |
| 040 0 WHR74548 |
C00496580
483286001312 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 1 WHR74548 |
C00592982
483286001311 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 110 0 WHR74548 |
C00592984
483286001314 |
Handle | Na dotaz | Zadat poptávku | |
| 141 0 WHR74548 |
C00592983
483286001313 |
Oven door front panel IX | Na dotaz | Zadat poptávku | |
| 141 1 WHR74548 |
C00610520
483286001307 |
Oven door frame | Na dotaz | Zadat poptávku | |
| 142 0 WHR74548 |
C00592980
483286001308 |
rám dveří | 9 360 Kč
€ 411.40 |
||
| 143 0 WHR74548 |
C00592978
483286001305 |
Door glass inner | Na dotaz | Zadat poptávku | |
| 191 0 WHR74548 |
C00592974
483286001301 |
Gasket outer | Na dotaz | Zadat poptávku | |
| 192 0 WHR74548 |
C00592979
483286001306 |
Oven door gasket | Na dotaz | Zadat poptávku | |
| 201 0 WHR74548 |
C00592995
483286001326 |
Deflector | Na dotaz | Zadat poptávku | |
| 245 0 WHR74548 |
C00592975
483286001302 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR74548 |
C00592976
483286001303 |
Baking tray | Na dotaz | Zadat poptávku | |
| 301 0 WHR74548 |
C00593002
483286001465 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR74548 |
C00592986
483286001316 |
Knob | Na dotaz | Zadat poptávku | |
| 354 0 WHR74548 |
C00592987
483286001317 |
Lamp red | Na dotaz | Zadat poptávku | |
| 354 1 WHR74548 |
C00592989
483286001319 |
Lamp orange | Na dotaz | Zadat poptávku | |
| 440 0 WHR74548 |
C00496084
483286001327 |
Motor complete | Na dotaz | Zadat poptávku | |
| 440 1 WHR74548 |
C00592971
483286001297 |
Support fan motor | Na dotaz | Zadat poptávku | |
| 452 0 WHR74548 |
C00592991
483286001322 |
Heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR74548 |
C00592993
483286001324 |
Heating element | Na dotaz | Zadat poptávku | |
| 490 0 WHR74548 |
C00592997
483286001329 |
Cable | Na dotaz | Zadat poptávku | |
| 491 0 WHR74548 |
C00592996
483286001328 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 503 0 WHR74548 |
C00422667
483286010323 |
Timer - | Na dotaz | Zadat poptávku | |
| 503 0 WHR74548 |
C00592992
483286001323 |
Timer | Na dotaz | Zadat poptávku | |
| 554 0 WHR74548 |
C00592988
483286001318 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 554 1 WHR74548 |
C00592990
483286001321 |
Thermostat safety | Na dotaz | Zadat poptávku | |
| 620 0 WHR74548 |
C00592985
483286001315 |
Switch oven | Na dotaz | Zadat poptávku | |
| 651 0 WHR74548 |
C00592998
483286001331 |
Oven Lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR74548 |
C00610521
483286001332 |
Holder oven lamp | Na dotaz | Zadat poptávku | |
| 762 0 WHR74548 |
C00592994
483286001325 |
Filter | Na dotaz | Zadat poptávku | |
| 910 0 WHR74548 |
C00592981
483286001309 |
Screw | Na dotaz | Zadat poptávku | |
