WHIRLPOOL WTH5410 NFW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WTH5410 NFW |
| Kód 12NC: | 850143811100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850143811101 |
Potřebujete servis? Jsme tady pro Vás

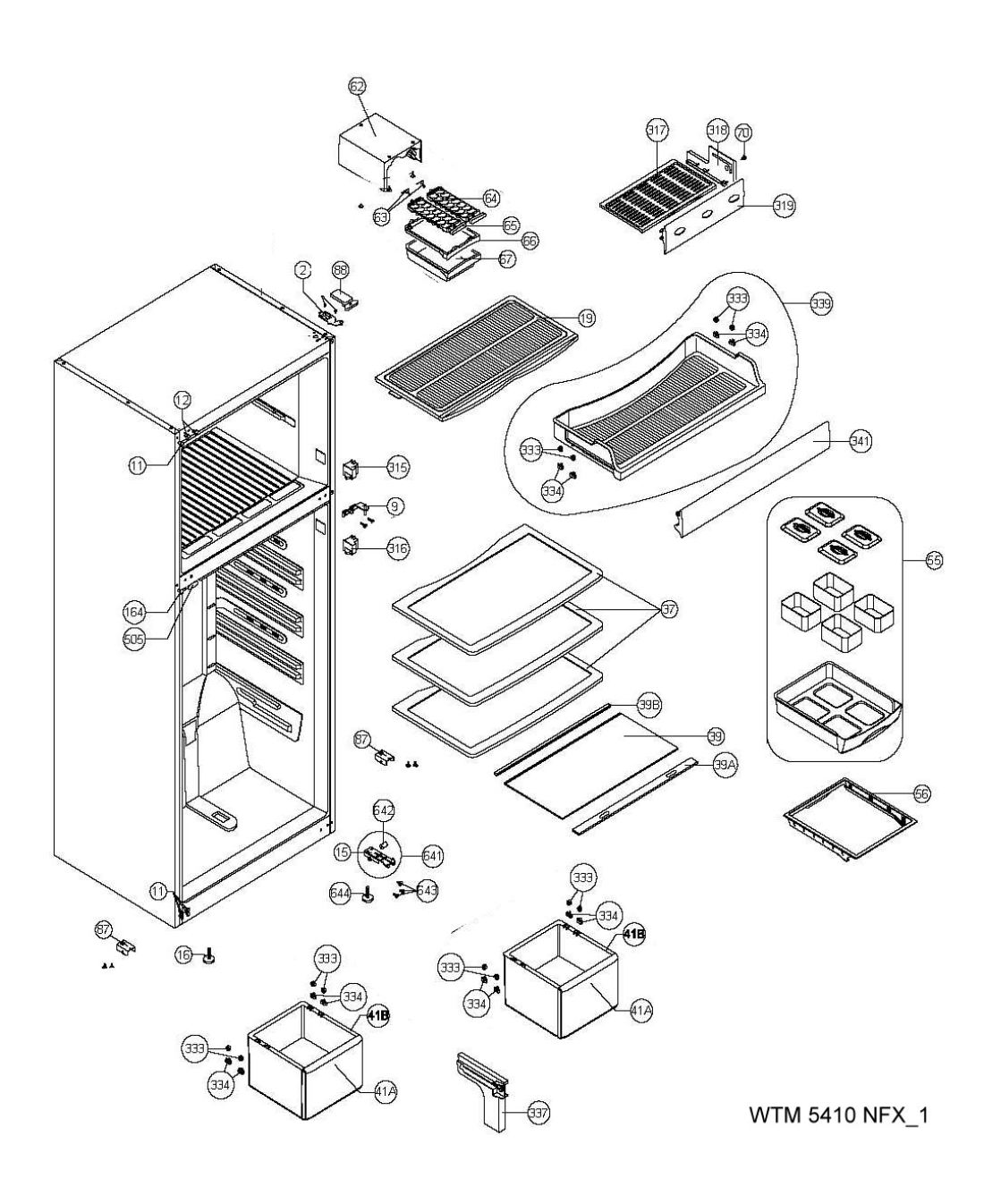

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 WHR17456 |
C00410595
482000007554 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 009 WHR17456 |
C00344983
482000007555 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 011 WHR17456 |
C00394348
480132102462 |
Cap | Na dotaz | Zadat poptávku | |
| 012 WHR17456 |
C00393745
480131100429 |
Cap | Na dotaz | Zadat poptávku | |
| 015 WHR17456 |
C00411841
482000010023 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 016 WHR17456 |
C00410596
482000007556 |
Foot fix | Na dotaz | Zadat poptávku | |
| 019 WHR17456 |
C00280314
481241829875 |
DVEŘNÍ PŘIHRÁDKA FREEZER | Na dotaz | Zadat poptávku | |
| 022 WHR17456 |
C00335149
482213488089 |
Lamp COOKING T22 E14 15W F I G UK ND SP | Na dotaz | Zadat poptávku | |
| 030 WHR17456 |
C00345723
481249468049 |
Spring knob thermostat | Na dotaz | Zadat poptávku | |
| 037 WHR17456 |
C00394222
480132102176 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 039 WHR17456 |
C00403859
481245088455 |
Cover plate crisper | Na dotaz | Zadat poptávku | |
| 041 WHR17456 |
C00280342
481241829874 |
SCHRÁNKA NA ZELENINU | Na dotaz | Zadat poptávku | |
| 062 WHR17456 |
C00344990
482000010024 |
Cover | Na dotaz | Zadat poptávku | |
| 063 WHR17456 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
| 064 WHR17456 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
| 065 WHR17456 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
| 066 WHR17456 |
C00345003
480132102186 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
| 067 WHR17456 |
C00345069
480132102184 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 087 WHR17456 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
| 088 WHR17456 |
C00413956
482000014056 |
Cover hinge top | Na dotaz | Zadat poptávku | |
| 103 WHR17456 |
C00281792
480132102201 |
Gasket tapes | Na dotaz | Zadat poptávku | |
| 107 WHR17456 |
C00327556
481228238245 |
Thermostat | Na dotaz | Zadat poptávku | |
| 151 WHR17456 |
C00312732
481244688154 |
Bushing | Na dotaz | Zadat poptávku | |
| 152 WHR17456 |
C00393729
480131100406 |
Cap | Na dotaz | Zadat poptávku | |
| 153 WHR17456 |
C00413957
482000014057 |
Door freezer assy | Na dotaz | Zadat poptávku | |
| 154 WHR17456 |
C00411878
482000010081 |
Nameplate Whirlpool | Na dotaz | Zadat poptávku | |
| 155 WHR17456 |
C00413958
482000014058 |
Door refriger. assy | Na dotaz | Zadat poptávku | |
| 158 WHR17456 |
C00285214
482000014059 |
DVÍŘKA VAJÍČKA | Na dotaz | Zadat poptávku | |
| 159 WHR17456 |
C00513806
482000014060 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 164 WHR17456 |
C00345186
482000007773 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 164B WHR17456 |
C00411884
482000010088 |
Cap white | Na dotaz | Zadat poptávku | |
| 171 WHR17456 |
C00393958
480132100252 |
Catcher right | Na dotaz | Zadat poptávku | |
| 174 WHR17456 |
C00408106
482000002937 |
Stop door | Na dotaz | Zadat poptávku | |
| 175 WHR17456 |
C00285217
480132103346 |
DVEŘNÍ PŘIHRÁDKA 640 | Na dotaz | Zadat poptávku | |
| 175 WHR17456 |
C00413959
482000014061 |
Shelf butter | Na dotaz | Zadat poptávku | |
| 176 WHR17456 |
C00285219
482000014062 |
PROFIL ZARÁŽKA LAHVÍ | Na dotaz | Zadat poptávku | |
| 177 WHR17456 |
C00413960
482000014063 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 188 WHR17456 |
C00285218
482000014064 |
DVEŘNÍ PŘIHRÁDKA-LÁHVE | Na dotaz | Zadat poptávku | |
| 189 WHR17456 |
C00411874
482000010077 |
Bushing | Na dotaz | Zadat poptávku | |
| 201 WHR17456 |
C00306411
482000014065 |
HLAVNÍ CONDANSER | Na dotaz | Zadat poptávku | |
| 202 WHR17456 |
C00405046
481246488055 |
Trim condenser | Na dotaz | Zadat poptávku | |
| 203 WHR17456 |
C00281791
480131100426 |
Spacer | Na dotaz | Zadat poptávku | |
| 204 WHR17456 |
C00329057
481240448969 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 207 WHR17456 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 210 WHR17456 |
C00410602
482000007564 |
Cable mains 2.1 m | Na dotaz | Zadat poptávku | |
| 211 WHR17456 |
C00400379
481221470238 |
Relay, Overload prot. Comp.NBU1118Y | Na dotaz | Zadat poptávku | |
| 212 WHR17456 |
C00407422
482000001629 |
Capacitor | Na dotaz | Zadat poptávku | |
| 214 WHR17456 |
C00410615
482000007585 |
Cup thaw water | Na dotaz | Zadat poptávku | |
| 215 WHR17456 |
C00269997
480132103356 |
Dryer | Na dotaz | Zadat poptávku | |
| 216 WHR17456 |
C00513218
482000007565 |
Holder | Na dotaz | Zadat poptávku | |
| 217 WHR17456 |
C00401410
481236039064 |
Compressor NBU 1118 Y 4MF | Na dotaz | Zadat poptávku | |
| 218 WHR17456 |
C00280285
481246448229 |
TRAVERZA KOMPRESORU CELEK | Na dotaz | Zadat poptávku | |
| 225 WHR17456 |
C00287942
480132103191 |
Tube LOKRING (105*6*0,7)TYPE B | Na dotaz | Zadat poptávku | |
| 226 WHR17456 |
C00306237
480132103192 |
Tube | Na dotaz | Zadat poptávku | |
| 227 WHR17456 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 228 WHR17456 |
C00280300
480132101057 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 237 WHR17456 |
C00318914
481228210311 |
Timer Defrost | Na dotaz | Zadat poptávku | |
| 238 WHR17456 |
C00345077
482000001728 |
Cover plate | Na dotaz | Zadat poptávku | |
| 314 WHR17456 |
C00285193
480132102179 |
ZÁTKA | Na dotaz | Zadat poptávku | |
| 315 WHR17456 |
C00345050
480132102174 |
Switch door freezer | Na dotaz | Zadat poptávku | |
| 316 WHR17456 |
C00345094
480132102175 |
Switch door refrigerator | Na dotaz | Zadat poptávku | |
| 317 WHR17456 |
C00280313
481241829876 |
DVEŘNÍ PŘIHRÁDKA SUPER FREEZER | Na dotaz | Zadat poptávku | |
| 318 WHR17456 |
C00345088
482000007566 |
Partition | Na dotaz | Zadat poptávku | |
| 319 WHR17456 |
C00411846
482000010029 |
Cover | Na dotaz | Zadat poptávku | |
| 326 WHR17456 |
C00405258
481248058396 |
Filter | Na dotaz | Zadat poptávku | |
| 327 WHR17456 |
C00281775
480132102183 |
FILTR HOLDER | Na dotaz | Zadat poptávku | |
| 333 WHR17456 |
C00281750
480132102192 |
KOLEČKO DRAWER CHILLER | Na dotaz | Zadat poptávku | |
| 334 WHR17456 |
C00281752
480132102193 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 337 WHR17456 |
C00281780
480132102189 |
ODDĚLOVAČ PROSTOR BÍLÝ | Na dotaz | Zadat poptávku | |
| 339 WHR17456 |
C00280317
480132101061 |
Shelf | Na dotaz | Zadat poptávku | |
| 341 WHR17456 |
C00407421
482000001628 |
Flap front | Na dotaz | Zadat poptávku | |
| 342 WHR17456 |
C00281790
482000003306 |
OBJÍMKA SCHRÁNKA NA ZELENINU | Na dotaz | Zadat poptávku | |
| 401 WHR17456 |
C00306238
481251138362 |
FIN EVAPORATOR | Na dotaz | Zadat poptávku | |
| 402 WHR17456 |
C00344996
481211528015 |
Resistor | Na dotaz | Zadat poptávku | |
| 408 WHR17456 |
C00281735
480132102205 |
ODVADĚČ VZDUCHU ÚPLNÝ | Na dotaz | Zadat poptávku | |
| 409 WHR17456 |
C00280291
481228678014 |
VRTULE | Na dotaz | Zadat poptávku | |
| 410 WHR17456 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
| 411 WHR17456 |
C00402053
481240449773 |
Absorber | Na dotaz | Zadat poptávku | |
| 412 WHR17456 |
C00329027
481240438802 |
Support motor | Na dotaz | Zadat poptávku | |
| 413 WHR17456 |
C00280290
481236158485 |
VENTILÁTOR S MOTOREM | Na dotaz | Zadat poptávku | |
| 414 WHR17456 |
C00330795
481246368033 |
Damper | Na dotaz | Zadat poptávku | |
| 415 WHR17456 |
C00281772
480132102206 |
SPODEK MRAZÁKU | Na dotaz | Zadat poptávku | |
| 419 WHR17456 |
C00280305
481244079278 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 421 WHR17456 |
C00281747
480132102203 |
KRABICE TERMOSTAT | Na dotaz | Zadat poptávku | |
| 422 WHR17456 |
C00411999
482000010375 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 424 WHR17456 |
C00281773
480132102204 |
Air guide | Na dotaz | Zadat poptávku | |
| 425 WHR17456 |
C00394226
480132102188 |
Dumper | Na dotaz | Zadat poptávku | |
| 426 WHR17456 |
C00330970
481246668935 |
Damper Thermostat | Na dotaz | Zadat poptávku | |
| 431 WHR17456 |
C00412000
482000010376 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 432 WHR17456 |
C00280309
481246228887 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 443 WHR17456 |
C00405131
481246688958 |
Insulation | Na dotaz | Zadat poptávku | |
| 444 WHR17456 |
C00402155
481240478857 |
Cover | Na dotaz | Zadat poptávku | |
| 445 WHR17456 |
C00306365
481244079281 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 446 WHR17456 |
C00306366
481244079282 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 447 WHR17456 |
C00306361
481244079283 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 448 WHR17456 |
C00281782
480132102187 |
MULTIFLOW CENTRALNI | Na dotaz | Zadat poptávku | |
| 449 WHR17456 |
C00345179
480131100432 |
Cap | Na dotaz | Zadat poptávku | |
| 459 WHR17456 |
C00281738
482000003303 |
TĚSNĚNÍ DVEŘÍ FREEZER | Na dotaz | Zadat poptávku | |
| 460 WHR17456 |
C00281742
482000003304 |
TĚSNĚNÍ DVEŘÍ | Na dotaz | Zadat poptávku | |
| 466 WHR17456 |
C00281783
480132102195 |
MULTIFLOW PRAVY | Na dotaz | Zadat poptávku | |
| 467 WHR17456 |
C00281784
480132102194 |
MULTIFLOW LEVY | Na dotaz | Zadat poptávku | |
| 468 WHR17456 |
C00281785
480132102196 |
MULTIFLOW PŘÍČNÝCH | Na dotaz | Zadat poptávku | |
| 499 WHR17456 |
C00345029
482000001630 |
Thermal fuse | Na dotaz | Zadat poptávku | |
| 505 WHR17456 |
C00345169
480132102463 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
| 533 WHR17456 |
C00318912
481225928966 |
Heating element | Na dotaz | Zadat poptávku | |
| 641 WHR17456 |
C00408110
482000002941 |
Hinge lower (with wheel) | Na dotaz | Zadat poptávku | |
| 642 WHR17456 |
C00411852
482000010035 |
Wheel | Na dotaz | Zadat poptávku | |
| 644 WHR17456 |
C00411875
482000010078 |
Foot fix | Na dotaz | Zadat poptávku | |
| 695 WHR17456 |
C00413961
482000014066 |
Cover left | Na dotaz | Zadat poptávku | |
| 696 WHR17456 |
C00413962
482000014067 |
Cover right | Na dotaz | Zadat poptávku | |
| 999 WHR17456 |
C00550950 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
