WHIRLPOOL ALA 011
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ALA 011 |
| Kód 12NC: | 853201101000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

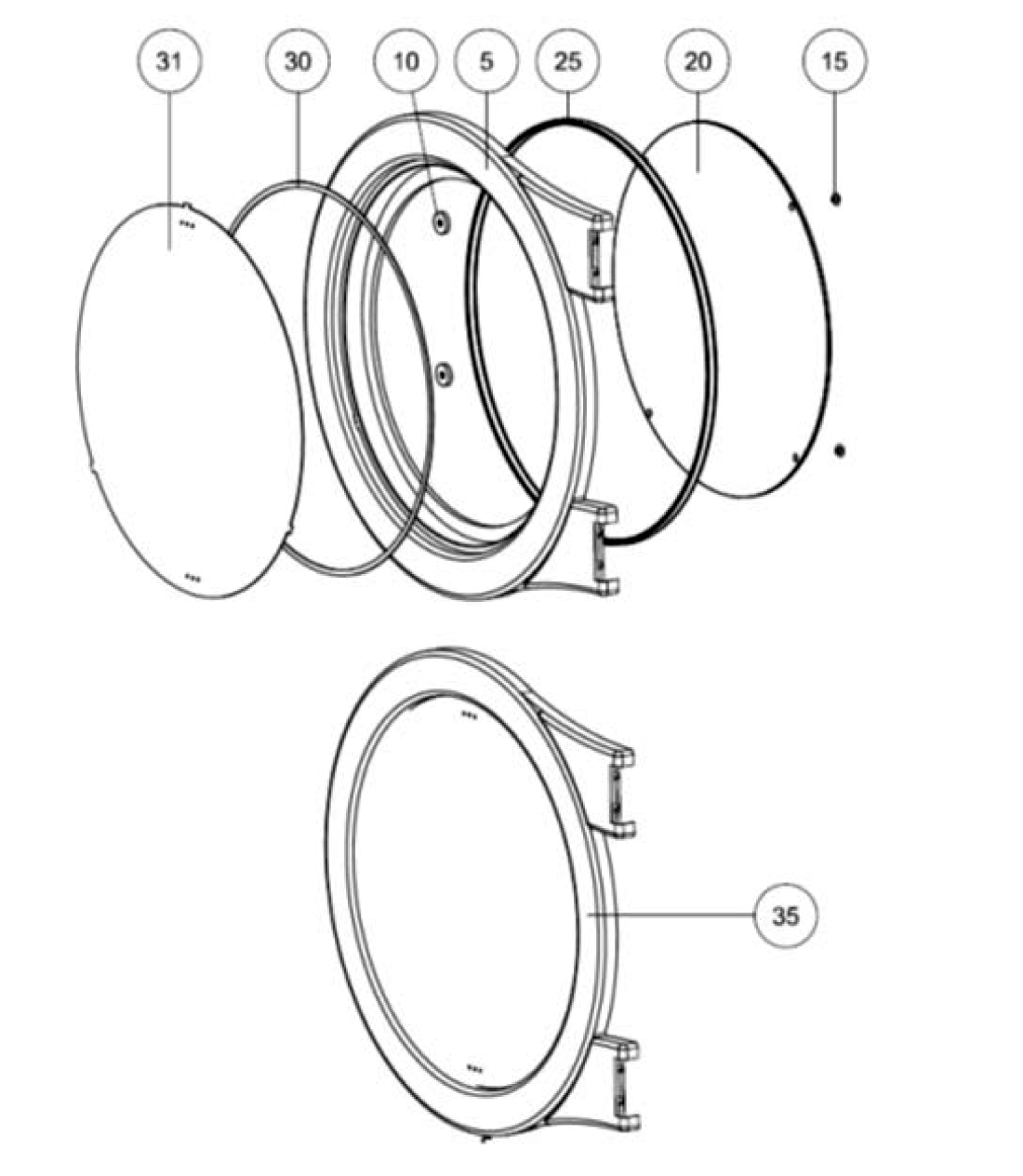

| 005 IMDR01 |
C00609920
488000609920 |
NOT BRANDED DOOR FRAME | Na dotaz | Zadat poptávku | |
| 010 IMDR01 |
C00609917
488000609917 |
MAGNET FOR SENSOR DOOR SWITCH | Na dotaz | Zadat poptávku | |
| 015 IMDR01 |
C00524937
483286009724 |
Stopper | Na dotaz | Zadat poptávku | |
| 020 IMDR01 |
C00609923
488000609923 |
INTERNAL DOOR GLASS ES 23-34 | Na dotaz | Zadat poptávku | |
| 025 IMDR01 |
C00609921
488000609921 |
LOADING DOOR GASKET FOR TUMBLE DRYER | Na dotaz | Zadat poptávku | |
| 030 IMDR01 |
C00609914
488000609914 |
BIADHESIVE EXTERNAL STOPPER ES 23-34 | Na dotaz | Zadat poptávku | |
| 031 IMDR01 |
C00609913
488000609913 |
EXTERNAL GLASS OBLO' ES 23-34 | Na dotaz | Zadat poptávku | |
| 035 IMDR01 |
C00609924
488000609924 |
COMPLETE BRANDED DOOR ES 23-34Black | Na dotaz | Zadat poptávku | |
| 040 IMDR02 |
C00609925
488000609925 |
MAGNETIC SENSOR E560 V1BA 29 X 19 mm | Na dotaz | Zadat poptávku | |
| 045 IMDR02 |
C00609926
488000609926 |
CENTRAL PANEL Grey RIGHT (standard) | Na dotaz | Zadat poptávku | |
| 050 IMDR02 |
C00609927
488000609927 |
CABLING PROTECTION SENSOR DX OBLO' ES 10 | Na dotaz | Zadat poptávku | |
| 051 IMDR02 |
C00609930
488000609930 |
SAFETY CAGE PROGRAM IM10 ES10/34 GET | Na dotaz | Zadat poptávku | |
| 055 IMDR02 |
C00609931
488000609931 |
LOGIC BOARD IM10 BLACK | Na dotaz | Zadat poptávku | |
| 056 IMDR02 |
C00609932
488000609932 |
BLACK COMPLETE HINGE | Na dotaz | Zadat poptávku | |
| 060 IMDR03 |
C00609940
488000609940 |
LOWER FRONT PANEL | Na dotaz | Zadat poptávku | |
| 065 IMDR03 |
C00420920
483286002747 |
Key | Na dotaz | Zadat poptávku | |
| 070 IMDR03 |
C00524927
483286009608 |
Rotary locking | Na dotaz | Zadat poptávku | |
| 075 IMDR03 |
C00524091
483286000587 |
Front panel lower | Na dotaz | Zadat poptávku | |
| 080 IMDR03 |
C00616265
488000616265 |
CAP ALUMINIUM PROFILE LEFT SIDE | Na dotaz | Zadat poptávku | |
| 080 IMDR03 |
C00616331
488000616331 |
CAP ALUMINIUM PROFILE RIGHT SIDE | Na dotaz | Zadat poptávku | |
| 081 IMDR03 |
C00524908
483286009546 |
Lever 46 mm | Na dotaz | Zadat poptávku | |
| 081 IMDR03 |
C00609938
488000609938 |
closure tab | Na dotaz | Zadat poptávku | |
| 083 IMDR03 |
C00609936
488000609936 |
COIN BOX | Na dotaz | Zadat poptávku | |
| 084 IMDR03 |
C00609939
488000609939 |
HANDLE T | Na dotaz | Zadat poptávku | |
| 085 IMDR03 |
C00524350
483286001289 |
Microswitch | Na dotaz | Zadat poptávku | |
| 090 IMDR03 |
C00497217
483286008279 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 095 IMDR03 |
C00609937
488000609937 |
AUTOMATIC RESET SECURITY THERMOSTAT | Na dotaz | Zadat poptávku | |
| 100 IMDR03 |
C00609946
488000609946 |
LOCKING LEVER | Na dotaz | Zadat poptávku | |
| 101 IMDR03 |
C00609945
488000609945 |
CONTROL BOARD ELECTRONIC COIN MECHANISM | Na dotaz | Zadat poptávku | |
| 102,103 IMDR03 |
C00501083
483286008247 |
Button press Emergency red | Na dotaz | Zadat poptávku | |
| 110 IMDR03 |
C00609944
488000609944 |
UPPER FRONT PAINTED STANDARD MACHINE | Na dotaz | Zadat poptávku | |
| 115 IMDR03 |
C00609943
488000609943 |
FRAME FILTERS SUPPORT ES 10-34 | Na dotaz | Zadat poptávku | |
| 120 IMDR03 |
C00609942
488000609942 |
AIR FILTER ES 10-34 | Na dotaz | Zadat poptávku | |
| 121 IMDR03 |
C00609941
488000609941 |
FILTER FIXING FRAME ES10/34 | Na dotaz | Zadat poptávku | |
| 125 IMDR04 |
C00609948
488000609948 |
COMPLETE TIE-ROD DRUM | Na dotaz | Zadat poptávku | |
| 130 IMDR04 |
C00609960
488000609960 |
DRUM SUPPORT | Na dotaz | Zadat poptávku | |
| 135 IMDR04 |
C00609959
488000609959 |
COMPLETE DRUM | Na dotaz | Zadat poptávku | |
| 136 IMDR04 |
C00609956
488000609956 |
UPPER CALENDERED PLATE - RIGHT SIDE | Na dotaz | Zadat poptávku | |
| 137 IMDR04 |
C00616553
488000616553 |
LOWER CALENDERED PLATE | Na dotaz | Zadat poptávku | |
| 138 IMDR04 |
C00609951
488000609951 |
UPPER CALENDERED PLATE - LEFT SIDE | Na dotaz | Zadat poptávku | |
| 140 IMDR05 |
C00610387
488000610387 |
LOWER REAR PANEL | Na dotaz | Zadat poptávku | |
| 145 IMDR05 |
C00610386
488000610386 |
WIRING REAR PANEL | Na dotaz | Zadat poptávku | |
| 150 IMDR05 |
C00610385
488000610385 |
UPPER REAR PANEL | Na dotaz | Zadat poptávku | |
| 155 IMDR05 |
C00610384
488000610384 |
TOP COVER | Na dotaz | Zadat poptávku | |
| 160 IMDR05 |
C00610389
488000610389 |
ANTI INTRUSION EXHAUST | Na dotaz | Zadat poptávku | |
| 165 IMDR06 |
C00610401
488000610401 |
COLLECTOR PIPE | Na dotaz | Zadat poptávku | |
| 180 IMDR06 |
C00524964
483286009802 |
Spark plug | Na dotaz | Zadat poptávku | |
| 185,330 IMDR06 |
C00610398
488000610398 |
SECURITY THERMOSTAT | Na dotaz | Zadat poptávku | |
| 195 IMDR06 |
C00581155
483286000568 |
Sensor flame | Na dotaz | Zadat poptávku | |
| 200 IMDR06 |
C00610416
488000610416 |
BATTERY (ONLY STAINLESS STEEL STRUCTURE) | Na dotaz | Zadat poptávku | |
| 205 IMDR06 |
C00524120
483286000668 |
Fitting 1/8 inch | Na dotaz | Zadat poptávku | |
| 210 IMDR06 |
C00524957
483286009785 |
Adapter | Na dotaz | Zadat poptávku | |
| 215 IMDR06 |
C00524119
483286000667 |
Profile | Na dotaz | Zadat poptávku | |
| 220 IMDR06 |
C00610415
488000610415 |
COUPLING | Na dotaz | Zadat poptávku | |
| 225 IMDR06 |
C00610405
488000610405 |
ALUMINIUM SEAL | Na dotaz | Zadat poptávku | |
| 230 IMDR06 |
C00610413
488000610413 |
FIXING PLATE GAS VALVE | Na dotaz | Zadat poptávku | |
| 235 IMDR06 |
C00610412
488000610412 |
RETAINING SLEEVE CONICAL | Na dotaz | Zadat poptávku | |
| 240 IMDR06 |
C00501065
483286000761 |
Lighter | Na dotaz | Zadat poptávku | |
| 245 IMDR06 |
C00610410
488000610410 |
GAS VALVE | Na dotaz | Zadat poptávku | |
| 250 IMDR06 |
C00610406
488000610406 |
GAS HOSE BETWEEN GAS VALVE AND GAS | Na dotaz | Zadat poptávku | |
| 250 IMDR06 |
C00610407
488000610407 |
GAS HOSE BETWEEN GAS VALVE AND GAS | Na dotaz | Zadat poptávku | |
| 255 IMDR06 |
C00610402
488000610402 |
IONIZATION CABLE WIRING | Na dotaz | Zadat poptávku | |
| 255 IMDR06 |
C00610403
488000610403 |
IONIZATION CABLE WIRING | Na dotaz | Zadat poptávku | |
| 260 IMDR06 |
C00610430
488000610430 |
BRACKET OF THE MOTOREDUCER | Na dotaz | Zadat poptávku | |
| 265 IMDR06 |
C00610431
488000610431 |
KIT DAMPER LIFTING | Na dotaz | Zadat poptávku | |
| 280 IMDR06 |
C00610419
488000610419 |
STEAM COIL SUPPORT | Na dotaz | Zadat poptávku | |
| 280 IMDR06 |
C00610420
488000610420 |
STEAM COIL SUPPORT | Na dotaz | Zadat poptávku | |
| 280 IMDR06 |
C00610421
488000610421 |
STEAM COIL SUPPORT | Na dotaz | Zadat poptávku | |
| 280 IMDR06 |
C00610422
488000610422 |
STEAM COIL SUPPORT | Na dotaz | Zadat poptávku | |
| 280 IMDR06 |
C00610423
488000610423 |
STEAM COIL SUPPORT | Na dotaz | Zadat poptávku | |
| 285 IMDR06 |
C00524151
483286000734 |
Felt,strip 10X3 | Na dotaz | Zadat poptávku | |
| 290 IMDR06 |
C00524965
483286009808 |
Microswitch | Na dotaz | Zadat poptávku | |
| 295 IMDR06 |
C00610424
488000610424 |
STEAM COIL | Na dotaz | Zadat poptávku | |
| 300 IMDR06 |
C00610425
488000610425 |
condenser | Na dotaz | Zadat poptávku | |
| 305 IMDR06 |
C00610427
488000610427 |
CLAMP | Na dotaz | Zadat poptávku | |
| 310 IMDR06 |
C00610428
488000610428 |
MOTOR REDUCTION GEAR | Na dotaz | Zadat poptávku | |
| 315 IMDR06 |
C00610429
488000610429 |
METAL BOX OF STEAM CABLING | Na dotaz | Zadat poptávku | |
| 320 IMDR06 |
C00409371
482000005467 |
Cover electric oven | Na dotaz | Zadat poptávku | |
| 321 IMDR06 |
C00610396
488000610396 |
REMOTE CONTROL SWITCH AND AUXILIARY CONT | Na dotaz | Zadat poptávku | |
| 321 IMDR06 |
C00610397
488000610397 |
remote control switch and auxiliary cont | Na dotaz | Zadat poptávku | |
| 322 IMDR06 |
C00610394
488000610394 |
BOX REMOTE CONTROL SWITCH | Na dotaz | Zadat poptávku | |
| 325 IMDR06 |
C00420935
483286002764 |
Plate | Na dotaz | Zadat poptávku | |
| 335 IMDR06 |
C00616712
488000616712 |
ELECTRIC OVEN | Na dotaz | Zadat poptávku | |
| 340 IMDR06 |
C00501061
483286000565 |
Heating element | Na dotaz | Zadat poptávku | |
| 345 IMDR07 |
C00524954
483286009771 |
Foot Rubber | Na dotaz | Zadat poptávku | |
| 350 IMDR07 |
C00610448
488000610448 |
AIR-FAN CASING | Na dotaz | Zadat poptávku | |
| 355 IMDR07 |
C00610447
488000610447 |
fan | Na dotaz | Zadat poptávku | |
| 356 IMDR07 |
C00524106
483286000643 |
Gasket border | Na dotaz | Zadat poptávku | |
| 360 IMDR07 |
C00610446
488000610446 |
IRON SUPPORT FOR FAN MOTOR | Na dotaz | Zadat poptávku | |
| 365,390 IMDR07 |
C00524094
483286000593 |
Motor XS 803B4 AA | Na dotaz | Zadat poptávku | |
| 370 IMDR07 |
C00610443
488000610443 |
pulley | Na dotaz | Zadat poptávku | |
| 375 IMDR07 |
C00610445
488000610445 |
BRACKET BETWEEN MOTORS | Na dotaz | Zadat poptávku | |
| 380 IMDR07 |
C00610441
488000610441 |
BELT | Na dotaz | Zadat poptávku | |
| 385 IMDR07 |
C00409364
482000005460 |
Support motor | Na dotaz | Zadat poptávku | |
| 390 IMDR07 |
C00524089
483286000567 |
Motor 71B3 profesionální sušičky Whirlpool | 18 087 Kč
€ 795.00 |
||
| 390 IMDR07 |
C00610444
488000610444 |
fan motor 3ph208V | Na dotaz | Zadat poptávku | |
| 405 IMDR07 |
C00610432
488000610432 |
GROUP DOUBLE PULLEY WITH BEARING | Na dotaz | Zadat poptávku | |
| 410 IMDR07 |
C00610433
488000610433 |
belt | Na dotaz | Zadat poptávku | |
| 415 IMDR07 |
C00610434
488000610434 |
DRUM PULLEY ES10-34 | Na dotaz | Zadat poptávku | |
| 420 IMDR07 |
C00610435
488000610435 |
BOX FOR BEARING | Na dotaz | Zadat poptávku | |
| 425 IMDR07 |
C00420911
483286002737 |
Bearing flange | Na dotaz | Zadat poptávku | |
| 430 IMDR07 |
C00610436
488000610436 |
LOCKING FLANGE | Na dotaz | Zadat poptávku | |
| 435 IMDR07 |
C00610437
488000610437 |
ELASTIC RING | Na dotaz | Zadat poptávku | |
| 435 IMDR07 |
C00610440
488000610440 |
SPACER | Na dotaz | Zadat poptávku | |
| 440 IMDR07 |
C00524095
483286000596 |
Bearing | Na dotaz | Zadat poptávku | |
| 445 IMDR07 |
C00420917
483286002744 |
Spacebar | Na dotaz | Zadat poptávku | |
| 450 IMDR08 |
C00610457
488000610457 |
BOX INPUTS | Na dotaz | Zadat poptávku | |
| 455 IMDR08 |
C00610452
488000610452 |
CLAMP | Na dotaz | Zadat poptávku | |
| 460 IMDR08 |
C00524925
483286009583 |
Lock | Na dotaz | Zadat poptávku | |
| 460 IMDR08 |
C00616935
488000616935 |
FUSE (3ph400V+N, 1ph230V) 250mA | Na dotaz | Zadat poptávku | |
| 465 IMDR08 |
C00422845
483286010539 |
Relay | Na dotaz | Zadat poptávku | |
| 465 IMDR08 |
C00423444
483286011266 |
Pedestal Relay | Na dotaz | Zadat poptávku | |
| 470 IMDR08 |
C00581548
483286009765 |
Relay | Na dotaz | Zadat poptávku | |
| 470 IMDR08 |
C00616713
488000616713 |
THERMIC RELAY T16 1A - 1,3A, 1NC+1NO € | Na dotaz | Zadat poptávku | |
| 475 IMDR08 |
C00514923
488000514923 |
SCHEDA POTENZA IM10 | Na dotaz | Zadat poptávku | |
| 480 IMDR08 |
C00610462
488000610462 |
INVERTER FAN 3ph208V-230V 1ph230V | Na dotaz | Zadat poptávku | |
| 480 IMDR08 |
C00610465
488000610465 |
INVERTER FAN 3ph400V-440V | Na dotaz | Zadat poptávku | |
| 485 IMDR08 |
C00610466
488000610466 |
DRUM INVERTER 3ph230V 3ph208V 1ph230V | Na dotaz | Zadat poptávku | |
| 485 IMDR08 |
C00610467
488000610467 |
DRUM INVERTER 3ph400V 3ph440V | Na dotaz | Zadat poptávku | |
| 490 IMDR08 |
C00421016
483286002862 |
Contactor B6-30-01 | Na dotaz | Zadat poptávku | |
| 495 IMDR08 |
C00610483
488000610483 |
INVERTER BRACKET | Na dotaz | Zadat poptávku | |
| 500 IMDR08 |
C00524246
483286001023 |
Connector 2 way | Na dotaz | Zadat poptávku | |
| 500 IMDR08 |
C00524943
483286009734 |
Connection 6 way | Na dotaz | Zadat poptávku | |
| 500 IMDR08 |
C00610481
488000610481 |
MULTIPOLAR CONNECTORS BRACKET | Na dotaz | Zadat poptávku | |
| 505 IMDR08 |
C00610480
488000610480 |
TRANSFORMER 400V/230V | Na dotaz | Zadat poptávku | |
| 510 IMDR08 |
C00610479
488000610479 |
PRESSURE SWITCH | Na dotaz | Zadat poptávku | |
| 515 IMDR08 |
C00411474
482000009246 |
Switch | Na dotaz | Zadat poptávku | |
| 515 IMDR08 |
C00610477
488000610477 |
SWITCH | Na dotaz | Zadat poptávku | |
| 520 IMDR08 |
C00610474
488000610474 |
FIXING PLATE SWITCH | Na dotaz | Zadat poptávku | |
| 525 IMDR08 |
C00501096
483286008412 |
Switch,toggle OHY 2RJ | Na dotaz | Zadat poptávku | |
