WHIRLPOOL WA36ODU32
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WA36ODU32 |
| Kód 12NC: | 859991584250 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

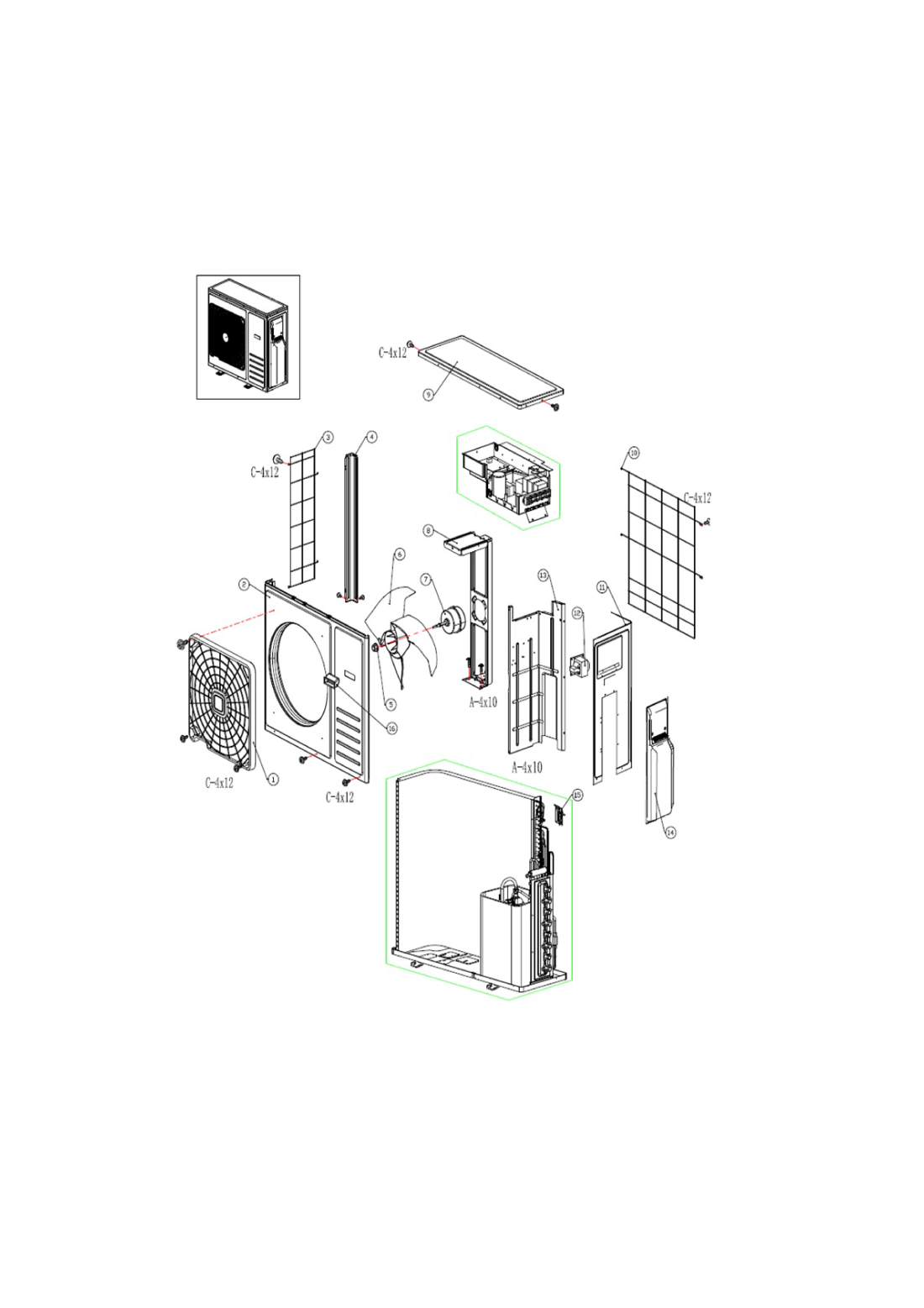

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 WA36ODU1 |
C00632718
488000632718 |
Fan Guard | Na dotaz | Zadat poptávku | |
| 002 WA36ODU1 |
C00632719
488000632719 |
front panel | Na dotaz | Zadat poptávku | |
| 003 WA36ODU1 |
C00506339
482000095038 |
Guard left | Na dotaz | Zadat poptávku | |
| 004 WA36ODU1 |
C00414505
482000015222 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 005 WA36ODU1 |
C00632720
488000632720 |
Welding hex nuts（Fix the fan） | Na dotaz | Zadat poptávku | |
| 006 WA36ODU1 |
C00414506
482000015223 |
Acial flow fan | Na dotaz | Zadat poptávku | |
| 007 WA36ODU1 |
C00414504
482000015221 |
Motor ventilátoru vnitřní jednotky klimatizace | 10 250 Kč
€ 450.50 |
||
| 008 WA36ODU1 |
C00414502
482000015219 |
Support motor bracket | Na dotaz | Zadat poptávku | |
| 009 WA36ODU1 |
C00632721
488000632721 |
upper cover | Na dotaz | Zadat poptávku | |
| 010 WA36ODU1 |
C00414498
482000015215 |
Guard back | Na dotaz | Zadat poptávku | |
| 011 WA36ODU1 |
C00415653
482000018086 |
Side panel | Na dotaz | Zadat poptávku | |
| 012 WA36ODU1 |
C00414511
482000015228 |
Coil Electrom. | Na dotaz | Zadat poptávku | |
| 013 WA36ODU1 |
C00632723
488000632723 |
separate plate assy | Na dotaz | Zadat poptávku | |
| 014 WA36ODU1 |
C00415652
482000018085 |
Cover valve | Na dotaz | Zadat poptávku | |
| 015 WA36ODU1 |
C00506475
482000095088 |
Sensor mounting plate | Na dotaz | Zadat poptávku | |
| 016 WA36ODU1 |
C00632724
488000632724 |
handle | Na dotaz | Zadat poptávku | |
| 017 WA36ODU2 |
C00632726
488000632726 |
condenser ASS'Y | Na dotaz | Zadat poptávku | |
| 018 WA36ODU2 |
C00506331
482000095030 |
Pipe | Na dotaz | Zadat poptávku | |
| 019 WA36ODU2 |
C00506330
482000095029 |
Tube | Na dotaz | Zadat poptávku | |
| 020 WA36ODU2 |
C00415651
482000018084 |
Valve electric expansion | Na dotaz | Zadat poptávku | |
| 021 WA36ODU2 |
C00506334
482000095033 |
Coil electromagnetic B | Na dotaz | Zadat poptávku | |
| 022 WA36ODU2 |
C00414519
482000015236 |
Coil Valve magnet expansi | Na dotaz | Zadat poptávku | |
| 023 WA36ODU2 |
C00506335
482000095034 |
Coil electromagnetic D | Na dotaz | Zadat poptávku | |
| 024 WA36ODU2 |
C00632729
488000632729 |
Electromagnetic coil D | Na dotaz | Zadat poptávku | |
| 025 WA36ODU2 |
C00632730
488000632730 |
1/4 stop valveASS'Y | Na dotaz | Zadat poptávku | |
| 026 WA36ODU2 |
C00632731
488000632731 |
3/8 stop valve ASS'Y | Na dotaz | Zadat poptávku | |
| 027 WA36ODU2 |
C00506328
482000095027 |
Base | Na dotaz | Zadat poptávku | |
| 028 WA36ODU2 |
C00414572
482000015289 |
Tape sealing electr.heatingelemen | Na dotaz | Zadat poptávku | |
| 029 WA36ODU2 |
C00632732
488000632732 |
compressor | Na dotaz | Zadat poptávku | |
| 030 WA36ODU2 |
C00632733
488000632733 |
Noise-insulation Cotton | Na dotaz | Zadat poptávku | |
| 031 WA36ODU2 |
C00632734
488000632734 |
Noise-insulation Cotton | Na dotaz | Zadat poptávku | |
| 032 WA36ODU2 |
C00632735
488000632735 |
Noise-insulation Cotton | Na dotaz | Zadat poptávku | |
| 033 WA36ODU2 |
C00632736
488000632736 |
Noise-insulation Cotton | Na dotaz | Zadat poptávku | |
| 034 WA36ODU2 |
C00632737
488000632737 |
suction tube assy | Na dotaz | Zadat poptávku | |
| 034,036 WA36ODU2 |
C00632745
488000632745 |
4-way valve assembly | Na dotaz | Zadat poptávku | |
| 035 WA36ODU2 |
C00632738
488000632738 |
discharge tube assy | Na dotaz | Zadat poptávku | |
| 036 WA36ODU2 |
C00386125
481236058434 |
Valve 4 Way | Na dotaz | Zadat poptávku | |
| 037 WA36ODU3 |
C00632739
488000632739 |
yellow-Outdoor/suction/coil sensor | Na dotaz | Zadat poptávku | |
| 038 WA36ODU3 |
C00415620
482000018053 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 039 WA36ODU3 |
C00415662
482000018095 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 040 WA36ODU3 |
C00415663
482000018096 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 041 WA36ODU3 |
C00415617
482000018050 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 042 WA36ODU3 |
C00415621
482000018054 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 043 WA36ODU3 |
C00506338
482000095037 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 044 WA36ODU3 |
C00632740
488000632740 |
Power Terminal Panel | Na dotaz | Zadat poptávku | |
| 045 WA36ODU3 |
C00414529
482000015246 |
Terminal block Connection | Na dotaz | Zadat poptávku | |
| 046 WA36ODU3 |
C00632741
488000632741 |
Radiator | Na dotaz | Zadat poptávku | |
| 047 WA36ODU3 |
C00414527
482000015244 |
Capacitor Electroanalysis | Na dotaz | Zadat poptávku | |
| 048 WA36ODU3 |
C00415657
482000018090 |
Electronic box | Na dotaz | Zadat poptávku | |
| 049 WA36ODU3 |
C00632742
488000632742 |
Driver board | Na dotaz | Zadat poptávku | |
| 050 WA36ODU3 |
C00632743
488000632743 |
Outdoor Main Control Board Component | Na dotaz | Zadat poptávku | |
| 051 WA36ODU3 |
C00632744
488000632744 |
Filter board | Na dotaz | Zadat poptávku | |
