IKEA HOB 450 B
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | HOB 450 B |
| Kód 12NC/I.C. kód: | 854189697000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 854189697001 |
Potřebujete servis? Jsme tady pro Vás

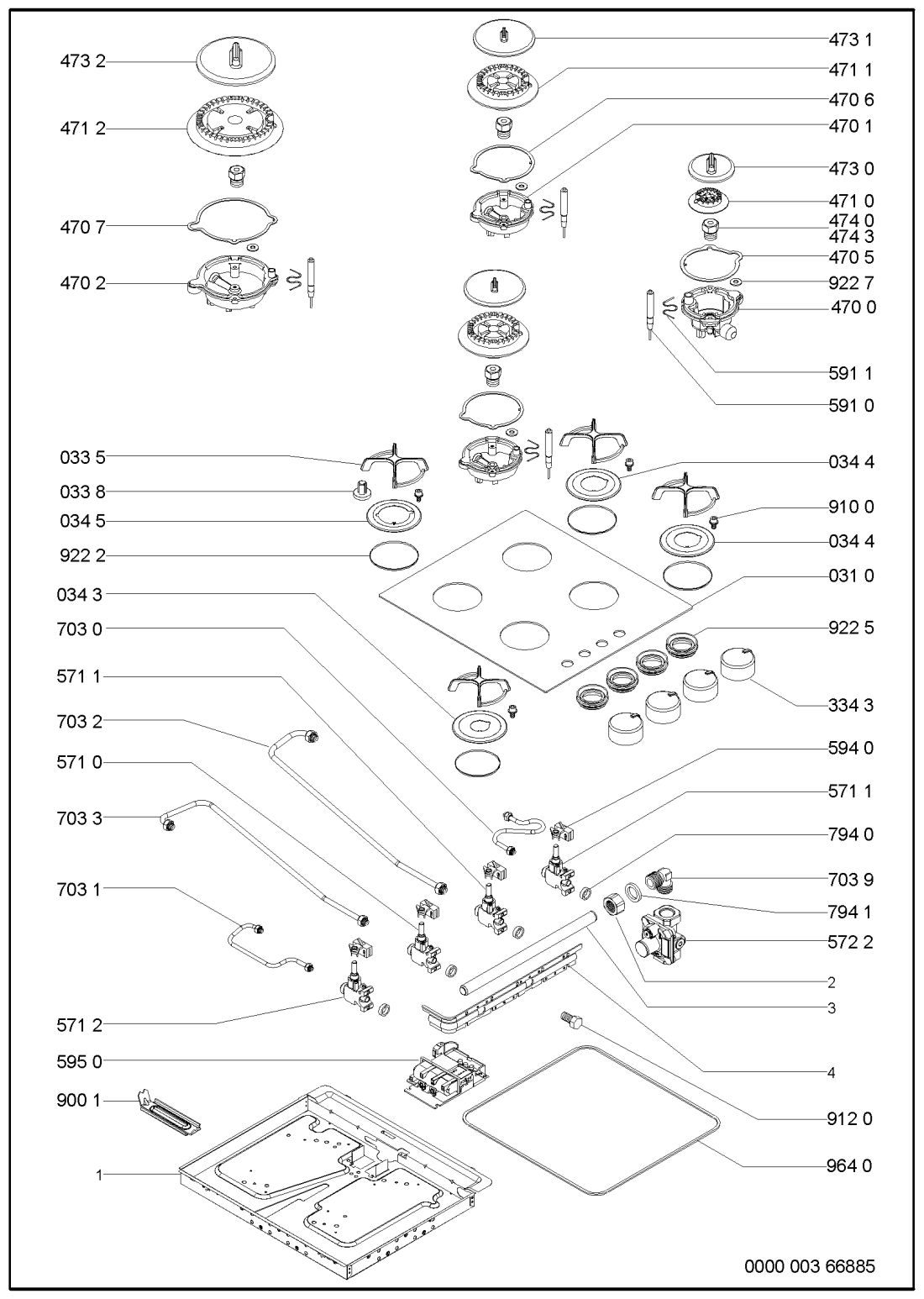

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 031 0 WHR23868 |
C00460008
481245059691 |
Hob glass | Na dotaz | Zadat poptávku | |
| 033 5 WHR23868 |
C00319143
481245838113 |
mrizka horaku | 1 309 Kč
€ 54.00 |
||
| 033 8 WHR23868 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 61 Kč
€ 2.50 |
||
| 034 3 WHR23868 |
C00333086
481946258364 |
Ring fixation | Na dotaz | Zadat poptávku | |
| 034 4 WHR23868 |
C00333087
481946258365 |
krouzek fixacni NB | 650 Kč
€ 26.80 |
||
| 034 5 WHR23868 |
C00333088
481946258366 |
Ring fixation large burner | Na dotaz | Zadat poptávku | |
| 334 3 WHR23868 |
C00402372
481241279297 |
Knob | Na dotaz | Zadat poptávku | |
| 470 0 WHR23868 |
C00401464
481236058554 |
Injector holder A | Na dotaz | Zadat poptávku | |
| 470 1 WHR23868 |
C00401465
481236058555 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 470 2 WHR23868 |
C00401466
481236058556 |
Injector holder R | Na dotaz | Zadat poptávku | |
| 470 5 WHR23868 |
C00405128
481246688928 |
Gasket injector holder A | Na dotaz | Zadat poptávku | |
| 470 6 WHR23868 |
C00405129
481246688929 |
Gasket injector holder SR | Na dotaz | Zadat poptávku | |
| 470 7 WHR23868 |
C00314465
481246688931 |
Gasket injector holder R | Na dotaz | Zadat poptávku | |
| 471 0 WHR23868 |
C00317290
481936078397 |
teleso horaku male | 355 Kč
€ 14.60 |
||
| 471 1 WHR23868 |
C00314715
481936078398 |
Těleso hořáku střední | 536 Kč
€ 22.10 |
||
| 471 2 WHR23868 |
C00312946
481936078399 |
teleso horaku velke | 773 Kč
€ 31.90 |
||
| 473 0 WHR23868 |
C00316179
481236068128 |
viko horaku - male | Na dotaz | Zadat poptávku | |
| 473 1 WHR23868 |
C00328639
481236068126 |
Víko hořáku střední | 1 367 Kč
€ 56.40 |
||
| 473 2 WHR23868 |
C00328640
481236068127 |
viko horaku - velke | 1 093 Kč
€ 45.10 |
||
| 474 0 WHR23868 |
C00401198
481231039123 |
Set of nozzles NG | Na dotaz | Zadat poptávku | |
| 474 3 WHR23868 |
C00457102
481231039124 |
Set of nozzles LPG | Na dotaz | Zadat poptávku | |
| 571 0 WHR23868 |
C00401469
481236058559 |
Gas cock R | Na dotaz | Zadat poptávku | |
| 571 1 WHR23868 |
C00401468
481236058558 |
Gas cock SR | Na dotaz | Zadat poptávku | |
| 571 2 WHR23868 |
C00401467
481236058557 |
Gas cock A | Na dotaz | Zadat poptávku | |
| 572 2 WHR23868 |
C00400726
481222318448 |
Pressure regulator | Na dotaz | Zadat poptávku | |
| 591 0 WHR23868 |
C00311700
481925268167 |
Zapalovací svíčka plynové varné desky Whirlpool | 397 Kč
€ 16.40 |
||
| 591 1 WHR23868 |
C00313852
481949268788 |
pruzina | 12 Kč
€ 0.50 |
||
| 594 0 WHR23868 |
C00456589
481227648145 |
Electron.ignit. | Na dotaz | Zadat poptávku | |
| 595 0 WHR23868 |
C00401061
481229068337 |
Terminal block + ignition generator | Na dotaz | Zadat poptávku | |
| 703 0 WHR23868 |
C00405787
481253049178 |
Gas pipe RR | Na dotaz | Zadat poptávku | |
| 703 1 WHR23868 |
C00405790
481253049182 |
Gas pipe FR | Na dotaz | Zadat poptávku | |
| 703 2 WHR23868 |
C00405788
481253049179 |
Gas pipe RL | Na dotaz | Zadat poptávku | |
| 703 3 WHR23868 |
C00405789
481253049181 |
Gas pipe FL | Na dotaz | Zadat poptávku | |
| 703 9 WHR23868 |
C00405591
481253018083 |
Manifold | Na dotaz | Zadat poptávku | |
| 794 0 WHR23868 |
C00333119
481946668874 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 1 WHR23868 |
C00314988
481953258229 |
Těsnění | Na dotaz | Zadat poptávku | |
| 900 1 WHR23868 |
C00329221
481240478781 |
Montážní sada pro uchycení varné desky Whirlpool | 776 Kč
€ 32.00 |
||
| 910 0 WHR23868 |
C00312965
481250218757 |
Šroubek | Na dotaz | Zadat poptávku | |
| 912 0 WHR23868 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 922 2 WHR23868 |
C00333306
481953058068 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 922 5 WHR23868 |
C00333308
481953058102 |
Těsnění knoflíku plynové varné desky Whirlpool AKM 262 IX, GOA 6423/NB, AKM 203/IX. | 325 Kč
€ 13.40 |
||
| 922 7 WHR23868 |
C00333313
481953228281 |
podlozka | 55 Kč
€ 2.30 |
||
| 964 0 WHR23868 |
C00311601
481246688967 |
Gasket | Na dotaz | Zadat poptávku | |
