| Komerční kód: | CFS 171 |
| Kód 12NC: | 853920515840 |
| Značka: | IKEA |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | Q0904550000, 853920515940 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

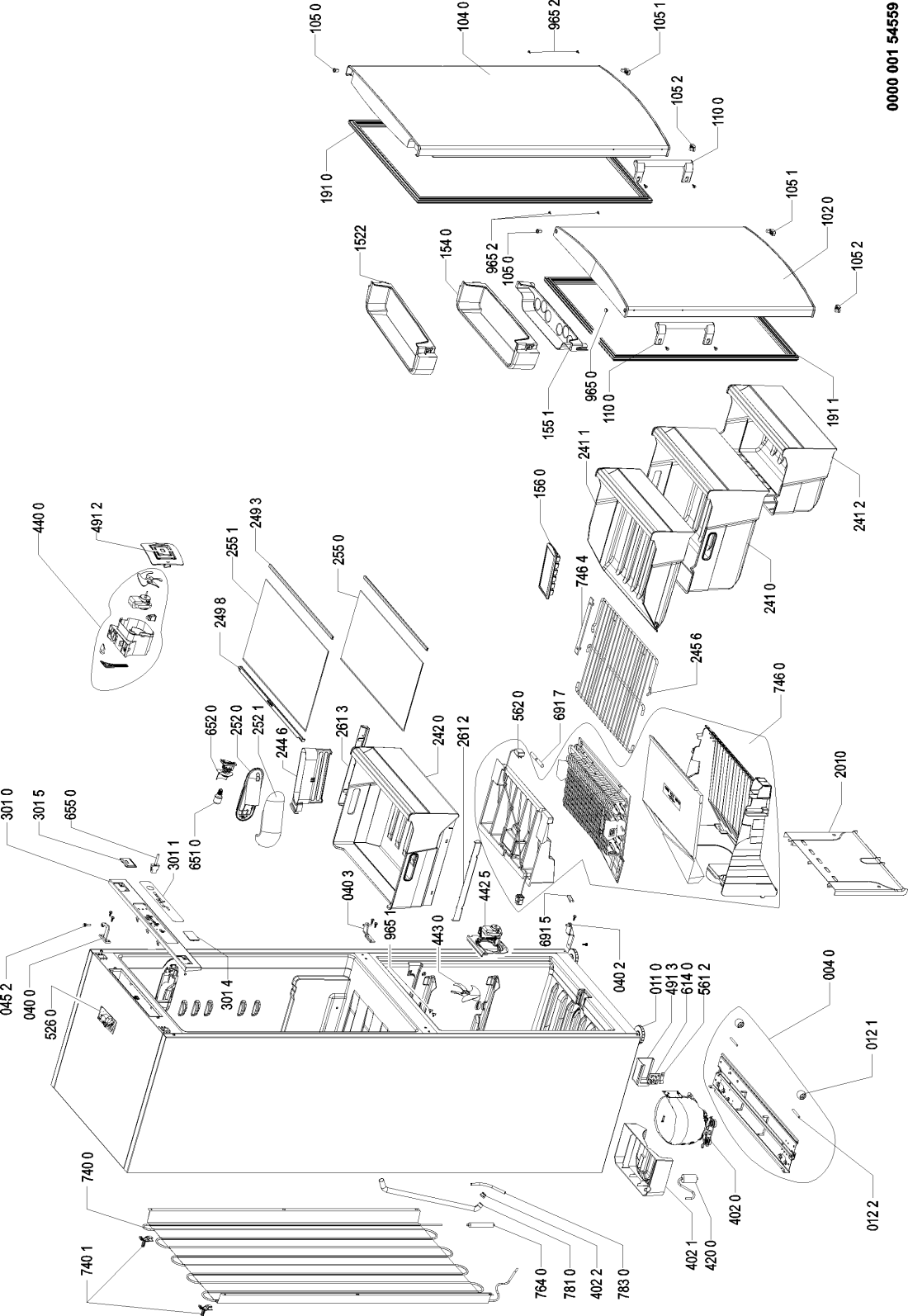

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0040 WHR01515 |
C00330828
481246428054 |
drzak kompr.a kolec | 925 Kč
€ 40.70 |
||
| 0110 WHR01515 |
C00330473
481246218321 |
noha nastavitelna | 337 Kč
€ 14.80 |
||
| 0121 WHR01515 |
C00332373
481252878062 |
kolecko lednice | 530 Kč
€ 23.30 |
||
| 0122 WHR01515 |
C00332726
481253578074 |
osa kolecka lednice | 430 Kč
€ 18.90 |
||
| 0400 WHR01515 |
C00329779
481241719517 |
Závěs horní | 934 Kč
€ 41.10 |
||
| 0402 WHR01515 |
C00329780
481241719518 |
Závěs spodní | 976 Kč
€ 42.90 |
||
| 0403 WHR01515 |
C00319920
481241719519 |
Závěs dveří střední | 976 Kč
€ 42.90 |
||
| 0452 WHR01515 |
C00316600
481222608025 |
cep | 413 Kč
€ 18.20 |
||
| 1020 WHR01515 |
C00323635
480132102284 |
DVEŘE MRAZNIČKY IX 779x588 MM | Na dotaz | Zadat poptávku | |
| 1040 WHR01515 |
C00316609
480132102285 |
Door refriger. IX | Na dotaz | Zadat poptávku | |
| 1050 WHR01515 |
C00314330
481253288056 |
Pouzdro závěsu - kulaté | Na dotaz | Zadat poptávku | |
| 1051 WHR01515 |
C00317176
481253288104 |
Pouzdro závěsu - pravé | 654 Kč
€ 28.70 |
||
| 1052 WHR01515 |
C00320239
481253288105 |
Sleeve grey left | Na dotaz | Zadat poptávku | |
| 1110 WHR01515 |
C00319440
480132102286 |
Handle assy,metal | Na dotaz | Zadat poptávku | |
| 1522 WHR01515 |
C00323634
480132102283 |
Door dairy printed IKEA | Na dotaz | Zadat poptávku | |
| 1540 WHR01515 |
C00327857
481241848991 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 1551 WHR01515 |
C00323384
480132101123 |
Door dairy eggs,cristal transparent | Na dotaz | Zadat poptávku | |
| 1560 WHR01515 |
C00327747
481241829902 |
miska na led | 900 Kč
€ 39.60 |
||
| 1910 WHR01515 |
C00320122
480132101188 |
Těsnění magnetické - chladnička | 2 079 Kč
€ 91.40 |
||
| 1911 WHR01515 |
C00311915
481246668942 |
Těsnění magnetické - mraznička | 1 360 Kč
€ 59.80 |
||
| 2010 WHR01515 |
C00323522
480132101591 |
kryt | 341 Kč
€ 15.00 |
||
| 2410 WHR01515 |
C00323397
480132101146 |
Drawer central,cristal transpar. | Na dotaz | Zadat poptávku | |
| 2411 WHR01515 |
C00323637
480132102288 |
Koš mrazničky horní | 687 Kč
€ 30.20 |
||
| 2412 WHR01515 |
C00323395
480132101143 |
Drawer lower,cristal transparent | Na dotaz | Zadat poptávku | |
| 2420 WHR01515 |
C00323382
480132101119 |
Crisper cristal transparent | Na dotaz | Zadat poptávku | |
| 2446 WHR01515 |
C00323712
480132102847 |
zasobnik | 674 Kč
€ 29.60 |
||
| 2456 WHR01515 |
C00323526
480132101613 |
police | 380 Kč
€ 16.70 |
||
| 2493 WHR01515 |
C00323402
480132101161 |
Krycí lišta skleněné police - přední | 893 Kč
€ 39.30 |
||
| 2498 WHR01515 |
C00320108
480132101162 |
Trim Shelf rear GW | Na dotaz | Zadat poptávku | |
| 2520 WHR01515 |
C00314820
481244098377 |
Konzole světla | 1 368 Kč
€ 60.10 |
||
| 2521 WHR01515 |
C00315422
481246098137 |
Cover f. lamp white translucent | Na dotaz | Zadat poptávku | |
| 2550 WHR01515 |
C00323387
480132101128 |
crisper cover +GW plastic profile | Na dotaz | Zadat poptávku | |
| 2551 WHR01515 |
C00323388
480132101133 |
Rošt skleněný | 751 Kč
€ 33.00 |
||
| 2612 WHR01515 |
C00323442
480132101314 |
Kolejnice koše levá | 400 Kč
€ 17.60 |
||
| 2613 WHR01515 |
C00323443
480132101315 |
kolejnice zasuvky | 640 Kč
€ 28.10 |
||
| 3010 WHR01515 |
C00320284
480132102282 |
Control panel IO cpl.IK Hercules A+ | Na dotaz | Zadat poptávku | |
| 3011 WHR01515 |
C00323636
480132102287 |
Insert panel IK CB09 HERCULES HOLE A+ | Na dotaz | Zadat poptávku | |
| 3014 WHR01515 |
C00328165
481244029585 |
Cover IO control panel | Na dotaz | Zadat poptávku | |
| 3015 WHR01515 |
C00328164
481244029584 |
Cover IO,contr.panel hinge side | Na dotaz | Zadat poptávku | |
| 4020 WHR01515 |
C00320271
481236038651 |
Kompresor | 3 887 Kč
€ 170.90 |
||
| 4021 WHR01515 |
C00319358
481241848925 |
miska na kondenzat | 427 Kč
€ 18.80 |
||
| 4022 WHR01515 |
C00318606
480132101608 |
ventil | Na dotaz | Zadat poptávku | |
| 4200 WHR01515 |
C00318160
481212028053 |
Kondenzátor 5 µF | 326 Kč
€ 14.30 |
||
| 4400 WHR01515 |
C00316811
480132101184 |
Fan box GW cpl. VELA with switch | Na dotaz | Zadat poptávku | |
| 4425 WHR01515 |
C00312874
480132101615 |
Motor ventilatoru chladničky | 2 984 Kč
€ 131.20 |
||
| 4430 WHR01515 |
C00312783
481951538001 |
vrtule ventilatoru | 460 Kč
€ 20.20 |
||
| 4912 WHR01515 |
C00323411
480132101182 |
Cover GW | Na dotaz | Zadat poptávku | |
| 4913 WHR01515 |
C00327318 | Cover conn.bloc | Na dotaz | Zadat poptávku | |
| 5260 WHR01515 |
C00311535
480132101593 |
modul chl. | 3 752 Kč
€ 164.90 |
||
| 5612 WHR01515 |
C00319908
488000319908 |
Connection block | Na dotaz | Zadat poptávku | |
| 5620 WHR01515 |
C00315757
480132101604 |
pojistka | 2 057 Kč
€ 90.40 |
||
| 6140 WHR01515 |
C00320910
481228068376 |
Monoblock - startovací relé TX1C3 chladničky Whirlpool, Indesit | 1 401 Kč
€ 61.60 |
||
| 6510 WHR01515 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 6520 WHR01515 |
C00313006
481225518292 |
objimka zarovky | 238 Kč
€ 10.50 |
||
| 6550 WHR01515 |
C00323351
480132100728 |
spinac svetla | 302 Kč
€ 13.30 |
||
| 6915 WHR01515 |
C00323525
480132101611 |
kryt senzoru | 199 Kč
€ 8.70 |
||
| 6917 WHR01515 |
C00314452
481231019153 |
senzor | 1 155 Kč
€ 50.80 |
||
| 7400 WHR01515 |
C00332248
481251148411 |
Condenser | Na dotaz | Zadat poptávku | |
| 7401 WHR01515 |
C00330558
481246228822 |
doraz | 150 Kč
€ 6.60 |
||
| 7460 WHR01515 |
C00319218
480132101636 |
vyparnik+topení | 4 852 Kč
€ 213.30 |
||
| 7464 WHR01515 |
C00319325
481246098055 |
Podpora koše mrazničky | 181 Kč
€ 8.00 |
||
| 7640 WHR01515 |
C00313343
488000313343 |
Dryer 3 ways in:6.4/4.85 out:2.2 9gr. 16 | Na dotaz | Zadat poptávku | |
| 7810 WHR01515 |
C00323524
480132101595 |
CONDENSATE DRAIN TUBE | Na dotaz | Zadat poptávku | |
| 7830 WHR01515 |
C00313237
481281719208 |
VALVE, 1/4 BODY+TUBE 100MM | Na dotaz | Zadat poptávku | |
| 9650 WHR01515 |
C00327090
481222608055 |
zaslepka | 266 Kč
€ 11.70 |
||
| 9651 WHR01515 |
C00323643
480132102378 |
zaslepka | 879 Kč
€ 38.60 |
||
| 9652 WHR01515 |
C00327083
481222608031 |
zaslepka | 285 Kč
€ 12.50 |
||
| 9939 WHR01515 |
C00325918
481010655951 |
Door revers.Kit IKEA, grey, not shown | Na dotaz | Zadat poptávku | |
| 999 WHR01515 |
C00355638 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01515 |
C00355639 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01515 |
C00355640 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01515 |
C00355641 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
