| Komerční kód: | F 91 |
| Kód 12NC: | 850788815000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné mrazáky |
| Další podobné modely: | Q0906820000, 850788815001, Q0906820001 |
Potřebujete servis? Jsme tady pro Vás

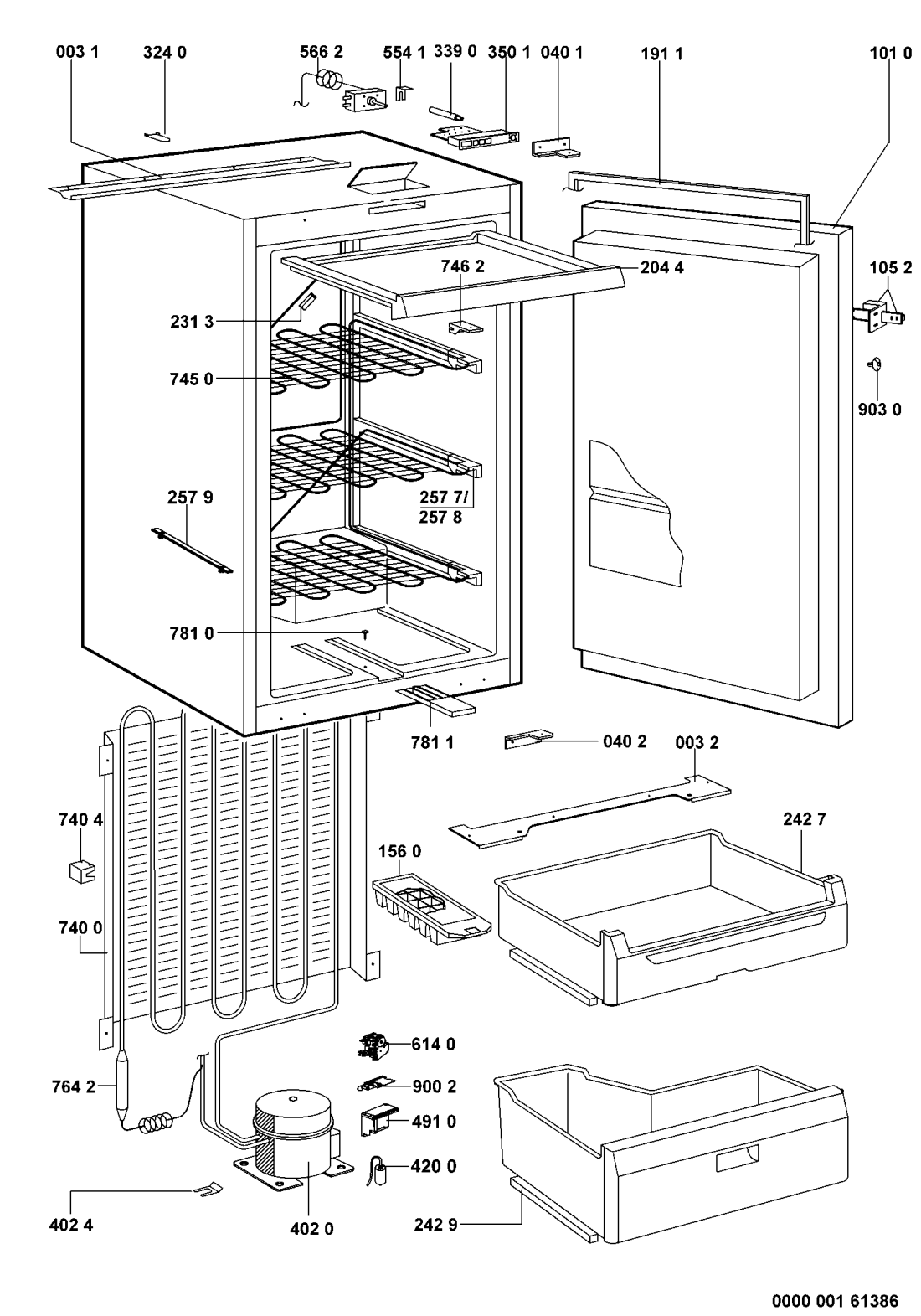

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR00372 |
C00330375
481246058448 |
Fastener upper | Na dotaz | Zadat poptávku | |
| 003 2 WHR00372 |
C00328280
481244069205 |
Lišta | 196 Kč
€ 8.60 |
||
| 040 1 WHR00372 |
C00314342
481241719198 |
Závěs | 961 Kč
€ 42.20 |
||
| 040 2 WHR00372 |
C00314340
481241719197 |
Závěs | 904 Kč
€ 39.70 |
||
| 101 0 WHR00372 |
C00329644
481241618756 |
Door freezer | Na dotaz | Zadat poptávku | |
| 105 2 WHR00372 |
C00312150
481231019131 |
Posouvač dekoru - sada | 285 Kč
€ 12.50 |
||
| 156 0 WHR00372 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 191 1 WHR00372 |
C00315451
481246688578 |
tesneni magneticke | 2 240 Kč
€ 98.50 |
||
| 204 4 WHR00372 |
C00319097
481245819175 |
Zásuvka na led | 621 Kč
€ 27.30 |
||
| 231 3 WHR00372 |
C00333124
481946688704 |
Clamp sensor thermostat | Na dotaz | Zadat poptávku | |
| 242 7 WHR00372 |
C00317930
480132103385 |
Horní/střední koš mrazáku Bauknecht | 2 324 Kč
€ 102.20 |
||
| 242 9 WHR00372 |
C00322565
480132103384 |
Drawer lower, print. | Na dotaz | Zadat poptávku | |
| 257 7 WHR00372 |
C00314855
481946699151 |
Držák výparníku pravý | 304 Kč
€ 13.40 |
||
| 257 8 WHR00372 |
C00314857
481946699152 |
Držák výparníku levý | 309 Kč
€ 13.60 |
||
| 257 9 WHR00372 |
C00330441
481246098114 |
Lišta | 515 Kč
€ 22.60 |
||
| 324 0 WHR00372 |
C00328157
481244029572 |
Záslepka | 523 Kč
€ 23.00 |
||
| 339 0 WHR00372 |
C00332731
481253598051 |
tycka termostatu | 277 Kč
€ 12.20 |
||
| 350 1 WHR00372 |
C00313731
481228018016 |
Unit pilotlamp | Na dotaz | Zadat poptávku | |
| 402 0 WHR00372 |
C00314143
480132102207 |
COMPRESSOR HXK 70 AA | Na dotaz | Zadat poptávku | |
| 402 4 WHR00372 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 5.30 |
||
| 420 0 WHR00372 |
C00326747
481212028019 |
Capacitor 3UF | Na dotaz | Zadat poptávku | |
| 491 0 WHR00372 |
C00327314
488000327314 |
Cover conn.bloc f.compressor | Na dotaz | Zadat poptávku | |
| 554 1 WHR00372 |
C00333185
481949268723 |
pruzina | 452 Kč
€ 19.90 |
||
| 566 2 WHR00372 |
C00316657
480132100054 |
Thermostat A04 0390 | Na dotaz | Zadat poptávku | |
| 614 0 WHR00372 |
C00327470
488000327470 |
Monoblock TX1F6 | Na dotaz | Zadat poptávku | |
| 740 0 WHR00372 |
C00323528
480132101638 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 4 WHR00372 |
C00328255
481244048012 |
Holder condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR00372 |
C00332202
481251138303 |
Evaporator | Na dotaz | Zadat poptávku | |
| 746 2 WHR00372 |
C00313479
481240448567 |
Fastener evaporator | Na dotaz | Zadat poptávku | |
| 764 2 WHR00372 |
C00313343
488000313343 |
Dryer 3 ways in:6.4/4.85 out:2.2 9gr. 16 | Na dotaz | Zadat poptávku | |
| 781 0 WHR00372 |
C00331410
481245298259 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR00372 |
C00327909
481241889008 |
kanal odtokovy | 143 Kč
€ 6.30 |
||
| 900 2 WHR00372 |
C00317990
488000317990 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 903 0 WHR00372 |
C00333338
481953518117 |
krytka | 15 Kč
€ 0.70 |
||
| 993 9 WHR00372 |
C00323511
480132101521 |
Reverzační sada | 568 Kč
€ 25.00 |
||
| 999 WHR00372 |
C00347822 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00372 |
C00347823 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00372 |
C00347824 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
