IKEA HB 580 WF
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | HB 580 WF |
| Kód 12NC: | 857938253500 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

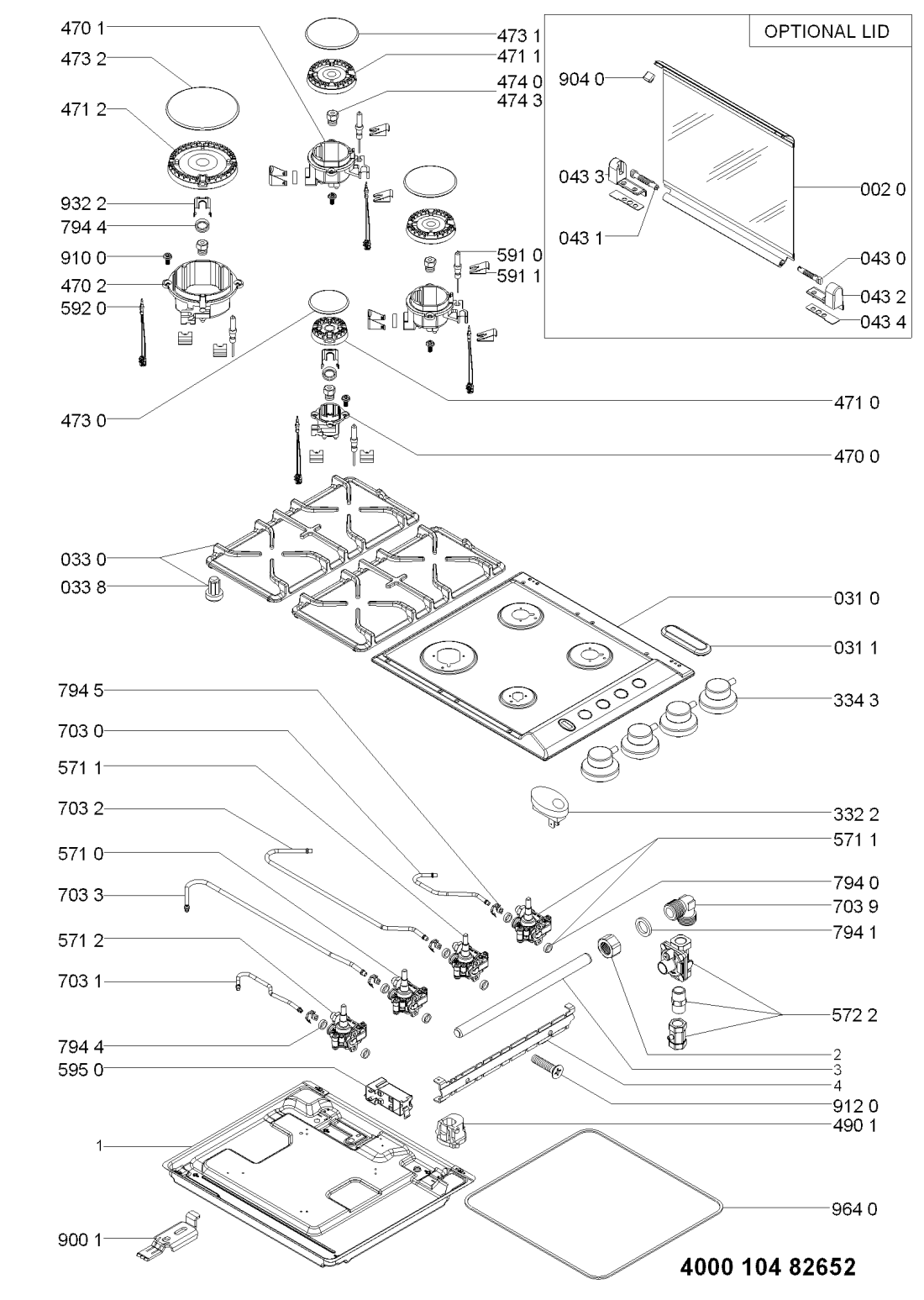

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0020 WHR32929 |
C00326597
481061319391 |
Lid glass BR | Na dotaz | Zadat poptávku | |
| 0020 WHR32929 |
C00326595
481061319371 |
Lid WH | Na dotaz | Zadat poptávku | |
| 0310 WHR32929 |
C00317666
481060118591 |
Hob GAS WH | Na dotaz | Zadat poptávku | |
| 0311 WHR32929 |
C00319395
481246228718 |
zaslepka | 459 Kč
€ 20.20 |
||
| 0330 WHR32929 |
C00312865
481245819053 |
mrizka horaku | 2 111 Kč
€ 92.80 |
||
| 0338 WHR32929 |
C00315214
481246818081 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 0430 WHR32929 |
C00332986
481941719216 |
Hinge right | Na dotaz | Zadat poptávku | |
| 0431 WHR32929 |
C00332987
481941719217 |
Hinge left | Na dotaz | Zadat poptávku | |
| 0432 WHR32929 |
C00322484
480121104579 |
Bracket aluminium brite right | Na dotaz | Zadat poptávku | |
| 0433 WHR32929 |
C00322486
480121104582 |
Bracket aluminium brite left | Na dotaz | Zadat poptávku | |
| 0434 WHR32929 |
C00322479
480121104571 |
Washer | Na dotaz | Zadat poptávku | |
| 3322 WHR32929 |
C00313015
481227618335 |
Tlačítko zapalování -náhrada C00313015 | Na dotaz | Zadat poptávku | |
| 3343 WHR32929 |
C00313954
481060118051 |
knoflik ovladaci | 511 Kč
€ 22.50 |
||
| 4700 WHR32929 |
C00438277
481010456800 |
Injector holder A | Na dotaz | Zadat poptávku | |
| 4701 WHR32929 |
C00438278
481010456801 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 4702 WHR32929 |
C00438279
481010456802 |
Injector holder R | Na dotaz | Zadat poptávku | |
| 4710 WHR32929 |
C00315612
480121104542 |
Burner A | Na dotaz | Zadat poptávku | |
| 4711 WHR32929 |
C00315614
480121104543 |
horak | Na dotaz | Zadat poptávku | |
| 4712 WHR32929 |
C00314576
480121104544 |
Burner R | Na dotaz | Zadat poptávku | |
| 4730 WHR32929 |
C00522078
480121104535 |
viko horaku | Na dotaz | Zadat poptávku | |
| 4731 WHR32929 |
C00522076
480121104536 |
viko horaku | Na dotaz | Zadat poptávku | |
| 4732 WHR32929 |
C00319454
480121104537 |
viko horaku | Na dotaz | Zadat poptávku | |
| 4743 WHR32929 |
C00385444
481010456963 |
JETS KIT FOR G31-27.5 mbar | Na dotaz | Zadat poptávku | |
| 4901 WHR32929 |
C00322477
480121104531 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 5710 WHR32929 |
C00448412
481060114621 |
Gas cock R | Na dotaz | Zadat poptávku | |
| 5711 WHR32929 |
C00448411
481060114611 |
Gas cock SR | Na dotaz | Zadat poptávku | |
| 5712 WHR32929 |
C00448410
481060114601 |
Gas cock A | Na dotaz | Zadat poptávku | |
| 5722 WHR32929 |
C00381868
481222318447 |
Pressure regul. kit | Na dotaz | Zadat poptávku | |
| 5910 WHR32929 |
C00313095
480121104526 |
vedeni zapalne jiskry | Na dotaz | Zadat poptávku | |
| 5911 WHR32929 |
C00313307
481249228219 |
spona | 336 Kč
€ 14.80 |
||
| 5920 WHR32929 |
C00324237
481010416465 |
Thermo couple L=520 mm | Na dotaz | Zadat poptávku | |
| 5950 WHR32929 |
C00313108
480121104525 |
zapalovac plynu ele. | Na dotaz | Zadat poptávku | |
| 7030 WHR32929 |
C00324203
481010409829 |
Gas pipe RR | Na dotaz | Zadat poptávku | |
| 7031 WHR32929 |
C00324201
481010409826 |
Gas pipe FR | Na dotaz | Zadat poptávku | |
| 7032 WHR32929 |
C00324202
481010409827 |
Gas pipe RL | Na dotaz | Zadat poptávku | |
| 7033 WHR32929 |
C00324200
481010409823 |
Gas pipe FL | Na dotaz | Zadat poptávku | |
| 7039 WHR32929 |
C00317975
481931039599 |
Koleno | 341 Kč
€ 15.00 |
||
| 7940 WHR32929 |
C00313330
480121103673 |
Těsnění | 212 Kč
€ 9.30 |
||
| 7941 WHR32929 |
C00313293
480121103128 |
GASKET | Na dotaz | Zadat poptávku | |
| 7944 WHR32929 |
C00309464
481010395017 |
Těsnění | 422 Kč
€ 18.50 |
||
| 7945 WHR32929 |
C00326569
481060295871 |
Spring fastener | Na dotaz | Zadat poptávku | |
| 9001 WHR32929 |
C00314607
481240118823 |
Držák desky 1ks | Na dotaz | Zadat poptávku | |
| 9040 WHR32929 |
C00333156
481946818271 |
Gumová nožička mřížky hořáku | 147 Kč
€ 6.50 |
||
| 9100 WHR32929 |
C00312965
481250218757 |
Šroubek | 76 Kč
€ 3.30 |
||
| 9120 WHR32929 |
C00322394
480121103816 |
Screw | Na dotaz | Zadat poptávku | |
| 9322 WHR32929 |
C00322347
480121103657 |
Clip injector holder | Na dotaz | Zadat poptávku | |
| 9640 WHR32929 |
C00330986
481246688351 |
Těsnění varné desky, černé - silné | 730 Kč
€ 32.10 |
||
| 999 WHR32929 |
C00563765 | Gastable WHP | Na dotaz | Zadat poptávku | |
