IKEA HB G48 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | HB G48 S |
| Kód 12NC: | 859400353000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 859400353001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

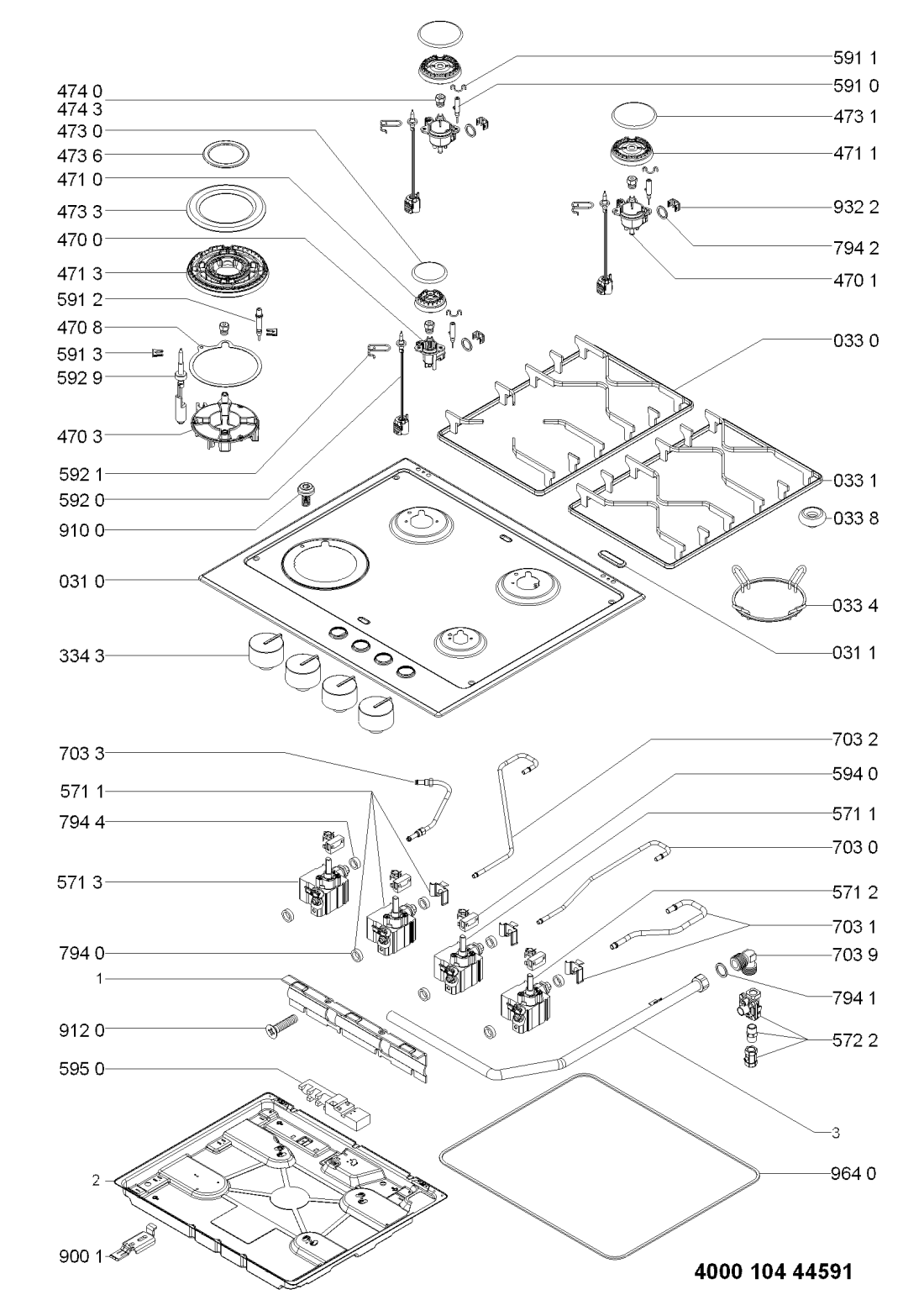

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0020 WHR38083 |
C00328207
481244039556 |
Lid | Na dotaz | Zadat poptávku | |
| 0021 WHR38083 |
C00330380
481246068574 |
Profile lid | Na dotaz | Zadat poptávku | |
| 0310 WHR38083 |
C00437997
481010444555 |
Hob assembly IX | Na dotaz | Zadat poptávku | |
| 0311 WHR38083 |
C00319395
481246228718 |
zaslepka | 459 Kč
€ 20.20 |
||
| 0330 WHR38083 |
C00404432
481245858459 |
Grid for hob left | Na dotaz | Zadat poptávku | |
| 0331 WHR38083 |
C00404433
481245858461 |
Grid for hob right | Na dotaz | Zadat poptávku | |
| 0334 WHR38083 |
C00330141
481245838443 |
Grid Wok | Na dotaz | Zadat poptávku | |
| 0337 WHR38083 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 53 Kč
€ 2.30 |
||
| 0338 WHR38083 |
C00311107
481946818388 |
Buffer piece grid | Na dotaz | Zadat poptávku | |
| 0430 WHR38083 |
C00332993
481941719598 |
Hinge right | Na dotaz | Zadat poptávku | |
| 0431 WHR38083 |
C00332994
481941719599 |
Hinge left | Na dotaz | Zadat poptávku | |
| 0432 WHR38083 |
C00329213
481240478745 |
Support hinge right | Na dotaz | Zadat poptávku | |
| 0433 WHR38083 |
C00329214
481240478746 |
Support hinge left | Na dotaz | Zadat poptávku | |
| 0434 WHR38083 |
C00327656
481231038994 |
Fastener lid assembly | Na dotaz | Zadat poptávku | |
| 0435 WHR38083 |
C00333141
481946698736 |
Gasket | Na dotaz | Zadat poptávku | |
| 3343 WHR38083 |
C00397204
481010451082 |
Knob | Na dotaz | Zadat poptávku | |
| 4700 WHR38083 |
C00401587
481236068862 |
Injector holder AUX | Na dotaz | Zadat poptávku | |
| 4701 WHR38083 |
C00401584
481236068847 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 4703 WHR38083 |
C00401586
481236068849 |
Injector holder 4C | Na dotaz | Zadat poptávku | |
| 4708 WHR38083 |
C00316031
481246688837 |
tesneni | 291 Kč
€ 12.80 |
||
| 4710 WHR38083 |
C00316269
481236078135 |
teleso horaku male | Na dotaz | Zadat poptávku | |
| 4711 WHR38083 |
C00313807
481236078136 |
Těleso hořáku plynové varné desky Whirlpool - střední | 345 Kč
€ 15.20 |
||
| 4713 WHR38083 |
C00312490
481236078138 |
horak | 1 914 Kč
€ 84.10 |
||
| 4730 WHR38083 |
C00328685
481236068742 |
viko horaku | 737 Kč
€ 32.40 |
||
| 4731 WHR38083 |
C00328684
481236068741 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 4733 WHR38083 |
C00314603
481236078166 |
viko horaku | 980 Kč
€ 43.10 |
||
| 4736 WHR38083 |
C00313926
481236078165 |
hořák | 615 Kč
€ 27.00 |
||
| 4740 WHR38083 |
C00396850
481000365676 |
Set of nozzles G20-10 mbar | Na dotaz | Zadat poptávku | |
| 4743 WHR38083 |
C00457100
481231039119 |
Set of nozzles G31-27.5 mbar | Na dotaz | Zadat poptávku | |
| 5711 WHR38083 |
C00401451
481236058539 |
Gas cock SR | Na dotaz | Zadat poptávku | |
| 5712 WHR38083 |
C00401454
481236058543 |
Gas cock | Na dotaz | Zadat poptávku | |
| 5713 WHR38083 |
C00401453
481236058542 |
Gas cock 4C | Na dotaz | Zadat poptávku | |
| 5722 WHR38083 |
C00387646
481222318453 |
Pressure regulator assembly | Na dotaz | Zadat poptávku | |
| 5910 WHR38083 |
C00314182
481225268078 |
svicka zapalovaci | 296 Kč
€ 13.00 |
||
| 5911 WHR38083 |
C00316649
481249268204 |
Spring spark plug | Na dotaz | Zadat poptávku | |
| 5912 WHR38083 |
C00312417
481225268079 |
svicka zapalovaci | 610 Kč
€ 26.80 |
||
| 5913 WHR38083 |
C00345757
481249268206 |
pružina | 661 Kč
€ 29.10 |
||
| 5920 WHR38083 |
C00311810
481213838041 |
Thermocouple 520mm | Na dotaz | Zadat poptávku | |
| 5921 WHR38083 |
C00318235
481249268205 |
pružina | 324 Kč
€ 14.20 |
||
| 5929 WHR38083 |
C00312078
481213838042 |
Termočlánek plynové varné desky Whirlpool, Bauknecht | 830 Kč
€ 36.50 |
||
| 5940 WHR38083 |
C00318655
481227648142 |
spinac | 1 416 Kč
€ 62.20 |
||
| 5950 WHR38083 |
C00318454
481213818016 |
Ignition generator | Na dotaz | Zadat poptávku | |
| 7030 WHR38083 |
C00332541
481253048931 |
Gas pipe RR | Na dotaz | Zadat poptávku | |
| 7031 WHR38083 |
C00332540
481253048929 |
Gas pipe FR | Na dotaz | Zadat poptávku | |
| 7032 WHR38083 |
C00332543
481253048935 |
Gas pipe RL | Na dotaz | Zadat poptávku | |
| 7033 WHR38083 |
C00332570
481253049127 |
trubka na plyn | 215 Kč
€ 9.50 |
||
| 7039 WHR38083 |
C00317975
481931039599 |
Koleno | 341 Kč
€ 15.00 |
||
| 7940 WHR38083 |
C00333119
481946668874 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 7941 WHR38083 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.70 |
||
| 7942 WHR38083 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 7944 WHR38083 |
C00309464
481010395017 |
Těsnění | 422 Kč
€ 18.50 |
||
| 9001 WHR38083 |
C00314843
481240478776 |
Držáky +šrouby | 225 Kč
€ 9.90 |
||
| 9100 WHR38083 |
C00317070
481250218833 |
Screw | Na dotaz | Zadat poptávku | |
| 9120 WHR38083 |
C00321181
480112100069 |
Screw 8-18x5/16 | Na dotaz | Zadat poptávku | |
| 9227 WHR38083 |
C00333318
481953258281 |
Washer | Na dotaz | Zadat poptávku | |
| 9322 WHR38083 |
C00317038
481249268203 |
Pružina | 89 Kč
€ 3.90 |
||
| 9640 WHR38083 |
C00319999
481246689004 |
Těsnění varné desky | 558 Kč
€ 24.50 |
||
| 999 WHR38083 |
C00609010 | Gas table WHP | Na dotaz | Zadat poptávku | |
