IKEA MW V00 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | MW V00 S |
| Kód 12NC: | 858742601770 |
| I.C. kód: | 858742601771 |
| Značka: | IKEA |
| Typ produktu: | Mikrovlnné trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

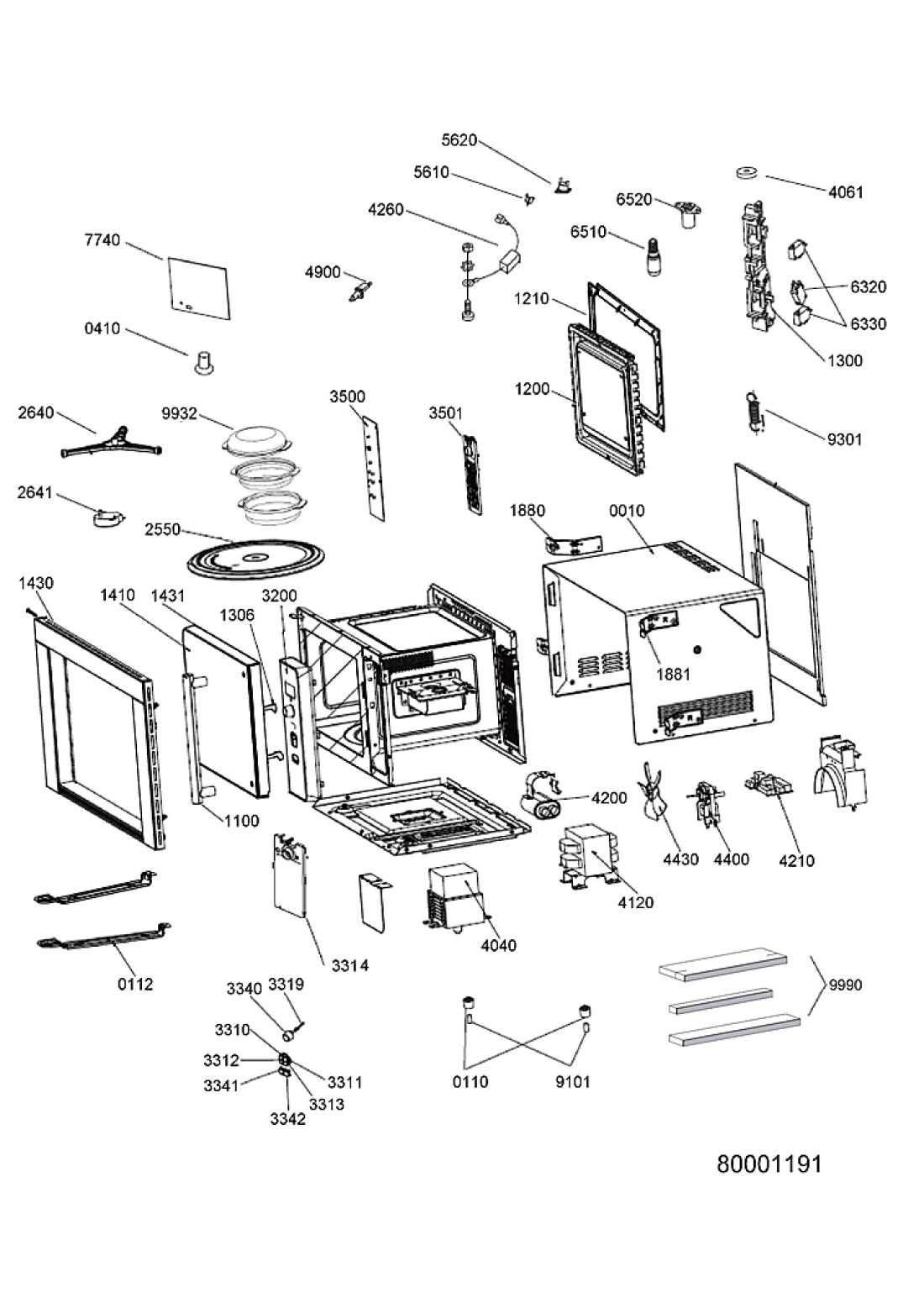

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0010 WHR35265 |
C00333740
482000007670 |
Cabinet | Na dotaz | Zadat poptávku | |
| 0110 WHR35265 |
C00333361
481990200694 |
Foot | Na dotaz | Zadat poptávku | |
| 0112 WHR35265 |
C00333741
482000007671 |
Foot support | Na dotaz | Zadat poptávku | |
| 0410 WHR35265 |
C00321668
480120101102 |
Shaft | Na dotaz | Zadat poptávku | |
| 1100 WHR35265 |
C00319138
482000007672 |
madlo | Na dotaz | Zadat poptávku | |
| 1200 WHR35265 |
C00318177
480120101084 |
ram dveri | 583 Kč
€ 25.60 |
||
| 1210 WHR35265 |
C00317978
480120100989 |
ram | 1 818 Kč
€ 79.90 |
||
| 1300 WHR35265 |
C00327225
481227018053 |
drzak | 305 Kč
€ 13.40 |
||
| 1306 WHR35265 |
C00313669
480120100333 |
Hák dveří | 319 Kč
€ 14.00 |
||
| 1410 WHR35265 |
C00318486
482000007673 |
sklo | 421 Kč
€ 18.50 |
||
| 1430 WHR35265 |
C00316229
482000007674 |
rám | 1 735 Kč
€ 76.30 |
||
| 1431 WHR35265 |
C00318488
482000007675 |
Door frame outer | Na dotaz | Zadat poptávku | |
| 1880 WHR35265 |
C00333742
482000007676 |
Bracket metall right | Na dotaz | Zadat poptávku | |
| 1881 WHR35265 |
C00333743
482000007677 |
Bracket metall left | Na dotaz | Zadat poptávku | |
| 2550 WHR35265 |
C00723252
488000723252 |
Turntable GLASS Diam.27cm. | Na dotaz | Zadat poptávku | |
| 2640 WHR35265 |
C00333744
482000007678 |
kříž unašecí pro talíř mikrovlnné trouby | 978 Kč
€ 43.00 |
||
| 2641 WHR35265 |
C00315121
480120101094 |
Motorek otočného talíře | 1 389 Kč
€ 61.10 |
||
| 3200 WHR35265 |
C00333745
482000007679 |
control panel | Na dotaz | Zadat poptávku | |
| 3310 WHR35265 |
C00333432
482000000604 |
Button FUNCTION 1 | Na dotaz | Zadat poptávku | |
| 3311 WHR35265 |
C00333437
482000000609 |
Button FUNCTION 2 | Na dotaz | Zadat poptávku | |
| 3312 WHR35265 |
C00333433
482000000605 |
Button FUNCTION 3 | Na dotaz | Zadat poptávku | |
| 3313 WHR35265 |
C00333436
482000000608 |
Button FUNCTION 4 | Na dotaz | Zadat poptávku | |
| 3314,3343 WHR35265 |
C00536441
482000099716 |
Button Support | Na dotaz | Zadat poptávku | |
| 3319 WHR35265 |
C00320687
480120100634 |
Unašeč knoflíku | 341 Kč
€ 15.00 |
||
| 3340 WHR35265 |
C00329405
481241129128 |
Button TIME | Na dotaz | Zadat poptávku | |
| 3341 WHR35265 |
C00333434
482000000606 |
Button STOP | Na dotaz | Zadat poptávku | |
| 3342 WHR35265 |
C00333435
482000000607 |
Button START | Na dotaz | Zadat poptávku | |
| 3500 WHR35265 |
C00314311
482000007680 |
elektronika | 3 673 Kč
€ 161.50 |
||
| 3501 WHR35265 |
C00469902
482000032436 |
PCB holder | Na dotaz | Zadat poptávku | |
| 4040 WHR35265 |
C00311327
480120101017 |
magnetron | 3 466 Kč
€ 152.40 |
||
| 4061 WHR35265 |
C00332676
481253268106 |
Podložka | 528 Kč
€ 23.20 |
||
| 4120 WHR35265 |
C00315754
482000007684 |
Transformer HV package | Na dotaz | Zadat poptávku | |
| 4200 WHR35265 |
C00311958
480120101018 |
Capacitor, HV 0,90. | Na dotaz | Zadat poptávku | |
| 4210 WHR35265 |
C00315316
482000005899 |
Filter mains | Na dotaz | Zadat poptávku | |
| 4260 WHR35265 |
C00312916
480120101082 |
Diode HV, 5 KV / 600 mA. | Na dotaz | Zadat poptávku | |
| 4400 WHR35265 |
C00321667
480120101099 |
motor ventilatoru | 1 312 Kč
€ 57.70 |
||
| 4430 WHR35265 |
C00321651
480120101024 |
vrtule | 317 Kč
€ 13.90 |
||
| 4900 WHR35265 |
C00466857
482000007682 |
Cable mains MW V00S | Na dotaz | Zadat poptávku | |
| 5610 WHR35265 |
C00313995
481228248294 |
termostat 145 C | 1 306 Kč
€ 57.40 |
||
| 5620 WHR35265 |
C00327564
481228248264 |
termostat 165 C | 1 321 Kč
€ 58.10 |
||
| 6320 WHR35265 |
C00314629
480120101097 |
Mikrospínač dveří SZM-V16-FD-61 | 890 Kč
€ 39.10 |
||
| 6330 WHR35265 |
C00318419
480120101096 |
mikrospinac | 734 Kč
€ 32.30 |
||
| 6510 WHR35265 |
C00317080
480120101098 |
Lamp | Na dotaz | Zadat poptávku | |
| 6520 WHR35265 |
C00317447
480120101028 |
objimka zarovky | 117 Kč
€ 5.10 |
||
| 7740 WHR35265 |
C00317271
481244229264 |
Cover mica plate | Na dotaz | Zadat poptávku | |
| 9101 WHR35265 |
C00333360
481990200565 |
Pin | Na dotaz | Zadat poptávku | |
| 9301 WHR35265 |
C00320611
480120100331 |
pruzina | 148 Kč
€ 6.50 |
||
| 9932 WHR35265 |
C00331525
481246688934 |
hrnec vareni v pare | 1 760 Kč
€ 77.40 |
||
| 999 WHR35265 |
C00351860
488000351860 |
Safety Instructions WHP | Na dotaz | Zadat poptávku | |
| 9990 WHR35265 |
C00467286
482000010594 |
Sponge Kit | Na dotaz | Zadat poptávku | |
