FRANKE 116.0152.143 OVEN SM
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 116.0152.143 OVEN SM |
| Kód 12NC/I.C. kód: | 859698009750 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

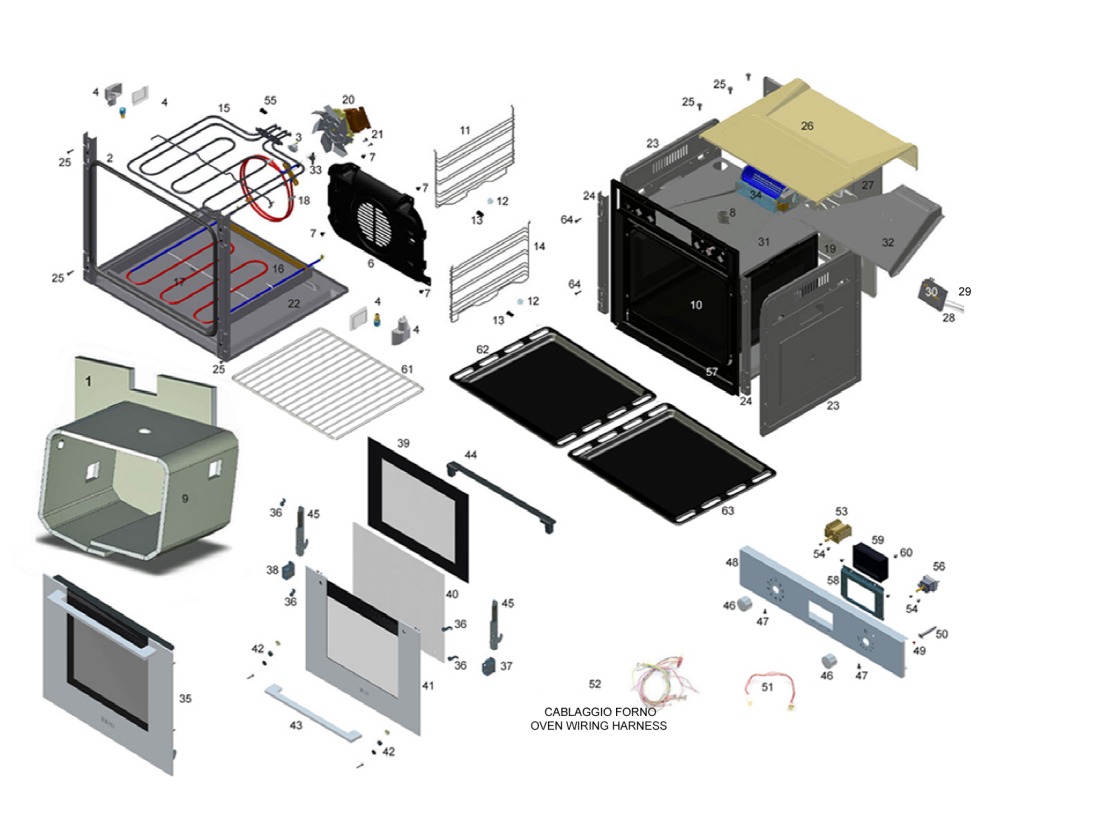

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 FKO00975 |
C00649609
488000649609 |
SP oven back glass rear ins. | Na dotaz | Zadat poptávku | |
| 002 FKO00975 |
C00647866
488000647866 |
oven gasket for front | Na dotaz | Zadat poptávku | |
| 003 FKO00975 |
C00647890
488000647890 |
oven thermostat 280 degrees | Na dotaz | Zadat poptávku | |
| 004 FKO00975 |
C00649612
488000649612 |
SP oven lamp+rectangular hold+wiring | Na dotaz | Zadat poptávku | |
| 006 FKO00975 |
C00649356
488000649356 |
SP oven cover panel for internal fan | Na dotaz | Zadat poptávku | |
| 007 FKO00975 |
C00649355
488000649355 |
SP oven screw tcb 4.2x13mm P10 | Na dotaz | Zadat poptávku | |
| 008 FKO00975 |
C00647947
488000647947 |
oven internal oven chimney | Na dotaz | Zadat poptávku | |
| 009 FKO00975 |
C00649613
488000649613 |
SP oven insul. casing lamp side | Na dotaz | Zadat poptávku | |
| 010 FKO00975 |
C00649615
488000649615 |
SP oven cube lamp side | Na dotaz | Zadat poptávku | |
| 011 FKO00975 |
C00647873
488000647873 |
oven wire racks side left | Na dotaz | Zadat poptávku | |
| 012 FKO00975 |
C00649617
488000649617 |
SP oven support wire racks side | Na dotaz | Zadat poptávku | |
| 013 FKO00975 |
C00649618
488000649618 |
SP oven screws 5x20mm 10 pcs | Na dotaz | Zadat poptávku | |
| 014 FKO00975 |
C00647874
488000647874 |
oven wire racks side right | Na dotaz | Zadat poptávku | |
| 015 FKO00975 |
C00647895
488000647895 |
oven upper grill heating el. 2250+556 | Na dotaz | Zadat poptávku | |
| 016 FKO00975 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 017 FKO00975 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 018 FKO00975 |
C00647943
488000647943 |
oven circular heat. elem. 2000w 2017 | Na dotaz | Zadat poptávku | |
| 019 FKO00975 |
C00649359
488000649359 |
SP oven back panel | Na dotaz | Zadat poptávku | |
| 020 FKO00975 |
C00647876
488000647876 |
oven motor+fan+nut 27W | Na dotaz | Zadat poptávku | |
| 021 FKO00975 |
C00649360
488000649360 |
SP oven screws 4.2x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 022 FKO00975 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 023 FKO00975 |
C00649362
488000649362 |
SP oven side panel right/left | Na dotaz | Zadat poptávku | |
| 024 FKO00975 |
C00647897
488000647897 |
oven support hinge oven door 2010 | Na dotaz | Zadat poptávku | |
| 025 FKO00975 |
C00649357
488000649357 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 026 FKO00975 |
C00649363
488000649363 |
SP oven upper panel chassis | Na dotaz | Zadat poptávku | |
| 027 FKO00975 |
C00649385
488000649385 |
SP oven rear casing | Na dotaz | Zadat poptávku | |
| 028 FKO00975 |
C00649364
488000649364 |
SP oven cable and terminal block | Na dotaz | Zadat poptávku | |
| 029 FKO00975 |
C00649365
488000649365 |
SP oven elect. cable 3x1.5 H05VV-F l1500 | Na dotaz | Zadat poptávku | |
| 030 FKO00975 |
C00649366
488000649366 |
SP oven terminal block 3 term. PA223S3P | Na dotaz | Zadat poptávku | |
| 031 FKO00975 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 032 FKO00975 |
C00649368
488000649368 |
SP oven air conveyor upper 57l | Na dotaz | Zadat poptávku | |
| 033 FKO00975 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 034 FKO00975 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 035 FKO00975 |
C00649619
488000649619 |
SP oven assembly oven door 3 glasses | Na dotaz | Zadat poptávku | |
| 036 FKO00975 |
C00649370
488000649370 |
SP oven rubber for glass door P10 | Na dotaz | Zadat poptávku | |
| 037 FKO00975 |
C00647867
488000647867 |
oven right fixing system inter.glass | Na dotaz | Zadat poptávku | |
| 038 FKO00975 |
C00647868
488000647868 |
oven left fixing system int. glass | Na dotaz | Zadat poptávku | |
| 039 FKO00975 |
C00647893
488000647893 |
oven glass internal 525x397mm | Na dotaz | Zadat poptávku | |
| 040 FKO00975 |
C00649620
488000649620 |
SP oven intermediate glass door 476x395 | Na dotaz | Zadat poptávku | |
| 041 FKO00975 |
C00647908
488000647908 |
oven glass external support SS | Na dotaz | Zadat poptávku | |
| 042 FKO00975 |
C00649371
488000649371 |
SP oven plug nut rubber screw | Na dotaz | Zadat poptávku | |
| 043 FKO00975 |
C00649386
488000649386 |
SP oven handle brushed nickel 455mm | Na dotaz | Zadat poptávku | |
| 044 FKO00975 |
C00649373
488000649373 |
SP oven upper deflector flat door | Na dotaz | Zadat poptávku | |
| 045 FKO00975 |
C00649621
488000649621 |
SP oven hinge oven door 8.7kg | Na dotaz | Zadat poptávku | |
| 046 FKO00975 |
C00647935
488000647935 |
oven knob brushed nickel sm sg ABS | Na dotaz | Zadat poptávku | |
| 047 FKO00975 |
C00649375
488000649375 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 047 FKO00975 |
C00649816
488000649816 |
SP oven screws m4 4x10mm pcs 10 | Na dotaz | Zadat poptávku | |
| 048 FKO00975 |
C00649817
488000649817 |
SP oven controls panel SS sm86mxs | Na dotaz | Zadat poptávku | |
| 049 FKO00975 |
C00647921
488000647921 |
oven neon light cover | Na dotaz | Zadat poptávku | |
| 050 FKO00975 |
C00649377
488000649377 |
SP oven pilot lamp | Na dotaz | Zadat poptávku | |
| 051 FKO00975 |
C00649818
488000649818 |
SP oven wiring cable faston l250mm | Na dotaz | Zadat poptávku | |
| 052 FKO00975 |
C00649819
488000649819 |
SP oven wiring harness 8 cook.modes | Na dotaz | Zadat poptávku | |
| 053 FKO00975 |
C00649820
488000649820 |
SP oven selector ten cook. modes | Na dotaz | Zadat poptávku | |
| 054 FKO00975 |
C00649380
488000649380 |
SP oven screw tcb m4x5mm P10 | Na dotaz | Zadat poptávku | |
| 055 FKO00975 |
C00647919
488000647919 |
oven spring fix thermostat wire | Na dotaz | Zadat poptávku | |
| 056 FKO00975 |
C00647865
488000647865 |
oven thermostat 50-260 degrees | Na dotaz | Zadat poptávku | |
| 057 FKO00975 |
C00649821
488000649821 |
SP oven front frame black | Na dotaz | Zadat poptávku | |
| 058 FKO00975 |
C00649822
488000649822 |
SP oven bracket for electronic programme | Na dotaz | Zadat poptávku | |
| 059 FKO00975 |
C00647894
488000647894 |
oven electronic programmer 3 buttons | Na dotaz | Zadat poptávku | |
| 060 FKO00975 |
C00649823
488000649823 |
SP hob screw 4,2X6,5 10P | Na dotaz | Zadat poptávku | |
| 061 FKO00975 |
C00649382
488000649382 |
SP oven grid anti-tip 452,5x385x9,5 | Na dotaz | Zadat poptávku | |
| 062 FKO00975 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 063 FKO00975 |
C00649636
488000649636 |
SP oven black deep tray 451x385x35mm | Na dotaz | Zadat poptávku | |
| 064 FKO00975 |
C00649384
488000649384 |
SP oven fixing set screws+bushing | Na dotaz | Zadat poptávku | |
