FRANKE 116.0152.805 OVEN CR
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 116.0152.805 OVEN CR |
| Kód 12NC/I.C. kód: | 859698014940 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

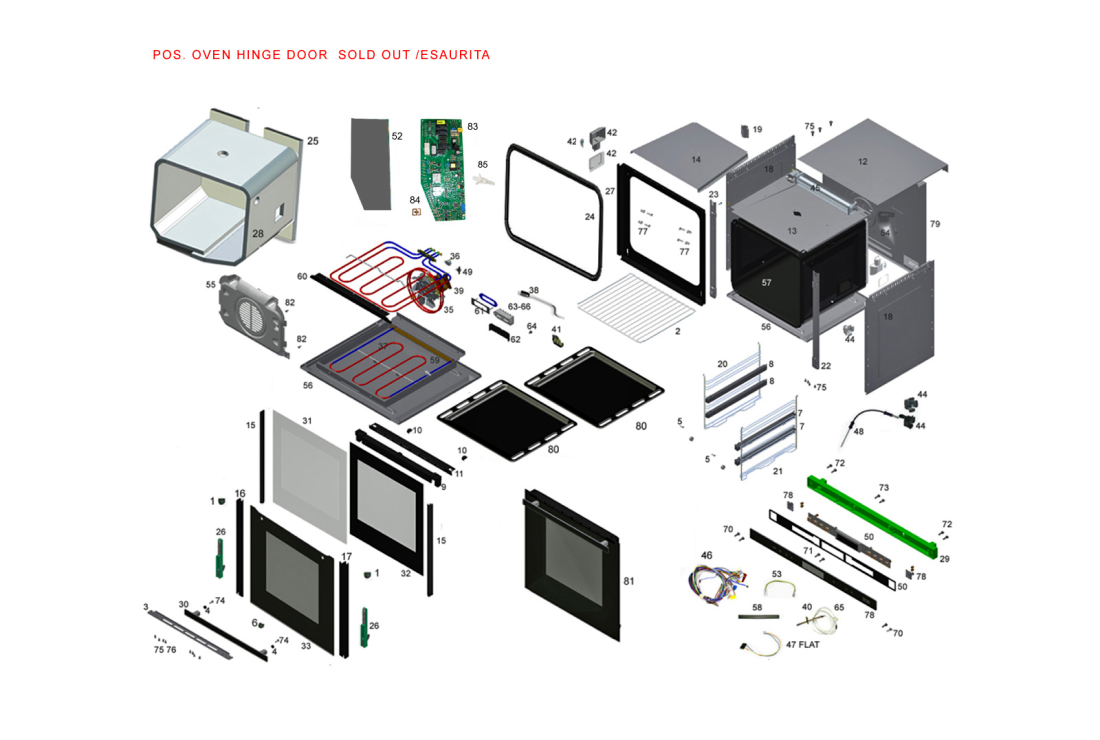

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 FKO01494 |
C00650845
488000650845 |
SP oven cable string | Na dotaz | Zadat poptávku | |
| 000 FKO01494 |
C00649628
488000649628 |
SP oven screw 8x9.5mm 10 pieces | Na dotaz | Zadat poptávku | |
| 000 FKO01494 |
C00654222
488000654222 |
SP oven guide cable h 25mm | Na dotaz | Zadat poptávku | |
| 001 FKO01494 |
C00662427
488000662427 |
SP oven plug door | Na dotaz | Zadat poptávku | |
| 002 FKO01494 |
C00649382
488000649382 |
SP oven grid anti-tip 452,5x385x9,5 | Na dotaz | Zadat poptávku | |
| 003 FKO01494 |
C00662428
488000662428 |
SP oven door lower trim | Na dotaz | Zadat poptávku | |
| 004 FKO01494 |
C00662429
488000662429 |
SP oven rubber washer pcs 10 | Na dotaz | Zadat poptávku | |
| 005 FKO01494 |
C00649617
488000649617 |
SP oven support wire racks side | Na dotaz | Zadat poptávku | |
| 005 FKO01494 |
C00649618
488000649618 |
SP oven screws 5x20mm 10 pcs | Na dotaz | Zadat poptávku | |
| 006 FKO01494 |
C00662430
488000662430 |
SP oven spacer glass door | Na dotaz | Zadat poptávku | |
| 007 FKO01494 |
C00662431
488000662431 |
SP oven right sliding runner | Na dotaz | Zadat poptávku | |
| 008 FKO01494 |
C00662432
488000662432 |
SP oven telescopic runner left | Na dotaz | Zadat poptávku | |
| 009 FKO01494 |
C00662433
488000662433 |
SP oven upper component for door | Na dotaz | Zadat poptávku | |
| 010 FKO01494 |
C00650708
488000650708 |
SP oven snap door upper deflector | Na dotaz | Zadat poptávku | |
| 011 FKO01494 |
C00663461
488000663461 |
SP oven deflector colour chrome | Na dotaz | Zadat poptávku | |
| 012 FKO01494 |
C00662435
488000662435 |
SP oven upper panel oven | Na dotaz | Zadat poptávku | |
| 013 FKO01494 |
C00662436
488000662436 |
SP oven base for conveyor tangentia | Na dotaz | Zadat poptávku | |
| 014 FKO01494 |
C00662437
488000662437 |
SP oven conveyor tangential fan | Na dotaz | Zadat poptávku | |
| 015 FKO01494 |
C00662438
488000662438 |
SP oven gasket for door 3 ways | Na dotaz | Zadat poptávku | |
| 016 FKO01494 |
C00662439
488000662439 |
SP oven left support for oven door | Na dotaz | Zadat poptávku | |
| 017 FKO01494 |
C00662440
488000662440 |
SP oven right support for oven door | Na dotaz | Zadat poptávku | |
| 018 FKO01494 |
C00662441
488000662441 |
SP oven panel side left/side | Na dotaz | Zadat poptávku | |
| 019 FKO01494 |
C00662442
488000662442 |
SP oven chimney for oven | Na dotaz | Zadat poptávku | |
| 020 FKO01494 |
C00653630
488000653630 |
SP oven wire racks side left 60+/65 | Na dotaz | Zadat poptávku | |
| 021 FKO01494 |
C00662443
488000662443 |
SP oven right side support for grid | Na dotaz | Zadat poptávku | |
| 022 FKO01494 |
C00662444
488000662444 |
SP oven right ass. support hinge | Na dotaz | Zadat poptávku | |
| 023 FKO01494 |
C00662445
488000662445 |
SP oven left ass. support hinge doo | Na dotaz | Zadat poptávku | |
| 024 FKO01494 |
C00662446
488000662446 |
SP oven gasket for oven front | Na dotaz | Zadat poptávku | |
| 025 FKO01494 |
C00662447
488000662447 |
SP oven rear insulating | Na dotaz | Zadat poptávku | |
| 027 FKO01494 |
C00662448
488000662448 |
SP oven front frame | Na dotaz | Zadat poptávku | |
| 028 FKO01494 |
C00662449
488000662449 |
SP oven insulation for casing | Na dotaz | Zadat poptávku | |
| 029 FKO01494 |
C00662450
488000662450 |
SP oven support controls panel | Na dotaz | Zadat poptávku | |
| 030 FKO01494 |
C00662684
488000662684 |
SP oven handle assembly+white glass | Na dotaz | Zadat poptávku | |
| 032 FKO01494 |
C00662690
488000662690 |
SP oven internal glass door 476x518mm | Na dotaz | Zadat poptávku | |
| 033 FKO01494 |
C00663462
488000663462 |
SP oven external glass for door white | Na dotaz | Zadat poptávku | |
| 034 FKO01494 |
C00647895
488000647895 |
oven upper grill heating el. 2250+556 | Na dotaz | Zadat poptávku | |
| 035 FKO01494 |
C00647943
488000647943 |
oven circular heat. elem. 2000w 2017 | Na dotaz | Zadat poptávku | |
| 035 FKO01494 |
C00647870
488000647870 |
oven circular fan element 2000W | Na dotaz | Zadat poptávku | |
| 036 FKO01494 |
C00647890
488000647890 |
oven thermostat 280 degrees | Na dotaz | Zadat poptávku | |
| 037 FKO01494 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 037 FKO01494 |
C00647875
488000647875 |
oven heating element lower | Na dotaz | Zadat poptávku | |
| 038 FKO01494 |
C00649365
488000649365 |
SP oven elect. cable 3x1.5 H05VV-F l1500 | Na dotaz | Zadat poptávku | |
| 039 FKO01494 |
C00662453
488000662453 |
SP oven motor fan assembly | Na dotaz | Zadat poptávku | |
| 040 FKO01494 |
C00647922
488000647922 |
oven temperature probe | Na dotaz | Zadat poptávku | |
| 041 FKO01494 |
C00653641
488000653641 |
SP oven terminal block faston PA205 3P | Na dotaz | Zadat poptávku | |
| 042 FKO01494 |
C00656910
488000656910 |
SP oven lampholder halogen+cable+lamp | Na dotaz | Zadat poptávku | |
| 044 FKO01494 |
C00654276
488000654276 |
SP oven plug for meat probe temper | Na dotaz | Zadat poptávku | |
| 044 FKO01494 |
C00654277
488000654277 |
SP oven closing plug meat probe tem | Na dotaz | Zadat poptávku | |
| 044 FKO01494 |
C00662454
488000662454 |
SP oven protect. holder meat probe | Na dotaz | Zadat poptávku | |
| 045 FKO01494 |
C00662455
488000662455 |
SP oven tangential fan 30x350mm | Na dotaz | Zadat poptávku | |
| 046 FKO01494 |
C00662456
488000662456 |
SP oven wiring oven 910 full-electr | Na dotaz | Zadat poptávku | |
| 047 FKO01494 |
C00662457
488000662457 |
SP oven flat cable connection | Na dotaz | Zadat poptávku | |
| 048 FKO01494 |
C00654274
488000654274 |
SP oven meat probe temperature | Na dotaz | Zadat poptávku | |
| 049 FKO01494 |
C00662458
488000662458 |
SP oven thermostat 62 degrees | Na dotaz | Zadat poptávku | |
| 050 FKO01494 |
C00662459
488000662459 |
SP oven touch controls+lcd display | Na dotaz | Zadat poptávku | |
| 052 FKO01494 |
C00662460
488000662460 |
SP oven bracket for power board | Na dotaz | Zadat poptávku | |
| 053 FKO01494 |
C00661936
488000661936 |
SP oven ground wire length 450mm | Na dotaz | Zadat poptávku | |
| 054 FKO01494 |
C00662461
488000662461 |
SP oven rear panel | Na dotaz | Zadat poptávku | |
| 055 FKO01494 |
C00649356
488000649356 |
SP oven cover panel for internal fan | Na dotaz | Zadat poptávku | |
| 056 FKO01494 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 058 FKO01494 |
C00662462
488000662462 |
SP oven sheath length 1000mm | Na dotaz | Zadat poptávku | |
| 059 FKO01494 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 060 FKO01494 |
C00653628
488000653628 |
SP protection upper heating element | Na dotaz | Zadat poptávku | |
| 061 FKO01494 |
C00662463
488000662463 |
SP oven flange fixing connector | Na dotaz | Zadat poptávku | |
| 063 FKO01494 |
C00662464
488000662464 |
SP oven connector ceramic | Na dotaz | Zadat poptávku | |
| 064 FKO01494 |
C00662465
488000662465 |
SP oven wiring ceramic connector | Na dotaz | Zadat poptávku | |
| 064 FKO01494 |
C00662466
488000662466 |
SP oven nut m4x10mm 10 pieces | Na dotaz | Zadat poptávku | |
| 065 FKO01494 |
C00661938
488000661938 |
SP oven cable for probe 1100mm | Na dotaz | Zadat poptávku | |
| 070 FKO01494 |
C00649657
488000649657 |
SP oven screw m4x10mm chrome 10 pcs | Na dotaz | Zadat poptávku | |
| 071 FKO01494 |
C00661721
488000661721 |
SP oven screw countersunk head 10pc | Na dotaz | Zadat poptávku | |
| 072 FKO01494 |
C00648161
488000648161 |
hob screw SS 4x8mm 10 pcs | Na dotaz | Zadat poptávku | |
| 073 FKO01494 |
C00649916
488000649916 |
SP hob set screw 10 pcs | Na dotaz | Zadat poptávku | |
| 074 FKO01494 |
C00649653
488000649653 |
SP oven screws 4.8x16mm pcs 10 | Na dotaz | Zadat poptávku | |
| 075 FKO01494 |
C00649357
488000649357 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 076 FKO01494 |
C00649360
488000649360 |
SP oven screws 4.2x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 077 FKO01494 |
C00653653
488000653653 |
SP oven set screws and bushing | Na dotaz | Zadat poptávku | |
| 079 FKO01494 |
C00662468
488000662468 |
SP oven rear panel for cr60+ | Na dotaz | Zadat poptávku | |
| 080 FKO01494 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 080 FKO01494 |
C00649636
488000649636 |
SP oven black deep tray 451x385x35mm | Na dotaz | Zadat poptávku | |
| 081 FKO01494 |
C00663463
488000663463 |
SP oven door assembly white 60+ | Na dotaz | Zadat poptávku | |
| 082 FKO01494 |
C00649355
488000649355 |
SP oven screw tcb 4.2x13mm P10 | Na dotaz | Zadat poptávku | |
| 083 FKO01494 |
C00662470
488000662470 |
SP oven power board | Na dotaz | Zadat poptávku | |
| 084 FKO01494 |
C00662471
488000662471 |
SP oven jumper for power board | Na dotaz | Zadat poptávku | |
| 085 FKO01494 |
C00654288
488000654288 |
SP oven support pcb 9.5mm 105 degr | Na dotaz | Zadat poptávku | |
