| Komerční kód: | 116.0180.206 OVEN CR |
| Kód 12NC/I.C. kód: | 859698015550 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

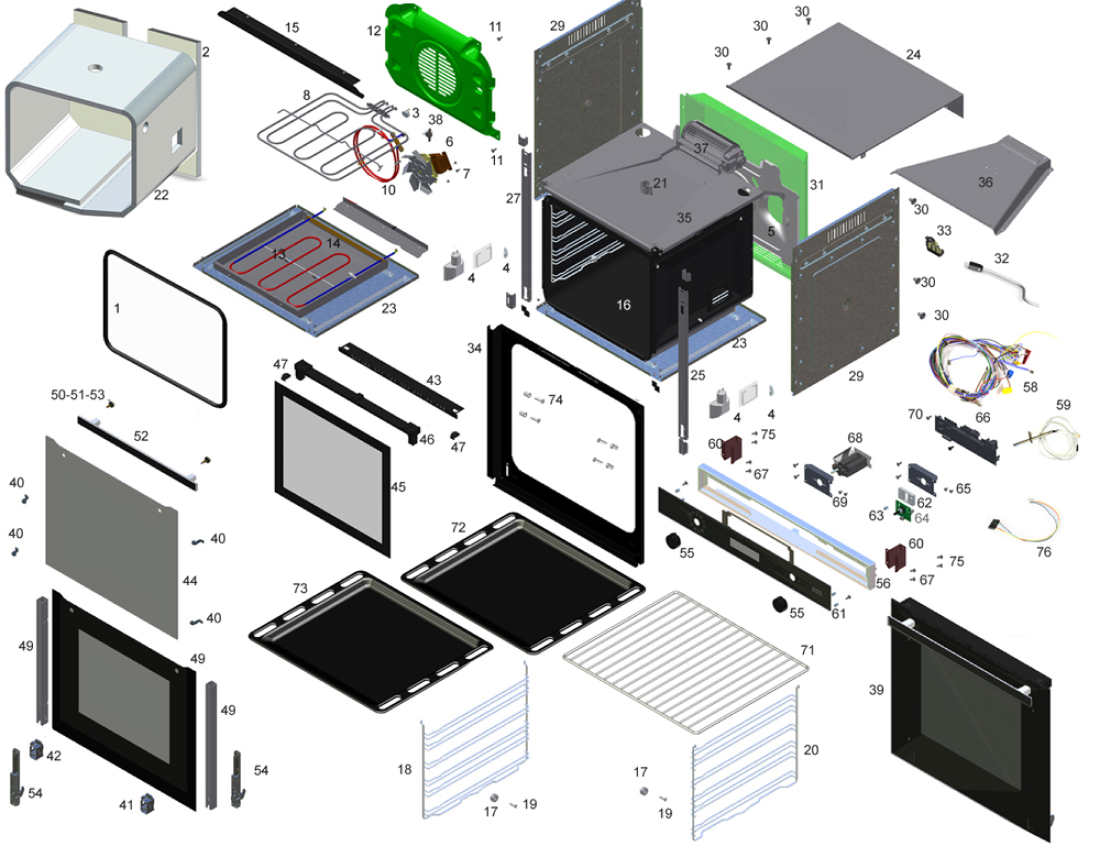

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 FKO01555 |
C00650845
488000650845 |
SP oven cable string | Na dotaz | Zadat poptávku | |
| 001 FKO01555 |
C00653623
488000653623 |
SP oven gasket for 65 liters | Na dotaz | Zadat poptávku | |
| 002 FKO01555 |
C00656960
488000656960 |
SP oven insulating for casing 65 liters | Na dotaz | Zadat poptávku | |
| 003 FKO01555 |
C00647890
488000647890 |
oven thermostat 280 degrees | Na dotaz | Zadat poptávku | |
| 004 FKO01555 |
C00649612
488000649612 |
SP oven lamp+rectangular hold+wiring | Na dotaz | Zadat poptávku | |
| 005 FKO01555 |
C00649359
488000649359 |
SP oven back panel | Na dotaz | Zadat poptávku | |
| 006 FKO01555 |
C00647876
488000647876 |
oven motor+fan+nut 27W | Na dotaz | Zadat poptávku | |
| 007 FKO01555 |
C00649360
488000649360 |
SP oven screws 4.2x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 008 FKO01555 |
C00647895
488000647895 |
oven upper grill heating el. 2250+556 | Na dotaz | Zadat poptávku | |
| 010 FKO01555 |
C00647943
488000647943 |
oven circular heat. elem. 2000w 2017 | Na dotaz | Zadat poptávku | |
| 010 FKO01555 |
C00647870
488000647870 |
oven circular fan element 2000W | Na dotaz | Zadat poptávku | |
| 011 FKO01555 |
C00649355
488000649355 |
SP oven screw tcb 4.2x13mm P10 | Na dotaz | Zadat poptávku | |
| 012 FKO01555 |
C00649356
488000649356 |
SP oven cover panel for internal fan | Na dotaz | Zadat poptávku | |
| 013 FKO01555 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 013 FKO01555 |
C00647875
488000647875 |
oven heating element lower | Na dotaz | Zadat poptávku | |
| 014 FKO01555 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 015 FKO01555 |
C00653628
488000653628 |
SP protection upper heating element | Na dotaz | Zadat poptávku | |
| 016 FKO01555 |
C00656961
488000656961 |
SP oven casing for 65 liters | Na dotaz | Zadat poptávku | |
| 017 FKO01555 |
C00649617
488000649617 |
SP oven support wire racks side | Na dotaz | Zadat poptávku | |
| 018 FKO01555 |
C00653630
488000653630 |
SP oven wire racks side left 60+/65 | Na dotaz | Zadat poptávku | |
| 019 FKO01555 |
C00649618
488000649618 |
SP oven screws 5x20mm 10 pcs | Na dotaz | Zadat poptávku | |
| 020 FKO01555 |
C00653631
488000653631 |
SP oven right sup. grid oven60+/65 anti | Na dotaz | Zadat poptávku | |
| 021 FKO01555 |
C00653632
488000653632 |
SP oven steam chimney oven 65 liters | Na dotaz | Zadat poptávku | |
| 022 FKO01555 |
C00653633
488000653633 |
SP oven insulating for casing 65 liters | Na dotaz | Zadat poptávku | |
| 023 FKO01555 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 024 FKO01555 |
C00653634
488000653634 |
SP oven upper panel contr.pan. h75mm | Na dotaz | Zadat poptávku | |
| 024 FKO01555 |
C00656962
488000656962 |
SP oven upper side panel oven 65 liters | Na dotaz | Zadat poptávku | |
| 025 FKO01555 |
C00653637
488000653637 |
SP oven right support hinge assembly | Na dotaz | Zadat poptávku | |
| 025,027 FKO01555 |
C00653636
488000653636 |
SP oven support hinge door panel h75-40m | Na dotaz | Zadat poptávku | |
| 027 FKO01555 |
C00653638
488000653638 |
SP oven left support hinge assembly | Na dotaz | Zadat poptávku | |
| 029 FKO01555 |
C00653639
488000653639 |
SP oven side panel right/left | Na dotaz | Zadat poptávku | |
| 029 FKO01555 |
C00653640
488000653640 |
SP oven side panel oven 65 liters | Na dotaz | Zadat poptávku | |
| 030,075 FKO01555 |
C00649357
488000649357 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 031 FKO01555 |
C00653657
488000653657 |
SP oven back side panel oven h75mm | Na dotaz | Zadat poptávku | |
| 031 FKO01555 |
C00653658
488000653658 |
SP oven back side panel oven 65 liters | Na dotaz | Zadat poptávku | |
| 032 FKO01555 |
C00649365
488000649365 |
SP oven elect. cable 3x1.5 H05VV-F l1500 | Na dotaz | Zadat poptávku | |
| 033 FKO01555 |
C00653641
488000653641 |
SP oven terminal block faston PA205 3P | Na dotaz | Zadat poptávku | |
| 034 FKO01555 |
C00653642
488000653642 |
SP oven front frame for 65 liters | Na dotaz | Zadat poptávku | |
| 035 FKO01555 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 036 FKO01555 |
C00649368
488000649368 |
SP oven air conveyor upper 57l | Na dotaz | Zadat poptávku | |
| 037 FKO01555 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 038 FKO01555 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 039 FKO01555 |
C00663831
488000663831 |
SP oven assembly door white cr981mm | Na dotaz | Zadat poptávku | |
| 040 FKO01555 |
C00649370
488000649370 |
SP oven rubber for glass door P10 | Na dotaz | Zadat poptávku | |
| 041 FKO01555 |
C00647867
488000647867 |
oven right fixing system inter.glass | Na dotaz | Zadat poptávku | |
| 042 FKO01555 |
C00647868
488000647868 |
oven left fixing system int. glass | Na dotaz | Zadat poptávku | |
| 043 FKO01555 |
C00650707
488000650707 |
SP oven deflector nickel cr cs 2010 | Na dotaz | Zadat poptávku | |
| 044 FKO01555 |
C00653644
488000653644 |
SP oven intermediate glass door 476x436m | Na dotaz | Zadat poptávku | |
| 045 FKO01555 |
C00653645
488000653645 |
SP oven internal glass door 525x435mm | Na dotaz | Zadat poptávku | |
| 046 FKO01555 |
C00650706
488000650706 |
SP oven upper trim oven door cr cs | Na dotaz | Zadat poptávku | |
| 047 FKO01555 |
C00650708
488000650708 |
SP oven snap door upper deflector | Na dotaz | Zadat poptávku | |
| 049 FKO01555 |
C00663832
488000663832 |
SP oven external glass door+posts doors | Na dotaz | Zadat poptávku | |
| 050 FKO01555 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 051 FKO01555 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 052 FKO01555 |
C00662684
488000662684 |
SP oven handle assembly+white glass | Na dotaz | Zadat poptávku | |
| 053 FKO01555 |
C00649653
488000649653 |
SP oven screws 4.8x16mm pcs 10 | Na dotaz | Zadat poptávku | |
| 054 FKO01555 |
C00653647
488000653647 |
SP oven hinge door weight 8,8kg | Na dotaz | Zadat poptávku | |
| 055 FKO01555 |
C00662685
488000662685 |
SP oven knob chrome nickel | Na dotaz | Zadat poptávku | |
| 056 FKO01555 |
C00662731
488000662731 |
SP oven support control panel oven 65l | Na dotaz | Zadat poptávku | |
| 058 FKO01555 |
C00649624
488000649624 |
SP oven wiring sm981 98 | Na dotaz | Zadat poptávku | |
| 059 FKO01555 |
C00647922
488000647922 |
oven temperature probe | Na dotaz | Zadat poptávku | |
| 060 FKO01555 |
C00656964
488000656964 |
SP oven bracket for control panel suppor | Na dotaz | Zadat poptávku | |
| 061 FKO01555 |
C00663833
488000663833 |
SP oven glass panel+brackets cr981 white | Na dotaz | Zadat poptávku | |
| 062 FKO01555 |
C00649631
488000649631 |
SP oven support for generator card | Na dotaz | Zadat poptávku | |
| 063 FKO01555 |
C00655957
488000655957 |
SP oven bushing for bit generator | Na dotaz | Zadat poptávku | |
| 064 FKO01555 |
C00647915
488000647915 |
oven generator temperature inc. | Na dotaz | Zadat poptávku | |
| 065 FKO01555 |
C00661824
488000661824 |
SP oven screw tcb 4.2x12mm 10 pieces | Na dotaz | Zadat poptávku | |
| 066 FKO01555 |
C00647901
488000647901 |
oven visual board 981 98 | Na dotaz | Zadat poptávku | |
| 067 FKO01555 |
C00649657
488000649657 |
SP oven screw m4x10mm chrome 10 pcs | Na dotaz | Zadat poptávku | |
| 068 FKO01555 |
C00649629
488000649629 |
SP oven selector 11 programs+encoder | Na dotaz | Zadat poptávku | |
| 069 FKO01555 |
C00655961
488000655961 |
SP hob screw 8x9.5mm 10 pcs | Na dotaz | Zadat poptávku | |
| 070 FKO01555 |
C00649692
488000649692 |
SP hob screw 3.5x6mm 10 pieces | Na dotaz | Zadat poptávku | |
| 071 FKO01555 |
C00649382
488000649382 |
SP oven grid anti-tip 452,5x385x9,5 | Na dotaz | Zadat poptávku | |
| 072 FKO01555 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 073 FKO01555 |
C00649636
488000649636 |
SP oven black deep tray 451x385x35mm | Na dotaz | Zadat poptávku | |
| 074 FKO01555 |
C00653653
488000653653 |
SP oven set screws and bushing | Na dotaz | Zadat poptávku | |
| 076 FKO01555 |
C00649623
488000649623 |
SP oven cable 5 pins vis. board-tou | Na dotaz | Zadat poptávku | |
