| Komerční kód: | 116.0183.269 OVEN CM |
| Kód 12NC/I.C. kód: | 859698011950 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

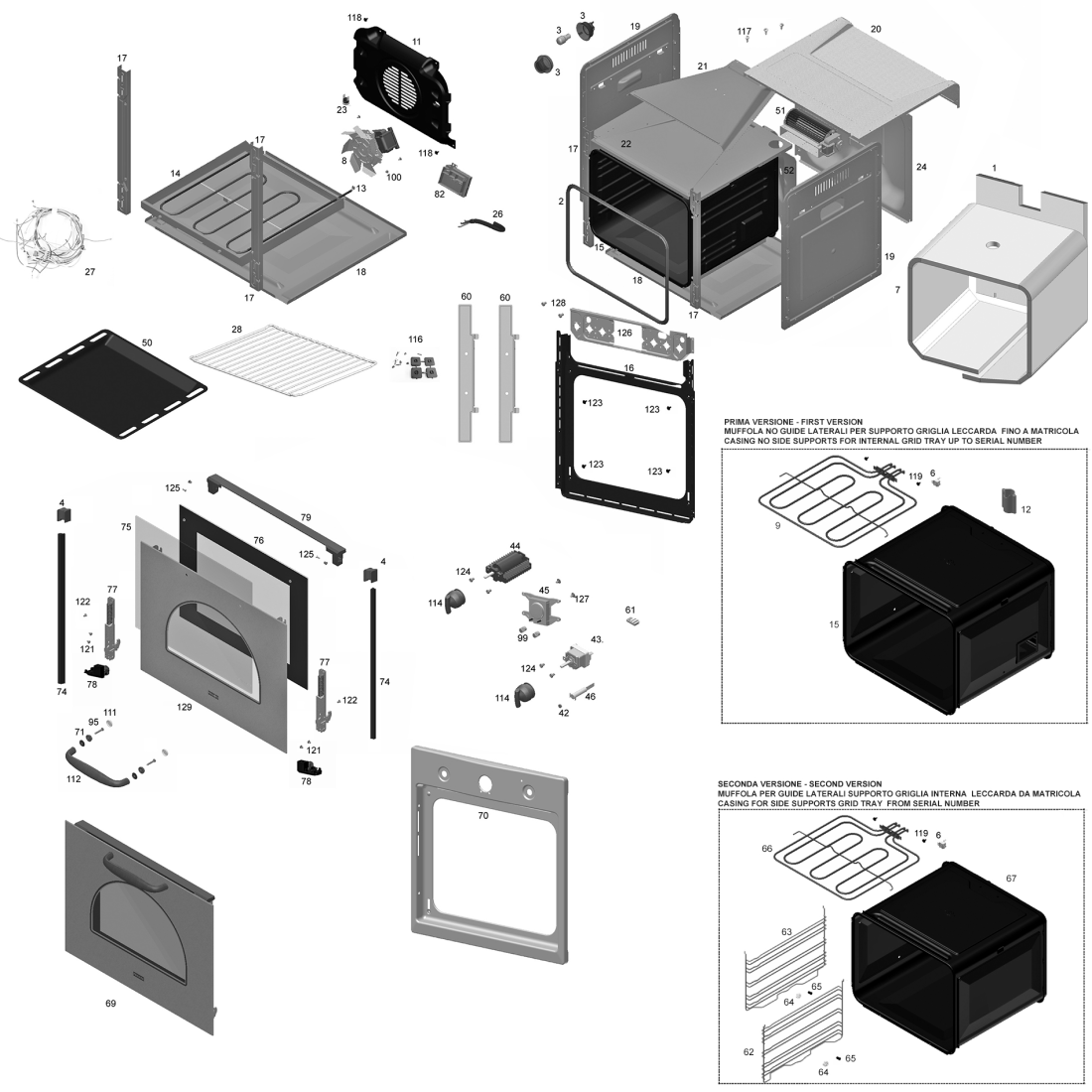

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 FKO01195 |
C00649610
488000649610 |
SP oven insulation rear 57/63l rear lamp | Na dotaz | Zadat poptávku | |
| 002 FKO01195 |
C00647866
488000647866 |
oven gasket for front | Na dotaz | Zadat poptávku | |
| 003 FKO01195 |
C00647902
488000647902 |
oven lamp lampholder 15W | Na dotaz | Zadat poptávku | |
| 004 FKO01195 |
C00649642
488000649642 |
SP oven bush fixing hinge 3D | Na dotaz | Zadat poptávku | |
| 006 FKO01195 |
C00647890
488000647890 |
oven thermostat 280 degrees | Na dotaz | Zadat poptávku | |
| 007 FKO01195 |
C00649614
488000649614 |
SP oven insulation side no lamps 57/63l | Na dotaz | Zadat poptávku | |
| 008 FKO01195 |
C00647876
488000647876 |
oven motor+fan+nut 27W | Na dotaz | Zadat poptávku | |
| 009,066 FKO01195 |
C00647895
488000647895 |
oven upper grill heating el. 2250+556 | Na dotaz | Zadat poptávku | |
| 011 FKO01195 |
C00649356
488000649356 |
SP oven cover panel for internal fan | Na dotaz | Zadat poptávku | |
| 012 FKO01195 |
C00647947
488000647947 |
oven internal oven chimney | Na dotaz | Zadat poptávku | |
| 012 FKO01195 |
C00647946
488000647946 |
oven screw 4,2x6,5mm 10 pieces | Na dotaz | Zadat poptávku | |
| 013 FKO01195 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 013 FKO01195 |
C00647875
488000647875 |
oven heating element lower | Na dotaz | Zadat poptávku | |
| 014 FKO01195 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 015 FKO01195 |
C00649353
488000649353 |
SP oven cube lamp rear | Na dotaz | Zadat poptávku | |
| 016 FKO01195 |
C00649643
488000649643 |
SP oven front enameled | Na dotaz | Zadat poptávku | |
| 017 FKO01195 |
C00647897
488000647897 |
oven support hinge oven door 2010 | Na dotaz | Zadat poptávku | |
| 018 FKO01195 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 019 FKO01195 |
C00649362
488000649362 |
SP oven side panel right/left | Na dotaz | Zadat poptávku | |
| 020 FKO01195 |
C00649363
488000649363 |
SP oven upper panel chassis | Na dotaz | Zadat poptávku | |
| 021 FKO01195 |
C00649368
488000649368 |
SP oven air conveyor upper 57l | Na dotaz | Zadat poptávku | |
| 022 FKO01195 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 023 FKO01195 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 024 FKO01195 |
C00649385
488000649385 |
SP oven rear casing | Na dotaz | Zadat poptávku | |
| 025 FKO01195 |
C00649364
488000649364 |
SP oven cable and terminal block | Na dotaz | Zadat poptávku | |
| 026 FKO01195 |
C00649365
488000649365 |
SP oven elect. cable 3x1.5 H05VV-F l1500 | Na dotaz | Zadat poptávku | |
| 027 FKO01195 |
C00649644
488000649644 |
SP oven wiring harness 6 prog+1 lamp | Na dotaz | Zadat poptávku | |
| 028 FKO01195 |
C00649382
488000649382 |
SP oven grid anti-tip 452,5x385x9,5 | Na dotaz | Zadat poptávku | |
| 042 FKO01195 |
C00647921
488000647921 |
oven neon light cover | Na dotaz | Zadat poptávku | |
| 043 FKO01195 |
C00647871
488000647871 |
oven thermostat one wire | Na dotaz | Zadat poptávku | |
| 044 FKO01195 |
C00649379
488000649379 |
SP oven selector 8 cooking modes | Na dotaz | Zadat poptávku | |
| 045 FKO01195 |
C00647941
488000647941 |
oven clock rustic electronic 3D | Na dotaz | Zadat poptávku | |
| 046 FKO01195 |
C00649377
488000649377 |
SP oven pilot lamp | Na dotaz | Zadat poptávku | |
| 050 FKO01195 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 051 FKO01195 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 052 FKO01195 |
C00649359
488000649359 |
SP oven back panel | Na dotaz | Zadat poptávku | |
| 060 FKO01195 |
C00647918
488000647918 |
oven bracket fixing cabinet | Na dotaz | Zadat poptávku | |
| 061 FKO01195 |
C00647919
488000647919 |
oven spring fix thermostat wire | Na dotaz | Zadat poptávku | |
| 062 FKO01195 |
C00647874
488000647874 |
oven wire racks side right | Na dotaz | Zadat poptávku | |
| 063 FKO01195 |
C00647873
488000647873 |
oven wire racks side left | Na dotaz | Zadat poptávku | |
| 064 FKO01195 |
C00649617
488000649617 |
SP oven support wire racks side | Na dotaz | Zadat poptávku | |
| 065 FKO01195 |
C00649618
488000649618 |
SP oven screws 5x20mm 10 pcs | Na dotaz | Zadat poptávku | |
| 067 FKO01195 |
C00649616
488000649616 |
SP oven casing wire guides 1 rear lamp | Na dotaz | Zadat poptávku | |
| 069 FKO01195 |
C00656238
488000656238 |
SP oven door assembly 3D Country white | Na dotaz | Zadat poptávku | |
| 070 FKO01195 |
C00656239
488000656239 |
SP oven frame white Country 3D 65 | Na dotaz | Zadat poptávku | |
| 071 FKO01195 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 074 FKO01195 |
C00649648
488000649648 |
SP oven gasket glass door length 384mm | Na dotaz | Zadat poptávku | |
| 075 FKO01195 |
C00649649
488000649649 |
SP oven glass door intermediate 475x397m | Na dotaz | Zadat poptávku | |
| 076 FKO01195 |
C00649650
488000649650 |
SP oven glass door internal 475x398mm | Na dotaz | Zadat poptávku | |
| 077 FKO01195 |
C00649651
488000649651 |
SP oven hinge door 3D 8.20kg | Na dotaz | Zadat poptávku | |
| 078 FKO01195 |
C00647920
488000647920 |
oven block right left door glasses 3d | Na dotaz | Zadat poptávku | |
| 079 FKO01195 |
C00649652
488000649652 |
SP oven trim upper door 3D | Na dotaz | Zadat poptávku | |
| 082 FKO01195 |
C00649366
488000649366 |
SP oven terminal block 3 term. PA223S3P | Na dotaz | Zadat poptávku | |
| 095 FKO01195 |
C00649653
488000649653 |
SP oven screws 4.8x16mm pcs 10 | Na dotaz | Zadat poptávku | |
| 099 FKO01195 |
C00647904
488000647904 |
SP oven knob timer Country ant. bra | Na dotaz | Zadat poptávku | |
| 100,127 FKO01195 |
C00649360
488000649360 |
SP oven screws 4.2x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 111 FKO01195 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 112 FKO01195 |
C00649655
488000649655 |
SP oven handle Country gold ant. br | Na dotaz | Zadat poptávku | |
| 114 FKO01195 |
C00647912
488000647912 |
oven knob Country Trend line | Na dotaz | Zadat poptávku | |
| 116 FKO01195 |
C00649656
488000649656 |
SP oven set spacers+screws+bushing | Na dotaz | Zadat poptávku | |
| 117,128 FKO01195 |
C00649357
488000649357 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 118 FKO01195 |
C00649355
488000649355 |
SP oven screw tcb 4.2x13mm P10 | Na dotaz | Zadat poptávku | |
| 119 FKO01195 |
C00650775
488000650775 |
SP oven screws c15 m4x10 galvaN. P10 | Na dotaz | Zadat poptávku | |
| 121 FKO01195 |
C00649658
488000649658 |
SP oven screw self-tapping 3.9x16mm P10 | Na dotaz | Zadat poptávku | |
| 122 FKO01195 |
C00649659
488000649659 |
SP hob screw 4.2x6.5mm 10 pcs | Na dotaz | Zadat poptávku | |
| 123 FKO01195 |
C00649660
488000649660 |
SP oven screws 4.2x12mm pcs10 | Na dotaz | Zadat poptávku | |
| 124 FKO01195 |
C00649661
488000649661 |
SP hob screw m4x5mm 10 pcs | Na dotaz | Zadat poptávku | |
| 125 FKO01195 |
C00649662
488000649662 |
SP oven set P10 screws m4x12 tsp | Na dotaz | Zadat poptávku | |
| 126 FKO01195 |
C00649663
488000649663 |
SP oven support controls panel 3D galler | Na dotaz | Zadat poptávku | |
| 129 FKO01195 |
C00656240
488000656240 |
SP oven glass+frame+post door wh 3D | Na dotaz | Zadat poptávku | |
