| Komerční kód: | 116.0183.410 OVEN TL |
| Kód 12NC/I.C. kód: | 859698013170 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

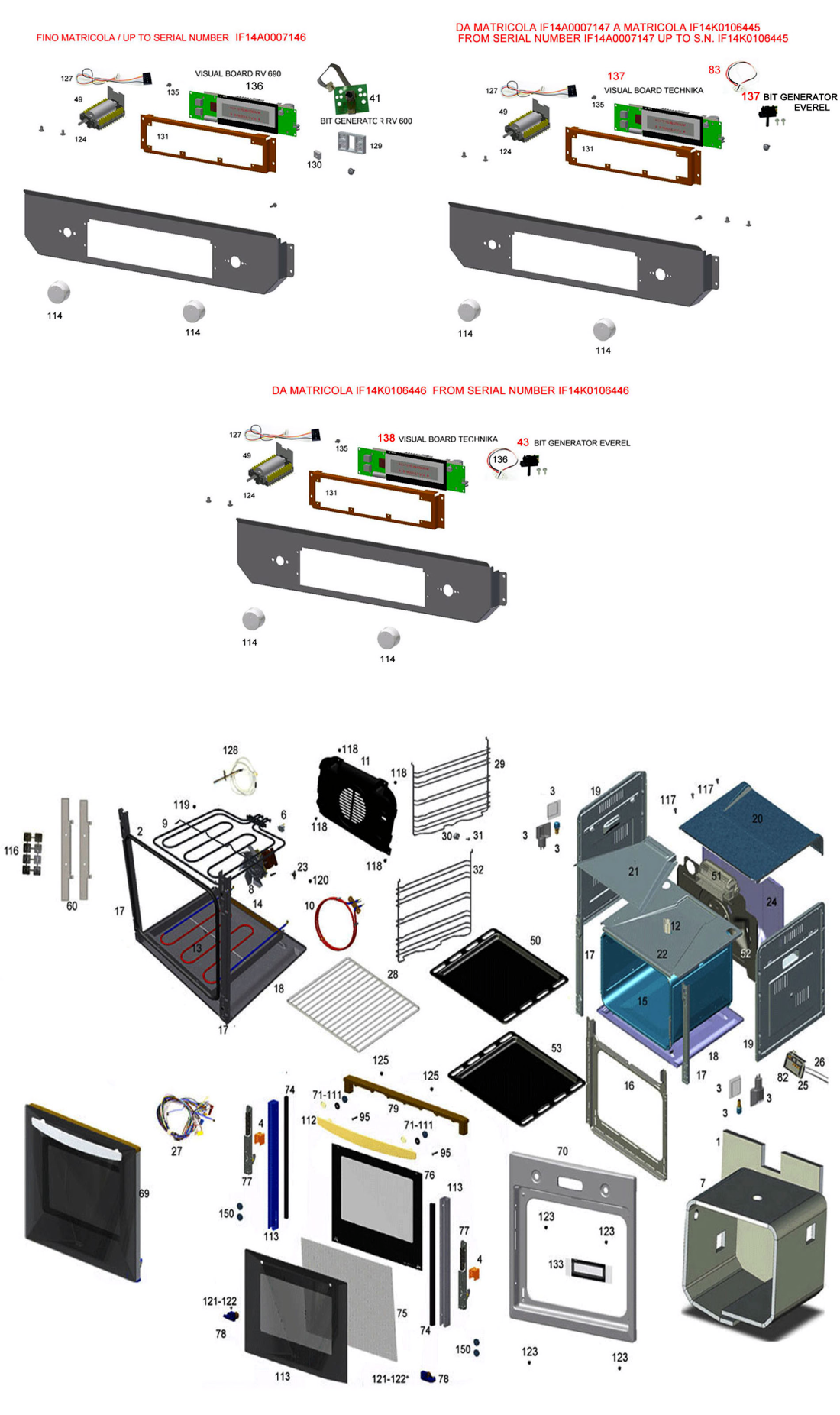

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 FKO01317 |
C00650845
488000650845 |
SP oven cable string | Na dotaz | Zadat poptávku | |
| 001 FKO01317 |
C00649609
488000649609 |
SP oven back glass rear ins. | Na dotaz | Zadat poptávku | |
| 002 FKO01317 |
C00647866
488000647866 |
oven gasket for front | Na dotaz | Zadat poptávku | |
| 003 FKO01317 |
C00649612
488000649612 |
SP oven lamp+rectangular hold+wiring | Na dotaz | Zadat poptávku | |
| 004 FKO01317 |
C00649642
488000649642 |
SP oven bush fixing hinge 3D | Na dotaz | Zadat poptávku | |
| 006 FKO01317 |
C00647890
488000647890 |
oven thermostat 280 degrees | Na dotaz | Zadat poptávku | |
| 007 FKO01317 |
C00649613
488000649613 |
SP oven insul. casing lamp side | Na dotaz | Zadat poptávku | |
| 008 FKO01317 |
C00647876
488000647876 |
oven motor+fan+nut 27W | Na dotaz | Zadat poptávku | |
| 009 FKO01317 |
C00647895
488000647895 |
oven upper grill heating el. 2250+556 | Na dotaz | Zadat poptávku | |
| 010 FKO01317 |
C00647943
488000647943 |
oven circular heat. elem. 2000w 2017 | Na dotaz | Zadat poptávku | |
| 010 FKO01317 |
C00647870
488000647870 |
oven circular fan element 2000W | Na dotaz | Zadat poptávku | |
| 011 FKO01317 |
C00649356
488000649356 |
SP oven cover panel for internal fan | Na dotaz | Zadat poptávku | |
| 012 FKO01317 |
C00647947
488000647947 |
oven internal oven chimney | Na dotaz | Zadat poptávku | |
| 013 FKO01317 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 013 FKO01317 |
C00647875
488000647875 |
oven heating element lower | Na dotaz | Zadat poptávku | |
| 014 FKO01317 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 015 FKO01317 |
C00649615
488000649615 |
SP oven cube lamp side | Na dotaz | Zadat poptávku | |
| 016 FKO01317 |
C00649643
488000649643 |
SP oven front enameled | Na dotaz | Zadat poptávku | |
| 017 FKO01317 |
C00647897
488000647897 |
oven support hinge oven door 2010 | Na dotaz | Zadat poptávku | |
| 018 FKO01317 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 019 FKO01317 |
C00649362
488000649362 |
SP oven side panel right/left | Na dotaz | Zadat poptávku | |
| 020 FKO01317 |
C00649363
488000649363 |
SP oven upper panel chassis | Na dotaz | Zadat poptávku | |
| 021 FKO01317 |
C00649368
488000649368 |
SP oven air conveyor upper 57l | Na dotaz | Zadat poptávku | |
| 022 FKO01317 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 023 FKO01317 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 024 FKO01317 |
C00649385
488000649385 |
SP oven rear casing | Na dotaz | Zadat poptávku | |
| 025 FKO01317 |
C00649364
488000649364 |
SP oven cable and terminal block | Na dotaz | Zadat poptávku | |
| 026 FKO01317 |
C00649365
488000649365 |
SP oven elect. cable 3x1.5 H05VV-F l1500 | Na dotaz | Zadat poptávku | |
| 027 FKO01317 |
C00649624
488000649624 |
SP oven wiring sm981 98 | Na dotaz | Zadat poptávku | |
| 028 FKO01317 |
C00649382
488000649382 |
SP oven grid anti-tip 452,5x385x9,5 | Na dotaz | Zadat poptávku | |
| 029 FKO01317 |
C00647873
488000647873 |
oven wire racks side left | Na dotaz | Zadat poptávku | |
| 030 FKO01317 |
C00649617
488000649617 |
SP oven support wire racks side | Na dotaz | Zadat poptávku | |
| 031 FKO01317 |
C00649618
488000649618 |
SP oven screws 5x20mm 10 pcs | Na dotaz | Zadat poptávku | |
| 032 FKO01317 |
C00647874
488000647874 |
oven wire racks side right | Na dotaz | Zadat poptávku | |
| 041 FKO01317 |
C00647915
488000647915 |
oven generator temperature inc. | Na dotaz | Zadat poptávku | |
| 043 FKO01317 |
C00647891
488000647891 |
oven bit generator+enter everel | Na dotaz | Zadat poptávku | |
| 049 FKO01317 |
C00649629
488000649629 |
SP oven selector 11 programs+encoder | Na dotaz | Zadat poptávku | |
| 050 FKO01317 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 051 FKO01317 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 052 FKO01317 |
C00649359
488000649359 |
SP oven back panel | Na dotaz | Zadat poptávku | |
| 053 FKO01317 |
C00649636
488000649636 |
SP oven black deep tray 451x385x35mm | Na dotaz | Zadat poptávku | |
| 060 FKO01317 |
C00647918
488000647918 |
oven bracket fixing cabinet | Na dotaz | Zadat poptávku | |
| 069 FKO01317 |
C00654295
488000654295 |
SP oven door assembly Trend Line SS | Na dotaz | Zadat poptávku | |
| 070 FKO01317 |
C00662388
488000662388 |
SP oven frame SS Trend Line 981 | Na dotaz | Zadat poptávku | |
| 071 FKO01317 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 074 FKO01317 |
C00649648
488000649648 |
SP oven gasket glass door length 384mm | Na dotaz | Zadat poptávku | |
| 075 FKO01317 |
C00649649
488000649649 |
SP oven glass door intermediate 475x397m | Na dotaz | Zadat poptávku | |
| 076 FKO01317 |
C00649650
488000649650 |
SP oven glass door internal 475x398mm | Na dotaz | Zadat poptávku | |
| 077 FKO01317 |
C00654297
488000654297 |
SP oven hinge door 3D 7,5kg | Na dotaz | Zadat poptávku | |
| 078 FKO01317 |
C00647920
488000647920 |
oven block right left door glasses 3d | Na dotaz | Zadat poptávku | |
| 079 FKO01317 |
C00649652
488000649652 |
SP oven trim upper door 3D | Na dotaz | Zadat poptávku | |
| 082 FKO01317 |
C00649366
488000649366 |
SP oven terminal block 3 term. PA223S3P | Na dotaz | Zadat poptávku | |
| 083 FKO01317 |
C00649638
488000649638 |
SP oven wire 3p 150mm | Na dotaz | Zadat poptávku | |
| 095 FKO01317 |
C00649653
488000649653 |
SP oven screws 4.8x16mm pcs 10 | Na dotaz | Zadat poptávku | |
| 111 FKO01317 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 112 FKO01317 |
C00654298
488000654298 |
SP oven handle satin Trend Line | Na dotaz | Zadat poptávku | |
| 113 FKO01317 |
C00654299
488000654299 |
SP oven external glass door+post door | Na dotaz | Zadat poptávku | |
| 114 FKO01317 |
C00648296
488000648296 |
hob knob nichel brushed 3D | Na dotaz | Zadat poptávku | |
| 116 FKO01317 |
C00649656
488000649656 |
SP oven set spacers+screws+bushing | Na dotaz | Zadat poptávku | |
| 117 FKO01317 |
C00649357
488000649357 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 118 FKO01317 |
C00649355
488000649355 |
SP oven screw tcb 4.2x13mm P10 | Na dotaz | Zadat poptávku | |
| 119 FKO01317 |
C00649657
488000649657 |
SP oven screw m4x10mm chrome 10 pcs | Na dotaz | Zadat poptávku | |
| 120 FKO01317 |
C00650776
488000650776 |
SP oven screws 2.9x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 121 FKO01317 |
C00649658
488000649658 |
SP oven screw self-tapping 3.9x16mm P10 | Na dotaz | Zadat poptávku | |
| 122 FKO01317 |
C00649823
488000649823 |
SP hob screw 4,2X6,5 10P | Na dotaz | Zadat poptávku | |
| 123 FKO01317 |
C00649375
488000649375 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 124 FKO01317 |
C00649661
488000649661 |
SP hob screw m4x5mm 10 pcs | Na dotaz | Zadat poptávku | |
| 125 FKO01317 |
C00649376
488000649376 |
SP hob screw 4x12mm 10 pcs | Na dotaz | Zadat poptávku | |
| 127 FKO01317 |
C00649623
488000649623 |
SP oven cable 5 pins vis. board-tou | Na dotaz | Zadat poptávku | |
| 128 FKO01317 |
C00647922
488000647922 |
oven temperature probe | Na dotaz | Zadat poptávku | |
| 129 FKO01317 |
C00649631
488000649631 |
SP oven support for generator card | Na dotaz | Zadat poptávku | |
| 130 FKO01317 |
C00655957
488000655957 |
SP oven bushing for bit generator | Na dotaz | Zadat poptávku | |
| 131 FKO01317 |
C00655958
488000655958 |
SP oven bracket support board 981 3D | Na dotaz | Zadat poptávku | |
| 133 FKO01317 |
C00662389
488000662389 |
SP oven glass for display tl981 | Na dotaz | Zadat poptávku | |
| 134 FKO01317 |
C00649635
488000649635 |
SP oven screw 3.5x6mm 10 pieces | Na dotaz | Zadat poptávku | |
| 135 FKO01317 |
C00655961
488000655961 |
SP hob screw 8x9.5mm 10 pcs | Na dotaz | Zadat poptávku | |
| 136 FKO01317 |
C00647901
488000647901 |
oven visual board 981 98 | Na dotaz | Zadat poptávku | |
| 137 FKO01317 |
C00729891
488000729891 |
SP oven visual board V123H+bit generator | Na dotaz | Zadat poptávku | |
| 137 FKO01317 |
C00647925
488000647925 |
oven visual board 981+bit gener. ever | Na dotaz | Zadat poptávku | |
| 138 FKO01317 |
C00729889
488000729889 |
SP oven visual board 981 technika SWV123 | Na dotaz | Zadat poptávku | |
| 138 FKO01317 |
C00647913
488000647913 |
oven visual board 981 technik sw118h | Na dotaz | Zadat poptávku | |
| 150 FKO01317 |
C00654294
488000654294 |
SP oven plug rubber for post door oven | Na dotaz | Zadat poptávku | |
