| Komerční kód: | 116.0253.328 OVEN SG |
| Kód 12NC/I.C. kód: | 859698014930 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

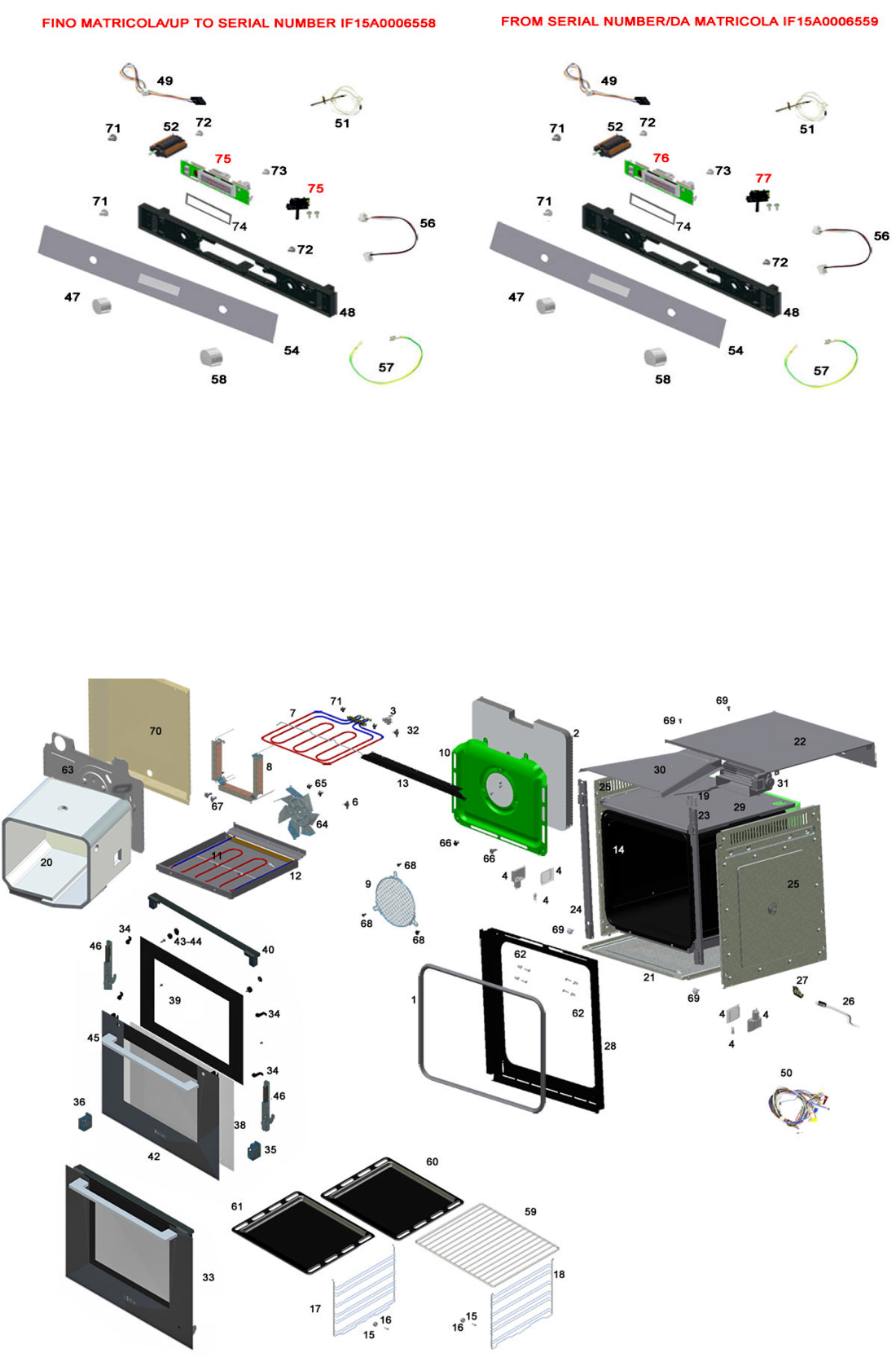

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 fko01493 |
C00650845
488000650845 |
SP oven cable string | Na dotaz | Zadat poptávku | |
| 001 fko01493 |
C00653623
488000653623 |
SP oven gasket for 65 liters | Na dotaz | Zadat poptávku | |
| 002 fko01493 |
C00653624
488000653624 |
SP oven insulation for rear oven dct | Na dotaz | Zadat poptávku | |
| 003 fko01493 |
C00647890
488000647890 |
oven thermostat 280 degrees | Na dotaz | Zadat poptávku | |
| 004 fko01493 |
C00649612
488000649612 |
SP oven lamp+rectangular hold+wiring | Na dotaz | Zadat poptávku | |
| 006 fko01493 |
C00653625
488000653625 |
SP oven thermostat nc 145° Celsius | Na dotaz | Zadat poptávku | |
| 007 fko01493 |
C00647895
488000647895 |
oven upper grill heating el. 2250+556 | Na dotaz | Zadat poptávku | |
| 008 fko01493 |
C00647900
488000647900 |
oven wire wound resistance | Na dotaz | Zadat poptávku | |
| 009 fko01493 |
C00653626
488000653626 |
SP oven front grid deflector dct | Na dotaz | Zadat poptávku | |
| 010 fko01493 |
C00653627
488000653627 |
SP oven enameled deflector with inserts | Na dotaz | Zadat poptávku | |
| 011 fko01493 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 011 fko01493 |
C00647875
488000647875 |
oven heating element lower | Na dotaz | Zadat poptávku | |
| 012 fko01493 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 013 fko01493 |
C00653628
488000653628 |
SP protection upper heating element | Na dotaz | Zadat poptávku | |
| 014 fko01493 |
C00653629
488000653629 |
SP oven casing dct 65 liters | Na dotaz | Zadat poptávku | |
| 015 fko01493 |
C00649617
488000649617 |
SP oven support wire racks side | Na dotaz | Zadat poptávku | |
| 016 fko01493 |
C00649618
488000649618 |
SP oven screws 5x20mm 10 pcs | Na dotaz | Zadat poptávku | |
| 017 fko01493 |
C00653630
488000653630 |
SP oven wire racks side left 60+/65 | Na dotaz | Zadat poptávku | |
| 018 fko01493 |
C00653631
488000653631 |
SP oven right sup. grid oven60+/65 anti | Na dotaz | Zadat poptávku | |
| 019 fko01493 |
C00653632
488000653632 |
SP oven steam chimney oven 65 liters | Na dotaz | Zadat poptávku | |
| 020 fko01493 |
C00653633
488000653633 |
SP oven insulating for casing 65 liters | Na dotaz | Zadat poptávku | |
| 021 fko01493 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 022 fko01493 |
C00653634
488000653634 |
SP oven upper panel contr.pan. h75mm | Na dotaz | Zadat poptávku | |
| 022 fko01493 |
C00653635
488000653635 |
SP oven upper panel for 65 liters | Na dotaz | Zadat poptávku | |
| 023 fko01493 |
C00653637
488000653637 |
SP oven right support hinge assembly | Na dotaz | Zadat poptávku | |
| 023,024 fko01493 |
C00653636
488000653636 |
SP oven support hinge door panel h75-40m | Na dotaz | Zadat poptávku | |
| 024 fko01493 |
C00653638
488000653638 |
SP oven left support hinge assembly | Na dotaz | Zadat poptávku | |
| 025 fko01493 |
C00653639
488000653639 |
SP oven side panel right/left | Na dotaz | Zadat poptávku | |
| 025 fko01493 |
C00653640
488000653640 |
SP oven side panel oven 65 liters | Na dotaz | Zadat poptávku | |
| 026 fko01493 |
C00649365
488000649365 |
SP oven elect. cable 3x1.5 H05VV-F l1500 | Na dotaz | Zadat poptávku | |
| 027 fko01493 |
C00653641
488000653641 |
SP oven terminal block faston PA205 3P | Na dotaz | Zadat poptávku | |
| 028 fko01493 |
C00653642
488000653642 |
SP oven front frame for 65 liters | Na dotaz | Zadat poptávku | |
| 029 fko01493 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 030 fko01493 |
C00649368
488000649368 |
SP oven air conveyor upper 57l | Na dotaz | Zadat poptávku | |
| 031 fko01493 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 032 fko01493 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 033 fko01493 |
C00663458
488000663458 |
SP oven assembly door 65 liters oat meal | Na dotaz | Zadat poptávku | |
| 034 fko01493 |
C00649370
488000649370 |
SP oven rubber for glass door P10 | Na dotaz | Zadat poptávku | |
| 035 fko01493 |
C00647867
488000647867 |
oven right fixing system inter.glass | Na dotaz | Zadat poptávku | |
| 036 fko01493 |
C00647868
488000647868 |
oven left fixing system int. glass | Na dotaz | Zadat poptávku | |
| 038 fko01493 |
C00653644
488000653644 |
SP oven intermediate glass door 476x436m | Na dotaz | Zadat poptávku | |
| 039 fko01493 |
C00653645
488000653645 |
SP oven internal glass door 525x435mm | Na dotaz | Zadat poptávku | |
| 040 fko01493 |
C00649373
488000649373 |
SP oven upper deflector flat door | Na dotaz | Zadat poptávku | |
| 042 fko01493 |
C00663459
488000663459 |
SP oven Esternal glass door+post doors | Na dotaz | Zadat poptávku | |
| 043 fko01493 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 044 fko01493 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 045 fko01493 |
C00649386
488000649386 |
SP oven handle brushed nickel 455mm | Na dotaz | Zadat poptávku | |
| 046 fko01493 |
C00653647
488000653647 |
SP oven hinge door weight 8,8kg | Na dotaz | Zadat poptávku | |
| 047 fko01493 |
C00647935
488000647935 |
oven knob brushed nickel sm sg ABS | Na dotaz | Zadat poptávku | |
| 048 fko01493 |
C00649639
488000649639 |
SP oven controls panel bmc version sm/sg | Na dotaz | Zadat poptávku | |
| 049 fko01493 |
C00649623
488000649623 |
SP oven cable 5 pins vis. board-tou | Na dotaz | Zadat poptávku | |
| 050 fko01493 |
C00653648
488000653648 |
SP oven wiring cable dct 981 | Na dotaz | Zadat poptávku | |
| 051 fko01493 |
C00647922
488000647922 |
oven temperature probe | Na dotaz | Zadat poptávku | |
| 052 fko01493 |
C00653649
488000653649 |
SP oven selector 11p+encoder oven dct | Na dotaz | Zadat poptávku | |
| 054 fko01493 |
C00663460
488000663460 |
SP oven glass panel+brackets sg981 oat m | Na dotaz | Zadat poptávku | |
| 056 fko01493 |
C00649638
488000649638 |
SP oven wire 3p 150mm | Na dotaz | Zadat poptávku | |
| 057 fko01493 |
C00653651
488000653651 |
SP oven cable gnd 250mm faston | Na dotaz | Zadat poptávku | |
| 058 fko01493 |
C00649622
488000649622 |
SP oven knob colour satin | Na dotaz | Zadat poptávku | |
| 059 fko01493 |
C00649382
488000649382 |
SP oven grid anti-tip 452,5x385x9,5 | Na dotaz | Zadat poptávku | |
| 060 fko01493 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 061 fko01493 |
C00649636
488000649636 |
SP oven black deep tray 451x385x35mm | Na dotaz | Zadat poptávku | |
| 062 fko01493 |
C00653653
488000653653 |
SP oven set screws and bushing | Na dotaz | Zadat poptávku | |
| 063 fko01493 |
C00653654
488000653654 |
SP oven rear trim 911dct | Na dotaz | Zadat poptávku | |
| 064 fko01493 |
C00653655
488000653655 |
SP oven motor 40w+fan aluminum | Na dotaz | Zadat poptávku | |
| 065 fko01493 |
C00649360
488000649360 |
SP oven screws 4.2x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 066 fko01493 |
C00649355
488000649355 |
SP oven screw tcb 4.2x13mm P10 | Na dotaz | Zadat poptávku | |
| 067,069 fko01493 |
C00649357
488000649357 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 068 fko01493 |
C00653656
488000653656 |
SP oven screw tcb m4x10mm P10 | Na dotaz | Zadat poptávku | |
| 070 fko01493 |
C00653657
488000653657 |
SP oven back side panel oven h75mm | Na dotaz | Zadat poptávku | |
| 070 fko01493 |
C00653658
488000653658 |
SP oven back side panel oven 65 liters | Na dotaz | Zadat poptávku | |
| 071,072 fko01493 |
C00649657
488000649657 |
SP oven screw m4x10mm chrome 10 pcs | Na dotaz | Zadat poptávku | |
| 073 fko01493 |
C00653659
488000653659 |
SP oven screw self tapping 4x8mm P10 | Na dotaz | Zadat poptávku | |
| 074 fko01493 |
C00649640
488000649640 |
SP oven gasket display dct | Na dotaz | Zadat poptávku | |
| 075 fko01493 |
C00653660
488000653660 |
SP oven visual board 981dct+bit generato | Na dotaz | Zadat poptávku | |
| 075 fko01493 |
C00729604
488000729604 |
SP oven visual board V119H+bit generato | Na dotaz | Zadat poptávku | |
| 076 fko01493 |
C00729601
488000729601 |
SP oven visual board 981dct SW V119H | Na dotaz | Zadat poptávku | |
| 076 fko01493 |
C00647934
488000647934 |
oven visual board 981dct 4 relay | Na dotaz | Zadat poptávku | |
| 077 fko01493 |
C00647891
488000647891 |
oven bit generator+enter everel | Na dotaz | Zadat poptávku | |
