FRANKE 116.0263.384 OVEN SM
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 116.0263.384 OVEN SM |
| Kód 12NC/I.C. kód: | 859698011380 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

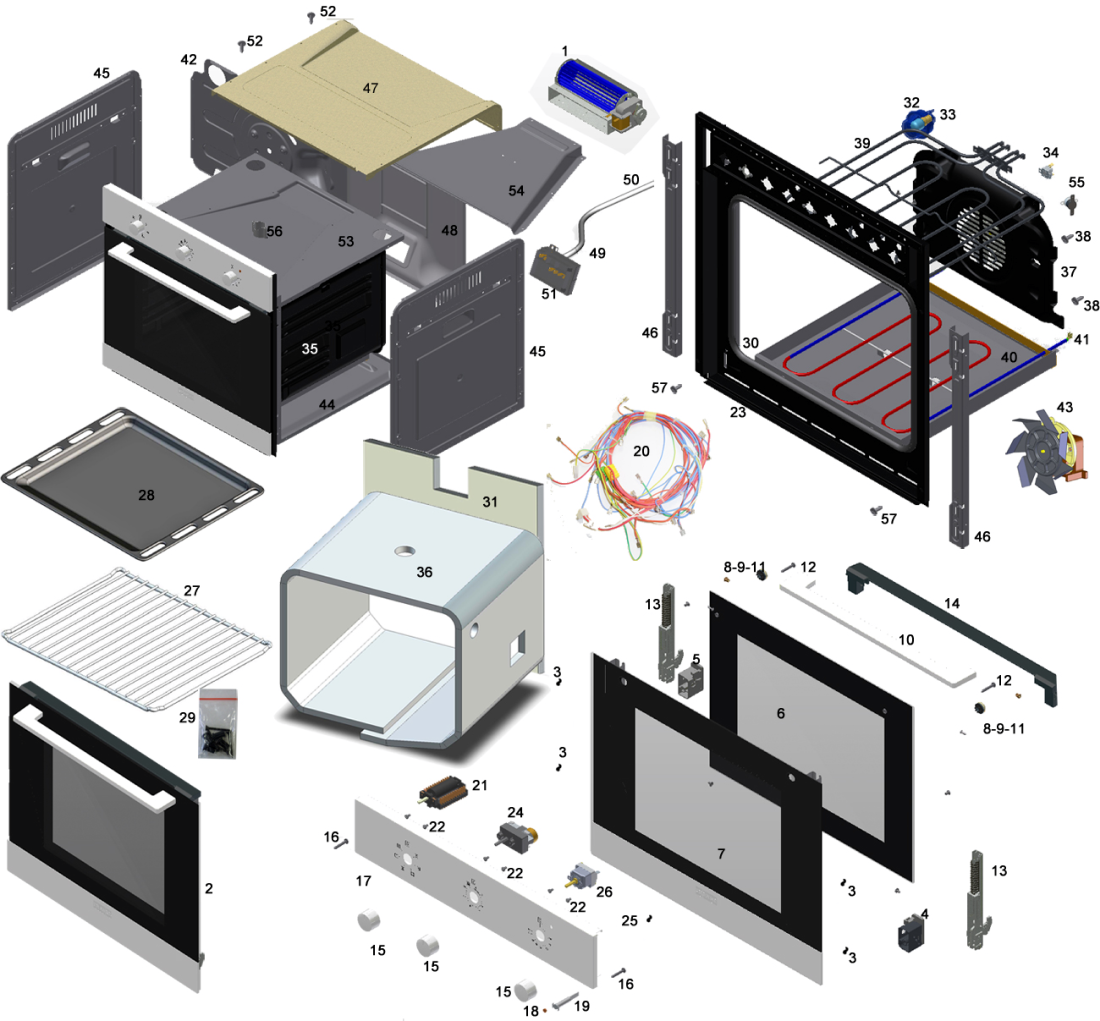

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 FKO01138 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 002 FKO01138 |
C00653827
488000653827 |
SP oven door assembly 2 glasses smr52mx | Na dotaz | Zadat poptávku | |
| 003 FKO01138 |
C00649370
488000649370 |
SP oven rubber for glass door P10 | Na dotaz | Zadat poptávku | |
| 004 FKO01138 |
C00647867
488000647867 |
oven right fixing system inter.glass | Na dotaz | Zadat poptávku | |
| 005 FKO01138 |
C00647868
488000647868 |
oven left fixing system int. glass | Na dotaz | Zadat poptávku | |
| 006 FKO01138 |
C00647893
488000647893 |
oven glass internal 525x397mm | Na dotaz | Zadat poptávku | |
| 008 FKO01138 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 009 FKO01138 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 010 FKO01138 |
C00649703
488000649703 |
SP oven handle country painted SS | Na dotaz | Zadat poptávku | |
| 011 FKO01138 |
C00648124
488000648124 |
hob spark plug l600mm + spring | Na dotaz | Zadat poptávku | |
| 012 FKO01138 |
C00649371
488000649371 |
SP oven plug nut rubber screw | Na dotaz | Zadat poptávku | |
| 013 FKO01138 |
C00649372
488000649372 |
SP oven hinge oven door 6.5kg | Na dotaz | Zadat poptávku | |
| 014 FKO01138 |
C00649373
488000649373 |
SP oven upper deflector flat door | Na dotaz | Zadat poptávku | |
| 015 FKO01138 |
C00649814
488000649814 |
SP oven knob smr painted chrome | Na dotaz | Zadat poptávku | |
| 016 FKO01138 |
C00649375
488000649375 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 017 FKO01138 |
C00653828
488000653828 |
SP oven controls panel smr52mxs | Na dotaz | Zadat poptávku | |
| 018 FKO01138 |
C00647921
488000647921 |
oven neon light cover | Na dotaz | Zadat poptávku | |
| 019 FKO01138 |
C00649377
488000649377 |
SP oven pilot lamp | Na dotaz | Zadat poptávku | |
| 020 FKO01138 |
C00653829
488000653829 |
SP oven wiring harness | Na dotaz | Zadat poptávku | |
| 021 FKO01138 |
C00649724
488000649724 |
SP oven selector 8c 7p+5f+l | Na dotaz | Zadat poptávku | |
| 022 FKO01138 |
C00649661
488000649661 |
SP hob screw m4x5mm 10 pcs | Na dotaz | Zadat poptávku | |
| 023 FKO01138 |
C00649381
488000649381 |
SP oven front door colour black | Na dotaz | Zadat poptávku | |
| 024 FKO01138 |
C00648274
488000648274 |
hob timer 120' 300° ELSAP | Na dotaz | Zadat poptávku | |
| 025 FKO01138 |
C00647919
488000647919 |
oven spring fix thermostat wire | Na dotaz | Zadat poptávku | |
| 026 FKO01138 |
C00647865
488000647865 |
oven thermostat 50-260 degrees | Na dotaz | Zadat poptávku | |
| 027 FKO01138 |
C00649382
488000649382 |
SP oven grid anti-tip 452,5x385x9,5 | Na dotaz | Zadat poptávku | |
| 028 FKO01138 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 029 FKO01138 |
C00649384
488000649384 |
SP oven fixing set screws+bushing | Na dotaz | Zadat poptávku | |
| 030 FKO01138 |
C00647866
488000647866 |
oven gasket for front | Na dotaz | Zadat poptávku | |
| 031 FKO01138 |
C00649352
488000649352 |
SP oven heater insulator back | Na dotaz | Zadat poptávku | |
| 032 FKO01138 |
C00647902
488000647902 |
oven lamp lampholder 15W | Na dotaz | Zadat poptávku | |
| 034 FKO01138 |
C00647890
488000647890 |
oven thermostat 280 degrees | Na dotaz | Zadat poptávku | |
| 035 FKO01138 |
C00649353
488000649353 |
SP oven cube lamp rear | Na dotaz | Zadat poptávku | |
| 036 FKO01138 |
C00649354
488000649354 |
SP oven insulation casing | Na dotaz | Zadat poptávku | |
| 037 FKO01138 |
C00649356
488000649356 |
SP oven cover panel for internal fan | Na dotaz | Zadat poptávku | |
| 038 FKO01138 |
C00649355
488000649355 |
SP oven screw tcb 4.2x13mm P10 | Na dotaz | Zadat poptávku | |
| 039 FKO01138 |
C00647895
488000647895 |
oven upper grill heating el. 2250+556 | Na dotaz | Zadat poptávku | |
| 040 FKO01138 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 041 FKO01138 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 042 FKO01138 |
C00649359
488000649359 |
SP oven back panel | Na dotaz | Zadat poptávku | |
| 043 FKO01138 |
C00647876
488000647876 |
oven motor+fan+nut 27W | Na dotaz | Zadat poptávku | |
| 044 FKO01138 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 045 FKO01138 |
C00649362
488000649362 |
SP oven side panel right/left | Na dotaz | Zadat poptávku | |
| 046 FKO01138 |
C00647897
488000647897 |
oven support hinge oven door 2010 | Na dotaz | Zadat poptávku | |
| 047 FKO01138 |
C00649363
488000649363 |
SP oven upper panel chassis | Na dotaz | Zadat poptávku | |
| 048 FKO01138 |
C00649385
488000649385 |
SP oven rear casing | Na dotaz | Zadat poptávku | |
| 049 FKO01138 |
C00649364
488000649364 |
SP oven cable and terminal block | Na dotaz | Zadat poptávku | |
| 050 FKO01138 |
C00649365
488000649365 |
SP oven elect. cable 3x1.5 H05VV-F l1500 | Na dotaz | Zadat poptávku | |
| 051 FKO01138 |
C00649366
488000649366 |
SP oven terminal block 3 term. PA223S3P | Na dotaz | Zadat poptávku | |
| 052 FKO01138 |
C00649357
488000649357 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 053 FKO01138 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 054 FKO01138 |
C00649368
488000649368 |
SP oven air conveyor upper 57l | Na dotaz | Zadat poptávku | |
| 055 FKO01138 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 056 FKO01138 |
C00647947
488000647947 |
oven internal oven chimney | Na dotaz | Zadat poptávku | |
| 057 FKO01138 |
C00649816
488000649816 |
SP oven screws m4 4x10mm pcs 10 | Na dotaz | Zadat poptávku | |
| 057 FKO01138 |
C00649726
488000649726 |
SP hob screw no 10 pcs | Na dotaz | Zadat poptávku | |
