FRANKE 116.0279.665 OVEN CS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 116.0279.665 OVEN CS |
| Kód 12NC/I.C. kód: | 859698016000 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

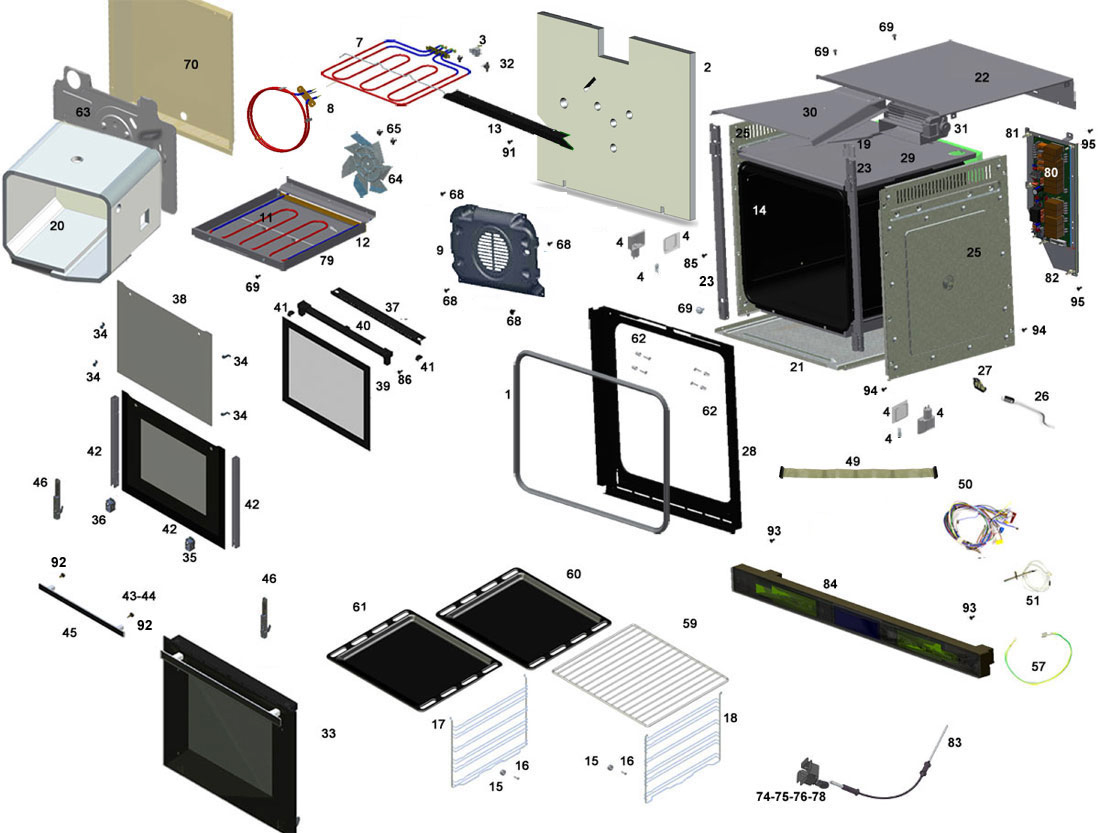

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 FKO01600 |
C00650845
488000650845 |
SP oven cable string | Na dotaz | Zadat poptávku | |
| 001 FKO01600 |
C00653623
488000653623 |
SP oven gasket for 65 liters | Na dotaz | Zadat poptávku | |
| 002 FKO01600 |
C00656960
488000656960 |
SP oven insulating for casing 65 liters | Na dotaz | Zadat poptávku | |
| 003 FKO01600 |
C00647890
488000647890 |
oven thermostat 280 degrees | Na dotaz | Zadat poptávku | |
| 004 FKO01600 |
C00656910
488000656910 |
SP oven lampholder halogen+cable+lamp | Na dotaz | Zadat poptávku | |
| 007 FKO01600 |
C00647895
488000647895 |
oven upper grill heating el. 2250+556 | Na dotaz | Zadat poptávku | |
| 008 FKO01600 |
C00647943
488000647943 |
oven circular heat. elem. 2000w 2017 | Na dotaz | Zadat poptávku | |
| 008 FKO01600 |
C00647870
488000647870 |
oven circular fan element 2000W | Na dotaz | Zadat poptávku | |
| 009 FKO01600 |
C00649356
488000649356 |
SP oven cover panel for internal fan | Na dotaz | Zadat poptávku | |
| 011 FKO01600 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 011 FKO01600 |
C00647875
488000647875 |
oven heating element lower | Na dotaz | Zadat poptávku | |
| 012 FKO01600 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 013 FKO01600 |
C00653628
488000653628 |
SP protection upper heating element | Na dotaz | Zadat poptávku | |
| 014 FKO01600 |
C00663368
488000663368 |
SP oven case 65l control panel 40/75 | Na dotaz | Zadat poptávku | |
| 015 FKO01600 |
C00649617
488000649617 |
SP oven support wire racks side | Na dotaz | Zadat poptávku | |
| 016 FKO01600 |
C00649618
488000649618 |
SP oven screws 5x20mm 10 pcs | Na dotaz | Zadat poptávku | |
| 017 FKO01600 |
C00653630
488000653630 |
SP oven wire racks side left 60+/65 | Na dotaz | Zadat poptávku | |
| 018 FKO01600 |
C00653631
488000653631 |
SP oven right sup. grid oven60+/65 anti | Na dotaz | Zadat poptávku | |
| 019 FKO01600 |
C00661924
488000661924 |
SP oven chimney control pan. h40mm | Na dotaz | Zadat poptávku | |
| 020 FKO01600 |
C00661925
488000661925 |
SP oven insulation case contr.pan.h40mm | Na dotaz | Zadat poptávku | |
| 021 FKO01600 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 022 FKO01600 |
C00661926
488000661926 |
SP oven upper panel control panel h40mm | Na dotaz | Zadat poptávku | |
| 023 FKO01600 |
C00653636
488000653636 |
SP oven support hinge door panel h75-40m | Na dotaz | Zadat poptávku | |
| 025 FKO01600 |
C00653639
488000653639 |
SP oven side panel right/left | Na dotaz | Zadat poptávku | |
| 026 FKO01600 |
C00649365
488000649365 |
SP oven elect. cable 3x1.5 H05VV-F l1500 | Na dotaz | Zadat poptávku | |
| 027 FKO01600 |
C00653641
488000653641 |
SP oven terminal block faston PA205 3P | Na dotaz | Zadat poptávku | |
| 028 FKO01600 |
C00661927
488000661927 |
SP oven front panel control panel h40mm | Na dotaz | Zadat poptávku | |
| 029 FKO01600 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 030 FKO01600 |
C00661928
488000661928 |
SP oven air conveyor upper front h40mm | Na dotaz | Zadat poptávku | |
| 031 FKO01600 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 032 FKO01600 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 033 FKO01600 |
C00662692
488000662692 |
SP oven assembly door cs912 60+ | Na dotaz | Zadat poptávku | |
| 034 FKO01600 |
C00649370
488000649370 |
SP oven rubber for glass door P10 | Na dotaz | Zadat poptávku | |
| 035 FKO01600 |
C00647867
488000647867 |
oven right fixing system inter.glass | Na dotaz | Zadat poptávku | |
| 036 FKO01600 |
C00647868
488000647868 |
oven left fixing system int. glass | Na dotaz | Zadat poptávku | |
| 037 FKO01600 |
C00653112
488000653112 |
SP oven deflector black for oven door 65 | Na dotaz | Zadat poptávku | |
| 038 FKO01600 |
C00661930
488000661930 |
SP oven glass intermediate 476x470mm | Na dotaz | Zadat poptávku | |
| 039 FKO01600 |
C00661931
488000661931 |
SP oven glass internal 525x472mm | Na dotaz | Zadat poptávku | |
| 040 FKO01600 |
C00650706
488000650706 |
SP oven upper trim oven door cr cs | Na dotaz | Zadat poptávku | |
| 041 FKO01600 |
C00650708
488000650708 |
SP oven snap door upper deflector | Na dotaz | Zadat poptávku | |
| 042 FKO01600 |
C00662693
488000662693 |
SP oven glass ext.+posts door+frame cs91 | Na dotaz | Zadat poptávku | |
| 043 FKO01600 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 044 FKO01600 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 045 FKO01600 |
C00653619
488000653619 |
SP oven handle for oven door cs | Na dotaz | Zadat poptávku | |
| 046 FKO01600 |
C00661933
488000661933 |
SP oven hinge oven door weight 9,6kg | Na dotaz | Zadat poptávku | |
| 049 FKO01600 |
C00661934
488000661934 |
SP oven flat cable 20p 912 800mm 105 cel | Na dotaz | Zadat poptávku | |
| 050 FKO01600 |
C00663369
488000663369 |
SP oven wiring harness 912 standard | Na dotaz | Zadat poptávku | |
| 051 FKO01600 |
C00647922
488000647922 |
oven temperature probe | Na dotaz | Zadat poptávku | |
| 057 FKO01600 |
C00661936
488000661936 |
SP oven ground wire length 450mm | Na dotaz | Zadat poptávku | |
| 059 FKO01600 |
C00649382
488000649382 |
SP oven grid anti-tip 452,5x385x9,5 | Na dotaz | Zadat poptávku | |
| 060 FKO01600 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 061 FKO01600 |
C00649636
488000649636 |
SP oven black deep tray 451x385x35mm | Na dotaz | Zadat poptávku | |
| 062 FKO01600 |
C00653653
488000653653 |
SP oven set screws and bushing | Na dotaz | Zadat poptávku | |
| 063 FKO01600 |
C00653044
488000653044 |
SP oven rear panel | Na dotaz | Zadat poptávku | |
| 064 FKO01600 |
C00647876
488000647876 |
oven motor+fan+nut 27W | Na dotaz | Zadat poptávku | |
| 065 FKO01600 |
C00649360
488000649360 |
SP oven screws 4.2x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 068 FKO01600 |
C00649355
488000649355 |
SP oven screw tcb 4.2x13mm P10 | Na dotaz | Zadat poptávku | |
| 069 FKO01600 |
C00649357
488000649357 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 070 FKO01600 |
C00661937
488000661937 |
SP oven rear panel contr.pan. h40mm | Na dotaz | Zadat poptávku | |
| 074 FKO01600 |
C00654276
488000654276 |
SP oven plug for meat probe temper | Na dotaz | Zadat poptávku | |
| 075 FKO01600 |
C00654277
488000654277 |
SP oven closing plug meat probe tem | Na dotaz | Zadat poptávku | |
| 076 FKO01600 |
C00661938
488000661938 |
SP oven cable for probe 1100mm | Na dotaz | Zadat poptávku | |
| 078 FKO01600 |
C00654280
488000654280 |
SP oven box for meat probe | Na dotaz | Zadat poptávku | |
| 079 FKO01600 |
C00661939
488000661939 |
SP oven bracket for lower heating elemen | Na dotaz | Zadat poptávku | |
| 080 FKO01600 |
C00663370
488000663370 |
SP oven Power board 912/912mymenu | Na dotaz | Zadat poptávku | |
| 081 FKO01600 |
C00654288
488000654288 |
SP oven support pcb 9.5mm 105 degr | Na dotaz | Zadat poptávku | |
| 082 FKO01600 |
C00662258
488000662258 |
SP oven support for power board 910-912 | Na dotaz | Zadat poptávku | |
| 083 FKO01600 |
C00654274
488000654274 |
SP oven meat probe temperature | Na dotaz | Zadat poptávku | |
| 084 FKO01600 |
C00664512
488000664512 |
SP oven control panel assembly 912mymenu | Na dotaz | Zadat poptávku | |
| 086 FKO01600 |
C00649376
488000649376 |
SP hob screw 4x12mm 10 pcs | Na dotaz | Zadat poptávku | |
| 091 FKO01600 |
C00649660
488000649660 |
SP oven screws 4.2x12mm pcs10 | Na dotaz | Zadat poptávku | |
| 092 FKO01600 |
C00649653
488000649653 |
SP oven screws 4.8x16mm pcs 10 | Na dotaz | Zadat poptávku | |
| 093 FKO01600 |
C00649916
488000649916 |
SP hob set screw 10 pcs | Na dotaz | Zadat poptávku | |
| 094 FKO01600 |
C00661824
488000661824 |
SP oven screw tcb 4.2x12mm 10 pieces | Na dotaz | Zadat poptávku | |
| 095 FKO01600 |
C00649628
488000649628 |
SP oven screw 8x9.5mm 10 pieces | Na dotaz | Zadat poptávku | |
