FRANKE 116.0373.687 OVEN FS
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 116.0373.687 OVEN FS |
| Kód 12NC/I.C. kód: | 859698015910 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

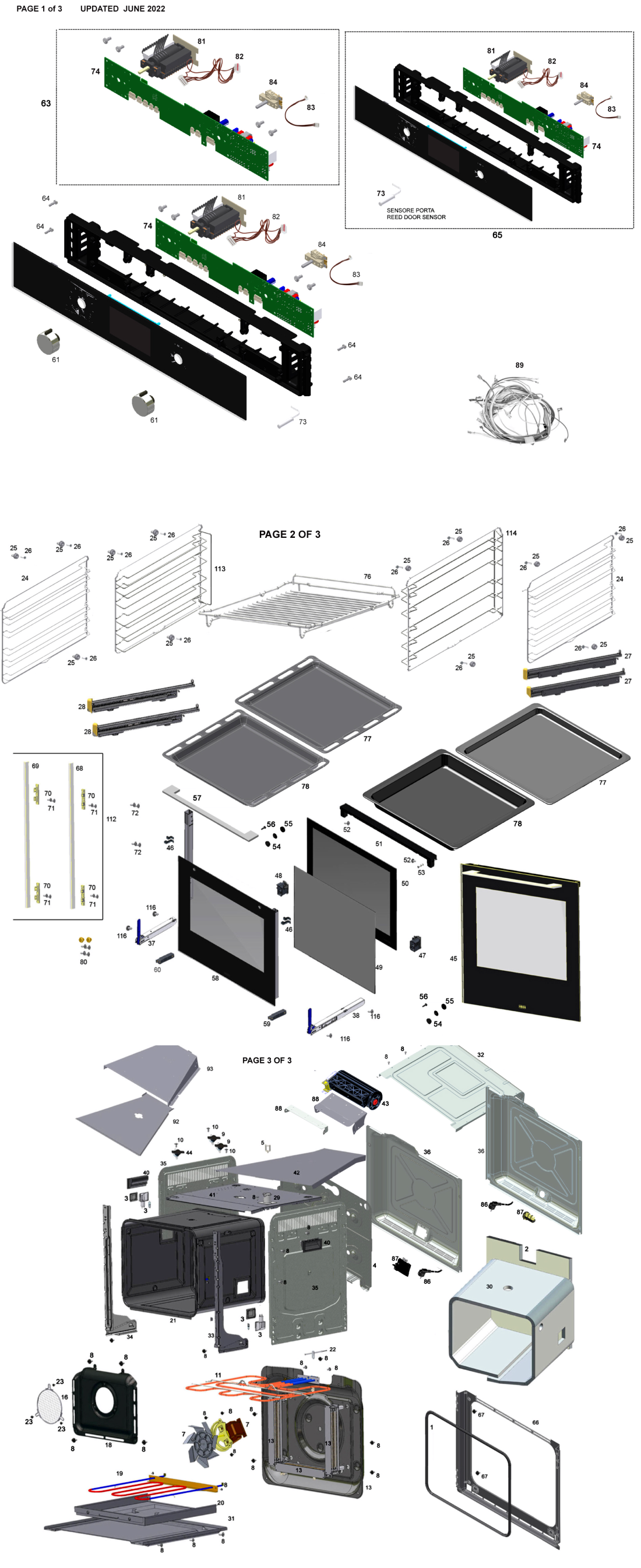

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0000 FKO01591 |
C00844021
488000844021 |
Oven tray deep brown | Na dotaz | Zadat poptávku | |
| 0000 FKO01591 |
C00844022
488000844022 |
Oven tray deep red | Na dotaz | Zadat poptávku | |
| 0000 FKO01591 |
C00844023
488000844023 |
Oven tray deep blu | Na dotaz | Zadat poptávku | |
| 0001 FKO01591 |
C00654217
488000654217 |
SP oven gasket standard for front | Na dotaz | Zadat poptávku | |
| 0002 FKO01591 |
C00654218
488000654218 |
SP oven iinsulating for casing rear stan | Na dotaz | Zadat poptávku | |
| 0003 FKO01591 |
C00654220
488000654220 |
SP oven lampholder halog.lamp 40w+wires | Na dotaz | Zadat poptávku | |
| 0004 FKO01591 |
C00654221
488000654221 |
SP oven rear bracket 2015 | Na dotaz | Zadat poptávku | |
| 0005 FKO01591 |
C00649901
488000649901 |
SP hob clip for cable 4.8mm | Na dotaz | Zadat poptávku | |
| 0005 FKO01591 |
C00654222
488000654222 |
SP oven guide cable h 25mm | Na dotaz | Zadat poptávku | |
| 0007 FKO01591 |
C00653655
488000653655 |
SP oven motor 40w+fan aluminum | Na dotaz | Zadat poptávku | |
| 0008 FKO01591 |
C00654223
488000654223 |
SP oven screw 4x9.5 TCB TX20 P10 | Na dotaz | Zadat poptávku | |
| 0009 FKO01591 |
C00654224
488000654224 |
SP oven bimetallic thermost NC 100° 16A | Na dotaz | Zadat poptávku | |
| 0009 FKO01591 |
C00663307
488000663307 |
SP oven bimetallic thermostat 120°C NC | Na dotaz | Zadat poptávku | |
| 0010 FKO01591 |
C00654225
488000654225 |
SP oven screw TB 3X6 TC P10 | Na dotaz | Zadat poptávku | |
| 0011 FKO01591 |
C00654226
488000654226 |
SP oven upper heat.elem.2100w230v+520w | Na dotaz | Zadat poptávku | |
| 0012 FKO01591 |
C00650775
488000650775 |
SP oven screws c15 m4x10 galvaN. P10 | Na dotaz | Zadat poptávku | |
| 0013 FKO01591 |
C00654227
488000654227 |
SP oven kit P3 heat.elem.DCT 2015 2900w | Na dotaz | Zadat poptávku | |
| 0016 FKO01591 |
C00653626
488000653626 |
SP oven front grid deflector dct | Na dotaz | Zadat poptávku | |
| 0017 FKO01591 |
C00653656
488000653656 |
SP oven screw tcb m4x10mm P10 | Na dotaz | Zadat poptávku | |
| 0018 FKO01591 |
C00654228
488000654228 |
SP oven fan panel enamelled DCT | Na dotaz | Zadat poptávku | |
| 0019 FKO01591 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 0020 FKO01591 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 0021 FKO01591 |
C00654229
488000654229 |
SP oven casing rear standard for probe | Na dotaz | Zadat poptávku | |
| 0022 FKO01591 |
C00654230
488000654230 |
SP oven probe pt1000 cl.b dct pyrolytic | Na dotaz | Zadat poptávku | |
| 0023,0064 FKO01591 |
C00654231
488000654231 |
SP oven screw tcb m4x12 tx20 P10 | Na dotaz | Zadat poptávku | |
| 0024 FKO01591 |
C00654232
488000654232 |
SP oven side support internal grid 363mm | Na dotaz | Zadat poptávku | |
| 0025 FKO01591 |
C00654233
488000654233 |
SP oven bush fixing guide dia20mm | Na dotaz | Zadat poptávku | |
| 0026 FKO01591 |
C00654234
488000654234 |
SP oven screw TSP TX20 M5X25 SS P10 | Na dotaz | Zadat poptávku | |
| 0027 FKO01591 |
C00654235
488000654235 |
SP oven right telescopic rack 2017 | Na dotaz | Zadat poptávku | |
| 0028 FKO01591 |
C00654236
488000654236 |
SP oven left telescopic rack 2017 | Na dotaz | Zadat poptávku | |
| 0028 FKO01591 |
C00654237
488000654237 |
SP oven left telescopic rack 2015 | Na dotaz | Zadat poptávku | |
| 0029 FKO01591 |
C00647945
488000647945 |
oven chimney flue diameter 50mm | Na dotaz | Zadat poptávku | |
| 0029 FKO01591 |
C00663308
488000663308 |
SP oven chimney double channeling | Na dotaz | Zadat poptávku | |
| 0030 FKO01591 |
C00654238
488000654238 |
SP oven insulating casing standard 2015 | Na dotaz | Zadat poptávku | |
| 0031 FKO01591 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 0032 FKO01591 |
C00654239
488000654239 |
SP oven upper panel 2015 | Na dotaz | Zadat poptávku | |
| 0033 FKO01591 |
C00654240
488000654240 |
SP oven right hinge support 2015 | Na dotaz | Zadat poptávku | |
| 0034 FKO01591 |
C00654241
488000654241 |
SP oven left hinge support 2015 | Na dotaz | Zadat poptávku | |
| 0035 FKO01591 |
C00654242
488000654242 |
SP oven side panel 567x465mm 2015 | Na dotaz | Zadat poptávku | |
| 0036 FKO01591 |
C00654245
488000654245 |
SP oven rear panel 74 liters | Na dotaz | Zadat poptávku | |
| 0036 FKO01591 |
C00654244
488000654244 |
SP oven rear panel 2015 | Na dotaz | Zadat poptávku | |
| 0036 FKO01591 |
C00663309
488000663309 |
SP oven rear panel+term.block+cable 2018 | Na dotaz | Zadat poptávku | |
| 0036 FKO01591 |
C00663310
488000663310 |
SP oven rear panel+termin.block+cable | Na dotaz | Zadat poptávku | |
| 0037 FKO01591 |
C00654246
488000654246 |
SP oven hinge no amortized 3 glas. 2017 | Na dotaz | Zadat poptávku | |
| 0037 FKO01591 |
C00654247
488000654247 |
SP oven hinge without shock absorber | Na dotaz | Zadat poptávku | |
| 0038 FKO01591 |
C00654248
488000654248 |
SP oven hinge amortized 3 glasses 2017 | Na dotaz | Zadat poptávku | |
| 0038 FKO01591 |
C00654249
488000654249 |
SP oven hinge shock absorber for door | Na dotaz | Zadat poptávku | |
| 0040 FKO01591 |
C00654250
488000654250 |
SP oven side plastic handle | Na dotaz | Zadat poptávku | |
| 0041 FKO01591 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 0041 FKO01591 |
C00663311
488000663311 |
SP oven lower channeling double standard | Na dotaz | Zadat poptávku | |
| 0042 FKO01591 |
C00654251
488000654251 |
SP oven tangential convoyer 453x190mm | Na dotaz | Zadat poptávku | |
| 0043 FKO01591 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 0044 FKO01591 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 0044 FKO01591 |
C00663312
488000663312 |
SP oven ceramic thermostat 3C 100° 10A | Na dotaz | Zadat poptávku | |
| 0045 FKO01591 |
C00663313
488000663313 |
SP oven FS SY door ass. black 3glasses | Na dotaz | Zadat poptávku | |
| 0045 FKO01591 |
C00663314
488000663314 |
SP oven FS SY door ass.black 3glasses dc | Na dotaz | Zadat poptávku | |
| 0046 FKO01591 |
C00649370
488000649370 |
SP oven rubber for glass door P10 | Na dotaz | Zadat poptávku | |
| 0047 FKO01591 |
C00654254
488000654254 |
SP oven right lock internal glass 2015 | Na dotaz | Zadat poptávku | |
| 0048 FKO01591 |
C00654255
488000654255 |
SP oven left lock internal glass 2015 | Na dotaz | Zadat poptávku | |
| 0049 FKO01591 |
C00654256
488000654256 |
SP oven halfway glass door 476x420mm | Na dotaz | Zadat poptávku | |
| 0049 FKO01591 |
C00663315
488000663315 |
SP oven intermediate glass 475x415.5mm | Na dotaz | Zadat poptávku | |
| 0050 FKO01591 |
C00654257
488000654257 |
SP oven internal glass door 525x423mm | Na dotaz | Zadat poptávku | |
| 0050 FKO01591 |
C00663316
488000663316 |
SP oven internal door glass 525x415.5mm | Na dotaz | Zadat poptávku | |
| 0051 FKO01591 |
C00654258
488000654258 |
SP oven door upper support standard 2015 | Na dotaz | Zadat poptávku | |
| 0051 FKO01591 |
C00663317
488000663317 |
SP oven lupper trim door double channeli | Na dotaz | Zadat poptávku | |
| 0052 FKO01591 |
C00649662
488000649662 |
SP oven set P10 screws m4x12 tsp | Na dotaz | Zadat poptávku | |
| 0053 FKO01591 |
C00654259
488000654259 |
SP oven magnet l15mm diameter 8mm | Na dotaz | Zadat poptávku | |
| 0054 FKO01591 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 0055 FKO01591 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 0056 FKO01591 |
C00649653
488000649653 |
SP oven screws 4.8x16mm pcs 10 | Na dotaz | Zadat poptávku | |
| 0057 FKO01591 |
C00663318
488000663318 |
SP oven FS SY sat. handle. 434/384mm | Na dotaz | Zadat poptávku | |
| 0058 FKO01591 |
C00663319
488000663319 |
SP oven FS ext.blk glass door+posts door | Na dotaz | Zadat poptávku | |
| 0058 FKO01591 |
C00663320
488000663320 |
SP oven FS SY ext.glass+posts door black | Na dotaz | Zadat poptávku | |
| 0059 FKO01591 |
C00654262
488000654262 |
SP oven right plastic guide for hinge | Na dotaz | Zadat poptávku | |
| 0060 FKO01591 |
C00654263
488000654263 |
SP oven left plastic guide for hinge | Na dotaz | Zadat poptávku | |
| 0061 FKO01591 |
C00664446
488000664446 |
SP oven knob SS dia40mm height 28.6mm | Na dotaz | Zadat poptávku | |
| 0063 FKO01591 |
C00654052
488000654052 |
SP oven electronic card 982 TFT BK XS | Na dotaz | Zadat poptávku | |
| 0065 FKO01591 |
C00664448
488000664448 |
SP oven FS ass.controls FS982MBKDCTT | Na dotaz | Zadat poptávku | |
| 0066 FKO01591 |
C00663322
488000663322 |
SP oven front frame standard | Na dotaz | Zadat poptávku | |
| 0066 FKO01591 |
C00663323
488000663323 |
SP oven front double channeling | Na dotaz | Zadat poptávku | |
| 0067 FKO01591 |
C00649660
488000649660 |
SP oven screws 4.2x12mm pcs10 | Na dotaz | Zadat poptávku | |
| 0068 FKO01591 |
C00663324
488000663324 |
SP oven right aesthetic trim | Na dotaz | Zadat poptávku | |
| 0069 FKO01591 |
C00663326
488000663326 |
SP oven left aesthetic trim | Na dotaz | Zadat poptávku | |
| 0070 FKO01591 |
C00663327
488000663327 |
SP oven block support aesthetic trim | Na dotaz | Zadat poptávku | |
| 0071 FKO01591 |
C00663328
488000663328 |
SP oven set P10 screws tsp ph3.5x7.5mm | Na dotaz | Zadat poptávku | |
| 0072 FKO01591 |
C00663329
488000663329 |
SP oven set P10 screws tsp ph m4x8mm | Na dotaz | Zadat poptávku | |
| 0073 FKO01591 |
C00654269
488000654269 |
SP oven reed sensor door warning door | Na dotaz | Zadat poptávku | |
| 0074 FKO01591 |
C00850782
488000850782 |
SP oven electronic card 982TFTBK XS | Na dotaz | Zadat poptávku | |
| 0076 FKO01591 |
C00654271
488000654271 |
SP oven internal grid 451x385mm 2017 | Na dotaz | Zadat poptávku | |
| 0076 FKO01591 |
C00654270
488000654270 |
SP oven internal grid 454x385mm anti tip | Na dotaz | Zadat poptávku | |
| 0077 FKO01591 |
C00663330
488000663330 |
SP oven tray grey anti tip 385x451x22mm | Na dotaz | Zadat poptávku | |
| 0077 FKO01591 |
C00663331
488000663331 |
SP oven tray grey antitip 451.2x385x22.5 | Na dotaz | Zadat poptávku | |
| 0078 FKO01591 |
C00663332
488000663332 |
SP oven tray grey anti tip 385x451x36mm | Na dotaz | Zadat poptávku | |
| 0078 FKO01591 |
C00663333
488000663333 |
SP oven tray grey anti tip 385x451x45mm | Na dotaz | Zadat poptávku | |
| 0080 FKO01591 |
C00653653
488000653653 |
SP oven set screws and bushing | Na dotaz | Zadat poptávku | |
| 0081 FKO01591 |
C00653649
488000653649 |
SP oven selector 11p+encoder oven dct | Na dotaz | Zadat poptávku | |
| 0082 FKO01591 |
C00654054
488000654054 |
SP oven cable 5P encoder-card electronic | Na dotaz | Zadat poptávku | |
| 0083 FKO01591 |
C00654055
488000654055 |
SP oven cable 3P resistor selc. card ele | Na dotaz | Zadat poptávku | |
| 0084 FKO01591 |
C00647938
488000647938 |
oven encoder resistor selec. left/rig | Na dotaz | Zadat poptávku | |
| 0085 FKO01591 |
C00649661
488000649661 |
SP hob screw m4x5mm 10 pcs | Na dotaz | Zadat poptávku | |
| 0086 FKO01591 |
C00663334
488000663334 |
SP oven elect. cable 3x1.5 H05V2V2F | Na dotaz | Zadat poptávku | |
| 0086 FKO01591 |
C00663335
488000663335 |
SP oven elect. cable 3x1.5 l1500 SP35 sc | Na dotaz | Zadat poptávku | |
| 0087 FKO01591 |
C00653641
488000653641 |
SP oven terminal block faston PA205 3P | Na dotaz | Zadat poptávku | |
| 0087 FKO01591 |
C00654283
488000654283 |
SP oven term. block FL BG3 1.50088167735 | Na dotaz | Zadat poptávku | |
| 0088 FKO01591 |
C00654284
488000654284 |
SP oven air front canalization l193mm | Na dotaz | Zadat poptávku | |
| 0088 FKO01591 |
C00663336
488000663336 |
SP oven chanelling front double standard | Na dotaz | Zadat poptávku | |
| 0089 FKO01591 |
C00654056
488000654056 |
SP oven wiring harness 982 standard 2015 | Na dotaz | Zadat poptávku | |
| 0089 FKO01591 |
C00664449
488000664449 |
SP oven wiring harness 982 duble channel | Na dotaz | Zadat poptávku | |
| 0090 FKO01591 |
C00655961
488000655961 |
SP hob screw 8x9.5mm 10 pcs | Na dotaz | Zadat poptávku | |
| 0092 FKO01591 |
C00663338
488000663338 |
SP oven central double channeling standa | Na dotaz | Zadat poptávku | |
| 0093 FKO01591 |
C00663339
488000663339 |
SP oven upper channeling double standard | Na dotaz | Zadat poptávku | |
| 0112 FKO01591 |
C00663340
488000663340 |
SP oven FS trim aesth. ass. right left | Na dotaz | Zadat poptávku | |
| 0113 FKO01591 |
C00654289
488000654289 |
SP oven side support internal grid left | Na dotaz | Zadat poptávku | |
| 0114 FKO01591 |
C00654290
488000654290 |
SP oven side support internal grid right | Na dotaz | Zadat poptávku | |
| 0116 FKO01591 |
C00654291
488000654291 |
SP oven screw m4x6 TCB TX20 P10 | Na dotaz | Zadat poptávku | |
