FRANKE 116.0374.295 OVEN CR
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 116.0374.295 OVEN CR |
| Kód 12NC/I.C. kód: | 859698011260 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

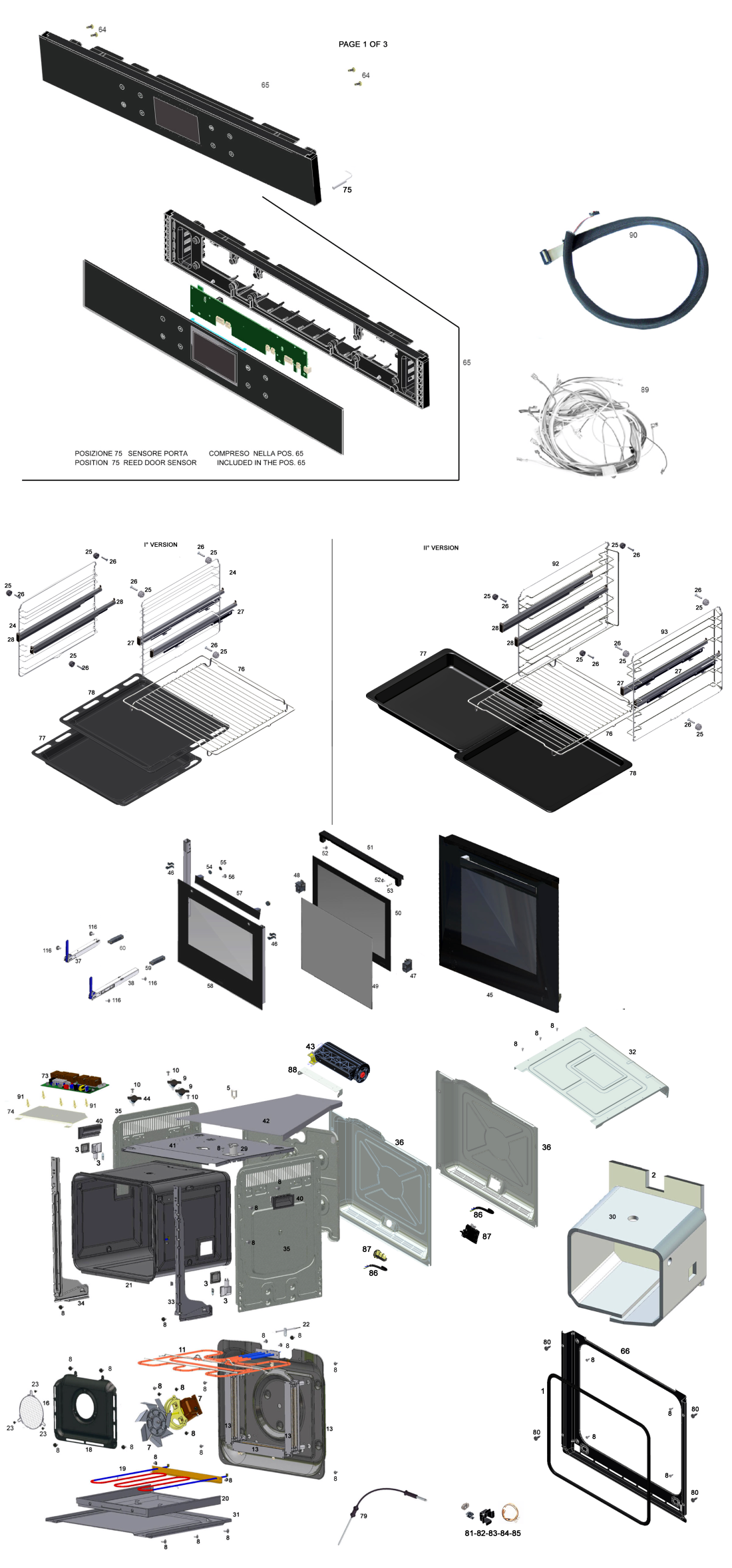

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 FKO01126 |
C00650845
488000650845 |
SP oven cable string | Na dotaz | Zadat poptávku | |
| 000 FKO01126 |
C00844021
488000844021 |
Oven tray deep brown | Na dotaz | Zadat poptávku | |
| 000 FKO01126 |
C00844022
488000844022 |
Oven tray deep red | Na dotaz | Zadat poptávku | |
| 000 FKO01126 |
C00844023
488000844023 |
Oven tray deep blu | Na dotaz | Zadat poptávku | |
| 001 FKO01126 |
C00654217
488000654217 |
SP oven gasket standard for front | Na dotaz | Zadat poptávku | |
| 002 FKO01126 |
C00654218
488000654218 |
SP oven iinsulating for casing rear stan | Na dotaz | Zadat poptávku | |
| 003 FKO01126 |
C00654219
488000654219 |
SP oven lamphol. halog.la 40w+wires 230v | Na dotaz | Zadat poptávku | |
| 003 FKO01126 |
C00654220
488000654220 |
SP oven lampholder halog.lamp 40w+wires | Na dotaz | Zadat poptávku | |
| 004 FKO01126 |
C00654221
488000654221 |
SP oven rear bracket 2015 | Na dotaz | Zadat poptávku | |
| 005 FKO01126 |
C00649901
488000649901 |
SP hob clip for cable 4.8mm | Na dotaz | Zadat poptávku | |
| 005 FKO01126 |
C00654222
488000654222 |
SP oven guide cable h 25mm | Na dotaz | Zadat poptávku | |
| 007 FKO01126 |
C00653655
488000653655 |
SP oven motor 40w+fan aluminum | Na dotaz | Zadat poptávku | |
| 008 FKO01126 |
C00650291
488000650291 |
SP oven screw 4.2x8.5mm 10 pieces | Na dotaz | Zadat poptávku | |
| 008 FKO01126 |
C00654223
488000654223 |
SP oven screw 4x9.5 TCB TX20 P10 | Na dotaz | Zadat poptávku | |
| 009 FKO01126 |
C00654224
488000654224 |
SP oven bimetallic thermost NC 100° 16A | Na dotaz | Zadat poptávku | |
| 010 FKO01126 |
C00650776
488000650776 |
SP oven screws 2.9x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 010 FKO01126 |
C00654225
488000654225 |
SP oven screw TB 3X6 TC P10 | Na dotaz | Zadat poptávku | |
| 011 FKO01126 |
C00654226
488000654226 |
SP oven upper heat.elem.2100w230v+520w | Na dotaz | Zadat poptávku | |
| 012 FKO01126 |
C00650775
488000650775 |
SP oven screws c15 m4x10 galvaN. P10 | Na dotaz | Zadat poptávku | |
| 013 FKO01126 |
C00654227
488000654227 |
SP oven kit P3 heat.elem.DCT 2015 2900w | Na dotaz | Zadat poptávku | |
| 015,017 FKO01126 |
C00653656
488000653656 |
SP oven screw tcb m4x10mm P10 | Na dotaz | Zadat poptávku | |
| 016 FKO01126 |
C00653626
488000653626 |
SP oven front grid deflector dct | Na dotaz | Zadat poptávku | |
| 018 FKO01126 |
C00653627
488000653627 |
SP oven enameled deflector with inserts | Na dotaz | Zadat poptávku | |
| 018 FKO01126 |
C00654228
488000654228 |
SP oven fan panel enamelled DCT | Na dotaz | Zadat poptávku | |
| 019 FKO01126 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 019 FKO01126 |
C00647875
488000647875 |
oven heating element lower | Na dotaz | Zadat poptávku | |
| 020 FKO01126 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 021 FKO01126 |
C00654229
488000654229 |
SP oven casing rear standard for probe | Na dotaz | Zadat poptávku | |
| 022 FKO01126 |
C00654230
488000654230 |
SP oven probe pt1000 cl.b dct pyrolytic | Na dotaz | Zadat poptávku | |
| 023 FKO01126 |
C00649357
488000649357 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 023,064 FKO01126 |
C00654231
488000654231 |
SP oven screw tcb m4x12 tx20 P10 | Na dotaz | Zadat poptávku | |
| 024 FKO01126 |
C00654232
488000654232 |
SP oven side support internal grid 363mm | Na dotaz | Zadat poptávku | |
| 025 FKO01126 |
C00654233
488000654233 |
SP oven bush fixing guide dia20mm | Na dotaz | Zadat poptávku | |
| 026 FKO01126 |
C00649618
488000649618 |
SP oven screws 5x20mm 10 pcs | Na dotaz | Zadat poptávku | |
| 026 FKO01126 |
C00654234
488000654234 |
SP oven screw TSP TX20 M5X25 SS P10 | Na dotaz | Zadat poptávku | |
| 027 FKO01126 |
C00654235
488000654235 |
SP oven right telescopic rack 2017 | Na dotaz | Zadat poptávku | |
| 028 FKO01126 |
C00654236
488000654236 |
SP oven left telescopic rack 2017 | Na dotaz | Zadat poptávku | |
| 028 FKO01126 |
C00654237
488000654237 |
SP oven left telescopic rack 2015 | Na dotaz | Zadat poptávku | |
| 029 FKO01126 |
C00647945
488000647945 |
oven chimney flue diameter 50mm | Na dotaz | Zadat poptávku | |
| 030 FKO01126 |
C00654238
488000654238 |
SP oven insulating casing standard 2015 | Na dotaz | Zadat poptávku | |
| 031 FKO01126 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 032 FKO01126 |
C00654239
488000654239 |
SP oven upper panel 2015 | Na dotaz | Zadat poptávku | |
| 033 FKO01126 |
C00654240
488000654240 |
SP oven right hinge support 2015 | Na dotaz | Zadat poptávku | |
| 034 FKO01126 |
C00654241
488000654241 |
SP oven left hinge support 2015 | Na dotaz | Zadat poptávku | |
| 035 FKO01126 |
C00654243
488000654243 |
SP oven side panel right left 74l 2017 | Na dotaz | Zadat poptávku | |
| 035 FKO01126 |
C00654242
488000654242 |
SP oven side panel 567x465mm 2015 | Na dotaz | Zadat poptávku | |
| 036 FKO01126 |
C00654245
488000654245 |
SP oven rear panel 74 liters | Na dotaz | Zadat poptávku | |
| 036 FKO01126 |
C00654244
488000654244 |
SP oven rear panel 2015 | Na dotaz | Zadat poptávku | |
| 037 FKO01126 |
C00654246
488000654246 |
SP oven hinge no amortized 3 glas. 2017 | Na dotaz | Zadat poptávku | |
| 037 FKO01126 |
C00654247
488000654247 |
SP oven hinge without shock absorber | Na dotaz | Zadat poptávku | |
| 038 FKO01126 |
C00654248
488000654248 |
SP oven hinge amortized 3 glasses 2017 | Na dotaz | Zadat poptávku | |
| 038 FKO01126 |
C00654249
488000654249 |
SP oven hinge shock absorber for door | Na dotaz | Zadat poptávku | |
| 039 FKO01126 |
C00648180
488000648180 |
hob screw metric 4x6mm 10pcs | Na dotaz | Zadat poptávku | |
| 040 FKO01126 |
C00654250
488000654250 |
SP oven side plastic handle | Na dotaz | Zadat poptávku | |
| 041 FKO01126 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 042 FKO01126 |
C00654252
488000654252 |
SP oven air canalization upper 2017 | Na dotaz | Zadat poptávku | |
| 042 FKO01126 |
C00654251
488000654251 |
SP oven tangential convoyer 453x190mm | Na dotaz | Zadat poptávku | |
| 043 FKO01126 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 044 FKO01126 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 045 FKO01126 |
C00654253
488000654253 |
SP oven door ass. black 3glasses CR | Na dotaz | Zadat poptávku | |
| 046 FKO01126 |
C00649370
488000649370 |
SP oven rubber for glass door P10 | Na dotaz | Zadat poptávku | |
| 047 FKO01126 |
C00654254
488000654254 |
SP oven right lock internal glass 2015 | Na dotaz | Zadat poptávku | |
| 048 FKO01126 |
C00654255
488000654255 |
SP oven left lock internal glass 2015 | Na dotaz | Zadat poptávku | |
| 049 FKO01126 |
C00654256
488000654256 |
SP oven halfway glass door 476x420mm | Na dotaz | Zadat poptávku | |
| 050 FKO01126 |
C00654257
488000654257 |
SP oven internal glass door 525x423mm | Na dotaz | Zadat poptávku | |
| 051 FKO01126 |
C00654258
488000654258 |
SP oven door upper support standard 2015 | Na dotaz | Zadat poptávku | |
| 052 FKO01126 |
C00649662
488000649662 |
SP oven set P10 screws m4x12 tsp | Na dotaz | Zadat poptávku | |
| 053 FKO01126 |
C00654259
488000654259 |
SP oven magnet l15mm diameter 8mm | Na dotaz | Zadat poptávku | |
| 054 FKO01126 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 055 FKO01126 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 056 FKO01126 |
C00649653
488000649653 |
SP oven screws 4.8x16mm pcs 10 | Na dotaz | Zadat poptávku | |
| 057 FKO01126 |
C00654260
488000654260 |
SP oven glass handle black CR | Na dotaz | Zadat poptávku | |
| 058 FKO01126 |
C00654261
488000654261 |
SP oven glass+post doors black 595x482,5 | Na dotaz | Zadat poptávku | |
| 059 FKO01126 |
C00654262
488000654262 |
SP oven right plastic guide for hinge | Na dotaz | Zadat poptávku | |
| 060 FKO01126 |
C00654263
488000654263 |
SP oven left plastic guide for hinge | Na dotaz | Zadat poptávku | |
| 064 FKO01126 |
C00649839
488000649839 |
SP hob screw 14x16mm 10 pcs | Na dotaz | Zadat poptávku | |
| 065 FKO01126 |
C00654264
488000654264 |
SP oven ass.controls cr913 mbm dct tft | Na dotaz | Zadat poptávku | |
| 066 FKO01126 |
C00654265
488000654265 |
SP oven front frame metal CR2015 | Na dotaz | Zadat poptávku | |
| 067 FKO01126 |
C00649660
488000649660 |
SP oven screws 4.2x12mm pcs10 | Na dotaz | Zadat poptávku | |
| 073 FKO01126 |
C00654266
488000654266 |
SP oven power board 913 DCT TFT | Na dotaz | Zadat poptávku | |
| 074 FKO01126 |
C00654267
488000654267 |
SP oven support bracket power board | Na dotaz | Zadat poptávku | |
| 074 FKO01126 |
C00654268
488000654268 |
SP oven support bracket power board 2018 | Na dotaz | Zadat poptávku | |
| 075 FKO01126 |
C00654269
488000654269 |
SP oven reed sensor door warning door | Na dotaz | Zadat poptávku | |
| 076 FKO01126 |
C00654271
488000654271 |
SP oven internal grid 451x385mm 2017 | Na dotaz | Zadat poptávku | |
| 076 FKO01126 |
C00654270
488000654270 |
SP oven internal grid 454x385mm anti tip | Na dotaz | Zadat poptávku | |
| 077 FKO01126 |
C00649636
488000649636 |
SP oven black deep tray 451x385x35mm | Na dotaz | Zadat poptávku | |
| 077 FKO01126 |
C00654272
488000654272 |
SP oven tray black anti tip 451X385X45mm | Na dotaz | Zadat poptávku | |
| 078 FKO01126 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 078 FKO01126 |
C00654273
488000654273 |
SP oven tray black 451x385x225m 2016 | Na dotaz | Zadat poptávku | |
| 079 FKO01126 |
C00654274
488000654274 |
SP oven meat probe temperature | Na dotaz | Zadat poptávku | |
| 080 FKO01126 |
C00654275
488000654275 |
SP oven set screws self-threading | Na dotaz | Zadat poptávku | |
| 081 FKO01126 |
C00654276
488000654276 |
SP oven plug for meat probe temper | Na dotaz | Zadat poptávku | |
| 082 FKO01126 |
C00654277
488000654277 |
SP oven closing plug meat probe tem | Na dotaz | Zadat poptávku | |
| 083 FKO01126 |
C00654278
488000654278 |
SP oven cable for probe l110 913 | Na dotaz | Zadat poptávku | |
| 084 FKO01126 |
C00654279
488000654279 |
SP oven ground cable length 450mm | Na dotaz | Zadat poptávku | |
| 085 FKO01126 |
C00654280
488000654280 |
SP oven box for meat probe | Na dotaz | Zadat poptávku | |
| 086 FKO01126 |
C00654282
488000654282 |
SP oven elect. cable 3x1.5 l1500 SP35 | Na dotaz | Zadat poptávku | |
| 086 FKO01126 |
C00654281
488000654281 |
SP oven elect. cable 3x1.5 h05v2v2f | Na dotaz | Zadat poptávku | |
| 087 FKO01126 |
C00653641
488000653641 |
SP oven terminal block faston PA205 3P | Na dotaz | Zadat poptávku | |
| 087 FKO01126 |
C00654283
488000654283 |
SP oven term. block FL BG3 1.50088167735 | Na dotaz | Zadat poptávku | |
| 088 FKO01126 |
C00654284
488000654284 |
SP oven air front canalization l193mm | Na dotaz | Zadat poptávku | |
| 089 FKO01126 |
C00654285
488000654285 |
SP oven wiring harness 913 standard | Na dotaz | Zadat poptávku | |
| 089 FKO01126 |
C00654286
488000654286 |
SP oven wiring harness 913 std 2017 | Na dotaz | Zadat poptávku | |
| 090 FKO01126 |
C00654287
488000654287 |
SP oven cable flat 16p models 913 360mm | Na dotaz | Zadat poptávku | |
| 091 FKO01126 |
C00654288
488000654288 |
SP oven support pcb 9.5mm 105 degr | Na dotaz | Zadat poptávku | |
| 092 FKO01126 |
C00654289
488000654289 |
SP oven side support internal grid left | Na dotaz | Zadat poptávku | |
| 093 FKO01126 |
C00654290
488000654290 |
SP oven side support internal grid right | Na dotaz | Zadat poptávku | |
| 116 FKO01126 |
C00648161
488000648161 |
hob screw SS 4x8mm 10 pcs | Na dotaz | Zadat poptávku | |
| 116 FKO01126 |
C00654291
488000654291 |
SP oven screw m4x6 TCB TX20 P10 | Na dotaz | Zadat poptávku | |
