| Komerční kód: | 116.0374.300 OVEN CR |
| Kód 12NC/I.C. kód: | 859698011640 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

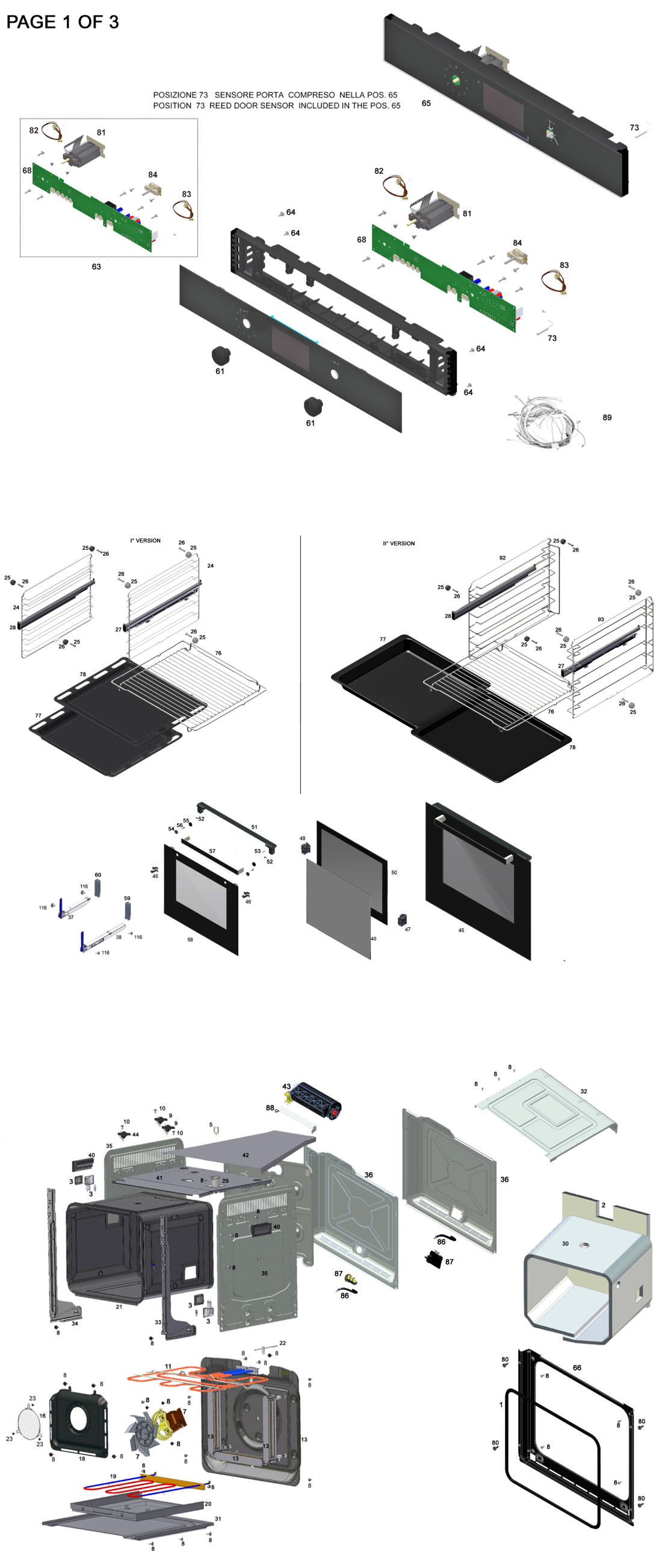

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0000 FKO01164 |
C00650845
488000650845 |
SP oven cable string | Na dotaz | Zadat poptávku | |
| 0000 FKO01164 |
C00844021
488000844021 |
Oven tray deep brown | Na dotaz | Zadat poptávku | |
| 0000 FKO01164 |
C00844022
488000844022 |
Oven tray deep red | Na dotaz | Zadat poptávku | |
| 0000 FKO01164 |
C00844023
488000844023 |
Oven tray deep blu | Na dotaz | Zadat poptávku | |
| 0001 FKO01164 |
C00654217
488000654217 |
SP oven gasket standard for front | Na dotaz | Zadat poptávku | |
| 0002 FKO01164 |
C00654218
488000654218 |
SP oven iinsulating for casing rear stan | Na dotaz | Zadat poptávku | |
| 0003 FKO01164 |
C00654219
488000654219 |
SP oven lamphol. halog.la 40w+wires 230v | Na dotaz | Zadat poptávku | |
| 0003 FKO01164 |
C00654220
488000654220 |
SP oven lampholder halog.lamp 40w+wires | Na dotaz | Zadat poptávku | |
| 0004 FKO01164 |
C00654221
488000654221 |
SP oven rear bracket 2015 | Na dotaz | Zadat poptávku | |
| 0005 FKO01164 |
C00649901
488000649901 |
SP hob clip for cable 4.8mm | Na dotaz | Zadat poptávku | |
| 0005 FKO01164 |
C00654222
488000654222 |
SP oven guide cable h 25mm | Na dotaz | Zadat poptávku | |
| 0007 FKO01164 |
C00653655
488000653655 |
SP oven motor 40w+fan aluminum | Na dotaz | Zadat poptávku | |
| 0008 FKO01164 |
C00654223
488000654223 |
SP oven screw 4x9.5 TCB TX20 P10 | Na dotaz | Zadat poptávku | |
| 0009 FKO01164 |
C00654224
488000654224 |
SP oven bimetallic thermost NC 100° 16A | Na dotaz | Zadat poptávku | |
| 0010 FKO01164 |
C00654225
488000654225 |
SP oven screw TB 3X6 TC P10 | Na dotaz | Zadat poptávku | |
| 0011 FKO01164 |
C00654226
488000654226 |
SP oven upper heat.elem.2100w230v+520w | Na dotaz | Zadat poptávku | |
| 0012 FKO01164 |
C00650775
488000650775 |
SP oven screws c15 m4x10 galvaN. P10 | Na dotaz | Zadat poptávku | |
| 0013 FKO01164 |
C00654227
488000654227 |
SP oven kit P3 heat.elem.DCT 2015 2900w | Na dotaz | Zadat poptávku | |
| 0016 FKO01164 |
C00653626
488000653626 |
SP oven front grid deflector dct | Na dotaz | Zadat poptávku | |
| 0017,0067 FKO01164 |
C00653656
488000653656 |
SP oven screw tcb m4x10mm P10 | Na dotaz | Zadat poptávku | |
| 0018 FKO01164 |
C00653627
488000653627 |
SP oven enameled deflector with inserts | Na dotaz | Zadat poptávku | |
| 0019 FKO01164 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 0020 FKO01164 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 0021 FKO01164 |
C00653979
488000653979 |
SP oven casing standard no probe meat | Na dotaz | Zadat poptávku | |
| 0022 FKO01164 |
C00654230
488000654230 |
SP oven probe pt1000 cl.b dct pyrolytic | Na dotaz | Zadat poptávku | |
| 0023,0064 FKO01164 |
C00654231
488000654231 |
SP oven screw tcb m4x12 tx20 P10 | Na dotaz | Zadat poptávku | |
| 0024 FKO01164 |
C00654232
488000654232 |
SP oven side support internal grid 363mm | Na dotaz | Zadat poptávku | |
| 0025 FKO01164 |
C00654233
488000654233 |
SP oven bush fixing guide dia20mm | Na dotaz | Zadat poptávku | |
| 0026 FKO01164 |
C00654234
488000654234 |
SP oven screw TSP TX20 M5X25 SS P10 | Na dotaz | Zadat poptávku | |
| 0027 FKO01164 |
C00654235
488000654235 |
SP oven right telescopic rack 2017 | Na dotaz | Zadat poptávku | |
| 0028 FKO01164 |
C00654236
488000654236 |
SP oven left telescopic rack 2017 | Na dotaz | Zadat poptávku | |
| 0028 FKO01164 |
C00654237
488000654237 |
SP oven left telescopic rack 2015 | Na dotaz | Zadat poptávku | |
| 0029 FKO01164 |
C00647945
488000647945 |
oven chimney flue diameter 50mm | Na dotaz | Zadat poptávku | |
| 0030 FKO01164 |
C00654238
488000654238 |
SP oven insulating casing standard 2015 | Na dotaz | Zadat poptávku | |
| 0031 FKO01164 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 0032 FKO01164 |
C00654239
488000654239 |
SP oven upper panel 2015 | Na dotaz | Zadat poptávku | |
| 0033 FKO01164 |
C00654240
488000654240 |
SP oven right hinge support 2015 | Na dotaz | Zadat poptávku | |
| 0034 FKO01164 |
C00654241
488000654241 |
SP oven left hinge support 2015 | Na dotaz | Zadat poptávku | |
| 0035 FKO01164 |
C00654243
488000654243 |
SP oven side panel right left 74l 2017 | Na dotaz | Zadat poptávku | |
| 0035 FKO01164 |
C00654242
488000654242 |
SP oven side panel 567x465mm 2015 | Na dotaz | Zadat poptávku | |
| 0036 FKO01164 |
C00654245
488000654245 |
SP oven rear panel 74 liters | Na dotaz | Zadat poptávku | |
| 0036 FKO01164 |
C00654244
488000654244 |
SP oven rear panel 2015 | Na dotaz | Zadat poptávku | |
| 0037 FKO01164 |
C00654246
488000654246 |
SP oven hinge no amortized 3 glas. 2017 | Na dotaz | Zadat poptávku | |
| 0037 FKO01164 |
C00654247
488000654247 |
SP oven hinge without shock absorber | Na dotaz | Zadat poptávku | |
| 0038 FKO01164 |
C00654248
488000654248 |
SP oven hinge amortized 3 glasses 2017 | Na dotaz | Zadat poptávku | |
| 0038 FKO01164 |
C00654249
488000654249 |
SP oven hinge shock absorber for door | Na dotaz | Zadat poptávku | |
| 0040 FKO01164 |
C00654250
488000654250 |
SP oven side plastic handle | Na dotaz | Zadat poptávku | |
| 0041 FKO01164 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 0042 FKO01164 |
C00654252
488000654252 |
SP oven air canalization upper 2017 | Na dotaz | Zadat poptávku | |
| 0042 FKO01164 |
C00654251
488000654251 |
SP oven tangential convoyer 453x190mm | Na dotaz | Zadat poptávku | |
| 0043 FKO01164 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 0044 FKO01164 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 0045 FKO01164 |
C00654253
488000654253 |
SP oven door ass. black 3glasses CR | Na dotaz | Zadat poptávku | |
| 0046 FKO01164 |
C00649370
488000649370 |
SP oven rubber for glass door P10 | Na dotaz | Zadat poptávku | |
| 0047 FKO01164 |
C00654254
488000654254 |
SP oven right lock internal glass 2015 | Na dotaz | Zadat poptávku | |
| 0048 FKO01164 |
C00654255
488000654255 |
SP oven left lock internal glass 2015 | Na dotaz | Zadat poptávku | |
| 0049 FKO01164 |
C00654256
488000654256 |
SP oven halfway glass door 476x420mm | Na dotaz | Zadat poptávku | |
| 0050 FKO01164 |
C00654257
488000654257 |
SP oven internal glass door 525x423mm | Na dotaz | Zadat poptávku | |
| 0051 FKO01164 |
C00654258
488000654258 |
SP oven door upper support standard 2015 | Na dotaz | Zadat poptávku | |
| 0052 FKO01164 |
C00649662
488000649662 |
SP oven set P10 screws m4x12 tsp | Na dotaz | Zadat poptávku | |
| 0053 FKO01164 |
C00654259
488000654259 |
SP oven magnet l15mm diameter 8mm | Na dotaz | Zadat poptávku | |
| 0054 FKO01164 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 0055 FKO01164 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 0056 FKO01164 |
C00649653
488000649653 |
SP oven screws 4.8x16mm pcs 10 | Na dotaz | Zadat poptávku | |
| 0057 FKO01164 |
C00654260
488000654260 |
SP oven glass handle black CR | Na dotaz | Zadat poptávku | |
| 0058 FKO01164 |
C00654261
488000654261 |
SP oven glass+post doors black 595x482,5 | Na dotaz | Zadat poptávku | |
| 0059 FKO01164 |
C00654262
488000654262 |
SP oven right plastic guide for hinge | Na dotaz | Zadat poptávku | |
| 0060 FKO01164 |
C00654263
488000654263 |
SP oven left plastic guide for hinge | Na dotaz | Zadat poptávku | |
| 0061 FKO01164 |
C00654051
488000654051 |
SP oven knob black 2015 crystal | Na dotaz | Zadat poptávku | |
| 0063 FKO01164 |
C00654052
488000654052 |
SP oven electronic card 982 TFT BK XS | Na dotaz | Zadat poptávku | |
| 0065 FKO01164 |
C00654053
488000654053 |
SP oven ass.controls cr982m bm m dct tft | Na dotaz | Zadat poptávku | |
| 0066 FKO01164 |
C00654265
488000654265 |
SP oven front frame metal CR2015 | Na dotaz | Zadat poptávku | |
| 0068 FKO01164 |
C00850782
488000850782 |
SP oven electronic card 982TFTBK XS | Na dotaz | Zadat poptávku | |
| 0073 FKO01164 |
C00654269
488000654269 |
SP oven reed sensor door warning door | Na dotaz | Zadat poptávku | |
| 0076 FKO01164 |
C00654271
488000654271 |
SP oven internal grid 451x385mm 2017 | Na dotaz | Zadat poptávku | |
| 0076 FKO01164 |
C00654270
488000654270 |
SP oven internal grid 454x385mm anti tip | Na dotaz | Zadat poptávku | |
| 0077 FKO01164 |
C00649636
488000649636 |
SP oven black deep tray 451x385x35mm | Na dotaz | Zadat poptávku | |
| 0077 FKO01164 |
C00654272
488000654272 |
SP oven tray black anti tip 451X385X45mm | Na dotaz | Zadat poptávku | |
| 0078 FKO01164 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 0078 FKO01164 |
C00654273
488000654273 |
SP oven tray black 451x385x225m 2016 | Na dotaz | Zadat poptávku | |
| 0080 FKO01164 |
C00654275
488000654275 |
SP oven set screws self-threading | Na dotaz | Zadat poptávku | |
| 0081 FKO01164 |
C00653649
488000653649 |
SP oven selector 11p+encoder oven dct | Na dotaz | Zadat poptávku | |
| 0082 FKO01164 |
C00654054
488000654054 |
SP oven cable 5P encoder-card electronic | Na dotaz | Zadat poptávku | |
| 0083 FKO01164 |
C00654055
488000654055 |
SP oven cable 3P resistor selc. card ele | Na dotaz | Zadat poptávku | |
| 0084 FKO01164 |
C00647938
488000647938 |
oven encoder resistor selec. left/rig | Na dotaz | Zadat poptávku | |
| 0086 FKO01164 |
C00654282
488000654282 |
SP oven elect. cable 3x1.5 l1500 SP35 | Na dotaz | Zadat poptávku | |
| 0086 FKO01164 |
C00654281
488000654281 |
SP oven elect. cable 3x1.5 h05v2v2f | Na dotaz | Zadat poptávku | |
| 0087 FKO01164 |
C00653641
488000653641 |
SP oven terminal block faston PA205 3P | Na dotaz | Zadat poptávku | |
| 0087 FKO01164 |
C00654283
488000654283 |
SP oven term. block FL BG3 1.50088167735 | Na dotaz | Zadat poptávku | |
| 0088 FKO01164 |
C00654284
488000654284 |
SP oven air front canalization l193mm | Na dotaz | Zadat poptávku | |
| 0089 FKO01164 |
C00654056
488000654056 |
SP oven wiring harness 982 standard 2015 | Na dotaz | Zadat poptávku | |
| 0089 FKO01164 |
C00654057
488000654057 |
SP oven wiring harness 982 standard 2017 | Na dotaz | Zadat poptávku | |
| 0092 FKO01164 |
C00654289
488000654289 |
SP oven side support internal grid left | Na dotaz | Zadat poptávku | |
| 0093 FKO01164 |
C00654290
488000654290 |
SP oven side support internal grid right | Na dotaz | Zadat poptávku | |
| 0116 FKO01164 |
C00654291
488000654291 |
SP oven screw m4x6 TCB TX20 P10 | Na dotaz | Zadat poptávku | |
