FRANKE 116.0525.341 OVEN CM
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 116.0525.341 OVEN CM |
| Kód 12NC/I.C. kód: | 859698013810 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

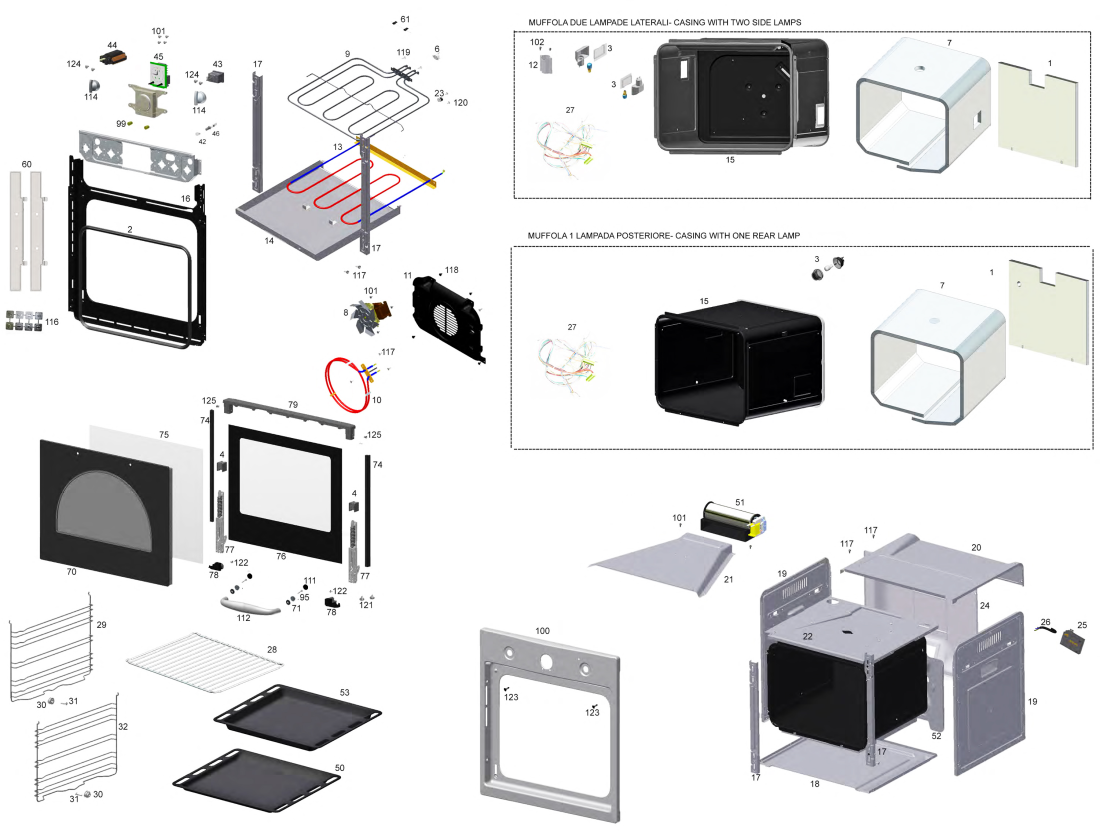

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 FKO01381 |
C00649609
488000649609 |
SP oven back glass rear ins. | Na dotaz | Zadat poptávku | |
| 001 FKO01381 |
C00649610
488000649610 |
SP oven insulation rear 57/63l rear lamp | Na dotaz | Zadat poptávku | |
| 002 FKO01381 |
C00647866
488000647866 |
oven gasket for front | Na dotaz | Zadat poptávku | |
| 003 FKO01381 |
C00649612
488000649612 |
SP oven lamp+rectangular hold+wiring | Na dotaz | Zadat poptávku | |
| 003 FKO01381 |
C00649611
488000649611 |
SP oven lamp holder+lamp 25w halogen | Na dotaz | Zadat poptávku | |
| 004 FKO01381 |
C00649642
488000649642 |
SP oven bush fixing hinge 3D | Na dotaz | Zadat poptávku | |
| 006 FKO01381 |
C00647890
488000647890 |
oven thermostat 280 degrees | Na dotaz | Zadat poptávku | |
| 007 FKO01381 |
C00649613
488000649613 |
SP oven insul. casing lamp side | Na dotaz | Zadat poptávku | |
| 007 FKO01381 |
C00649614
488000649614 |
SP oven insulation side no lamps 57/63l | Na dotaz | Zadat poptávku | |
| 008 FKO01381 |
C00647876
488000647876 |
oven motor+fan+nut 27W | Na dotaz | Zadat poptávku | |
| 009 FKO01381 |
C00647895
488000647895 |
oven upper grill heating el. 2250+556 | Na dotaz | Zadat poptávku | |
| 010 FKO01381 |
C00647943
488000647943 |
oven circular heat. elem. 2000w 2017 | Na dotaz | Zadat poptávku | |
| 010 FKO01381 |
C00647870
488000647870 |
oven circular fan element 2000W | Na dotaz | Zadat poptávku | |
| 011 FKO01381 |
C00649356
488000649356 |
SP oven cover panel for internal fan | Na dotaz | Zadat poptávku | |
| 012 FKO01381 |
C00647947
488000647947 |
oven internal oven chimney | Na dotaz | Zadat poptávku | |
| 012,102 FKO01381 |
C00647946
488000647946 |
oven screw 4,2x6,5mm 10 pieces | Na dotaz | Zadat poptávku | |
| 013 FKO01381 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 013 FKO01381 |
C00647875
488000647875 |
oven heating element lower | Na dotaz | Zadat poptávku | |
| 014 FKO01381 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 015 FKO01381 |
C00649615
488000649615 |
SP oven cube lamp side | Na dotaz | Zadat poptávku | |
| 015 FKO01381 |
C00649616
488000649616 |
SP oven casing wire guides 1 rear lamp | Na dotaz | Zadat poptávku | |
| 016 FKO01381 |
C00649643
488000649643 |
SP oven front enameled | Na dotaz | Zadat poptávku | |
| 017 FKO01381 |
C00647897
488000647897 |
oven support hinge oven door 2010 | Na dotaz | Zadat poptávku | |
| 018 FKO01381 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 019 FKO01381 |
C00649362
488000649362 |
SP oven side panel right/left | Na dotaz | Zadat poptávku | |
| 020 FKO01381 |
C00649363
488000649363 |
SP oven upper panel chassis | Na dotaz | Zadat poptávku | |
| 021 FKO01381 |
C00649368
488000649368 |
SP oven air conveyor upper 57l | Na dotaz | Zadat poptávku | |
| 022 FKO01381 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 023 FKO01381 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 024 FKO01381 |
C00649385
488000649385 |
SP oven rear casing | Na dotaz | Zadat poptávku | |
| 025 FKO01381 |
C00649364
488000649364 |
SP oven cable and terminal block | Na dotaz | Zadat poptávku | |
| 026 FKO01381 |
C00649365
488000649365 |
SP oven elect. cable 3x1.5 H05VV-F l1500 | Na dotaz | Zadat poptávku | |
| 027 FKO01381 |
C00649819
488000649819 |
SP oven wiring harness 8 cook.modes | Na dotaz | Zadat poptávku | |
| 027 FKO01381 |
C00650891
488000650891 |
SP oven wiring cables 86MXS/F 1 lamp | Na dotaz | Zadat poptávku | |
| 028 FKO01381 |
C00649382
488000649382 |
SP oven grid anti-tip 452,5x385x9,5 | Na dotaz | Zadat poptávku | |
| 029 FKO01381 |
C00647873
488000647873 |
oven wire racks side left | Na dotaz | Zadat poptávku | |
| 030 FKO01381 |
C00649617
488000649617 |
SP oven support wire racks side | Na dotaz | Zadat poptávku | |
| 031 FKO01381 |
C00649618
488000649618 |
SP oven screws 5x20mm 10 pcs | Na dotaz | Zadat poptávku | |
| 032 FKO01381 |
C00647874
488000647874 |
oven wire racks side right | Na dotaz | Zadat poptávku | |
| 042 FKO01381 |
C00647921
488000647921 |
oven neon light cover | Na dotaz | Zadat poptávku | |
| 043 FKO01381 |
C00647871
488000647871 |
oven thermostat one wire | Na dotaz | Zadat poptávku | |
| 044 FKO01381 |
C00649820
488000649820 |
SP oven selector ten cook. modes | Na dotaz | Zadat poptávku | |
| 045 FKO01381 |
C00653680
488000653680 |
SP oven clock rustic elettronic 3D SS | Na dotaz | Zadat poptávku | |
| 046 FKO01381 |
C00649377
488000649377 |
SP oven pilot lamp | Na dotaz | Zadat poptávku | |
| 050 FKO01381 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 051 FKO01381 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 052 FKO01381 |
C00649359
488000649359 |
SP oven back panel | Na dotaz | Zadat poptávku | |
| 053 FKO01381 |
C00649636
488000649636 |
SP oven black deep tray 451x385x35mm | Na dotaz | Zadat poptávku | |
| 060 FKO01381 |
C00647918
488000647918 |
oven bracket fixing cabinet | Na dotaz | Zadat poptávku | |
| 061 FKO01381 |
C00647919
488000647919 |
oven spring fix thermostat wire | Na dotaz | Zadat poptávku | |
| 070 FKO01381 |
C00662727
488000662727 |
SP oven door+glass colour black matt | Na dotaz | Zadat poptávku | |
| 071 FKO01381 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 074 FKO01381 |
C00649648
488000649648 |
SP oven gasket glass door length 384mm | Na dotaz | Zadat poptávku | |
| 075 FKO01381 |
C00649649
488000649649 |
SP oven glass door intermediate 475x397m | Na dotaz | Zadat poptávku | |
| 076 FKO01381 |
C00649650
488000649650 |
SP oven glass door internal 475x398mm | Na dotaz | Zadat poptávku | |
| 077 FKO01381 |
C00649651
488000649651 |
SP oven hinge door 3D 8.20kg | Na dotaz | Zadat poptávku | |
| 078 FKO01381 |
C00647920
488000647920 |
oven block right left door glasses 3d | Na dotaz | Zadat poptávku | |
| 079 FKO01381 |
C00649652
488000649652 |
SP oven trim upper door 3D | Na dotaz | Zadat poptávku | |
| 082 FKO01381 |
C00649366
488000649366 |
SP oven terminal block 3 term. PA223S3P | Na dotaz | Zadat poptávku | |
| 095 FKO01381 |
C00649653
488000649653 |
SP oven screws 4.8x16mm pcs 10 | Na dotaz | Zadat poptávku | |
| 099 FKO01381 |
C00653683
488000653683 |
SP oven knob clock SS | Na dotaz | Zadat poptávku | |
| 100 FKO01381 |
C00662728
488000662728 |
SP oven front frame CM85MBT | Na dotaz | Zadat poptávku | |
| 101 FKO01381 |
C00649360
488000649360 |
SP oven screws 4.2x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 111 FKO01381 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 112 FKO01381 |
C00653684
488000653684 |
SP oven handle colour SS country | Na dotaz | Zadat poptávku | |
| 114 FKO01381 |
C00653685
488000653685 |
SP hob knob stainless steel 3d | Na dotaz | Zadat poptávku | |
| 116 FKO01381 |
C00649656
488000649656 |
SP oven set spacers+screws+bushing | Na dotaz | Zadat poptávku | |
| 117 FKO01381 |
C00649357
488000649357 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 118 FKO01381 |
C00649355
488000649355 |
SP oven screw tcb 4.2x13mm P10 | Na dotaz | Zadat poptávku | |
| 119 FKO01381 |
C00649657
488000649657 |
SP oven screw m4x10mm chrome 10 pcs | Na dotaz | Zadat poptávku | |
| 120 FKO01381 |
C00650776
488000650776 |
SP oven screws 2.9x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 121 FKO01381 |
C00649658
488000649658 |
SP oven screw self-tapping 3.9x16mm P10 | Na dotaz | Zadat poptávku | |
| 122 FKO01381 |
C00649823
488000649823 |
SP hob screw 4,2X6,5 10P | Na dotaz | Zadat poptávku | |
| 123 FKO01381 |
C00649660
488000649660 |
SP oven screws 4.2x12mm pcs10 | Na dotaz | Zadat poptávku | |
| 124 FKO01381 |
C00649661
488000649661 |
SP hob screw m4x5mm 10 pcs | Na dotaz | Zadat poptávku | |
| 125 FKO01381 |
C00649376
488000649376 |
SP hob screw 4x12mm 10 pcs | Na dotaz | Zadat poptávku | |
