| Komerční kód: | 116.0564.029 OVEN CF |
| Kód 12NC/I.C. kód: | 859698012990 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

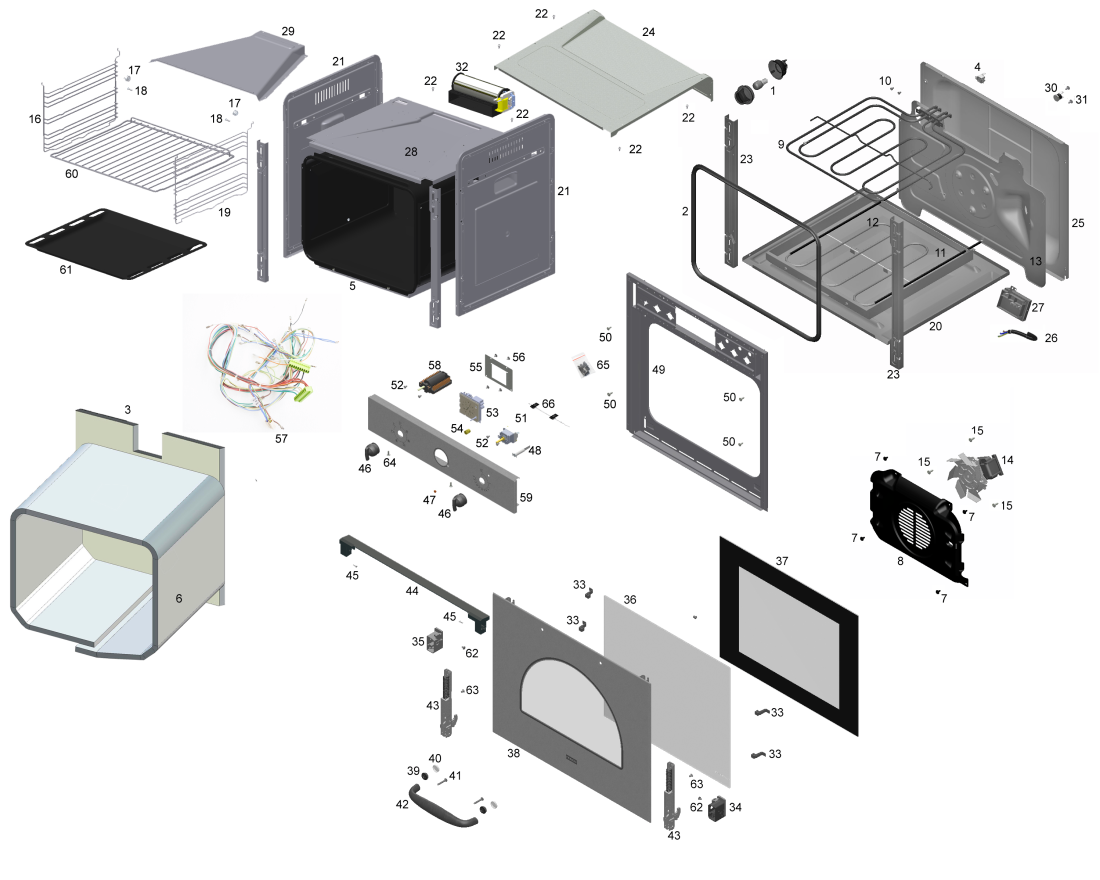

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 FKO01299 |
C00649611
488000649611 |
SP oven lamp holder+lamp 25w halogen | Na dotaz | Zadat poptávku | |
| 002 FKO01299 |
C00650774
488000650774 |
SP oven gasket frame | Na dotaz | Zadat poptávku | |
| 003 FKO01299 |
C00649610
488000649610 |
SP oven insulation rear 57/63l rear lamp | Na dotaz | Zadat poptávku | |
| 004 FKO01299 |
C00647890
488000647890 |
oven thermostat 280 degrees | Na dotaz | Zadat poptávku | |
| 005 FKO01299 |
C00649616
488000649616 |
SP oven casing wire guides 1 rear lamp | Na dotaz | Zadat poptávku | |
| 006 FKO01299 |
C00649614
488000649614 |
SP oven insulation side no lamps 57/63l | Na dotaz | Zadat poptávku | |
| 007 FKO01299 |
C00649355
488000649355 |
SP oven screw tcb 4.2x13mm P10 | Na dotaz | Zadat poptávku | |
| 008 FKO01299 |
C00649356
488000649356 |
SP oven cover panel for internal fan | Na dotaz | Zadat poptávku | |
| 009 FKO01299 |
C00647895
488000647895 |
oven upper grill heating el. 2250+556 | Na dotaz | Zadat poptávku | |
| 010 FKO01299 |
C00650775
488000650775 |
SP oven screws c15 m4x10 galvaN. P10 | Na dotaz | Zadat poptávku | |
| 011 FKO01299 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 012 FKO01299 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 013 FKO01299 |
C00649359
488000649359 |
SP oven back panel | Na dotaz | Zadat poptávku | |
| 014 FKO01299 |
C00647876
488000647876 |
oven motor+fan+nut 27W | Na dotaz | Zadat poptávku | |
| 015 FKO01299 |
C00649360
488000649360 |
SP oven screws 4.2x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 016 FKO01299 |
C00647873
488000647873 |
oven wire racks side left | Na dotaz | Zadat poptávku | |
| 017 FKO01299 |
C00649617
488000649617 |
SP oven support wire racks side | Na dotaz | Zadat poptávku | |
| 018 FKO01299 |
C00649618
488000649618 |
SP oven screws 5x20mm 10 pcs | Na dotaz | Zadat poptávku | |
| 019 FKO01299 |
C00647874
488000647874 |
oven wire racks side right | Na dotaz | Zadat poptávku | |
| 020 FKO01299 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 021 FKO01299 |
C00649362
488000649362 |
SP oven side panel right/left | Na dotaz | Zadat poptávku | |
| 022 FKO01299 |
C00649357
488000649357 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 023 FKO01299 |
C00647897
488000647897 |
oven support hinge oven door 2010 | Na dotaz | Zadat poptávku | |
| 024 FKO01299 |
C00649363
488000649363 |
SP oven upper panel chassis | Na dotaz | Zadat poptávku | |
| 025 FKO01299 |
C00649385
488000649385 |
SP oven rear casing | Na dotaz | Zadat poptávku | |
| 026 FKO01299 |
C00649365
488000649365 |
SP oven elect. cable 3x1.5 H05VV-F l1500 | Na dotaz | Zadat poptávku | |
| 027 FKO01299 |
C00649366
488000649366 |
SP oven terminal block 3 term. PA223S3P | Na dotaz | Zadat poptávku | |
| 028 FKO01299 |
C00649367
488000649367 |
SP oven intermediate panel casing | Na dotaz | Zadat poptávku | |
| 029 FKO01299 |
C00649368
488000649368 |
SP oven air conveyor upper 57l | Na dotaz | Zadat poptávku | |
| 030 FKO01299 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 031 FKO01299 |
C00650776
488000650776 |
SP oven screws 2.9x6.5mm pcs 10 | Na dotaz | Zadat poptávku | |
| 032 FKO01299 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 033 FKO01299 |
C00649370
488000649370 |
SP oven rubber for glass door P10 | Na dotaz | Zadat poptávku | |
| 034 FKO01299 |
C00647867
488000647867 |
oven right fixing system inter.glass | Na dotaz | Zadat poptávku | |
| 035 FKO01299 |
C00647868
488000647868 |
oven left fixing system int. glass | Na dotaz | Zadat poptávku | |
| 036 FKO01299 |
C00649954
488000649954 |
SP oven interm. glass 476x395 neutral | Na dotaz | Zadat poptávku | |
| 037 FKO01299 |
C00647893
488000647893 |
oven glass internal 525x397mm | Na dotaz | Zadat poptávku | |
| 038 FKO01299 |
C00661819
488000661819 |
SP oven est. glass+post doors CF65MGF/F | Na dotaz | Zadat poptávku | |
| 039 FKO01299 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 040 FKO01299 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 041 FKO01299 |
C00649653
488000649653 |
SP oven screws 4.8x16mm pcs 10 | Na dotaz | Zadat poptávku | |
| 042 FKO01299 |
C00650332
488000650332 |
SP oven handle country painted brass | Na dotaz | Zadat poptávku | |
| 043 FKO01299 |
C00649621
488000649621 |
SP oven hinge oven door 8.7kg | Na dotaz | Zadat poptávku | |
| 044 FKO01299 |
C00649373
488000649373 |
SP oven upper deflector flat door | Na dotaz | Zadat poptávku | |
| 045 FKO01299 |
C00649662
488000649662 |
SP oven set P10 screws m4x12 tsp | Na dotaz | Zadat poptávku | |
| 046 FKO01299 |
C00650334
488000650334 |
SP oven knob country painted brass | Na dotaz | Zadat poptávku | |
| 047 FKO01299 |
C00647921
488000647921 |
oven neon light cover | Na dotaz | Zadat poptávku | |
| 048 FKO01299 |
C00649377
488000649377 |
SP oven pilot lamp | Na dotaz | Zadat poptávku | |
| 049 FKO01299 |
C00649821
488000649821 |
SP oven front frame black | Na dotaz | Zadat poptávku | |
| 050 FKO01299 |
C00649957
488000649957 |
SP oven screw tsp uni6955 d4.2x13 10P | Na dotaz | Zadat poptávku | |
| 051 FKO01299 |
C00647865
488000647865 |
oven thermostat 50-260 degrees | Na dotaz | Zadat poptávku | |
| 052 FKO01299 |
C00649380
488000649380 |
SP oven screw tcb m4x5mm P10 | Na dotaz | Zadat poptávku | |
| 053 FKO01299 |
C00649725
488000649725 |
SP oven timer 1 knob Roman numbers | Na dotaz | Zadat poptávku | |
| 054 FKO01299 |
C00647904
488000647904 |
SP oven knob timer Country ant. bra | Na dotaz | Zadat poptávku | |
| 055 FKO01299 |
C00649727
488000649727 |
SP oven bracket for country timer 1 kno | Na dotaz | Zadat poptávku | |
| 056 FKO01299 |
C00647946
488000647946 |
oven screw 4,2x6,5mm 10 pieces | Na dotaz | Zadat poptávku | |
| 057 FKO01299 |
C00649644
488000649644 |
SP oven wiring harness 6 prog+1 lamp | Na dotaz | Zadat poptávku | |
| 058 FKO01299 |
C00649379
488000649379 |
SP oven selector 8 cooking modes | Na dotaz | Zadat poptávku | |
| 059 FKO01299 |
C00661820
488000661820 |
SP oven control panel graphite CF65MGF/F | Na dotaz | Zadat poptávku | |
| 060 FKO01299 |
C00649382
488000649382 |
SP oven grid anti-tip 452,5x385x9,5 | Na dotaz | Zadat poptávku | |
| 061 FKO01299 |
C00649383
488000649383 |
SP oven tray black 451x385x22mm | Na dotaz | Zadat poptávku | |
| 062 FKO01299 |
C00649823
488000649823 |
SP hob screw 4,2X6,5 10P | Na dotaz | Zadat poptávku | |
| 063 FKO01299 |
C00650717
488000650717 |
SP oven screw m5x8mm tsp 10 pieces | Na dotaz | Zadat poptávku | |
| 064 FKO01299 |
C00649375
488000649375 |
SP oven screws 4.2x12mm pcs 10 | Na dotaz | Zadat poptávku | |
| 065 FKO01299 |
C00649384
488000649384 |
SP oven fixing set screws+bushing | Na dotaz | Zadat poptávku | |
| 066 FKO01299 |
C00647919
488000647919 |
oven spring fix thermostat wire | Na dotaz | Zadat poptávku | |
