FRANKE 116.0576.980 OVEN MA
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 116.0576.980 OVEN MA |
| Kód 12NC/I.C. kód: | 859698016580 |
| Značka: | FRANKE |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

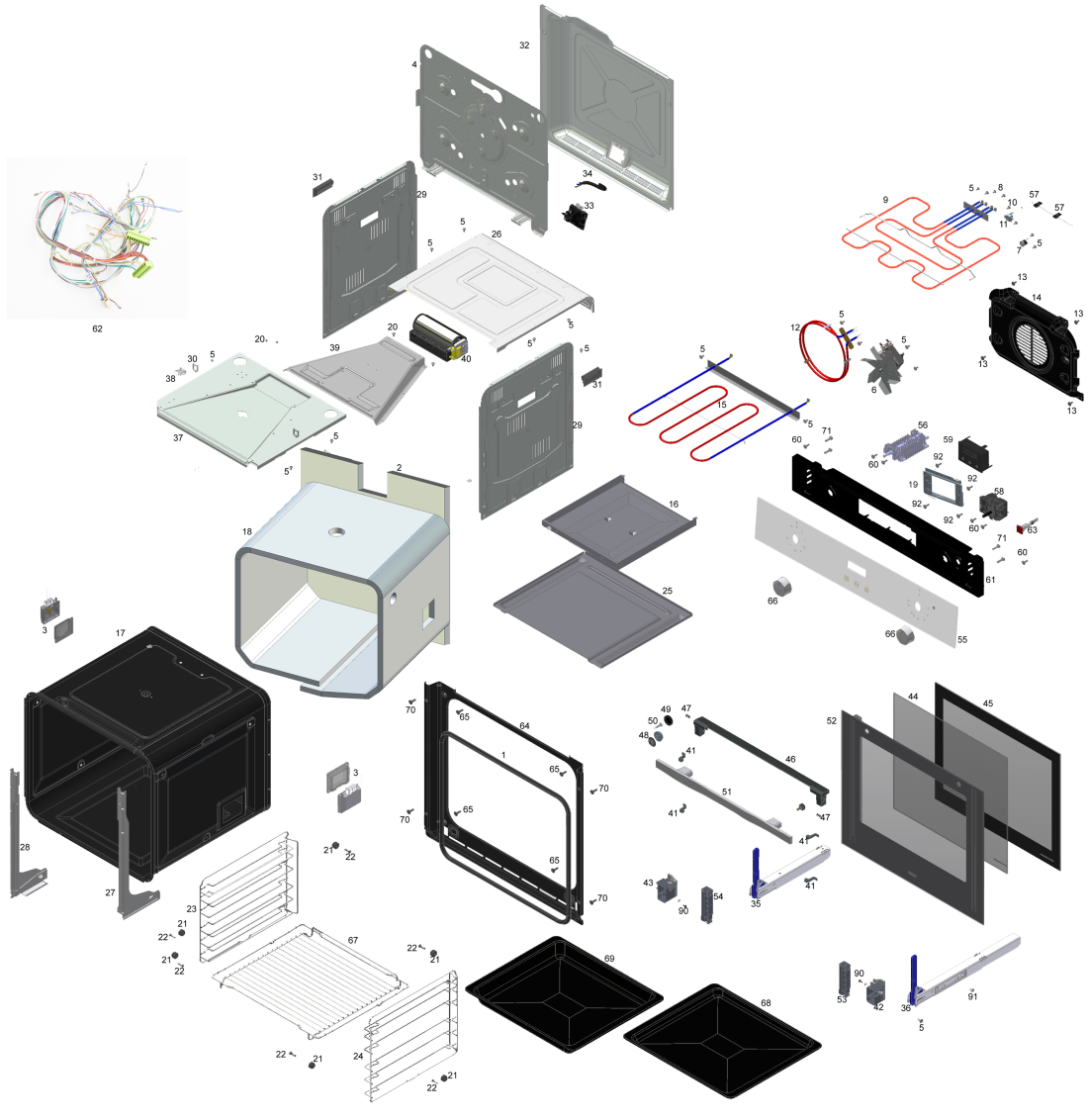

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 FKO01658 |
C00662263
488000662263 |
SP Oven front gasket 74 liters | Na dotaz | Zadat poptávku | |
| 002 FKO01658 |
C00662264
488000662264 |
SP Oven insulation rear 74l no dct | Na dotaz | Zadat poptávku | |
| 003 FKO01658 |
C00662266
488000662266 |
SP oven halogen lamp holder 25w flat+gnd | Na dotaz | Zadat poptávku | |
| 004 FKO01658 |
C00654221
488000654221 |
SP oven rear bracket 2015 | Na dotaz | Zadat poptávku | |
| 005,092 FKO01658 |
C00650291
488000650291 |
SP oven screw 4.2x8.5mm 10 pieces | Na dotaz | Zadat poptávku | |
| 006 FKO01658 |
C00662267
488000662267 |
SP oven fan radial motor with nut 28W | Na dotaz | Zadat poptávku | |
| 007 FKO01658 |
C00647903
488000647903 |
oven thermostat safety tang. fan 80°C | Na dotaz | Zadat poptávku | |
| 008 FKO01658 |
C00654225
488000654225 |
SP oven screw TB 3X6 TC P10 | Na dotaz | Zadat poptávku | |
| 009 FKO01658 |
C00654226
488000654226 |
SP oven upper heat.elem.2100w230v+520w | Na dotaz | Zadat poptávku | |
| 010 FKO01658 |
C00650775
488000650775 |
SP oven screws c15 m4x10 galvaN. P10 | Na dotaz | Zadat poptávku | |
| 011 FKO01658 |
C00647890
488000647890 |
oven thermostat 280 degrees | Na dotaz | Zadat poptávku | |
| 012 FKO01658 |
C00647943
488000647943 |
oven circular heat. elem. 2000w 2017 | Na dotaz | Zadat poptávku | |
| 013 FKO01658 |
C00649355
488000649355 |
SP oven screw tcb 4.2x13mm P10 | Na dotaz | Zadat poptávku | |
| 014 FKO01658 |
C00649356
488000649356 |
SP oven cover panel for internal fan | Na dotaz | Zadat poptávku | |
| 015 FKO01658 |
C00647907
488000647907 |
Spodní topné těleso 1250W, 230V vestavné trouby Whirlpool | 1 429 Kč
€ 58.70 |
||
| 016 FKO01658 |
C00649358
488000649358 |
SP oven lower box | Na dotaz | Zadat poptávku | |
| 017 FKO01658 |
C00662268
488000662268 |
SP oven casing 74 liters black | Na dotaz | Zadat poptávku | |
| 018 FKO01658 |
C00662269
488000662269 |
SP oven insulation side casing 74l | Na dotaz | Zadat poptávku | |
| 019 FKO01658 |
C00665468
488000665468 |
SP oven bracket elec. programmer 3 butto | Na dotaz | Zadat poptávku | |
| 020 FKO01658 |
C00647946
488000647946 |
oven screw 4,2x6,5mm 10 pieces | Na dotaz | Zadat poptávku | |
| 021 FKO01658 |
C00654233
488000654233 |
SP oven bush fixing guide dia20mm | Na dotaz | Zadat poptávku | |
| 022 FKO01658 |
C00649618
488000649618 |
SP oven screws 5x20mm 10 pcs | Na dotaz | Zadat poptávku | |
| 023 FKO01658 |
C00654289
488000654289 |
SP oven side support internal grid left | Na dotaz | Zadat poptávku | |
| 024 FKO01658 |
C00654290
488000654290 |
SP oven side support internal grid right | Na dotaz | Zadat poptávku | |
| 025 FKO01658 |
C00649361
488000649361 |
SP oven external lower panel 2015 | Na dotaz | Zadat poptávku | |
| 026 FKO01658 |
C00654239
488000654239 |
SP oven upper panel 2015 | Na dotaz | Zadat poptávku | |
| 027 FKO01658 |
C00654240
488000654240 |
SP oven right hinge support 2015 | Na dotaz | Zadat poptávku | |
| 028 FKO01658 |
C00654241
488000654241 |
SP oven left hinge support 2015 | Na dotaz | Zadat poptávku | |
| 029 FKO01658 |
C00654243
488000654243 |
SP oven side panel right left 74l 2017 | Na dotaz | Zadat poptávku | |
| 030 FKO01658 |
C00649901
488000649901 |
SP hob clip for cable 4.8mm | Na dotaz | Zadat poptávku | |
| 031 FKO01658 |
C00654250
488000654250 |
SP oven side plastic handle | Na dotaz | Zadat poptávku | |
| 032 FKO01658 |
C00654245
488000654245 |
SP oven rear panel 74 liters | Na dotaz | Zadat poptávku | |
| 033 FKO01658 |
C00654283
488000654283 |
SP oven term. block FL BG3 1.50088167735 | Na dotaz | Zadat poptávku | |
| 034 FKO01658 |
C00654282
488000654282 |
SP oven elect. cable 3x1.5 l1500 SP35 | Na dotaz | Zadat poptávku | |
| 035 FKO01658 |
C00654246
488000654246 |
SP oven hinge no amortized 3 glas. 2017 | Na dotaz | Zadat poptávku | |
| 036 FKO01658 |
C00654248
488000654248 |
SP oven hinge amortized 3 glasses 2017 | Na dotaz | Zadat poptávku | |
| 037 FKO01658 |
C00662270
488000662270 |
SP oven canalizat. panel lower 2017 | Na dotaz | Zadat poptávku | |
| 038 FKO01658 |
C00654222
488000654222 |
SP oven guide cable h 25mm | Na dotaz | Zadat poptávku | |
| 039 FKO01658 |
C00654252
488000654252 |
SP oven air canalization upper 2017 | Na dotaz | Zadat poptávku | |
| 040 FKO01658 |
C00647924
488000647924 |
oven fan tangential 14watt length 200 | Na dotaz | Zadat poptávku | |
| 041 FKO01658 |
C00649370
488000649370 |
SP oven rubber for glass door P10 | Na dotaz | Zadat poptávku | |
| 042 FKO01658 |
C00654254
488000654254 |
SP oven right lock internal glass 2015 | Na dotaz | Zadat poptávku | |
| 043 FKO01658 |
C00654255
488000654255 |
SP oven left lock internal glass 2015 | Na dotaz | Zadat poptávku | |
| 044 FKO01658 |
C00654256
488000654256 |
SP oven halfway glass door 476x420mm | Na dotaz | Zadat poptávku | |
| 045 FKO01658 |
C00654257
488000654257 |
SP oven internal glass door 525x423mm | Na dotaz | Zadat poptávku | |
| 046 FKO01658 |
C00649373
488000649373 |
SP oven upper deflector flat door | Na dotaz | Zadat poptávku | |
| 047 FKO01658 |
C00649662
488000649662 |
SP oven set P10 screws m4x12 tsp | Na dotaz | Zadat poptávku | |
| 048 FKO01658 |
C00649647
488000649647 |
SP oven bushing fixing handle | Na dotaz | Zadat poptávku | |
| 049 FKO01658 |
C00649654
488000649654 |
SP oven plug for bushing handle | Na dotaz | Zadat poptávku | |
| 050 FKO01658 |
C00649653
488000649653 |
SP oven screws 4.8x16mm pcs 10 | Na dotaz | Zadat poptávku | |
| 051 FKO01658 |
C00662271
488000662271 |
SP oven handle MARIS resin phenolic l562 | Na dotaz | Zadat poptávku | |
| 052 FKO01658 |
C00662422
488000662422 |
SP oven exter. glass+supports MAMOY/F | Na dotaz | Zadat poptávku | |
| 053 FKO01658 |
C00654262
488000654262 |
SP oven right plastic guide for hinge | Na dotaz | Zadat poptávku | |
| 054 FKO01658 |
C00654263
488000654263 |
SP oven left plastic guide for hinge | Na dotaz | Zadat poptávku | |
| 055 FKO01658 |
C00664729
488000664729 |
SP oven controls panel MA86MOY/F | Na dotaz | Zadat poptávku | |
| 056 FKO01658 |
C00662274
488000662274 |
SP Oven programs selector 10P (9+0) | Na dotaz | Zadat poptávku | |
| 057 FKO01658 |
C00647919
488000647919 |
oven spring fix thermostat wire | Na dotaz | Zadat poptávku | |
| 058 FKO01658 |
C00662276
488000662276 |
SP oven thermostat EIKA 280°C 2017 | Na dotaz | Zadat poptávku | |
| 059 FKO01658 |
C00650892
488000650892 |
SP oven electr. progr. 3touch red led | Na dotaz | Zadat poptávku | |
| 060 FKO01658 |
C00649657
488000649657 |
SP oven screw m4x10mm chrome 10 pcs | Na dotaz | Zadat poptávku | |
| 061 FKO01658 |
C00665470
488000665470 |
SP oven support controls panel MA86M | Na dotaz | Zadat poptávku | |
| 062 FKO01658 |
C00662278
488000662278 |
SP Oven wiring assembly 82 EEI 2019 | Na dotaz | Zadat poptávku | |
| 062 FKO01658 |
C00665471
488000665471 |
SP oven cover faston flag type 4P | Na dotaz | Zadat poptávku | |
| 062 FKO01658 |
C00665472
488000665472 |
SP oven kit wiring harness 86 oven | Na dotaz | Zadat poptávku | |
| 063 FKO01658 |
C00650715
488000650715 |
SP oven assembly led | Na dotaz | Zadat poptávku | |
| 064 FKO01658 |
C00654265
488000654265 |
SP oven front frame metal CR2015 | Na dotaz | Zadat poptávku | |
| 065 FKO01658 |
C00662280
488000662280 |
SP oven screws tcb+aut.4.2x12 10P | Na dotaz | Zadat poptávku | |
| 066 FKO01658 |
C00662281
488000662281 |
SP oven knob MARIS painted nickel | Na dotaz | Zadat poptávku | |
| 067 FKO01658 |
C00654271
488000654271 |
SP oven internal grid 451x385mm 2017 | Na dotaz | Zadat poptávku | |
| 068 FKO01658 |
C00654273
488000654273 |
SP oven tray black 451x385x225m 2016 | Na dotaz | Zadat poptávku | |
| 069 FKO01658 |
C00654272
488000654272 |
SP oven tray black anti tip 451X385X45mm | Na dotaz | Zadat poptávku | |
| 070 FKO01658 |
C00654275
488000654275 |
SP oven set screws self-threading | Na dotaz | Zadat poptávku | |
| 071 FKO01658 |
C00662282
488000662282 |
SP oven screws tcb uni 76877 m4x14 10P | Na dotaz | Zadat poptávku | |
| 090 FKO01658 |
C00661721
488000661721 |
SP oven screw countersunk head 10pc | Na dotaz | Zadat poptávku | |
| 091 FKO01658 |
C00654291
488000654291 |
SP oven screw m4x6 TCB TX20 P10 | Na dotaz | Zadat poptávku | |
