IKEA PRO A71 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | PRO A71 S |
| Kód 12NC/I.C. kód: | 852755901900 |
| Značka: | IKEA |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

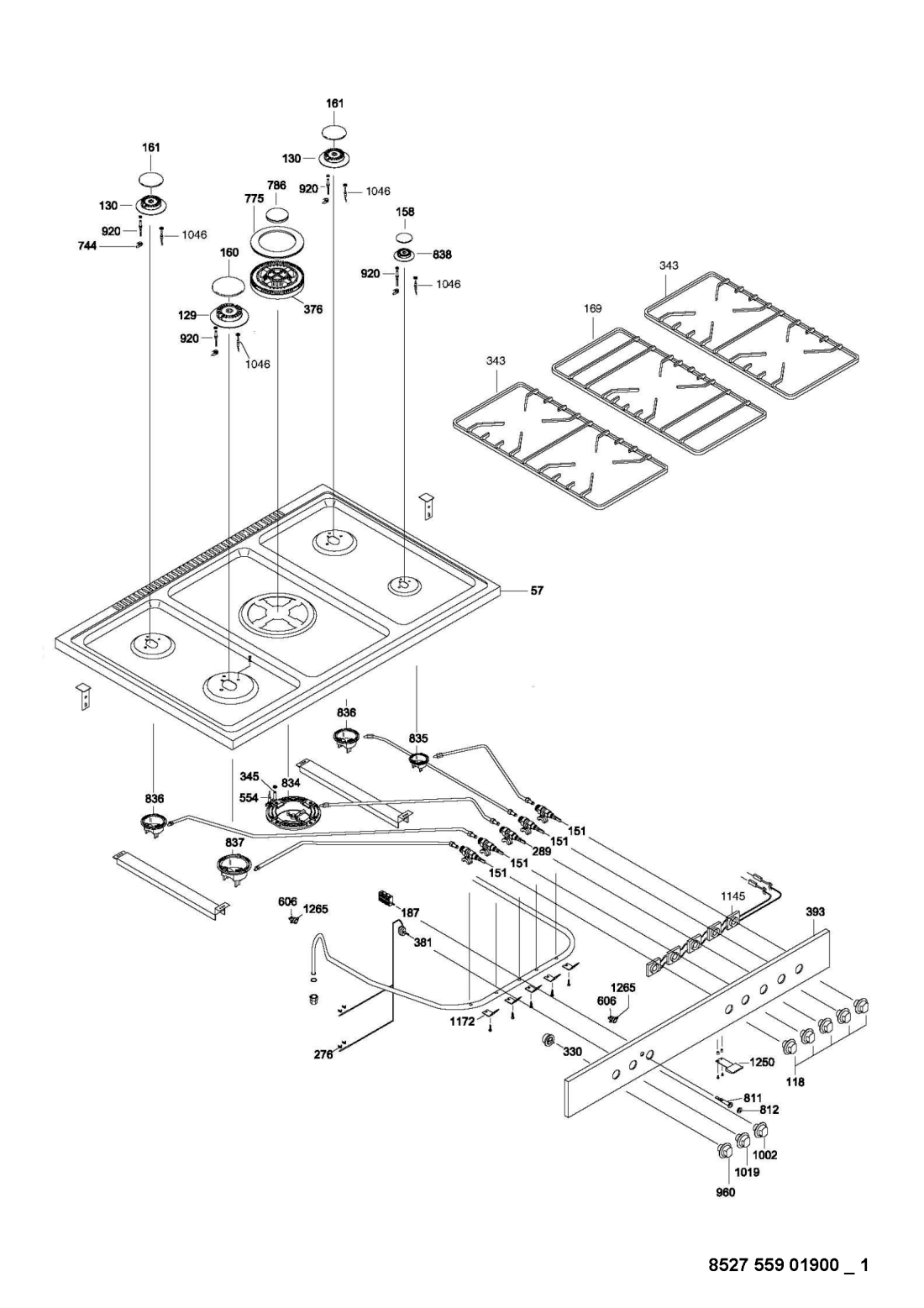

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0050 WHR23479 |
C00322378
480121103782 |
Plech na pečení | Na dotaz | Zadat poptávku | |
| 0055 WHR23479 |
C00466082
482000003144 |
Side panel | Na dotaz | Zadat poptávku | |
| 0057 WHR23479 |
C00322364
480121103763 |
Hob | Na dotaz | Zadat poptávku | |
| 0059 WHR23479 |
C00430983
480121103807 |
Drawer front | Na dotaz | Zadat poptávku | |
| 0118 WHR23479 |
C00314552
481241129097 |
Knob gas | Na dotaz | Zadat poptávku | |
| 0123 WHR23479 |
C00467451
482000012180 |
Foot | Na dotaz | Zadat poptávku | |
| 0129 WHR23479 |
C00328643
481236068273 |
ROZPTYLOVAC PLA | Na dotaz | Zadat poptávku | |
| 0130 WHR23479 |
C00328642
481236068272 |
ROZPTYLOVAC PLA | Na dotaz | Zadat poptávku | |
| 0151 WHR23479 |
C00321975
480121101036 |
Ventil plynu | 1 549 Kč
€ 63.70 |
||
| 0151 WHR23479 |
C00321973
480121101034 |
Valve gas R | Na dotaz | Zadat poptávku | |
| 0151 WHR23479 |
C00321974
480121101035 |
Valve gas SR | Na dotaz | Zadat poptávku | |
| 0158 WHR23479 |
C00318332
481236068657 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 0160 WHR23479 |
C00318348
481236068658 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 0161 WHR23479 |
C00313783
481236068659 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 0165 WHR23479 |
C00311383
480121103764 |
Závěs dveří trouby | 1 654 Kč
€ 68.00 |
||
| 0169 WHR23479 |
C00330157
481245848389 |
Grid for hob centre | Na dotaz | Zadat poptávku | |
| 0177 WHR23479 |
C00467064
482000009506 |
Grid | Na dotaz | Zadat poptávku | |
| 0180 WHR23479 |
C00322391
480121103797 |
Rail Frame | Na dotaz | Zadat poptávku | |
| 0186 WHR23479 |
C00467077
482000009521 |
Cable mains | Na dotaz | Zadat poptávku | |
| 0187 WHR23479 |
C00315119
481227618471 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 0191 WHR23479 |
C00322369
480121103769 |
Electron.ignit. | Na dotaz | Zadat poptávku | |
| 0197 WHR23479 |
C00322338
480121103605 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| 0201 WHR23479 |
C00320079
481229068226 |
Terminal block | Na dotaz | Zadat poptávku | |
| 0212 WHR23479 |
C00322365
480121103765 |
Door glass | Na dotaz | Zadat poptávku | |
| 0266 WHR23479 |
C00322462
480121104457 |
Support handle | Na dotaz | Zadat poptávku | |
| 0276 WHR23479 |
C00345740
481249148007 |
Clip fix thermostat | Na dotaz | Zadat poptávku | |
| 0289 WHR23479 |
C00321976
480121101037 |
Valve gas triple crown | Na dotaz | Zadat poptávku | |
| 0290 WHR23479 |
C00317659
480121103978 |
Glass outer | Na dotaz | Zadat poptávku | |
| 0290 WHR23479 |
C00431010
480121103979 |
Oven glass inner | Na dotaz | Zadat poptávku | |
| 0312 WHR23479 |
C00322375
480121103778 |
Cover Fan | Na dotaz | Zadat poptávku | |
| 0318 WHR23479 |
C00322366
480121103766 |
Handle | Na dotaz | Zadat poptávku | |
| 0318 WHR23479 |
C00467453
482000012182 |
Handle | Na dotaz | Zadat poptávku | |
| 0325 WHR23479 |
C00331934
482000004577 |
Cover lower | Na dotaz | Zadat poptávku | |
| 0326 WHR23479 |
C00311613
480121101033 |
Heating element circular | Na dotaz | Zadat poptávku | |
| 0329 WHR23479 |
C00457527
481236178044 |
Motor oven fan cpl. | Na dotaz | Zadat poptávku | |
| 0330 WHR23479 |
C00332848
481928218475 |
Time switch | Na dotaz | Zadat poptávku | |
| 0337 WHR23479 |
C00322463
480121104459 |
heating element 1700W | Na dotaz | Zadat poptávku | |
| 0338 WHR23479 |
C00322390
480121103796 |
heating element upper/grill | Na dotaz | Zadat poptávku | |
| 0343 WHR23479 |
C00319151
481245848391 |
Grid for hob right/left | Na dotaz | Zadat poptávku | |
| 0345 WHR23479 |
C00322385
480121103791 |
spark plug WOK | Na dotaz | Zadat poptávku | |
| 0376 WHR23479 |
C00322387
480121103793 |
Burner cap TR | Na dotaz | Zadat poptávku | |
| 0381 WHR23479 |
C00312002
481228238149 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 0393 WHR23479 |
C00318941
481245350403 |
Control panel | Na dotaz | Zadat poptávku | |
| 0431 WHR23479 |
C00322367
480121103767 |
Cap for hole handle | Na dotaz | Zadat poptávku | |
| 0508 WHR23479 |
C00467070
482000009512 |
Support | Na dotaz | Zadat poptávku | |
| 0535 WHR23479 |
C00322468
480121104481 |
Hinge drawer | Na dotaz | Zadat poptávku | |
| 0554 WHR23479 |
C00322383
480121103788 |
safety device | Na dotaz | Zadat poptávku | |
| 0606 WHR23479 |
C00318366
480121103774 |
Switch thermostat | Na dotaz | Zadat poptávku | |
| 0625 WHR23479 |
C00330709
481246268901 |
Spacer tubular handle nirosta | Na dotaz | Zadat poptávku | |
| 0625 WHR23479 |
C00466061
482000002921 |
Spacer black | Na dotaz | Zadat poptávku | |
| 0662 WHR23479 |
C00314389
480121103777 |
gasket door | Na dotaz | Zadat poptávku | |
| 0744 WHR23479 |
C00332673
481253258016 |
Spring | Na dotaz | Zadat poptávku | |
| 0775 WHR23479 |
C00317625
481236068667 |
Burner cap triple crown outer | Na dotaz | Zadat poptávku | |
| 0786 WHR23479 |
C00322389
480121103795 |
Burner cap TC | Na dotaz | Zadat poptávku | |
| 0811 WHR23479 |
C00326838
481213448353 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 0812 WHR23479 |
C00317822
481238118258 |
kryt signalky oranz. | 149 Kč
€ 6.10 |
||
| 0834 WHR23479 |
C00322388
480121103794 |
Burner body TC | Na dotaz | Zadat poptávku | |
| 0835 WHR23479 |
C00328760
481236078071 |
Burner A | Na dotaz | Zadat poptávku | |
| 0836 WHR23479 |
C00328761
481236078072 |
Burner SR | Na dotaz | Zadat poptávku | |
| 0837 WHR23479 |
C00328772
481236078127 |
Burner R | Na dotaz | Zadat poptávku | |
| 0838 WHR23479 |
C00328641
481236068271 |
ROZPTYLOVAC PLA | Na dotaz | Zadat poptávku | |
| 0920 WHR23479 |
C00327109
481225268071 |
Spark plug L=900 | Na dotaz | Zadat poptávku | |
| 0920 WHR23479 |
C00322384
480121103789 |
Spark plug L=370 | Na dotaz | Zadat poptávku | |
| 0960 WHR23479 |
C00315415
481241129101 |
Knob timer | Na dotaz | Zadat poptávku | |
| 0993 WHR23479 |
C00467072
482000009514 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 1002 WHR23479 |
C00316720
481241129099 |
Knob oven | Na dotaz | Zadat poptávku | |
| 1019 WHR23479 |
C00316718
481241129098 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 1046 WHR23479 |
C00317875
481225268038 |
termoclanek | Na dotaz | Zadat poptávku | |
| 1046 WHR23479 |
C00327110
481225268072 |
Safety device left/right rear SR burner | Na dotaz | Zadat poptávku | |
| 1046 WHR23479 |
C00318339
481225268039 |
termoclanek | Na dotaz | Zadat poptávku | |
| 1145 WHR23479 |
C00316177
480121101038 |
Switch ignition | Na dotaz | Zadat poptávku | |
| 1172 WHR23479 |
C00322036
480121101619 |
Holder TAP | Na dotaz | Zadat poptávku | |
| 1250 WHR23479 |
C00344969
481249148048 |
Spring door fixing | Na dotaz | Zadat poptávku | |
| 1250 WHR23479 |
C00345742
481249148047 |
Spring door fixing black | Na dotaz | Zadat poptávku | |
| 1251 WHR23479 |
C00322374
480121103776 |
support door | Na dotaz | Zadat poptávku | |
| 1265 WHR23479 |
C00330343
481246049825 |
Plate for thermoswitch | Na dotaz | Zadat poptávku | |
| 1325 WHR23479 |
C00331933
482000004576 |
Cover door | Na dotaz | Zadat poptávku | |
