| Komerční kód: | 30074216 |
| Kód 12NC/I.C. kód: | 852398929000 |
| Značka: | IKEA |
| Typ produktu: | Volně stojící sporáky a trouby |
| Další podobné modely: | 852398929001, 852398929002, 852398961002, 852398961000 |
Potřebujete servis? Jsme tady pro Vás

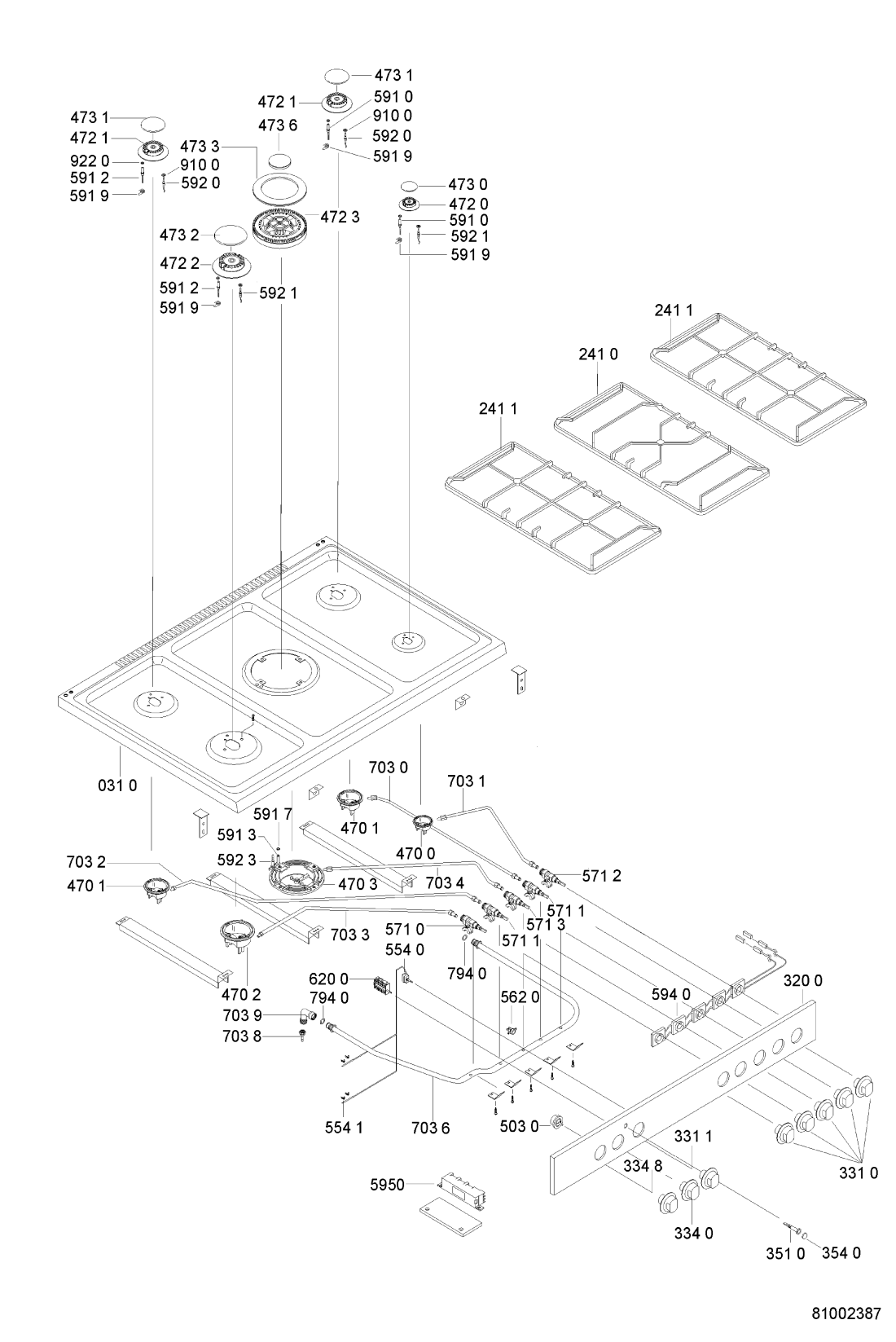

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR48756 |
C00332714
481253538109 |
Foot | Na dotaz | Zadat poptávku | |
| 0111 WHR48756 |
C00332715
481253538111 |
Support foot | Na dotaz | Zadat poptávku | |
| 0220 WHR48756 |
C00497907
481244011073 |
Side panel right | Na dotaz | Zadat poptávku | |
| 0221 WHR48756 |
C00497908
481244011074 |
Side panel left | Na dotaz | Zadat poptávku | |
| 0250 WHR48756 |
C00330805
481246418136 |
Frame oven front | Na dotaz | Zadat poptávku | |
| 0310 WHR48756 |
C00328201
481244039462 |
Hob | Na dotaz | Zadat poptávku | |
| 0400 WHR48756 |
C00329718
481241719268 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 0470 WHR48756 |
C00333000
481941758142 |
Roller hinge | Na dotaz | Zadat poptávku | |
| 0500 WHR48756 |
C00328394
481244089075 |
Drawer door | Na dotaz | Zadat poptávku | |
| 0501 WHR48756 |
C00328395
481244089076 |
Drawer counter door | Na dotaz | Zadat poptávku | |
| 0502 WHR48756 |
C00328396
481244089077 |
Drawer tension bar | Na dotaz | Zadat poptávku | |
| 0503 WHR48756 |
C00328397
481244089078 |
Drawer spacer | Na dotaz | Zadat poptávku | |
| 0504 WHR48756 |
C00332989
481941719425 |
Hinge drawer | Na dotaz | Zadat poptávku | |
| 0840 WHR48756 |
C00322011
480121101325 |
Damper grid for hob | Na dotaz | Zadat poptávku | |
| 1100 WHR48756 |
C00330712
481246268931 |
Handleoven door | Na dotaz | Zadat poptávku | |
| 1101 WHR48756 |
C00330713
481246268932 |
Bracket Handle | Na dotaz | Zadat poptávku | |
| 1210 WHR48756 |
C00497977
481244039461 |
Oven door inner | Na dotaz | Zadat poptávku | |
| 1300 WHR48756 |
C00327636
481231038872 |
Door lock | Na dotaz | Zadat poptávku | |
| 1301 WHR48756 |
C00327637
481231038873 |
Door lock | Na dotaz | Zadat poptávku | |
| 1410 WHR48756 |
C00498078
481245058928 |
Oven door panel + glass | Na dotaz | Zadat poptávku | |
| 1420 WHR48756 |
C00498085
481245068291 |
Door glass | Na dotaz | Zadat poptávku | |
| 1430 WHR48756 |
C00498077
481245058923 |
Door glass | Na dotaz | Zadat poptávku | |
| 1910 WHR48756 |
C00315632
481246818318 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 2010 WHR48756 |
C00331043
481244229266 |
Cover oven fan | Na dotaz | Zadat poptávku | |
| 2410 WHR48756 |
C00330157
481245848389 |
Grid for hob centre | Na dotaz | Zadat poptávku | |
| 2411 WHR48756 |
C00319151
481245848391 |
Grid for hob right/left | Na dotaz | Zadat poptávku | |
| 2429 WHR48756 |
C00327517
481228158001 |
Magnet | Na dotaz | Zadat poptávku | |
| 2450 WHR48756 |
C00330058
481245819227 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 2470 WHR48756 |
C00327788
481241838121 |
Tray oven pan | Na dotaz | Zadat poptávku | |
| 2610 WHR48756 |
C00331094
481244508002 |
Grill oven side | Na dotaz | Zadat poptávku | |
| 2612 WHR48756 |
C00328973
481240418454 |
Bracket oven shelf | Na dotaz | Zadat poptávku | |
| 3200 WHR48756 |
C00329962
481245359928 |
Control panel | Na dotaz | Zadat poptávku | |
| 3310 WHR48756 |
C00329368
481241128994 |
Knobgas | Na dotaz | Zadat poptávku | |
| 3311 WHR48756 |
C00329371
481241128997 |
Knobthermostat | Na dotaz | Zadat poptávku | |
| 3340 WHR48756 |
C00329369
481241128995 |
Knoboven | Na dotaz | Zadat poptávku | |
| 3348 WHR48756 |
C00329370
481241128996 |
Knobtimer | Na dotaz | Zadat poptávku | |
| 3510 WHR48756 |
C00332811
481913448486 |
signalka | Na dotaz | Zadat poptávku | |
| 3540 WHR48756 |
C00317822
481238118258 |
kryt signalky oranz. | 149 Kč
€ 6.00 |
||
| 4400 WHR48756 |
C00317712
481236178026 |
Ventilátor | 2 975 Kč
€ 119.30 |
||
| 4510 WHR48756 |
C00317831
481225948166 |
Heating element circular | Na dotaz | Zadat poptávku | |
| 4520 WHR48756 |
C00327170
481225948168 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 4560 WHR48756 |
C00327169
481225948167 |
Topné těleso trouby – spodní | 2 007 Kč
€ 80.50 |
||
| 4700 WHR48756 |
C00328760
481236078071 |
Burner A | Na dotaz | Zadat poptávku | |
| 4701 WHR48756 |
C00328761
481236078072 |
Burner SR | Na dotaz | Zadat poptávku | |
| 4702 WHR48756 |
C00328772
481236078127 |
Burner R | Na dotaz | Zadat poptávku | |
| 4703 WHR48756 |
C00328771
481236078126 |
Burner body triple crown | Na dotaz | Zadat poptávku | |
| 4720 WHR48756 |
C00328641
481236068271 |
ROZPTYLOVAC PLA | Na dotaz | Zadat poptávku | |
| 4721 WHR48756 |
C00328642
481236068272 |
ROZPTYLOVAC PLA | Na dotaz | Zadat poptávku | |
| 4722 WHR48756 |
C00328643
481236068273 |
ROZPTYLOVAC PLA | Na dotaz | Zadat poptávku | |
| 4723 WHR48756 |
C00328672
481236068665 |
Burner ring triple crown | Na dotaz | Zadat poptávku | |
| 4730 WHR48756 |
C00318332
481236068657 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 4731 WHR48756 |
C00313783
481236068659 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 4732 WHR48756 |
C00318348
481236068658 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 4733 WHR48756 |
C00317625
481236068667 |
Burner cap triple crown outer | Na dotaz | Zadat poptávku | |
| 4736 WHR48756 |
C00328674
481236068668 |
Burner cap triple crown inner | Na dotaz | Zadat poptávku | |
| 4740 WHR48756 |
C00327653
481231038981 |
Set of nozzles LPG(G30/31) | Na dotaz | Zadat poptávku | |
| 4910 WHR48756 |
C00320079
481229068226 |
Terminal block | Na dotaz | Zadat poptávku | |
| 5030 WHR48756 |
C00332848
481928218475 |
Time switch | Na dotaz | Zadat poptávku | |
| 5540 WHR48756 |
C00312002
481228238149 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 5541 WHR48756 |
C00345740
481249148007 |
Clip fix thermostat | Na dotaz | Zadat poptávku | |
| 5620 WHR48756 |
C00497322
481227128535 |
Thermostat 16A | Na dotaz | Zadat poptávku | |
| 5710 WHR48756 |
C00328669
481236068662 |
Valve gas R | Na dotaz | Zadat poptávku | |
| 5711 WHR48756 |
C00328670
481236068663 |
Valve gas SR | Na dotaz | Zadat poptávku | |
| 5712 WHR48756 |
C00328668
481236068661 |
Valve gas AUX | Na dotaz | Zadat poptávku | |
| 5713 WHR48756 |
C00328671
481236068664 |
Valve gas triple crown | Na dotaz | Zadat poptávku | |
| 5910 WHR48756 |
C00327105
481225268019 |
Spark plug semi rapid | Na dotaz | Zadat poptávku | |
| 5912 WHR48756 |
C00327109
481225268071 |
Spark plug L=900 | Na dotaz | Zadat poptávku | |
| 5913 WHR48756 |
C00327107
481225268068 |
Spark plug triple crown | Na dotaz | Zadat poptávku | |
| 5917 WHR48756 |
C00327106
481225268037 |
Spark plug TR crown | Na dotaz | Zadat poptávku | |
| 5919 WHR48756 |
C00332673
481253258016 |
Spring | Na dotaz | Zadat poptávku | |
| 5920 WHR48756 |
C00317875
481225268038 |
termoclanek | Na dotaz | Zadat poptávku | |
| 5921 WHR48756 |
C00327110
481225268072 |
Safety device left/right rear SR burner | Na dotaz | Zadat poptávku | |
| 5921 WHR48756 |
C00318339
481225268039 |
termoclanek | Na dotaz | Zadat poptávku | |
| 5923 WHR48756 |
C00327108
481225268069 |
Safety device TC | Na dotaz | Zadat poptávku | |
| 5940 WHR48756 |
C00621309
481214528026 |
Switch ignition (half-moon) | Na dotaz | Zadat poptávku | |
| 5950 WHR48756 |
C00326871
481214528025 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 6200 WHR48756 |
C00315119
481227618471 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 6510 WHR48756 |
C00316183
481204728003 |
Lamp 220/240V 25W | Na dotaz | Zadat poptávku | |
| 6520 WHR48756 |
C00332821
481925518162 |
objimka zarovky | Na dotaz | Zadat poptávku | |
| 6560 WHR48756 |
C00332902
481938118213 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 7030 WHR48756 |
C00328677
481236068672 |
Piperight rear | Na dotaz | Zadat poptávku | |
| 7031 WHR48756 |
C00328675
481236068669 |
Pipefront right | Na dotaz | Zadat poptávku | |
| 7032 WHR48756 |
C00328678
481236068673 |
Pipeleft rear | Na dotaz | Zadat poptávku | |
| 7033 WHR48756 |
C00328676
481236068671 |
Pipefront left | Na dotaz | Zadat poptávku | |
| 7034 WHR48756 |
C00328673
481236068666 |
Pipetriple crown | Na dotaz | Zadat poptávku | |
| 7036 WHR48756 |
C00328667
481236068656 |
Pipe gas main | Na dotaz | Zadat poptávku | |
| 7039 WHR48756 |
C00328644
481236068282 |
Tube bend | Na dotaz | Zadat poptávku | |
| 7940 WHR48756 |
C00333317
481953258189 |
Gasket | Na dotaz | Zadat poptávku | |
| 9100 WHR48756 |
C00332101
481250218666 |
Screw | Na dotaz | Zadat poptávku | |
| 9101 WHR48756 |
C00331561
481246699042 |
Nut fan motor | Na dotaz | Zadat poptávku | |
| 9220 WHR48756 |
C00330992
481246688555 |
Gasket | Na dotaz | Zadat poptávku | |
| 9930 WHR48756 |
C00327663
481231039071 |
Oven door glass wool upper | Na dotaz | Zadat poptávku | |
| 9931 WHR48756 |
C00457081
481231039072 |
Oven door glass wool lower | Na dotaz | Zadat poptávku | |
| 9932 WHR48756 |
C00457082
481231039073 |
Oven door glass wool lateral | Na dotaz | Zadat poptávku | |
| 999 WHR48756 |
C00642434 | Gastable WHP | Na dotaz | Zadat poptávku | |
