IKEA CFS 810 W
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | CFS 810 W |
| Kód 12NC: | 853965715000 |
| Značka: | IKEA |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | Q0921690000, 853965715001, Q0921690001, 853965715002 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 012 1 WHR04611 |
C00332372 | Roller complete | Na dotaz | Zadat poptávku | |
| 012 3 WHR04611 |
C00332371
481252878059 |
Roller front | Na dotaz | Zadat poptávku | |
| 012 4 WHR04611 |
C00328470
481231068021 |
Key Wheel kit; Wheel kit | Na dotaz | Zadat poptávku | |
| 033 7 WHR04611 |
C00313874 | Cover corner BL | Na dotaz | Zadat poptávku | |
| 040 0 WHR04611 |
C00319684
481241719099 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 040 1 WHR04611 |
C00316866
481241719101 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 040 2 WHR04611 |
C00311683
481241719258 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 4 WHR04611 |
C00312510
481241719259 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 6 WHR04611 |
C00316868
481241719102 |
noha | 416 Kč
€ 18.30 |
||
| 047 0 WHR04611 |
C00311203
481902182178 |
Bushing door cooling | Na dotaz | Zadat poptávku | |
| 047 4 WHR04611 |
C00316178
481244028896 |
Bushing upper | Na dotaz | Zadat poptávku | |
| 070 0 WHR04611 |
C00337713
481244089121 |
Plinth | Na dotaz | Zadat poptávku | |
| 084 3 WHR04611 |
C00313465
481240418386 |
guma k motorku vent. | 219 Kč
€ 9.60 |
||
| 101 0 WHR04611 |
C00339093
481241619802 |
Door freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR04611 |
C00315466 | Door refriger. | Na dotaz | Zadat poptávku | |
| 105 5 WHR04611 |
C00332805
481902195952 |
Bracket door | Na dotaz | Zadat poptávku | |
| 152 2 WHR04611 |
C00311412
481241828366 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 153 0 WHR04611 |
C00340850 | Flap f. dairy door | Na dotaz | Zadat poptávku | |
| 153 3 WHR04611 |
C00312504
481241828372 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 0 WHR04611 |
C00312397
481241828375 |
police lahvi S20/25B | 616 Kč
€ 27.10 |
||
| 154 3 WHR04611 |
C00315875
481246228424 |
Stopper balcony | Na dotaz | Zadat poptávku | |
| 154 9 WHR04611 |
C00312678
481241828377 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 155 0 WHR04611 |
C00317014
481241828844 |
drzak vajec | 571 Kč
€ 25.10 |
||
| 156 0 WHR04611 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 170 0 WHR04611 |
C00330251 | Trim freezer side | Na dotaz | Zadat poptávku | |
| 170 1 WHR04611 |
C00330255 | Trim handle cooling | Na dotaz | Zadat poptávku | |
| 170 2 WHR04611 |
C00330256
481246049297 |
Trim door freezing bottom | Na dotaz | Zadat poptávku | |
| 170 3 WHR04611 |
C00330253
481246049295 |
Trim door cooling upper | Na dotaz | Zadat poptávku | |
| 170 4 WHR04611 |
C00330250
481246049292 |
Trim door cooling bottom | Na dotaz | Zadat poptávku | |
| 170 5 WHR04611 |
C00330257
481246049298 |
Trim handle freezer door | Na dotaz | Zadat poptávku | |
| 170 6 WHR04611 |
C00330249
481246049291 |
Trim door cooling right | Na dotaz | Zadat poptávku | |
| 170 9 WHR04611 |
C00330252
481246049294 |
Profile door | Na dotaz | Zadat poptávku | |
| 176 0 WHR04611 |
C00339300 | Door frame | Na dotaz | Zadat poptávku | |
| 176 1 WHR04611 |
C00335244
481246049662 |
Trim frame | Na dotaz | Zadat poptávku | |
| 191 0 WHR04611 |
C00315677
481246688644 |
Těsnění magnetické | 1 895 Kč
€ 83.30 |
||
| 191 1 WHR04611 |
C00314660
481246688645 |
Těsnění magnetické | 2 243 Kč
€ 98.60 |
||
| 201 7 WHR04611 |
C00313555 | Gasket support fan | Na dotaz | Zadat poptávku | |
| 233 2 WHR04611 |
C00319189
481240448697 |
Support grid | Na dotaz | Zadat poptávku | |
| 241 0 WHR04611 |
C00319087
481245819113 |
Koš mrazničky drátěný | 1 268 Kč
€ 55.70 |
||
| 241 1 WHR04611 |
C00319085
481245819112 |
Koš mrazničky drátěný - spodní | 920 Kč
€ 40.40 |
||
| 241 3 WHR04611 |
C00317211
481244069202 |
Insertbasket | Na dotaz | Zadat poptávku | |
| 241 5 WHR04611 |
C00330258
481246049303 |
Trim basket | Na dotaz | Zadat poptávku | |
| 242 0 WHR04611 |
C00311089
481241828365 |
zasuvka spodni S20 | 2 671 Kč
€ 117.40 |
||
| 242 1 WHR04611 |
C00311934
481241828363 |
zasuvka horni S20 | 2 671 Kč
€ 117.40 |
||
| 242 3 WHR04611 |
C00313020
481241828364 |
Zásuvka prostřední S20 | 2 713 Kč
€ 119.30 |
||
| 245 5 WHR04611 |
C00330134
481245838104 |
Grid upper | Na dotaz | Zadat poptávku | |
| 245 6 WHR04611 |
C00330135
481245838105 |
Grid lower | Na dotaz | Zadat poptávku | |
| 245 8 WHR04611 |
C00330056
481245819214 |
Basket | Na dotaz | Zadat poptávku | |
| 249 0 WHR04611 |
C00311959
481246049299 |
Dekorační lištat šuplíku SBS chladničky | 595 Kč
€ 26.20 |
||
| 249 1 WHR04611 |
C00315849
481246049283 |
Trim basket | Na dotaz | Zadat poptávku | |
| 249 2 WHR04611 |
C00319213
481246049284 |
Trim | Na dotaz | Zadat poptávku | |
| 249 3 WHR04611 |
C00312658
481246049302 |
lista kose | 549 Kč
€ 24.10 |
||
| 249 4 WHR04611 |
C00311228 | Trim glass plate | Na dotaz | Zadat poptávku | |
| 249 9 WHR04611 |
C00315853
481246049288 |
Trim | Na dotaz | Zadat poptávku | |
| 251 1 WHR04611 |
C00315642
481244098282 |
Kryt žárovky | 259 Kč
€ 11.40 |
||
| 251 5 WHR04611 |
C00330248
481246049289 |
Trim | Na dotaz | Zadat poptávku | |
| 251 8 WHR04611 |
C00312341
481238028028 |
kryt světla | 1 068 Kč
€ 46.90 |
||
| 251 9 WHR04611 |
C00314009 | Cover f. lamp freezer | Na dotaz | Zadat poptávku | |
| 252 0 WHR04611 |
C00341803
481231028295 |
Lampholder | Na dotaz | Zadat poptávku | |
| 255 1 WHR04611 |
C00314019
481245088094 |

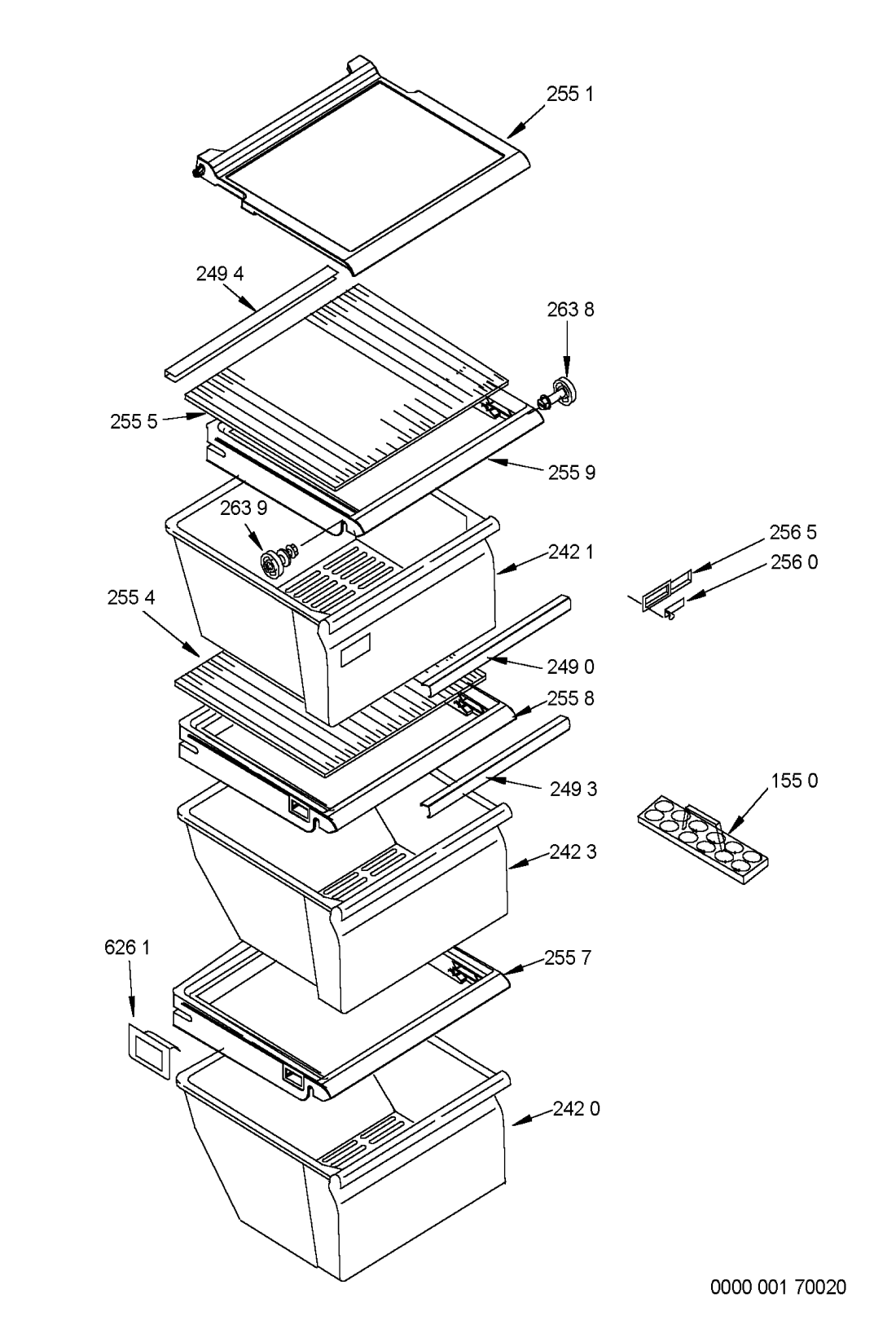

Glass shelf fridge compl. | Na dotaz | Zadat poptávku | |
| 255 4 WHR04611 |
C00311227
481245088095 |
sklo police | 963 Kč
€ 42.30 |
||
| 255 5 WHR04611 |
C00312268
481245088096 |
Glass shelf fridge central | Na dotaz | Zadat poptávku | |
| 255 7 WHR04611 |
C00311212
488000311212 |
Frame; glassplate | Na dotaz | Zadat poptávku | |
| 255 8 WHR04611 |
C00311040
481241828361 |
Rám krycí desky | 1 736 Kč
€ 76.30 |
||
| 255 9 WHR04611 |
C00311977
481241828362 |
Frame glass plate | Na dotaz | Zadat poptávku | |
| 256 0 WHR04611 |
C00315420 | Slide air inlet | Na dotaz | Zadat poptávku | |
| 256 5 WHR04611 |
C00333145
481946698997 |
Rail ,air inletair inlet | Na dotaz | Zadat poptávku | |
| 261 0 WHR04611 |
C00312885
481246238139 |
lista vodici | 680 Kč
€ 29.90 |
||
| 261 1 WHR04611 |
C00313918
481246238138 |
Slide left | Na dotaz | Zadat poptávku | |
| 263 8 WHR04611 |
C00313216
481240448702 |
Kolík rámu chladničky pravý | 305 Kč
€ 13.40 |
||
| 263 9 WHR04611 |
C00311512
481240448701 |
Kolík | 289 Kč
€ 12.70 |
||
| 324 6 WHR04611 |
C00311840 | Air diffuser | Na dotaz | Zadat poptávku | |
| 402 0 WHR04611 |
C00328568
481236038885 |
Compressor NBY1118Y 220-240 50Hz | Na dotaz | Zadat poptávku | |
| 402 1 WHR04611 |
C00312635
481241828378 |
miska odkapni | 916 Kč
€ 40.30 |
||
| 402 2 WHR04611 |
C00317288
488000317288 |
Valve flap | Na dotaz | Zadat poptávku | |
| 402 4 WHR04611 |
C00328327 | Clip compressor | Na dotaz | Zadat poptávku | |
| 420 0 WHR04611 |
C00326781
481212158142 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 4 WHR04611 |
C00331039
481244229019 |
Insulator | Na dotaz | Zadat poptávku | |
| 440 3 WHR04611 |
C00311246
481244528021 |
Air diffuser - damper sub 481236138103 | Na dotaz | Zadat poptávku | |
| 440 4 WHR04611 |
C00311664
481246238141 |
kryt | 339 Kč
€ 14.90 |
||
| 440 5 WHR04611 |
C00312554
481244528036 |
AIR DIFFUSER | 785 Kč
€ 34.50 |
||
| 440 6 WHR04611 |
C00311792
481946238778 |
Slide | Na dotaz | Zadat poptávku | |
| 440 7 WHR04611 |
C00331402 | Insulator condenser | Na dotaz | Zadat poptávku | |
| 440 8 WHR04611 |
C00314101 | Flap deoderiser | Na dotaz | Zadat poptávku | |
| 441 0 WHR04611 |
C00326714
481202858342 |
motor ventilatoru | 3 055 Kč
€ 134.30 |
||
| 441 1 WHR04611 |
C00320068 | Grommet compressor | Na dotaz | Zadat poptávku | |
| 441 2 WHR04611 |
C00317209
481244068962 |
Support right | Na dotaz | Zadat poptávku | |
| 442 0 WHR04611 |
C00320443
481236118434 |
Motor,fan sub 481236138118 | Na dotaz | Zadat poptávku | |
| 442 1 WHR04611 |
C00312306
481940478682 |
drzak | 191 Kč
€ 8.40 |
||
| 443 0 WHR04611 |
C00311633
481951548057 |
vrtule ventilatoru | Na dotaz | Zadat poptávku | |
| 443 1 WHR04611 |
C00311620
481902182120 |
Housing ventilator | Na dotaz | Zadat poptávku | |
| 451 0 WHR04611 |
C00315061
481225948161 |
Element defrost | Na dotaz | Zadat poptávku | |
| 451 1 WHR04611 |
C00328908
481240118642 |
Clamp | Na dotaz | Zadat poptávku | |
| 451 5 WHR04611 |
C00327168
481225948162 |
Element defrost | Na dotaz | Zadat poptávku | |
| 491 0 WHR04611 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 526 2 WHR04611 |
C00342684
481221778191 |
Control board | Na dotaz | Zadat poptávku | |
| 526 5 WHR04611 |
C00316182
481244029368 |
Lid electronic box | Na dotaz | Zadat poptávku | |
| 561 2 WHR04611 |
C00316074
481929068433 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 562 0 WHR04611 |
C00315225
481232058155 |
termostat | 2 325 Kč
€ 102.20 |
||
| 614 0 WHR04611 |
C00341720
481228068328 |
Monoblock | Na dotaz | Zadat poptávku | |
| 620 4 WHR04611 |
C00314637
481927618157 |
Switch ,light sub 481227618538 | Na dotaz | Zadat poptávku | |
| 626 1 WHR04611 |
C00314097
481244079112 |
Deflektor | 175 Kč
€ 7.70 |
||
| 651 0 WHR04611 |
C00312051
481213418033 |
Lamp 40W 220V T-CLICK | Na dotaz | Zadat poptávku | |
| 691 4 WHR04611 |
C00315397
481240478553 |
Support NTC | Na dotaz | Zadat poptávku | |
| 691 7 WHR04611 |
C00311307
481231018846 |
Senzor teploty - sada | 1 663 Kč
€ 73.10 |
||
| 740 0 WHR04611 |
C00332243 | Condenser | Na dotaz | Zadat poptávku | |
| 743 1 WHR04611 |
C00314109
481244098121 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| 743 3 WHR04611 |
C00316023
481246688722 |
Gasket condenser fan frame | Na dotaz | Zadat poptávku | |
| 745 0 WHR04611 |
C00311856
481236038648 |
vyparnik | 2 997 Kč
€ 131.70 |
||
| 745 2 WHR04611 |
C00328130
481244029446 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 745 4 WHR04611 |
C00333182 | Clip earthing | Na dotaz | Zadat poptávku | |
| 745 6 WHR04611 |
C00328324 | Heat shield evaporator | Na dotaz | Zadat poptávku | |
| 746 1 WHR04611 |
C00314111
481244098225 |
Conveyor damper/icemaker | Na dotaz | Zadat poptávku | |
| 746 2 WHR04611 |
C00328279
481244069203 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 746 3 WHR04611 |
C00328418
481244098062 |
Gasket air guide | Na dotaz | Zadat poptávku | |
| 746 4 WHR04611 |
C00328328 | Deflector | Na dotaz | Zadat poptávku | |
| 764 0 WHR04611 |
C00345712
481248028092 |
Dryer | Na dotaz | Zadat poptávku | |
| 785 0 WHR04611 |
C00314310
481253029348 |
Tube evaporator drain | Na dotaz | Zadat poptávku | |
| 900 5 WHR04611 |
C00318136
481949268544 |
Clip fix drain tube | Na dotaz | Zadat poptávku | |
| 900 7 WHR04611 |
C00328976 | Bracket heating | Na dotaz | Zadat poptávku | |
| 900 8 WHR04611 |
C00315132
481949269522 |
drzak rostu | Na dotaz | Zadat poptávku | |
| 913 4 WHR04611 |
C00332150
481250228013 |
Screw | Na dotaz | Zadat poptávku | |
| 913 5 WHR04611 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 913 7 WHR04611 |
C00332085 | Screw clamp drain tube | Na dotaz | Zadat poptávku | |
| 999 WHR04611 |
C00360188 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04611 |
C00360384 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR04611 |
C00360385 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
