IKEA CDN 80
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | CDN 80 |
| Kód 12NC: | 853984996000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | Q0912810000, 853984996001, Q0912810001 |
Potřebujete servis? Jsme tady pro Vás

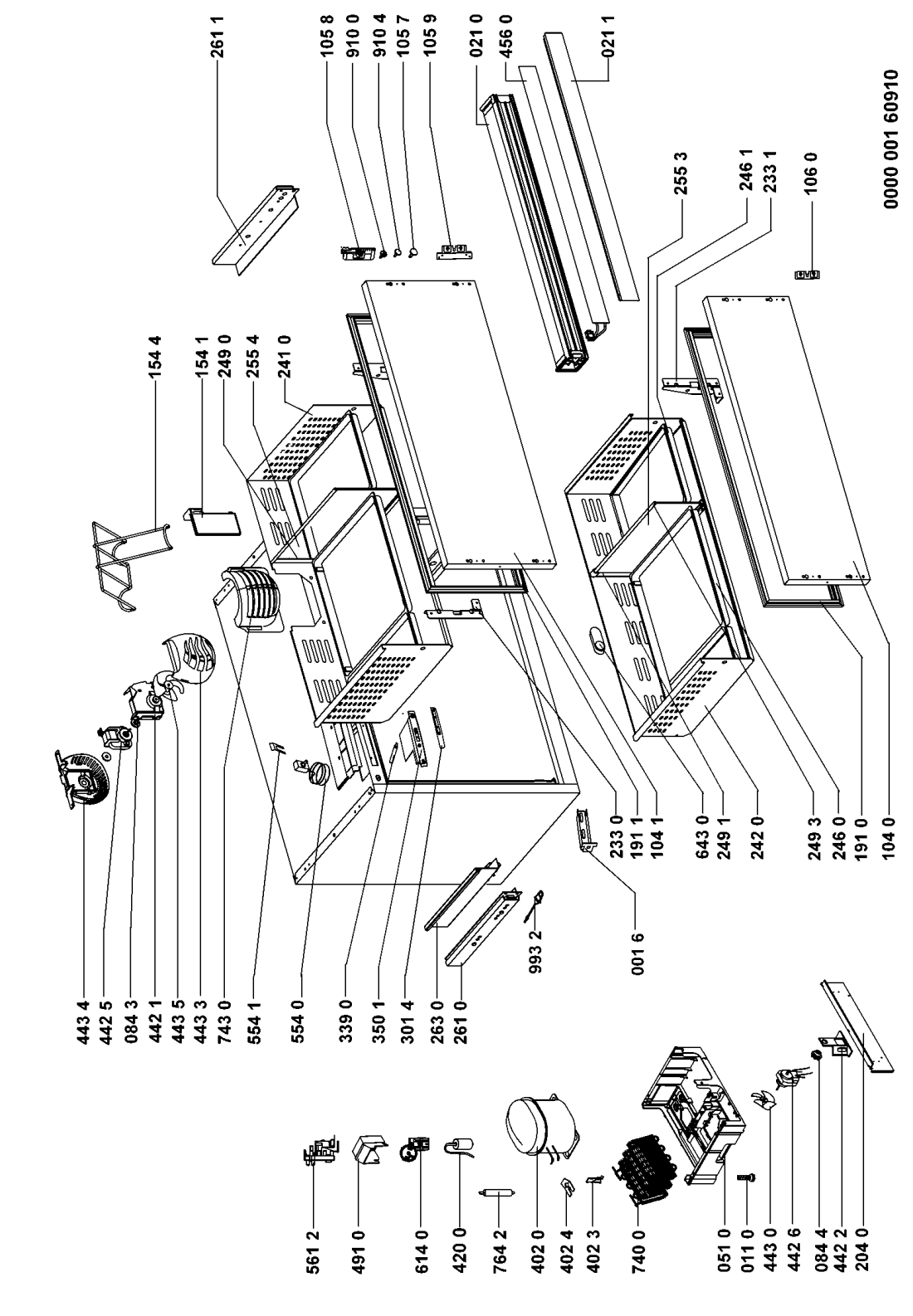

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0016 WHR01904 |
C00329005
481240418627 |
Holder furniture | Na dotaz | Zadat poptávku | |
| 0110 WHR01904 |
C00311579
481950018141 |
noha lednice | 75 Kč
€ 3.30 |
||
| 0210 WHR01904 |
C00328373
481244079335 |
Front panel | Na dotaz | Zadat poptávku | |
| 0211 WHR01904 |
C00328372
481244079334 |
Cover mulion complete | Na dotaz | Zadat poptávku | |
| 0510 WHR01904 |
C00330847
481246448245 |
Bottom | Na dotaz | Zadat poptávku | |
| 0843 WHR01904 |
C00333281
481952918124 |
krouzek tlumici | 495 Kč
€ 21.80 |
||
| 0844 WHR01904 |
C00333073
481946248211 |
gufero | 121 Kč
€ 5.30 |
||
| 1040 WHR01904 |
C00318907
481241610719 |
Door lower | Na dotaz | Zadat poptávku | |
| 1041 WHR01904 |
C00329613
481241610718 |
Door upper | Na dotaz | Zadat poptávku | |
| 1057 WHR01904 |
C00329206
481240478707 |
drzak | 400 Kč
€ 17.60 |
||
| 1058 WHR01904 |
C00329151
481240449894 |
Plate | Na dotaz | Zadat poptávku | |
| 1059 WHR01904 |
C00329152
481240449895 |
drzak | 134 Kč
€ 5.90 |
||
| 1060 WHR01904 |
C00329163
481240468035 |
Držák dekor.desky | 561 Kč
€ 24.70 |
||
| 1541 WHR01904 |
C00327921
481241889093 |
Separator flip | Na dotaz | Zadat poptávku | |
| 1544 WHR01904 |
C00330160
481245848411 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 1910 WHR01904 |
C00323124
480131100894 |
Magnetic seal GW lower | Na dotaz | Zadat poptávku | |
| 1911 WHR01904 |
C00323125
480131100895 |
Magnetic seal GW upper | Na dotaz | Zadat poptávku | |
| 2040 WHR01904 |
C00331062
481244229344 |
Plinth | Na dotaz | Zadat poptávku | |
| 2330 WHR01904 |
C00313467
481240418626 |
Support right basket | Na dotaz | Zadat poptávku | |
| 2331 WHR01904 |
C00314651
481240418625 |
Support left basket | 772 Kč
€ 33.90 |
||
| 2410 WHR01904 |
C00327811
481241838177 |
Drawer upper | Na dotaz | Zadat poptávku | |
| 2420 WHR01904 |
C00318840
481241838178 |
Drawer lower | Na dotaz | Zadat poptávku | |
| 2460 WHR01904 |
C00329878
481241820103 |
Tray large | Na dotaz | Zadat poptávku | |
| 2461 WHR01904 |
C00329879
481241820104 |
Držák | 890 Kč
€ 39.10 |
||
| 2490 WHR01904 |
C00330354
481246049866 |
Frame upper glass shelf | Na dotaz | Zadat poptávku | |
| 2491 WHR01904 |
C00330353
481246049865 |
Frame lower glass shelf | Na dotaz | Zadat poptávku | |
| 2493 WHR01904 |
C00330429
481246088333 |
Trim WH | Na dotaz | Zadat poptávku | |
| 2553 WHR01904 |
C00331242
481245088502 |
Glass shelf lower | Na dotaz | Zadat poptávku | |
| 2554 WHR01904 |
C00331241
481245088501 |
Glass shelf upper | Na dotaz | Zadat poptávku | |
| 2610 WHR01904 |
C00315216
481246818407 |
kolejnice | 4 473 Kč
€ 196.60 |
||
| 2611 WHR01904 |
C00315463
481246818406 |
kolejnice | 5 104 Kč
€ 224.40 |
||
| 2630 WHR01904 |
C00316392
481244098356 |
Protector rail | Na dotaz | Zadat poptávku | |
| 3014 WHR01904 |
C00331428
481245298364 |
Insert WH printed IKEA | Na dotaz | Zadat poptávku | |
| 3390 WHR01904 |
C00332731
481253598051 |
tycka termostatu | 277 Kč
€ 12.20 |
||
| 3501 WHR01904 |
C00315936
481221470661 |
Control unit | Na dotaz | Zadat poptávku | |
| 4020 WHR01904 |
C00311989
481236038764 |
kompresorEMT 26CLP 59W - mraznička | Na dotaz | Zadat poptávku | |
| 4023 WHR01904 |
C00333348
481953598345 |
Fastener | Na dotaz | Zadat poptávku | |
| 4024 WHR01904 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 5.30 |
||
| 4200 WHR01904 |
C00326746
481212028017 |
Capacitor 2.5 MF | Na dotaz | Zadat poptávku | |
| 4421 WHR01904 |
C00332961
481940479433 |
Holder | Na dotaz | Zadat poptávku | |
| 4422 WHR01904 |
C00332945
481940478859 |
drzak | 169 Kč
€ 7.40 |
||
| 4425 WHR01904 |
C00314721
481936118466 |
motor ventilatoru | 3 046 Kč
€ 133.90 |
||
| 4426 WHR01904 |
C00314229
481936178144 |
motorek ventilatoru | 2 093 Kč
€ 92.00 |
||
| 4430 WHR01904 |
C00328802
481236118422 |
vrtule vent. | 450 Kč
€ 19.80 |
||
| 4433 WHR01904 |
C00333090
481946258376 |
kryt ventilatoru | 669 Kč
€ 29.40 |
||
| 4434 WHR01904 |
C00333108
481946288073 |
kryt | 4 697 Kč
€ 206.50 |
||
| 4435 WHR01904 |
C00333263
481951528289 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 4560 WHR01904 |
C00327172
481225948212 |
Heating element front 6W | Na dotaz | Zadat poptávku | |
| 4910 WHR01904 |
C00327318 | Cover conn.bloc | Na dotaz | Zadat poptávku | |
| 5540 WHR01904 |
C00315177
481228238257 |
Thermostat A03 0368 L1200 | Na dotaz | Zadat poptávku | |
| 5541 WHR01904 |
C00333185
481949268723 |
pruzina | 452 Kč
€ 19.90 |
||
| 5612 WHR01904 |
C00319908
488000319908 |
Connection block | Na dotaz | Zadat poptávku | |
| 6140 WHR01904 |
C00327481
481228038125 |
Monoblock | 602 Kč
€ 26.50 |
||
| 6430 WHR01904 |
C00327029
481221538038 |
Thermometer | Na dotaz | Zadat poptávku | |
| 7400 WHR01904 |
C00332264
481251148469 |
Condenser | Na dotaz | Zadat poptávku | |
| 7430 WHR01904 |
C00315889
481246229355 |
Cover fan | Na dotaz | Zadat poptávku | |
| 7642 WHR01904 |
C00313343
488000313343 |
Dryer 3 ways in:6.4/4.85 out:2.2 9gr. 16 | Na dotaz | Zadat poptávku | |
| 9100 WHR01904 |
C00332119
481250218745 |
Šroubek | 84 Kč
€ 3.70 |
||
| 9104 WHR01904 |
C00315481
481250218749 |
Šroubek | 58 Kč
€ 2.50 |
||
| 9932 WHR01904 |
C00316841
481969028169 |
Čistič odtoku | 221 Kč
€ 9.70 |
||
| 9938 WHR01904 |
C00328480
481231088441 |
sada montazni | 1 599 Kč
€ 70.30 |
||
| 9939 WHR01904 |
C00328479
481231088439 |
Accessories | Na dotaz | Zadat poptávku | |
| 999 WHR01904 |
C00357627 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01904 |
C00357628 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01904 |
C00357629 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
