IKEA MW V01 SA
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | MW V01 SA |
| Kód 12NC: | 858730001000 |
| I.C. kód: | 858730001001 |
| Značka: | IKEA |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 858730001002 |
Potřebujete servis? Jsme tady pro Vás

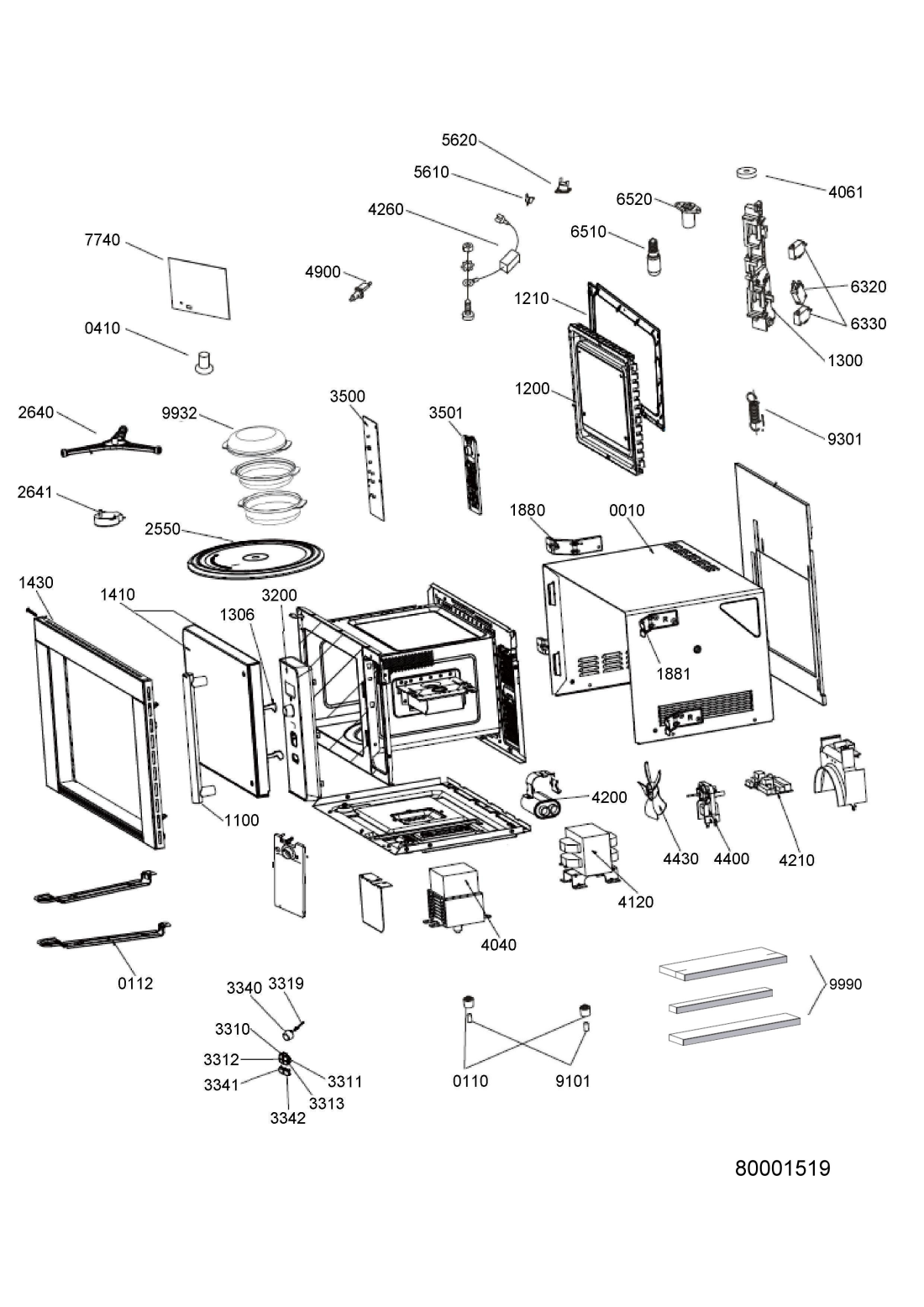

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0010 WHR35092 |
C00333740
482000007670 |
Cabinet | Na dotaz | Zadat poptávku | |
| 0110 WHR35092 |
C00469897
482000025842 |
Foot | Na dotaz | Zadat poptávku | |
| 0112 WHR35092 |
C00333741
482000007671 |
Foot support | Na dotaz | Zadat poptávku | |
| 0410 WHR35092 |
C00321668
480120101102 |
Shaft | Na dotaz | Zadat poptávku | |
| 1100 WHR35092 |
C00319138
482000007672 |
madlo | Na dotaz | Zadat poptávku | |
| 1200 WHR35092 |
C00469973
482000090301 |
Vnitřní část dveří | Na dotaz | Zadat poptávku | |
| 1210 WHR35092 |
C00334707
482000013830 |
Frame door inner | Na dotaz | Zadat poptávku | |
| 1300 WHR35092 |
C00327225
481227018053 |
drzak | 165 Kč
€ 6.80 |
||
| 1306 WHR35092 |
C00313669
480120100333 |
Hák dveří mikrovlnné trouby Whirlpool, Indesit AMW 232 WH, MWD 240 IX. | 372 Kč
€ 15.30 |
||
| 1410 WHR35092 |
C00469974
482000090302 |
Door frame outer assy. | Na dotaz | Zadat poptávku | |
| 1430 WHR35092 |
C00496357
482000093445 |
Frame IKEA | Na dotaz | Zadat poptávku | |
| 1880 WHR35092 |
C00333742
482000007676 |
Bracket metall right | Na dotaz | Zadat poptávku | |
| 1881 WHR35092 |
C00333743
482000007677 |
Bracket metall left | Na dotaz | Zadat poptávku | |
| 2550 WHR35092 |
C00723252
488000723252 |
Turntable GLASS Diam.27cm. | Na dotaz | Zadat poptávku | |
| 2640 WHR35092 |
C00333744
482000007678 |
kříž unašecí pro talíř mikrovlnné trouby | 708 Kč
€ 29.10 |
||
| 2641 WHR35092 |
C00362120
482000020321 |
Motor otočného talíře | Na dotaz | Zadat poptávku | |
| 3200 WHR35092 |
C00469941
482000032526 |
Control panel | Na dotaz | Zadat poptávku | |
| 3310 WHR35092 |
C00469942
482000032527 |
Button function 1 | Na dotaz | Zadat poptávku | |
| 3311 WHR35092 |
C00469943
482000032528 |
Button function 2 | Na dotaz | Zadat poptávku | |
| 3312 WHR35092 |
C00469944
482000032529 |
Button function 3 | Na dotaz | Zadat poptávku | |
| 3313 WHR35092 |
C00469945
482000032530 |
Button function 4 | Na dotaz | Zadat poptávku | |
| 3313A WHR35092 |
C00536441
482000099716 |
Button Support | Na dotaz | Zadat poptávku | |
| 3319 WHR35092 |
C00320687
480120100634 |
Unašeč knoflíku | 185 Kč
€ 7.60 |
||
| 3340 WHR35092 |
C00329405
481241129128 |
Button TIME | Na dotaz | Zadat poptávku | |
| 3341 WHR35092 |
C00469946
482000032531 |
Button stop | Na dotaz | Zadat poptávku | |
| 3342 WHR35092 |
C00469947
482000032532 |
Button start | Na dotaz | Zadat poptávku | |
| 3500 WHR35092 |
C00380678
482000032533 |
Control board PCBA | Na dotaz | Zadat poptávku | |
| 3501 WHR35092 |
C00469902
482000032436 |
PCB holder | Na dotaz | Zadat poptávku | |
| 4040 WHR35092 |
C00311327
480120101017 |
magnetron | 2 564 Kč
€ 105.40 |
||
| 4061 WHR35092 |
C00332676
481253268106 |
Podložka | 528 Kč
€ 21.70 |
||
| 4120 WHR35092 |
C00469948
482000032534 |
Transformer HV | Na dotaz | Zadat poptávku | |
| 4200 WHR35092 |
C00311958
480120101018 |
Capacitor, HV 0,90. | Na dotaz | Zadat poptávku | |
| 4210 WHR35092 |
C00315316
482000005899 |
Filter mains | Na dotaz | Zadat poptávku | |
| 4260 WHR35092 |
C00312916
480120101082 |
Diode HV, 5 KV / 600 mA. | Na dotaz | Zadat poptávku | |
| 4400 WHR35092 |
C00321652
480120101029 |
Motor ventilátoru mikrovlnné trouby | 965 Kč
€ 39.70 |
||
| 4430 WHR35092 |
C00335064
482000016423 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 4900 WHR35092 |
C00466857
482000007682 |
Cable mains MW V00S | Na dotaz | Zadat poptávku | |
| 5610 WHR35092 |
C00313995
481228248294 |
termostat 145 C | 932 Kč
€ 38.30 |
||
| 5620 WHR35092 |
C00327564
481228248264 |
termostat 165 C | 929 Kč
€ 38.20 |
||
| 6320 WHR35092 |
C00314629
480120101097 |
Mikrospínač dveří SZM-V16-FD-61 | 594 Kč
€ 24.40 |
||
| 6330 WHR35092 |
C00318419
480120101096 |
mikrospinac | 453 Kč
€ 18.60 |
||
| 6510 WHR35092 |
C00326827
481213428074 |
Žárovka MW 25W | 77 Kč
€ 3.20 |
||
| 6520 WHR35092 |
C00317447
480120101028 |
objimka zarovky | Na dotaz | Zadat poptávku | |
| 7740 WHR35092 |
C00345177
482000019344 |
Krytka slídová | 533 Kč
€ 21.90 |
||
| 9101 WHR35092 |
C00333360
481990200565 |
Pin | Na dotaz | Zadat poptávku | |
| 9301 WHR35092 |
C00320611
480120100331 |
pruzina | 62 Kč
€ 2.50 |
||
| 9932 WHR35092 |
C00496358
482000093446 |
Accessory Steamer | Na dotaz | Zadat poptávku | |
| 999 WHR35092 |
C00351860
488000351860 |
Safety Instructions WHP | Na dotaz | Zadat poptávku | |
| 9990 WHR35092 |
C00467286
482000010594 |
Sponge Kit | Na dotaz | Zadat poptávku | |
| 9999 WHR35092 |
C00537970
488000537970 |
PCB holder | Na dotaz | Zadat poptávku | |
| 9999 WHR35092 |
C00537998
488000537998 |
Function button 2 | Na dotaz | Zadat poptávku | |
| 9999 WHR35092 |
C00538000
488000538000 |
Function button 4 | Na dotaz | Zadat poptávku | |
| 9999 WHR35092 |
C00538001
488000538001 |
Start button | Na dotaz | Zadat poptávku | |
| 9999 WHR35092 |
C00538002
488000538002 |
Stop button | Na dotaz | Zadat poptávku | |
| 9999 WHR35092 |
C00538003
488000538003 |
Function button 3 | Na dotaz | Zadat poptávku | |
| 9999 WHR35092 |
C00538004
488000538004 |
Function button 1 | Na dotaz | Zadat poptávku | |
