WHIRLPOOL 3LWED4705FW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 3LWED4705FW |
| Kód 12NC/I.C. kód: | 853797665000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

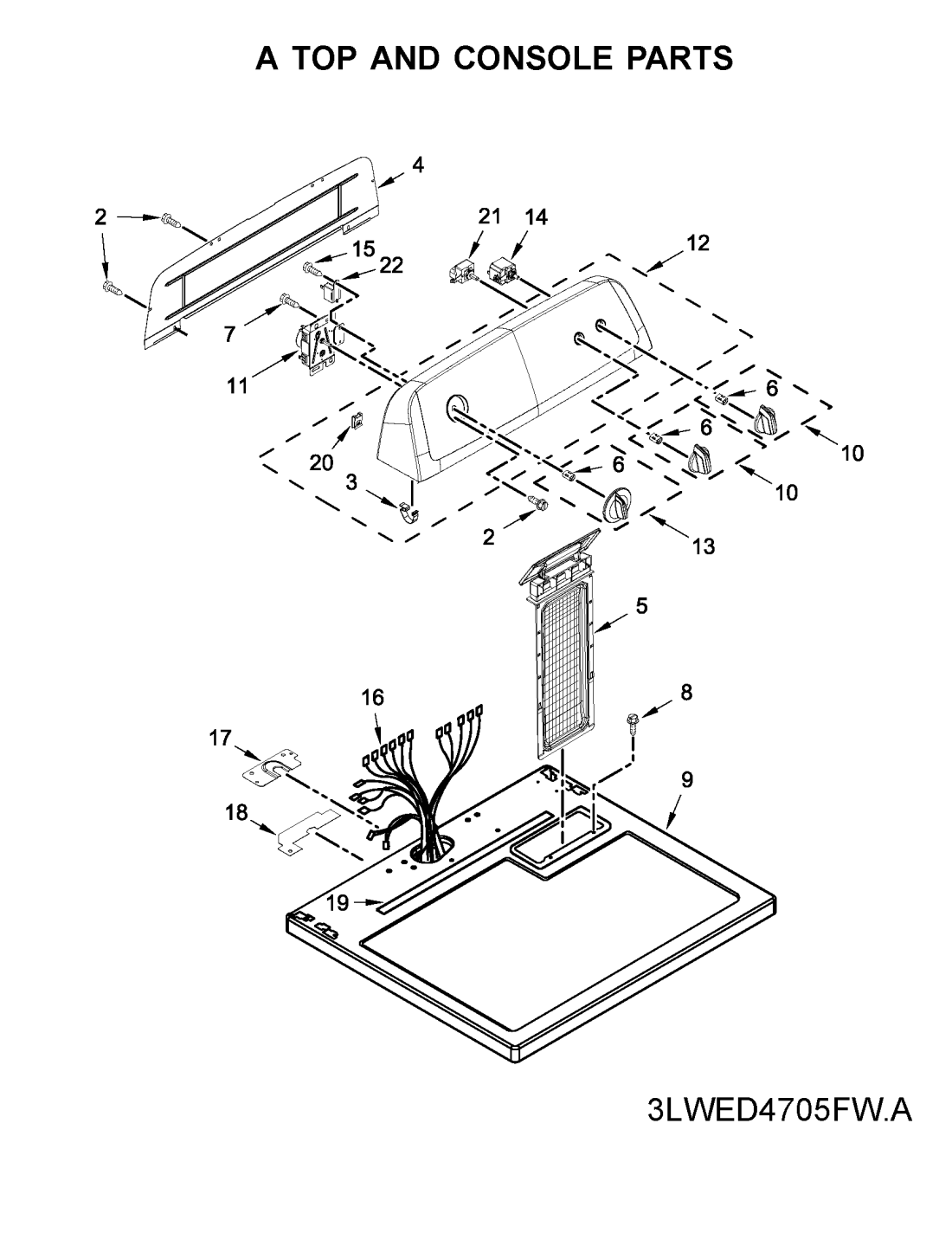

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A002,B003 WHR07703 |
C00333230
481950318053 |
Screw 8-18x3/8 | Na dotaz | Zadat poptávku | |
| A003 WHR07703 |
C00320922
480110100224 |
Clip control panel | Na dotaz | Zadat poptávku | |
| A004 WHR07703 |
C00508889
482000095993 |
Rear panel | Na dotaz | Zadat poptávku | |
| A005 WHR07703 |
C00508785
482000095893 |
Screening | Na dotaz | Zadat poptávku | |
| A006 WHR07703 |
C00316533
480110100173 |
Clip knob | Na dotaz | Zadat poptávku | |
| A007,C005 WHR07703 |
C00333206
481950218332 |
Screw 8Ax3/8 | Na dotaz | Zadat poptávku | |
| A008 WHR07703 |
C00336713
481950318049 |
Screw | Na dotaz | Zadat poptávku | |
| A009 WHR07703 |
C00388701
480112100607 |
Table top | Na dotaz | Zadat poptávku | |
| A010 WHR07703 |
C00508890
482000095994 |
Knob white | Na dotaz | Zadat poptávku | |
| A011 WHR07703 |
C00508891
482000095995 |
Timer | Na dotaz | Zadat poptávku | |
| A012 WHR07703 |
C00508892
482000095996 |
Console assembly, white | Na dotaz | Zadat poptávku | |
| A013 WHR07703 |
C00508893
482000095997 |
Knob timer assembly, white | Na dotaz | Zadat poptávku | |
| A014 WHR07703 |
C00508894
482000095998 |
Switch pushbut. | Na dotaz | Zadat poptávku | |
| A015 WHR07703 |
C00333738
482000007518 |
Screw 8-18 x 5/16 | Na dotaz | Zadat poptávku | |
| A016 WHR07703 |
C00508895
482000095999 |
Cable harness | Na dotaz | Zadat poptávku | |
| A017 WHR07703 |
C00389056
480112101373 |
Bracket Harness | Na dotaz | Zadat poptávku | |
| A018 WHR07703 |
C00389057
480112101374 |
Seal Harness | Na dotaz | Zadat poptávku | |
| A019 WHR07703 |
C00413368
482000013135 |
Seal foam | Na dotaz | Zadat poptávku | |
| A020 WHR07703 |
C00334622
482000013033 |
Nut | Na dotaz | Zadat poptávku | |
| A021 WHR07703 |
C00508896
482000096000 |
Switch rotary | Na dotaz | Zadat poptávku | |
| A022 WHR07703 |
C00387899
480110100198 |
Bzučák pračky | 311 Kč
€ 12.80 |
||
| B001 WHR07703 |
C00499095
481941719212 |
Hinge. | Na dotaz | Zadat poptávku | |
| B002,C013 WHR07703 |
C00333227
481950318022 |
Screw 10-16x1/2 | Na dotaz | Zadat poptávku | |
| B004 WHR07703 |
C00508803
482000095911 |
Seal | Na dotaz | Zadat poptávku | |
| B005 WHR07703 |
C00508794
482000095902 |
Cover | Na dotaz | Zadat poptávku | |
| B006 WHR07703 |
C00498774
481903404162 |
Clamp | Na dotaz | Zadat poptávku | |
| B007 WHR07703 |
C00508795
482000095903 |
Rear panel | Na dotaz | Zadat poptávku | |
| B008 WHR07703 |
C00413345
482000013111 |
Plug strike | Na dotaz | Zadat poptávku | |
| B009 WHR07703 |
C00319766
481929068391 |
3397659 Terminal block | Na dotaz | Zadat poptávku | |
| B010 WHR07703 |
C00326613
481201231198 |
W10237959 LEADED DOOR SW SPST (IEC) | Na dotaz | Zadat poptávku | |
| B011 WHR07703 |
C00333233
481950318241 |
Screw 6-20x7/8 | Na dotaz | Zadat poptávku | |
| B012 WHR07703 |
C00337611
481903404413 |
Plug white | Na dotaz | Zadat poptávku | |
| B013 WHR07703 |
C00343411
480112100589 |
Clamp | Na dotaz | Zadat poptávku | |
| B014 WHR07703 |
C00336650
481950318039 |
Screw 10-16x3/8 | Na dotaz | Zadat poptávku | |
| B015 WHR07703 |
C00508798
482000095906 |
Clip | Na dotaz | Zadat poptávku | |
| B016 WHR07703 |
C00318924
481946279891 |
Foot | Na dotaz | Zadat poptávku | |
| B017 WHR07703 |
C00316151
481940118795 |
Terminal Block | Na dotaz | Zadat poptávku | |
| B018 WHR07703 |
C00388654
480112100527 |
Cabinet white | Na dotaz | Zadat poptávku | |
| B019 WHR07703 |
C00343314
481949268608 |
SPONA | Na dotaz | Zadat poptávku | |
| B020 WHR07703 |
C00413339
482000013105 |
Lock front top | Na dotaz | Zadat poptávku | |
| B021 WHR07703 |
C00508897
482000096001 |
Front panel white | Na dotaz | Zadat poptávku | |
| B022 WHR07703 |
C00388655
480112100528 |
Pulley 50Hz | Na dotaz | Zadat poptávku | |
| B023 WHR07703 |
C00343315
481949268609 |
Clip | Na dotaz | Zadat poptávku | |
| B024 WHR07703 |
C00508982
482000096002 |
Door catch | Na dotaz | Zadat poptávku | |
| B025 WHR07703 |
C00508898
482000096003 |
Gasket door | Na dotaz | Zadat poptávku | |
| B026 WHR07703 |
C00508899
482000096004 |
Pad power cord | Na dotaz | Zadat poptávku | |
| B027 WHR07703 |
C00333234
481950318242 |
Screw 8-18x1/2 | Na dotaz | Zadat poptávku | |
| B028 WHR07703 |
C00410569
482000007525 |
Hinge | Na dotaz | Zadat poptávku | |
| B029 WHR07703 |
C00313291
481936158124 |
Motor sušičky | 4 496 Kč
€ 184.80 |
||
| B030 WHR07703 |
C00336714
481903400500 |
Screw | Na dotaz | Zadat poptávku | |
| B031 WHR07703 |
C00335899
481946418009 |
Support | Na dotaz | Zadat poptávku | |
| B032 WHR07703 |
C00312676
481935818117 |
Řemen poloprofesionální sušičky prádla Whirlpool | 561 Kč
€ 23.10 |
||
| B033 WHR07703 |
C00336034
481903403431 |
Stop door | Na dotaz | Zadat poptávku | |
| B034 WHR07703 |
C00314778
482000009375 |
Napínací kladka poloprofesionální sušičky prádla Whirlpool | 1 106 Kč
€ 45.40 |
||
| B035 WHR07703 |
C00413350
482000013116 |
Door inner | Na dotaz | Zadat poptávku | |
| B036 WHR07703 |
C00508900
482000096005 |
Door outer white | Na dotaz | Zadat poptávku | |
| B037 WHR07703 |
C00508801
482000095909 |
Door handle white | Na dotaz | Zadat poptávku | |
| B038 WHR07703 |
C00508802
482000095910 |
Seal and bearing | Na dotaz | Zadat poptávku | |
| B039 WHR07703 |
C00313698
481931038733 |
Plate connector screw kit | Na dotaz | Zadat poptávku | |
| B040 WHR07703 |
C00413349
482000013115 |
Cover door lock | Na dotaz | Zadat poptávku | |
| B041 WHR07703 |
C00413354
482000013120 |
Bezel door lock | Na dotaz | Zadat poptávku | |
| B042 WHR07703 |
C00413370
482000013137 |
Seal foam | Na dotaz | Zadat poptávku | |
| B043 WHR07703 |
C00413371
482000013138 |
Seal spill guard | Na dotaz | Zadat poptávku | |
| C001 WHR07703 |
C00498705
481900348368 |
Conveyor | Na dotaz | Zadat poptávku | |
| C002 WHR07703 |
C00410571
482000007527 |
Nut 3/8-16 | Na dotaz | Zadat poptávku | |
| C003 WHR07703 |
C00337253
481953268661 |
Washer | Na dotaz | Zadat poptávku | |
| C004 WHR07703 |
C00499432
481946669852 |
Gasket. | Na dotaz | Zadat poptávku | |
| C006 WHR07703 |
C00413357
482000013123 |
Shield exhaust | Na dotaz | Zadat poptávku | |
| C007 WHR07703 |
C00313061
481925228095 |
pojistka | 370 Kč
€ 15.20 |
||
| C008 WHR07703 |
C00311682
481928248311 |
Termostat sušičky | 2 177 Kč
€ 89.50 |
||
| C009 WHR07703 |
C00508901
482000096006 |
Thermostat kit | Na dotaz | Zadat poptávku | |
| C010 WHR07703 |
C00315665
481951548051 |
Vrtule ventilátoru poloprofesionální sušičky prádla Whirlpool | 741 Kč
€ 30.40 |
||
| C011 WHR07703 |
C00388657
480112100531 |
Cabinet fan wheel | Na dotaz | Zadat poptávku | |
| C012 WHR07703 |
C00508807
482000095915 |
Clip | Na dotaz | Zadat poptávku | |
| C014 WHR07703 |
C00320205
480112100532 |
Vzduchový kanál poloprofesionální sušičky Whirlpool | 1 413 Kč
€ 58.10 |
||
| C015 WHR07703 |
C00384970
480112100533 |
Thermostat 221 #F (105 #C) | Na dotaz | Zadat poptávku | |
| C016 WHR07703 |
C00337248
481953088033 |
Washer | Na dotaz | Zadat poptávku | |
| C017 WHR07703 |
C00508902
482000096007 |
Heating element | Na dotaz | Zadat poptávku | |
| C018 WHR07703 |
C00312620
481953228227 |
pojistka zajištovací | 165 Kč
€ 6.80 |
||
| C019 WHR07703 |
C00332864
481931038736 |
279457 Heating Elem. Connecting Wire KIT | Na dotaz | Zadat poptávku | |
| C020 WHR07703 |
C00332798
481900489463 |
Screw | Na dotaz | Zadat poptávku | |
| C021 WHR07703 |
C00333204
481950218294 |
Screw | Na dotaz | Zadat poptávku | |
| C022 WHR07703 |
C00340566
481946669855 |
Gasket | Na dotaz | Zadat poptávku | |
| C023 WHR07703 |
C00498773
481903403636 |
Agitator | Na dotaz | Zadat poptávku | |
| C024 WHR07703 |
C00343316
481953268553 |
Clip | Na dotaz | Zadat poptávku | |
| C025 WHR07703 |
C00497304
481225518228 |
Holder | Na dotaz | Zadat poptávku | |
| C026 WHR07703 |
C00498710
481900692490 |
Agitator | Na dotaz | Zadat poptávku | |
| C027 WHR07703 |
C00508812
482000095920 |
Drum | Na dotaz | Zadat poptávku | |
| C028 WHR07703 |
C00508811
482000095919 |
Těsnění bubnu - zadní poloprofesionální sušičky Whirlpool | 776 Kč
€ 31.90 |
||
| C029 WHR07703 |
C00508559
482000095815 |
Screw | Na dotaz | Zadat poptávku | |
| C030 WHR07703 |
C00336854
481900692526 |
Ložiskový pásek poloprofesionální sušičky prádla Whirlpool | 841 Kč
€ 34.60 |
||
| C031 WHR07703 |
C00388659
480112100536 |
Panel rear bulkhead | Na dotaz | Zadat poptávku | |
| C032 WHR07703 |
C00313642
481952878062 |
Vodící kolečka bubnu poloprofesionální sušičky prádla Whirlpool 3LWED4830FW, LWED4705FW. | 939 Kč
€ 38.60 |
||
| C033 WHR07703 |
C00345149
482000006856 |
W10359269 CN - SHAFT-DRUM ROLLER. | Na dotaz | Zadat poptávku | |
| C034 WHR07703 |
C00336445
481953598423 |
Shaft left | Na dotaz | Zadat poptávku | |
