| Komerční kód: | 4KWED5700JW0 |
| Kód 12NC: | 859991588940 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

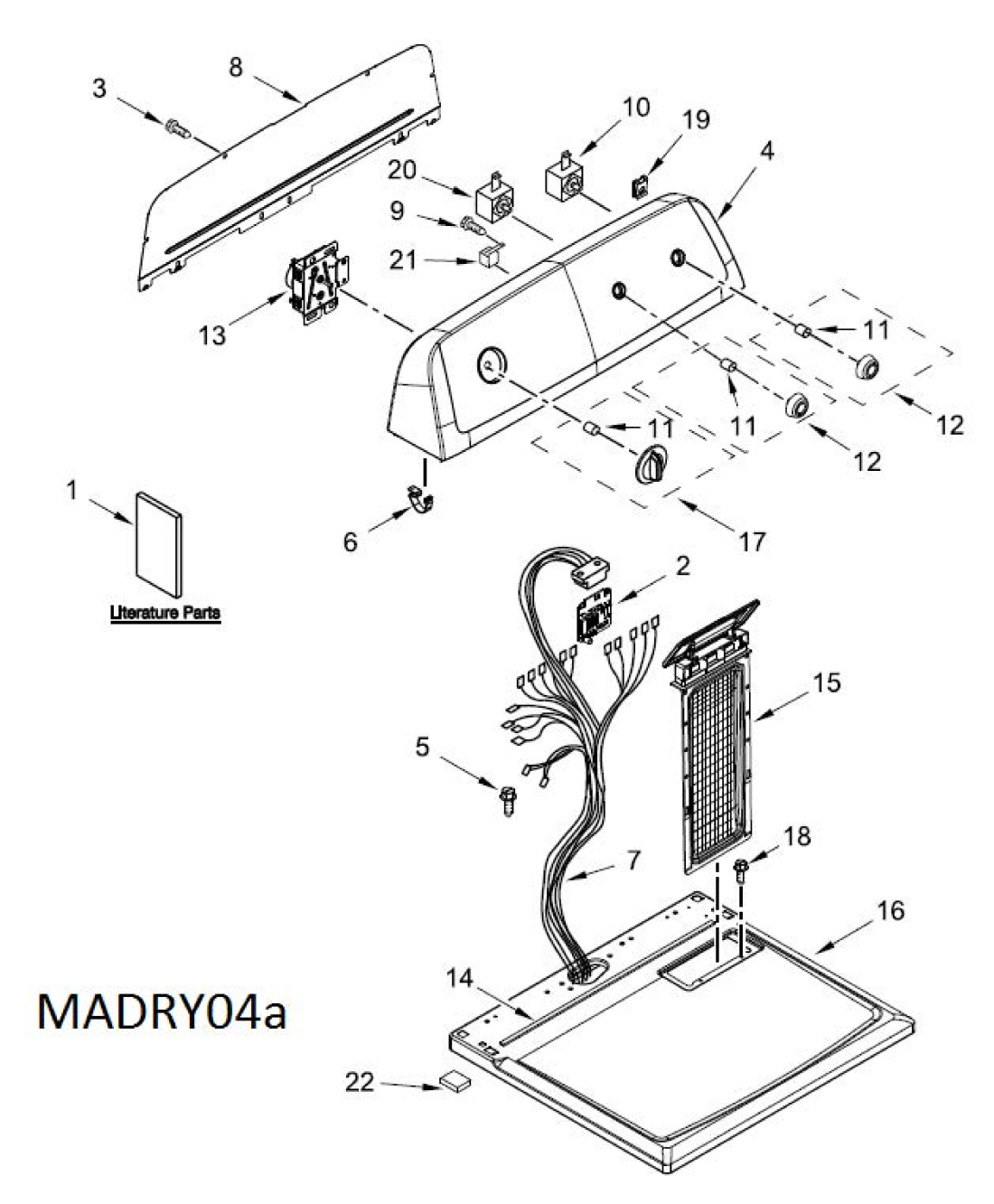

| 002 MADRY04a |
C00628634
488000628634 |
Dryer Timer Control Board | Na dotaz | Zadat poptávku | |
| 004 MADRY04a |
C00628829
488000628829 |
Konzole bílá | Na dotaz | Zadat poptávku | |
| 006 MADRY04a |
C00320922
480110100224 |
Clip control panel | Na dotaz | Zadat poptávku | |
| 007 MADRY04a |
C00628830
488000628830 |
Hlavní kabelový svazek | Na dotaz | Zadat poptávku | |
| 008 MADRY04a |
C00508889
482000095993 |
Rear panel | Na dotaz | Zadat poptávku | |
| 010 MADRY04a |
C00508894
482000095998 |
Switch pushbut. | Na dotaz | Zadat poptávku | |
| 011 MADRY04a |
C00316533
480110100173 |
Clip knob | Na dotaz | Zadat poptávku | |
| 012 MADRY04a |
C00508890
482000095994 |
Knob white | Na dotaz | Zadat poptávku | |
| 013 MADRY04a |
C00628831
488000628831 |
Sestavení časovače | Na dotaz | Zadat poptávku | |
| 014 MADRY04a |
C00413368
482000013135 |
Seal foam | Na dotaz | Zadat poptávku | |
| 015 MADRY04a |
C00508785
482000095893 |
Screening | Na dotaz | Zadat poptávku | |
| 016 MADRY04a |
C00519313
482000098254 |
Cover white | Na dotaz | Zadat poptávku | |
| 017 MADRY04a |
C00508893
482000095997 |
Knob timer assembly, white | Na dotaz | Zadat poptávku | |
| 019 MADRY04a |
C00334622
482000013033 |
Nut | Na dotaz | Zadat poptávku | |
| 020 MADRY04a |
C00508896
482000096000 |
Switch rotary | Na dotaz | Zadat poptávku | |
| 021 MADRY04a |
C00387899
480110100198 |
Bzučák pračky | 465 Kč
€ 20.40 |
||
| 022 MADRY04a |
C00518437
481946699051 |
SPACER. | Na dotaz | Zadat poptávku | |
| 001 MADRY04b |
C00519315
482000098257 |
Catch cover door | Na dotaz | Zadat poptávku | |
| 004 MADRY04b |
C00508803
482000095911 |
Seal | Na dotaz | Zadat poptávku | |
| 005 MADRY04b |
C00508794
482000095902 |
Cover | Na dotaz | Zadat poptávku | |
| 006 MADRY04b |
C00413345
482000013111 |
Plug strike | Na dotaz | Zadat poptávku | |
| 007 MADRY04b |
C00628637
488000628637 |
Rear Panel | Na dotaz | Zadat poptávku | |
| 008 MADRY04b |
C00413339
482000013105 |
Lock front top | Na dotaz | Zadat poptávku | |
| 009 MADRY04b |
C00343314
481949268608 |
SPONA | 100 Kč
€ 4.40 |
||
| 010 MADRY04b |
C00326613
481201231198 |
W10237959 LEADED DOOR SW SPST (IEC) | Na dotaz | Zadat poptávku | |
| 012 MADRY04b |
C00519318
482000098262 |
Plug hole white | Na dotaz | Zadat poptávku | |
| 013 MADRY04b |
C00518775
482000098141 |
Clip felt pad | Na dotaz | Zadat poptávku | |
| 015 MADRY04b |
C00518771
482000098137 |
Clip front panel | Na dotaz | Zadat poptávku | |
| 016 MADRY04b |
C00508518
482000095759 |
Foot | Na dotaz | Zadat poptávku | |
| 017 MADRY04b |
C00316151
481940118795 |
Terminal Block | Na dotaz | Zadat poptávku | |
| 018 MADRY04b |
C00388654
480112100527 |
Cabinet white | Na dotaz | Zadat poptávku | |
| 019 MADRY04b |
C00508897
482000096001 |
Front panel white | Na dotaz | Zadat poptávku | |
| 020 MADRY04b |
C00336034
481903403431 |
Stop door | Na dotaz | Zadat poptávku | |
| 021 MADRY04b |
C00508802
482000095910 |
Seal and bearing | Na dotaz | Zadat poptávku | |
| 022 MADRY04b |
C00508982
482000096002 |
Door catch | Na dotaz | Zadat poptávku | |
| 024 MADRY04b |
C00410569
482000007525 |
Hinge | Na dotaz | Zadat poptávku | |
| 025 MADRY04b |
C00508898
482000096003 |
Gasket door | Na dotaz | Zadat poptávku | |
| 026 MADRY04b |
C00413350
482000013116 |
Door inner | Na dotaz | Zadat poptávku | |
| 027 MADRY04b |
C00508900
482000096005 |
Door outer white | Na dotaz | Zadat poptávku | |
| 028 MADRY04b |
C00519323
482000098271 |
Handle door white | Na dotaz | Zadat poptávku | |
| 031 MADRY04b |
C00454552
481201230825 |
Terminal Block 3397659 | Na dotaz | Zadat poptávku | |
| 032 MADRY04b |
C00519324
482000098272 |
Clamp motor with shield | Na dotaz | Zadat poptávku | |
| 033 MADRY04b |
C00343411
480112100589 |
Clamp | Na dotaz | Zadat poptávku | |
| 034 MADRY04b |
C00410568
482000007524 |
Motor | Na dotaz | Zadat poptávku | |
| 035 MADRY04b |
C00519326
482000098274 |
Pulley | Na dotaz | Zadat poptávku | |
| 036 MADRY04b |
C00337065
481952888085 |
Pulley Jokey | Na dotaz | Zadat poptávku | |
| 037 MADRY04b |
C00388691
480112100593 |
Belt | Na dotaz | Zadat poptávku | |
| 038 MADRY04b |
C00519327
482000098275 |
Motor base | Na dotaz | Zadat poptávku | |
| 039 MADRY04b |
C00518657
482000098072 |
Bolt | Na dotaz | Zadat poptávku | |
| 040 MADRY04b |
C00499095
481941719212 |
Hinge. | Na dotaz | Zadat poptávku | |
| 041 MADRY04b |
C00413370
482000013137 |
Seal foam | Na dotaz | Zadat poptávku | |
| 043 MADRY04b |
C00413371
482000013138 |
Seal spill guard | Na dotaz | Zadat poptávku | |
| 045 MADRY04b |
C00413354
482000013120 |
Bezel door lock | Na dotaz | Zadat poptávku | |
| 046 MADRY04b |
C00413359
482000013126 |
Pad foam | Na dotaz | Zadat poptávku | |
| 001 MADRY04c |
C00508805
482000095913 |
Spout lint | Na dotaz | Zadat poptávku | |
| 002 MADRY04c |
C00340566
481946669855 |
Gasket | Na dotaz | Zadat poptávku | |
| 003 MADRY04c |
C00337253
481953268661 |
Washer | Na dotaz | Zadat poptávku | |
| 004 MADRY04c |
C00519562
482000098357 |
Seal lint chute | Na dotaz | Zadat poptávku | |
| 006 MADRY04c |
C00413357
482000013123 |
Shield exhaust | Na dotaz | Zadat poptávku | |
| 007 MADRY04c |
C00453860
481201229464 |
3392519 THERMAL FUSE (91 C). | Na dotaz | Zadat poptávku | |
| 008 MADRY04c |
C00311682
481928248311 |
termostat susicky | 1 545 Kč
€ 67.90 |
||
| 009 MADRY04c |
C00519613
482000098399 |
Fuse thermal 91C | Na dotaz | Zadat poptávku | |
| 010 MADRY04c |
C00519563
482000098358 |
Blower wheel | Na dotaz | Zadat poptávku | |
| 011 MADRY04c |
C00388657
480112100531 |
Cabinet fan wheel | Na dotaz | Zadat poptávku | |
| 012 MADRY04c |
C00628670
488000628670 |
Clip, Heater Box | Na dotaz | Zadat poptávku | |
| 014 MADRY04c |
C00320205
480112100532 |
Vzduchový kanál | 1 949 Kč
€ 85.70 |
||
| 015 MADRY04c |
C00519334
482000098286 |
Thermostat 221 F (105C) | Na dotaz | Zadat poptávku | |
| 016 MADRY04c |
C00519335
482000098287 |
Drum baffle | Na dotaz | Zadat poptávku | |
| 017 MADRY04c |
C00518678
482000098096 |
heater def element | Na dotaz | Zadat poptávku | |
| 018 MADRY04c |
C00518781
482000098147 |
Nut push on | Na dotaz | Zadat poptávku | |
| 019 MADRY04c |
C00513306
482000096805 |
Kit For heater | Na dotaz | Zadat poptávku | |
| 021 MADRY04c |
C00508811
482000095919 |
Seal drum | Na dotaz | Zadat poptávku | |
| 022 MADRY04c |
C00508810
482000095918 |
Bracket | Na dotaz | Zadat poptávku | |
| 023 MADRY04c |
C00519336
482000098288 |
Drum baffle long | Na dotaz | Zadat poptávku | |
| 024 MADRY04c |
C00519566
482000098361 |
Washer tri ring | Na dotaz | Zadat poptávku | |
| 025 MADRY04c |
C00336445
481953598423 |
Shaft left | Na dotaz | Zadat poptávku | |
| 026 MADRY04c |
C00345149
482000006856 |
W10359269 CN - SHAFT-DRUM ROLLER. | Na dotaz | Zadat poptávku | |
| 027 MADRY04c |
C00628671
488000628671 |
Roller, Support | Na dotaz | Zadat poptávku | |
| 028 MADRY04c |
C00337248
481953088033 |
Washer | Na dotaz | Zadat poptávku | |
| 029 MADRY04c |
C00410571
482000007527 |
Nut 3/8-16 | Na dotaz | Zadat poptávku | |
| 030 MADRY04c |
C00628672
488000628672 |
Přepážka | Na dotaz | Zadat poptávku | |
| 031 MADRY04c |
C00508812
482000095920 |
Drum | Na dotaz | Zadat poptávku | |
| 032 MADRY04c |
C00518782
482000098148 |
Bearing ring | Na dotaz | Zadat poptávku | |
| 034 MADRY04c |
C00628674
488000628674 |
Pad, senzor | Na dotaz | Zadat poptávku | |
| 035 MADRY04c |
C00628673
488000628673 |
Objektiv, Drum Light | Na dotaz | Zadat poptávku | |
| 036 MADRY04c |
C00513299
482000096798 |
Bracket drum light | Na dotaz | Zadat poptávku | |
| 037 MADRY04c |
C00508808
482000095916 |
Foam | Na dotaz | Zadat poptávku | |
