IKEA 50074215
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 50074215 |
| Kód 12NC: | 852398912000 |
| Značka: | IKEA |
| Typ produktu: | Volně stojící sporáky a trouby |
| Další podobné modely: | 852398912001 |
Potřebujete servis? Jsme tady pro Vás

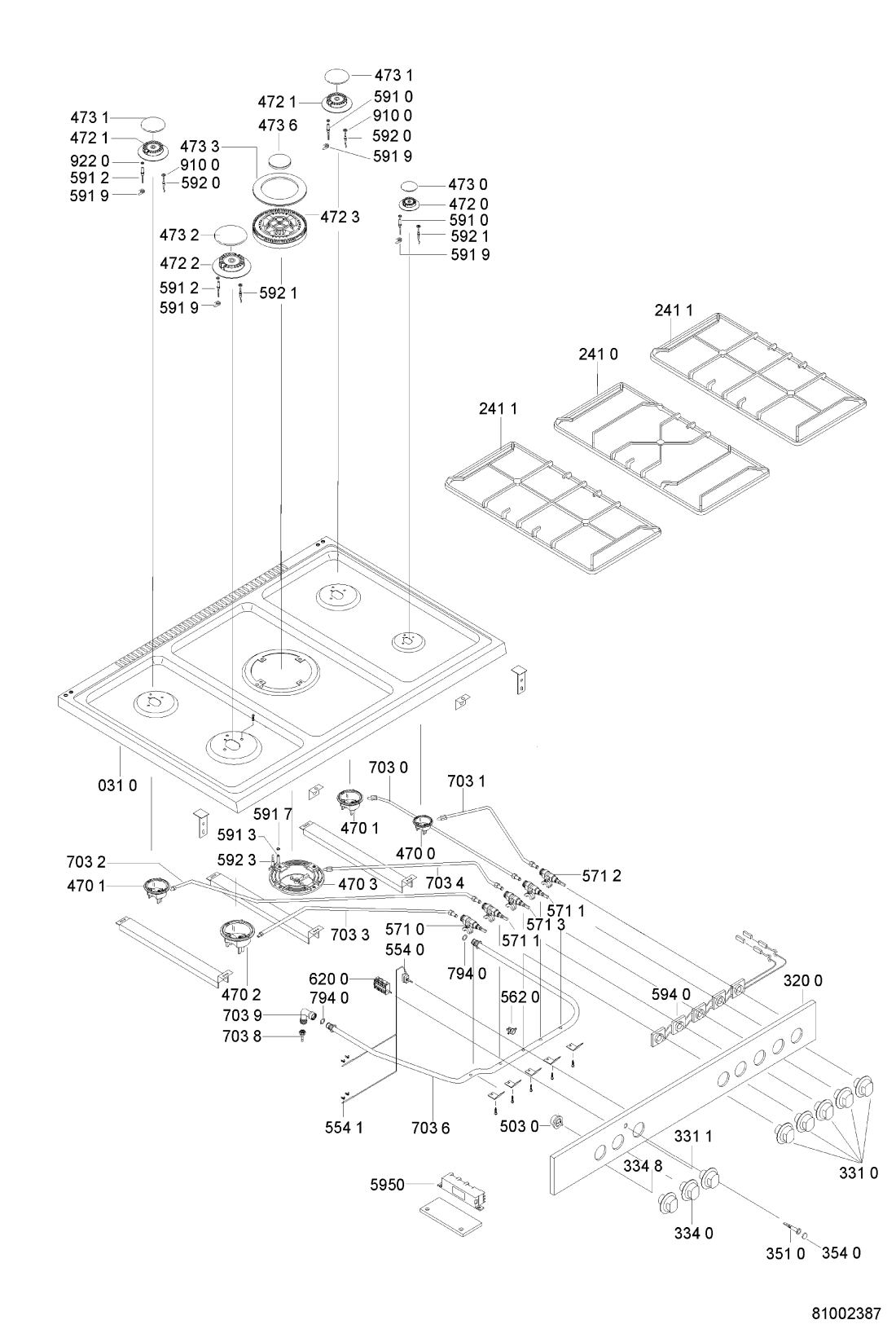

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR52417 |
C00332714
481253538109 |
Foot | Na dotaz | Zadat poptávku | |
| 011 1 WHR52417 |
C00332715
481253538111 |
Support foot | Na dotaz | Zadat poptávku | |
| 022 0 WHR52417 |
C00497907
481244011073 |
Side panel right | Na dotaz | Zadat poptávku | |
| 022 1 WHR52417 |
C00497908
481244011074 |
Side panel left | Na dotaz | Zadat poptávku | |
| 025 0 WHR52417 |
C00330805
481246418136 |
Frame oven front | Na dotaz | Zadat poptávku | |
| 031 0 WHR52417 |
C00328201
481244039462 |
Hob | Na dotaz | Zadat poptávku | |
| 040 0 WHR52417 |
C00329718
481241719268 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 047 0 WHR52417 |
C00333000
481941758142 |
Roller hinge | Na dotaz | Zadat poptávku | |
| 050 0 WHR52417 |
C00328394
481244089075 |
Drawer door | Na dotaz | Zadat poptávku | |
| 050 1 WHR52417 |
C00328395
481244089076 |
Drawer counter door | Na dotaz | Zadat poptávku | |
| 050 2 WHR52417 |
C00328396
481244089077 |
Drawer tension bar | Na dotaz | Zadat poptávku | |
| 050 3 WHR52417 |
C00328397
481244089078 |
Drawer spacer | Na dotaz | Zadat poptávku | |
| 050 4 WHR52417 |
C00332989
481941719425 |
Hinge drawer | Na dotaz | Zadat poptávku | |
| 084 0 WHR52417 |
C00322011
480121101325 |
Damper grid for hob | Na dotaz | Zadat poptávku | |
| 110 0 WHR52417 |
C00330712
481246268931 |
Handleoven door | Na dotaz | Zadat poptávku | |
| 110 1 WHR52417 |
C00330713
481246268932 |
Bracket Handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR52417 |
C00497977
481244039461 |
Oven door inner | Na dotaz | Zadat poptávku | |
| 130 0 WHR52417 |
C00327636
481231038872 |
Door lock | Na dotaz | Zadat poptávku | |
| 130 1 WHR52417 |
C00327637
481231038873 |
Door lock | Na dotaz | Zadat poptávku | |
| 141 0 WHR52417 |
C00498078
481245058928 |
Oven door panel + glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR52417 |
C00498085
481245068291 |
Door glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR52417 |
C00498077
481245058923 |
Door glass | Na dotaz | Zadat poptávku | |
| 191 0 WHR52417 |
C00315632
481246818318 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 192 0 WHR52417 |
C00464523
481246818365 |
Gasket oven glass | Na dotaz | Zadat poptávku | |
| 201 0 WHR52417 |
C00331043
481244229266 |
Cover oven fan | Na dotaz | Zadat poptávku | |
| 241 0 WHR52417 |
C00330157
481245848389 |
Grid for hob centre | Na dotaz | Zadat poptávku | |
| 241 1 WHR52417 |
C00319151
481245848391 |
Grid for hob right/left | Na dotaz | Zadat poptávku | |
| 242 9 WHR52417 |
C00327517
481228158001 |
Magnet | 674 Kč
€ 29.60 |
||
| 245 0 WHR52417 |
C00330058
481245819227 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 247 0 WHR52417 |
C00327788
481241838121 |
Tray oven pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR52417 |
C00331094
481244508002 |
Grill oven side | Na dotaz | Zadat poptávku | |
| 261 2 WHR52417 |
C00328973
481240418454 |
Bracket oven shelf | Na dotaz | Zadat poptávku | |
| 320 0 WHR52417 |
C00329962
481245359928 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR52417 |
C00329368
481241128994 |
Knobgas | Na dotaz | Zadat poptávku | |
| 331 1 WHR52417 |
C00329371
481241128997 |
Knobthermostat | Na dotaz | Zadat poptávku | |
| 334 0 WHR52417 |
C00329369
481241128995 |
Knoboven | Na dotaz | Zadat poptávku | |
| 334 8 WHR52417 |
C00329370
481241128996 |
Knobtimer | Na dotaz | Zadat poptávku | |
| 351 0 WHR52417 |
C00332811
481913448486 |
signalka | 337 Kč
€ 14.80 |
||
| 354 0 WHR52417 |
C00317822
481238118258 |
kryt signalky oranz. | 289 Kč
€ 12.70 |
||
| 440 0 WHR52417 |
C00317712
481236178026 |
Ventilátor | 3 767 Kč
€ 165.60 |
||
| 451 0 WHR52417 |
C00317831
481225948166 |
Heating element circular | Na dotaz | Zadat poptávku | |
| 452 0 WHR52417 |
C00327170
481225948168 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR52417 |
C00327169
481225948167 |
Topné těleso trouby – spodní | 2 711 Kč
€ 119.20 |
||
| 470 0 WHR52417 |
C00482809
481236078132 |
Burner body AUX | Na dotaz | Zadat poptávku | |
| 470 1 WHR52417 |
C00482808
481236078131 |
Burner body SR | Na dotaz | Zadat poptávku | |
| 470 2 WHR52417 |
C00482807
481236078129 |
Burner body R | Na dotaz | Zadat poptávku | |
| 470 3 WHR52417 |
C00482806
481236078128 |
Burner body TC | Na dotaz | Zadat poptávku | |
| 472 0 WHR52417 |
C00328641
481236068271 |
ROZPTYLOVAC PLA | 863 Kč
€ 37.90 |
||
| 472 1 WHR52417 |
C00328642
481236068272 |
ROZPTYLOVAC PLA | 921 Kč
€ 40.50 |
||
| 472 2 WHR52417 |
C00328643
481236068273 |
ROZPTYLOVAC PLA | 935 Kč
€ 41.10 |
||
| 472 3 WHR52417 |
C00328672
481236068665 |
Burner ring triple crown | Na dotaz | Zadat poptávku | |
| 473 0 WHR52417 |
C00318332
481236068657 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 473 1 WHR52417 |
C00313783
481236068659 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 473 2 WHR52417 |
C00318348
481236068658 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 473 3 WHR52417 |
C00317625
481236068667 |
Burner cap triple crown outer | Na dotaz | Zadat poptávku | |
| 473 6 WHR52417 |
C00328674
481236068668 |
Burner cap triple crown inner | Na dotaz | Zadat poptávku | |
| 474 0 WHR52417 |
C00327653
481231038981 |
Set of nozzles LPG(G30/31) | Na dotaz | Zadat poptávku | |
| 491 0 WHR52417 |
C00320079
481229068226 |
Terminal block | Na dotaz | Zadat poptávku | |
| 503 0 WHR52417 |
C00332848
481928218475 |
Time switch | Na dotaz | Zadat poptávku | |
| 554 0 WHR52417 |
C00312002
481228238149 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 554 1 WHR52417 |
C00345740
481249148007 |
Clip fix thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR52417 |
C00497322
481227128535 |
Thermostat 16A | Na dotaz | Zadat poptávku | |
| 571 0 WHR52417 |
C00582643
481236068679 |
Valve gas R. | Na dotaz | Zadat poptávku | |
| 571 1 WHR52417 |
C00493261
481236068681 |
Valve gas SR | Na dotaz | Zadat poptávku | |
| 571 2 WHR52417 |
C00582642
481236068678 |
Valve gas AUX. | Na dotaz | Zadat poptávku | |
| 571 3 WHR52417 |
C00582644
481236068682 |
Valve gas TC. | Na dotaz | Zadat poptávku | |
| 591 0 WHR52417 |
C00327105
481225268019 |
Spark plug semi rapid | Na dotaz | Zadat poptávku | |
| 591 2 WHR52417 |
C00327109
481225268071 |
Spark plug L=900 | Na dotaz | Zadat poptávku | |
| 591 3 WHR52417 |
C00327107
481225268068 |
Spark plug triple crown | Na dotaz | Zadat poptávku | |
| 591 7 WHR52417 |
C00327106
481225268037 |
Spark plug TR crown | Na dotaz | Zadat poptávku | |
| 591 9 WHR52417 |
C00332673
481253258016 |
Spring | Na dotaz | Zadat poptávku | |
| 592 0 WHR52417 |
C00317875
481225268038 |
termoclanek | 1 462 Kč
€ 64.30 |
||
| 592 1 WHR52417 |
C00327110
481225268072 |
Safety device left/right rear SR burner | Na dotaz | Zadat poptávku | |
| 592 1 WHR52417 |
C00318339
481225268039 |
termoclanek | 1 254 Kč
€ 55.10 |
||
| 592 3 WHR52417 |
C00327108
481225268069 |
Safety device TC | Na dotaz | Zadat poptávku | |
| 594 0 WHR52417 |
C00316177
480121101038 |
Switch ignition | Na dotaz | Zadat poptávku | |
| 595 0 WHR52417 |
C00326871
481214528025 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 620 0 WHR52417 |
C00315119
481227618471 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 651 0 WHR52417 |
C00316183
481204728003 |
Lamp 220/240V 25W | Na dotaz | Zadat poptávku | |
| 652 0 WHR52417 |
C00332821
481925518162 |
objimka zarovky | 883 Kč
€ 38.80 |
||
| 656 0 WHR52417 |
C00332902
481938118213 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 703 0 WHR52417 |
C00328677
481236068672 |
Piperight rear | Na dotaz | Zadat poptávku | |
| 703 1 WHR52417 |
C00328675
481236068669 |
Pipefront right | Na dotaz | Zadat poptávku | |
| 703 2 WHR52417 |
C00328678
481236068673 |
Pipeleft rear | Na dotaz | Zadat poptávku | |
| 703 3 WHR52417 |
C00328676
481236068671 |
Pipefront left | Na dotaz | Zadat poptávku | |
| 703 4 WHR52417 |
C00328673
481236068666 |
Pipetriple crown | Na dotaz | Zadat poptávku | |
| 703 6 WHR52417 |
C00328667
481236068656 |
Pipe gas main | Na dotaz | Zadat poptávku | |
| 703 9 WHR52417 |
C00328644
481236068282 |
Tube bend | Na dotaz | Zadat poptávku | |
| 794 0 WHR52417 |
C00333317
481953258189 |
Gasket | Na dotaz | Zadat poptávku | |
| 910 0 WHR52417 |
C00332101
481250218666 |
Screw | Na dotaz | Zadat poptávku | |
| 910 1 WHR52417 |
C00331561
481246699042 |
Nut fan motor | Na dotaz | Zadat poptávku | |
| 922 0 WHR52417 |
C00330992
481246688555 |
Gasket | Na dotaz | Zadat poptávku | |
| 993 0 WHR52417 |
C00327663
481231039071 |
Oven door glass wool upper | Na dotaz | Zadat poptávku | |
| 993 1 WHR52417 |
C00457081
481231039072 |
Oven door glass wool lower | Na dotaz | Zadat poptávku | |
| 993 2 WHR52417 |
C00457082
481231039073 |
Oven door glass wool lateral | Na dotaz | Zadat poptávku | |
| 999 WHR52417 |
C00655213 | Gastable WHP | Na dotaz | Zadat poptávku | |
