IKEA OV C10 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | OV C10 S |
| Kód 12NC: | 857924201510 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857921301510, Q0911050000, 857921301511, Q0911050001, 857921301514, Q0911050004, 857921301515, Q0911050005, 857921301516, Q0911050006, Q0911110000, 857924201511, Q0911110001, 857921301512, 857921301513, 857921301517 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

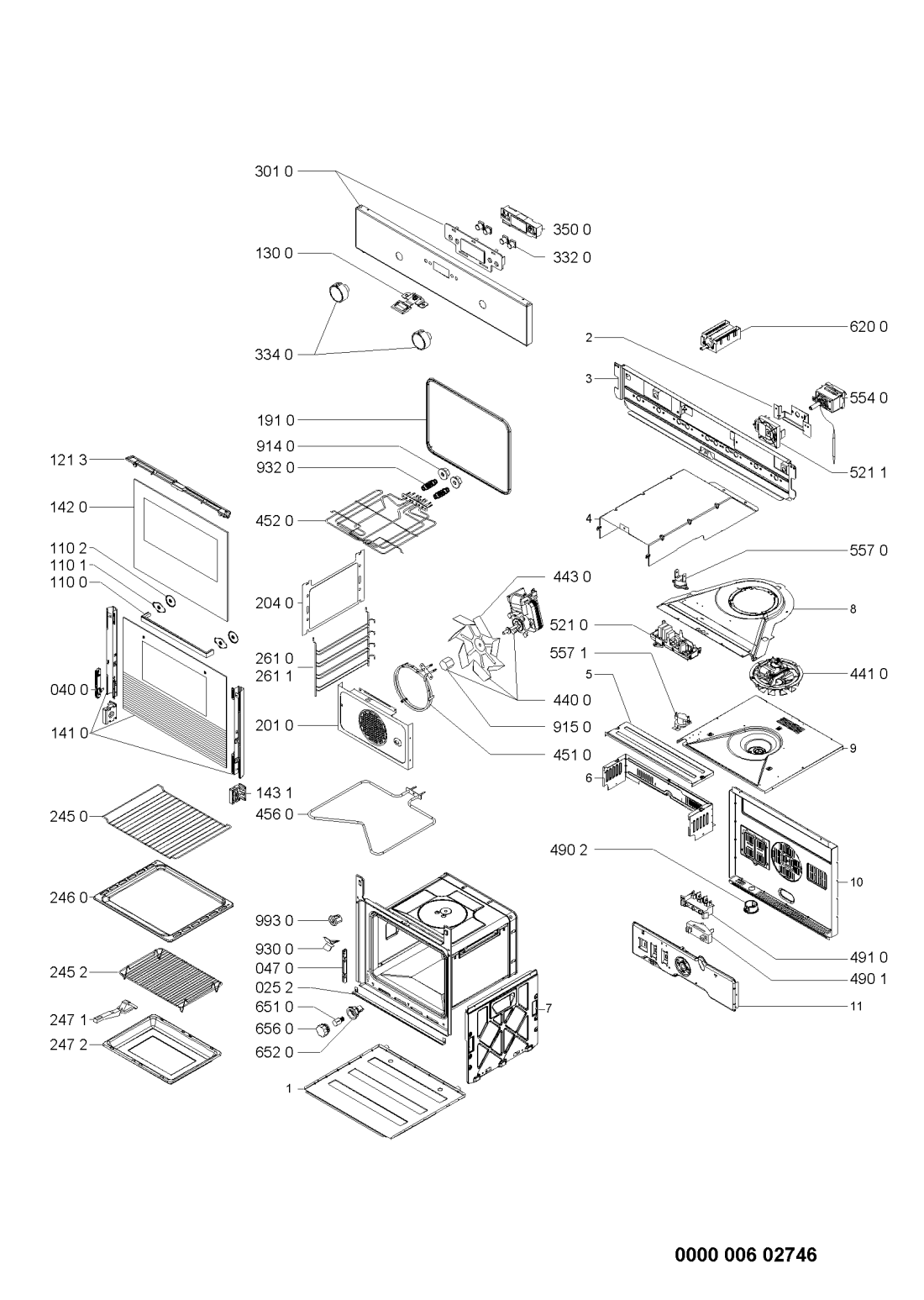

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 025 2 WHR05265 |
C00335224
481246079187 |
Lišta odvodu vody - černá | 169 Kč
€ 7.40 |
||
| 040 0 WHR05265 |
C00312179
480121100261 |
panty | 1 490 Kč
€ 65.50 |
||
| 047 0 WHR05265 |
C00312502
480121103811 |
Závěs | 347 Kč
€ 15.30 |
||
| 110 0 WHR05265 |
C00312070
481241279412 |
Madlo dveří trouby Whirlpool, Indesit | 2 704 Kč
€ 118.90 |
||
| 110 1 WHR05265 |
C00313127
481246668858 |
Podložka madla dveří trouby | 52 Kč
€ 2.30 |
||
| 110 2 WHR05265 |
C00311265
481246248451 |
Podložka madla dveří trouby | 51 Kč
€ 2.20 |
||
| 121 3 WHR05265 |
C00311312
481246098095 |
Lišta dveří | 1 446 Kč
€ 63.60 |
||
| 130 0 WHR05265 |
C00315516
481241728106 |
pojistka dveri | 776 Kč
€ 34.10 |
||
| 141 0 WHR05265 |
C00315636
480121100126 |
sklo dveri vnejsi | Na dotaz | Zadat poptávku | |
| 142 0 WHR05265 |
C00315361
480121101495 |
Vnitřní sklo dveří pro trouby Ikea/Whirlpool | 3 160 Kč
€ 138.90 |
||
| 143 1 WHR05265 |
C00311828
481240449841 |
Držák skla | 410 Kč
€ 18.00 |
||
| 191 0 WHR05265 |
C00311110
481246688874 |
Gasket door | Na dotaz | Zadat poptávku | |
| 201 0 WHR05265 |
C00317281
481244269504 |
Katalitický plech zadní | 2 047 Kč
€ 90.00 |
||
| 204 0 WHR05265 |
C00336335
481244269782 |
Side panel enameled catalytic | Na dotaz | Zadat poptávku | |
| 245 0 WHR05265 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 399 Kč
€ 17.50 |
||
| 245 2 WHR05265 |
C00315603
481945819538 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR05265 |
C00344534
480121104155 |
Baking tray + stoppe | Na dotaz | Zadat poptávku | |
| 247 1 WHR05265 |
C00317859
481939548003 |
Handle grid | 541 Kč
€ 23.80 |
||
| 247 2 WHR05265 |
C00317041
481241838149 |
Fat pan | 2 342 Kč
€ 102.90 |
||
| 261 0 WHR05265 |
C00315829
481245819304 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 261 1 WHR05265 |
C00315827
481245819303 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 301 0 WHR05265 |
C00318026
481245240326 |
Panel control AMPERE + support | Na dotaz | Zadat poptávku | |
| 332 0 WHR05265 |
C00312301
480121100151 |
Tlačítka-sestava | Na dotaz | Zadat poptávku | |
| 334 0 WHR05265 |
C00314590
481241279401 |
knoflik ovladaci | Na dotaz | Zadat poptávku | |
| 350 0 WHR05265 |
C00312374
480121104154 |
Display Ampere red | Na dotaz | Zadat poptávku | |
| 440 0 WHR05265 |
C00311259
481236118604 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR05265 |
C00313086
481236118527 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR05265 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR05265 |
C00311124
481225998405 |
Topné těleso trouby – kruhové, horkovzduch 2000W | 345 Kč
€ 15.20 |
||
| 452 0 WHR05265 |
C00311864
481925928937 |
Topné těleso trouby – horní + dual grill trouby Bauknecht, Ignis | 981 Kč
€ 43.10 |
||
| 456 0 WHR05265 |
C00311186
480121100996 |
Heating element lower 1000 W 20.41222.02 | Na dotaz | Zadat poptávku | |
| 490 1 WHR05265 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR05265 |
C00328481
481231618036 |
CABLE PROTECTION | Na dotaz | Zadat poptávku | |
| 491 0 WHR05265 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 8.60 |
||
| 521 0 WHR05265 |
C00310987
480121104103 |
Modul trouby | 3 679 Kč
€ 161.70 |
||
| 521 1 WHR05265 |
C00311584
481221458616 |
prepinac | 1 345 Kč
€ 59.10 |
||
| 554 0 WHR05265 |
C00312501
480121100475 |
termostat | 1 931 Kč
€ 84.90 |
||
| 557 0 WHR05265 |
C00313116
481228228209 |
Pojistka tepelná 105C | 1 306 Kč
€ 57.40 |
||
| 557 1 WHR05265 |
C00313075
481228228329 |
Termostat 3cestný | 1 230 Kč
€ 54.10 |
||
| 620 0 WHR05265 |
C00315273
480121100987 |
Switch,oven MF8 | Na dotaz | Zadat poptávku | |
| 651 0 WHR05265 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR05265 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR05265 |
C00311267
481245028007 |
Kryt žárovky do trouby Whirlpool | 145 Kč
€ 6.40 |
||
| 914 0 WHR05265 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR05265 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 930 0 WHR05265 |
C00312854
481240418649 |
Držák NTC | 376 Kč
€ 16.50 |
||
| 932 0 WHR05265 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR05265 |
C00314347
481231039061 |
Podložka plastová | 378 Kč
€ 16.60 |
||
| 999 WHR05265 |
C00371349 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05265 |
C00371350 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05265 |
C00371351 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
