WHIRLPOOL 5VWT31SFYW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 5VWT31SFYW |
| Kód 12NC/I.C. kód: | 856405178000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

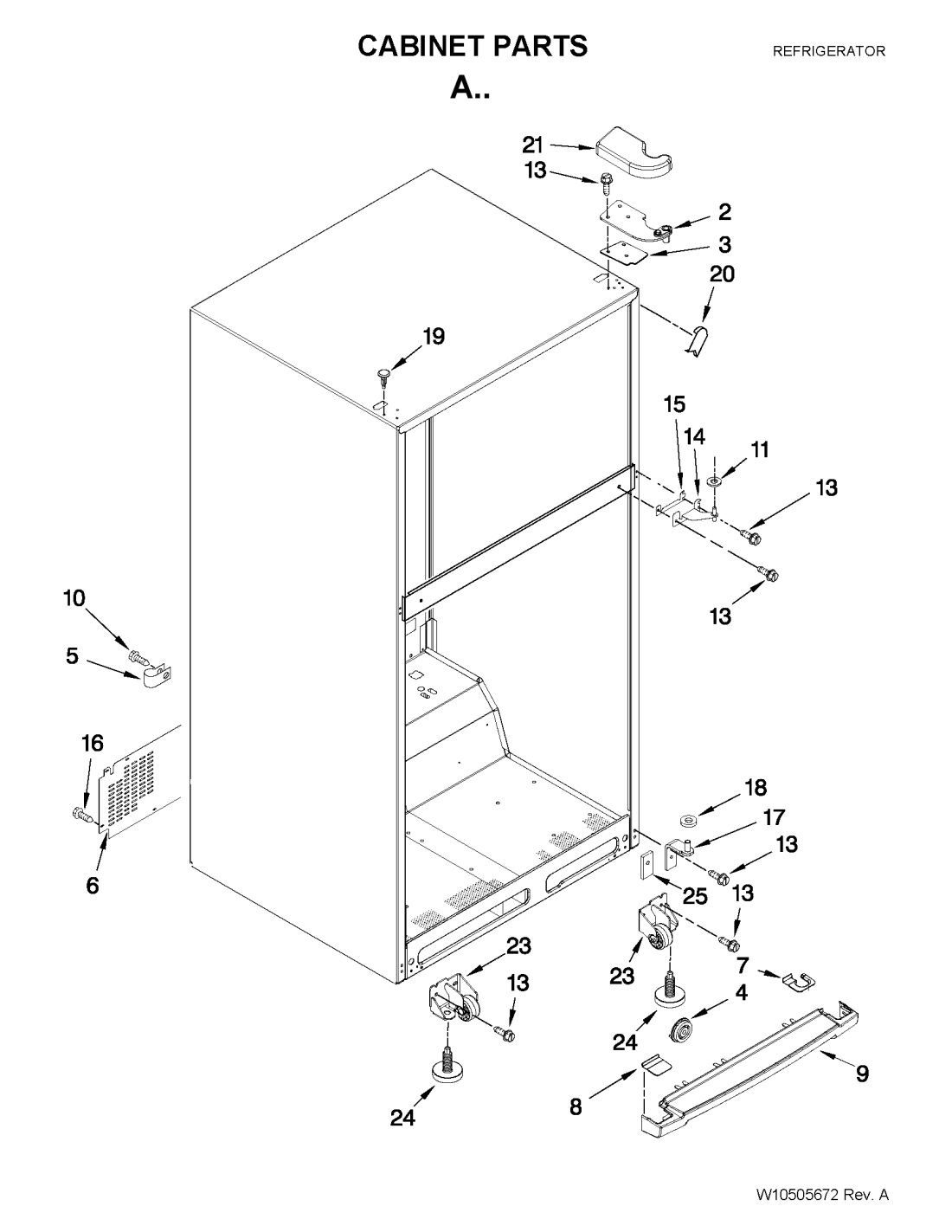

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A02 WHR47228 |
C00413739
482000013578 |
Hinge top right | Na dotaz | Zadat poptávku | |
| A02 WHR47228 |
C00413740
482000013579 |
Hinge top left | Na dotaz | Zadat poptávku | |
| A03 WHR47228 |
C00413741
482000013580 |
Shim hinge top | Na dotaz | Zadat poptávku | |
| A04 WHR47228 |
C00413671
482000013510 |
Drum toe grille | Na dotaz | Zadat poptávku | |
| A05 WHR47228 |
C00592891
481940118748 |
Clamp hose. | Na dotaz | Zadat poptávku | |
| A06 WHR47228 |
C00413742
482000013581 |
Cover unit | Na dotaz | Zadat poptávku | |
| A07 WHR47228 |
C00413743
482000013582 |
Cover toe grille | Na dotaz | Zadat poptávku | |
| A08 WHR47228 |
C00413668
482000013507 |
End cap grille white | Na dotaz | Zadat poptávku | |
| A09 WHR47228 |
C00413744
482000013583 |
Grille | Na dotaz | Zadat poptávku | |
| A10 WHR47228 |
C00413672
482000013511 |
Screw | Na dotaz | Zadat poptávku | |
| A11 WHR47228 |
C00494769
481953228268 |
Washer | Na dotaz | Zadat poptávku | |
| A13 WHR47228 |
C00374341
481256018073 |
Screw | Na dotaz | Zadat poptávku | |
| A14 WHR47228 |
C00410077
482000006974 |
Hinge center | Na dotaz | Zadat poptávku | |
| A15 WHR47228 |
C00410138
482000007036 |
Shim hinge center | Na dotaz | Zadat poptávku | |
| A16 WHR47228 |
C00410079
482000006976 |
Screw | Na dotaz | Zadat poptávku | |
| A17 WHR47228 |
C00410078
482000006975 |
Hinge lower | Na dotaz | Zadat poptávku | |
| A18 WHR47228 |
C00494775
481953268667 |
Washer | Na dotaz | Zadat poptávku | |
| A19 WHR47228 |
C00622693
481946248298 |
Plug | Na dotaz | Zadat poptávku | |
| A20 WHR47228 |
C00410080
482000006977 |
Cover | Na dotaz | Zadat poptávku | |
| A21 WHR47228 |
C00413677
482000013516 |
Cover hinge white | Na dotaz | Zadat poptávku | |
| A21 WHR47228 |
C00413678
482000013517 |
Cover hinge white | Na dotaz | Zadat poptávku | |
| A23 WHR47228 |
C00413667
482000013506 |
Roller front right side | Na dotaz | Zadat poptávku | |
| A23 WHR47228 |
C00413666
482000013505 |
Roller front left side | Na dotaz | Zadat poptávku | |
| A24 WHR47228 |
C00334373
482000012356 |
Brake roller | Na dotaz | Zadat poptávku | |
| A25 WHR47228 |
C00413745
482000013584 |
Shim front roller | Na dotaz | Zadat poptávku | |
| B02 WHR47228 |
C00491970
481246818045 |
Grommet,leather | Na dotaz | Zadat poptávku | |
| B03 WHR47228 |
C00410100
482000006997 |
Gasket evaporator cover | Na dotaz | Zadat poptávku | |
| B04 WHR47228 |
C00453942
481201229608 |
2321259 DEFROST TIMER-PARAGON,IEC | Na dotaz | Zadat poptávku | |
| B05 WHR47228 |
C00333236
481950318261 |
Screw 11-16x3/4 | Na dotaz | Zadat poptávku | |
| B06 WHR47228 |
C00336014
481946248301 |
Stopper | Na dotaz | Zadat poptávku | |
| B07 WHR47228 |
C00413621
482000013458 |
Cable harness control box | Na dotaz | Zadat poptávku | |
| B08 WHR47228 |
C00316816
481225518295 |
W10134764 SOCKET-LIGHT,30 DEGREE,IEC. | Na dotaz | Zadat poptávku | |
| B09 WHR47228 |
C00336767
481950318156 |
Screw | Na dotaz | Zadat poptávku | |
| B10 WHR47228 |
C00410103
482000007000 |
Motor fan | Na dotaz | Zadat poptávku | |
| B11 WHR47228 |
C00636346
481902200509 |
Vrtule ventilátoru mrazničky | Na dotaz | Zadat poptávku | |
| B12 WHR47228 |
C00413622
482000013459 |
Control box | Na dotaz | Zadat poptávku | |
| B13 WHR47228 |
C00413623
482000013460 |
Thermostat | Na dotaz | Zadat poptávku | |
| B14 WHR47228 |
C00592959
481950318157 |
SCREW. | Na dotaz | Zadat poptávku | |
| B15 WHR47228 |
C00413637
482000013474 |
Cable harness | Na dotaz | Zadat poptávku | |
| B16 WHR47228 |
C00413746
482000013585 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| B17 WHR47228 |
C00319612
481913488156 |
Lamp E27-40W 250V | Na dotaz | Zadat poptávku | |
| B18 WHR47228 |
C00410112
482000007009 |
Bracket evap. fan, rear | Na dotaz | Zadat poptávku | |
| B19 WHR47228 |
C00317266
481927618293 |
1118894 ROCKER ARM SWITCH-N.C. | Na dotaz | Zadat poptávku | |
| B20 WHR47228 |
C00413626
482000013463 |
Defrost Bi-Metal | Na dotaz | Zadat poptávku | |
| B21 WHR47228 |
C00413627
482000013464 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| B22 WHR47228 |
C00413628
482000013465 |
Knob control | Na dotaz | Zadat poptávku | |
| B23 WHR47228 |
C00413629
482000013466 |
Tube air regul. | Na dotaz | Zadat poptávku | |
| B24 WHR47228 |
C00413630
482000013467 |
Air diffuser | Na dotaz | Zadat poptávku | |
| B25 WHR47228 |
C00413624
482000013461 |
Cover lamp | Na dotaz | Zadat poptávku | |
| B26 WHR47228 |
C00413631
482000013468 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| B27 WHR47228 |
C00413632
482000013469 |
Cover fitting tube | Na dotaz | Zadat poptávku | |
| B28 WHR47228 |
C00493232
481236058401 |
VENTIL | Na dotaz | Zadat poptávku | |
| B29 WHR47228 |
C00413633
482000013470 |
Bracket fan motor | Na dotaz | Zadat poptávku | |
| B30 WHR47228 |
C00413634
482000013471 |
Tube FC | Na dotaz | Zadat poptávku | |
| B31 WHR47228 |
C00413635
482000013472 |
Shield light | Na dotaz | Zadat poptávku | |
| B32 WHR47228 |
C00413636
482000013473 |
Cover screw | Na dotaz | Zadat poptávku | |
| C01 WHR47228 |
C00413747
482000013586 |
Door refriger. | Na dotaz | Zadat poptávku | |
| C02 WHR47228 |
C00484199
481902189202 |
Bracket | Na dotaz | Zadat poptávku | |
| C03 WHR47228 |
C00410094
482000006991 |
Screw | Na dotaz | Zadat poptávku | |
| C04 WHR47228 |
C00413718
482000013557 |
Plug | Na dotaz | Zadat poptávku | |
| C05 WHR47228 |
C00621948
481246228607 |
Stopper | Na dotaz | Zadat poptávku | |
| C06 WHR47228 |
C00410086
482000006983 |
Gasket ref.door (mist beige) | Na dotaz | Zadat poptávku | |
| C07 WHR47228 |
C00413730
482000013569 |
Door dairy | Na dotaz | Zadat poptávku | |
| C08 WHR47228 |
C00413731
482000013570 |
Door dairy large | Na dotaz | Zadat poptávku | |
| C09 WHR47228 |
C00413613
482000013450 |
Nameplate | Na dotaz | Zadat poptávku | |
| C10 WHR47228 |
C00413748
482000013587 |
Door dairy medium | Na dotaz | Zadat poptávku | |
| C11 WHR47228 |
C00413749
482000013588 |
Door dairy | Na dotaz | Zadat poptávku | |
| C12 WHR47228 |
C00413734
482000013573 |
Door flap | Na dotaz | Zadat poptávku | |
| C13 WHR47228 |
C00413750
482000013589 |
Trim door shelf | Na dotaz | Zadat poptávku | |
| C14 WHR47228 |
C00413725
482000013564 |
End cap trim left hand | Na dotaz | Zadat poptávku | |
| C15 WHR47228 |
C00413724
482000013563 |
End cap trim right hand | Na dotaz | Zadat poptávku | |
| C16 WHR47228 |
C00583993
481900489357 |
Screw | Na dotaz | Zadat poptávku | |
| C17 WHR47228 |
C00413726
482000013565 |
Screw | Na dotaz | Zadat poptávku | |
| D01 WHR47228 |
C00413751
482000013590 |
Shelf 30" | Na dotaz | Zadat poptávku | |
| D02 WHR47228 |
C00413752
482000013591 |
Crisper 12" | Na dotaz | Zadat poptávku | |
| D03 WHR47228 |
C00413657
482000013496 |
Rail Guide center | Na dotaz | Zadat poptávku | |
| D04 WHR47228 |
C00413753
482000013592 |
Shelf wire, FC | Na dotaz | Zadat poptávku | |
| D05 WHR47228 |
C00413659
482000013498 |
Rail Guide right | Na dotaz | Zadat poptávku | |
| D06 WHR47228 |
C00413660
482000013499 |
Rail Guide left | Na dotaz | Zadat poptávku | |
| D07 WHR47228 |
C00413661
482000013500 |
Tray meat 16" | Na dotaz | Zadat poptávku | |
| D08 WHR47228 |
C00413662
482000013501 |
Crisper 16" | Na dotaz | Zadat poptávku | |
| D09 WHR47228 |
C00413754
482000013593 |
Cap shelf | Na dotaz | Zadat poptávku | |
| E01 WHR47228 |
C00413755
482000013594 |
Door freezer | Na dotaz | Zadat poptávku | |
| E04 WHR47228 |
C00330484
481246228333 |
Stopper ,door freezer | Na dotaz | Zadat poptávku | |
| E06 WHR47228 |
C00410092
482000006989 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| E08 WHR47228 |
C00413756
482000013595 |
Trim door shelf | Na dotaz | Zadat poptávku | |
| E10 WHR47228 |
C00413757
482000013596 |
Handle door | Na dotaz | Zadat poptávku | |
| F01 WHR47228 |
C00413758
482000013597 |
Plate mounting | Na dotaz | Zadat poptávku | |
| F02 WHR47228 |
C00413645
482000013482 |
Cable harness | Na dotaz | Zadat poptávku | |
| F03 WHR47228 |
C00413640
482000013477 |
Condenser | Na dotaz | Zadat poptávku | |
| F04 WHR47228 |
C00413641
482000013478 |
heater def | Na dotaz | Zadat poptávku | |
| F05 WHR47228 |
C00413642
482000013479 |
Evaporator | Na dotaz | Zadat poptávku | |
| F06 WHR47228 |
C00410155
482000007054 |
Screw | Na dotaz | Zadat poptávku | |
| F07 WHR47228 |
C00413643
482000013480 |
Heat shield | Na dotaz | Zadat poptávku | |
| F08 WHR47228 |
C00413650
482000013488 |
Bracket evaporator | Na dotaz | Zadat poptávku | |
| F09 WHR47228 |
C00413654
482000013493 |
Insulation | Na dotaz | Zadat poptávku | |
| F10 WHR47228 |
C00413445
482000013233 |
Strap compressor | Na dotaz | Zadat poptávku | |
| F11 WHR47228 |
C00413653
482000013492 |
Drainpipe | Na dotaz | Zadat poptávku | |
| F12 WHR47228 |
C00413759
482000013598 |
Cover condenser bottom | Na dotaz | Zadat poptávku | |
| F13 WHR47228 |
C00413652
482000013490 |
Cover clip | Na dotaz | Zadat poptávku | |
| F14 WHR47228 |
C00334700
482000013485 |
Grommet | Na dotaz | Zadat poptávku | |
| F15 WHR47228 |
C00334701
482000013491 |
condenser clip | Na dotaz | Zadat poptávku | |
| F16 WHR47228 |
C00333723
482000006762 |
Grommet | Na dotaz | Zadat poptávku | |
| F17 WHR47228 |
C00194900
481252878061 |
Kolečko | 204 Kč
€ 8.40 |
||
| F18 WHR47228 |
C00622708
481953538136 |
RIVET. | Na dotaz | Zadat poptávku | |
| F19 WHR47228 |
C00343346
480110100178 |
Clamp hose pressostat | Na dotaz | Zadat poptávku | |
| F20 WHR47228 |
C00413647
482000013484 |
Fan | Na dotaz | Zadat poptávku | |
| F21 WHR47228 |
C00493742
481253029321 |
Tube | Na dotaz | Zadat poptávku | |
| F22 WHR47228 |
C00413649
482000013487 |
Tube suction | Na dotaz | Zadat poptávku | |
| F23 WHR47228 |
C00413648
482000013486 |
PTC-Unit | Na dotaz | Zadat poptávku | |
| F24 WHR47228 |
C00410388
482000007294 |
Refrigerator Evaporator Cover Screw | Na dotaz | Zadat poptávku | |
| F25 WHR47228 |
C00413639
482000013476 |
Tray leak | Na dotaz | Zadat poptávku | |
| F26 WHR47228 |
C00332038
482000006446 |
bale Strap | Na dotaz | Zadat poptávku | |
| F27 WHR47228 |
C00336737
481256018043 |
Screw | Na dotaz | Zadat poptávku | |
| F28 WHR47228 |
C00311754
481936038573 |
W10183407 COMPRESSOR | Na dotaz | Zadat poptávku | |
| F29 WHR47228 |
C00333729
482000007020 |
Dryer | Na dotaz | Zadat poptávku | |
| F30 WHR47228 |
C00413646
482000013483 |
Strap | Na dotaz | Zadat poptávku | |
| F31 WHR47228 |
C00313606
481212028006 |
Capacitor | Na dotaz | Zadat poptávku | |
| F32 WHR47228 |
C00413644
482000013481 |
Cover air | Na dotaz | Zadat poptávku | |
| F33 WHR47228 |
C00410124
482000007022 |
Motor | Na dotaz | Zadat poptávku | |
