WHIRLPOOL 5VWT51SFYW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 5VWT51SFYW |
| Kód 12NC: | 856405378000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

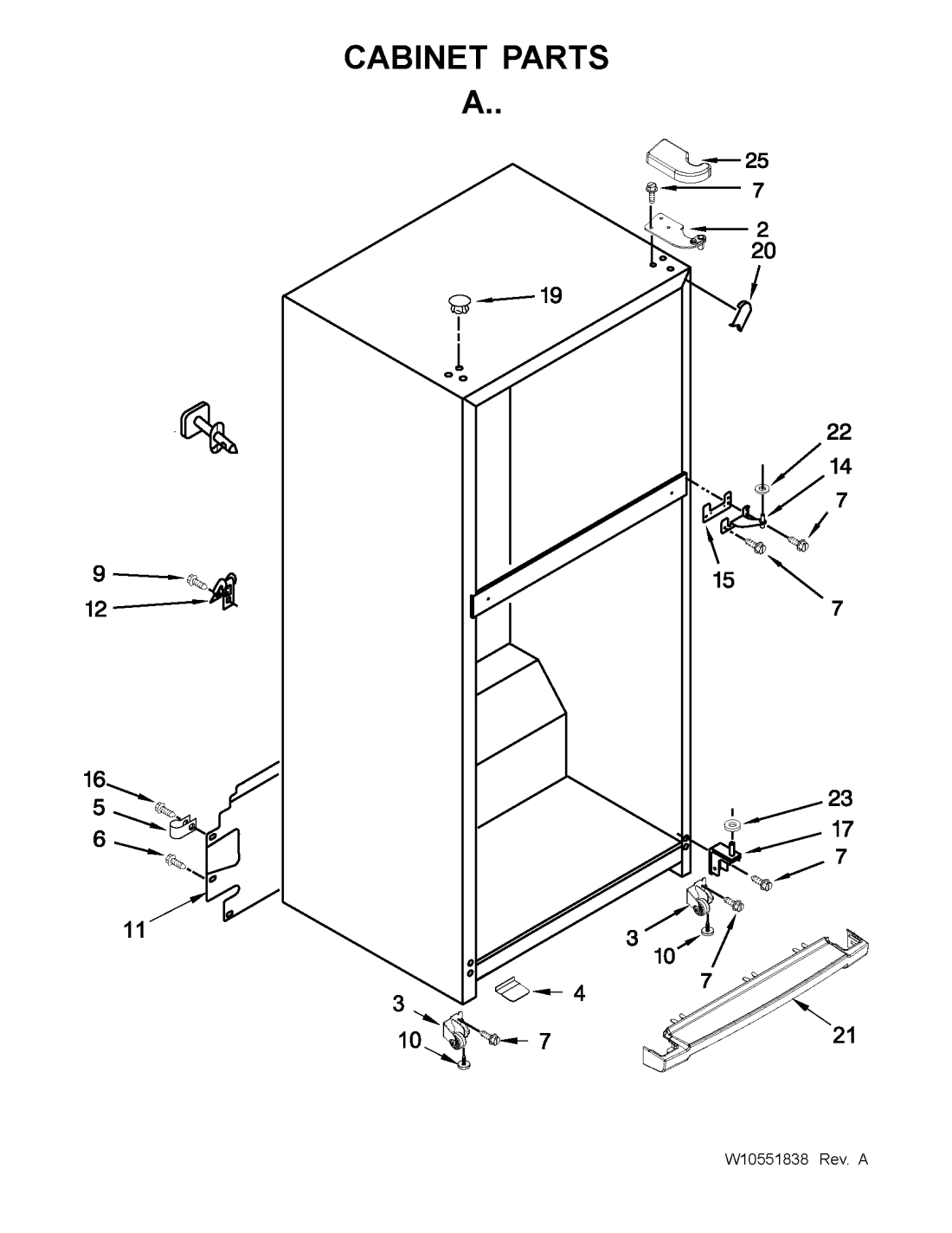

| A02 WHR47246 |
C00413665
482000013504 |
Hinge top | Na dotaz | Zadat poptávku | |
| A03 WHR47246 |
C00413667
482000013506 |
Roller front right side | Na dotaz | Zadat poptávku | |
| A03 WHR47246 |
C00413666
482000013505 |
Roller front left side | Na dotaz | Zadat poptávku | |
| A04 WHR47246 |
C00413668
482000013507 |
End cap grille white | Na dotaz | Zadat poptávku | |
| A04 WHR47246 |
C00413669
482000013508 |
End cap grille grey | Na dotaz | Zadat poptávku | |
| A05 WHR47246 |
C00592891
481940118748 |
Clamp hose. | Na dotaz | Zadat poptávku | |
| A06 WHR47246 |
C00336691
481900489427 |
Screw | Na dotaz | Zadat poptávku | |
| A07 WHR47246 |
C00374341
481256018073 |
Screw | Na dotaz | Zadat poptávku | |
| A09 WHR47246 |
C00592880
481256018036 |
Screw. | Na dotaz | Zadat poptávku | |
| A10 WHR47246 |
C00326614
481201231244 |
Foot | Na dotaz | Zadat poptávku | |
| A11 WHR47246 |
C00413742
482000013581 |
Cover unit | Na dotaz | Zadat poptávku | |
| A12 WHR47246 |
C00499495
481949268548 |
Clamping piece. | Na dotaz | Zadat poptávku | |
| A14 WHR47246 |
C00410077
482000006974 |
Hinge center | Na dotaz | Zadat poptávku | |
| A15 WHR47246 |
C00410138
482000007036 |
Shim hinge center | Na dotaz | Zadat poptávku | |
| A16 WHR47246 |
C00413672
482000013511 |
Screw | Na dotaz | Zadat poptávku | |
| A17 WHR47246 |
C00410078
482000006975 |
Hinge lower | Na dotaz | Zadat poptávku | |
| A19 WHR47246 |
C00622693
481946248298 |
Plug | Na dotaz | Zadat poptávku | |
| A19 WHR47246 |
C00413673
482000013512 |
Plug grey | Na dotaz | Zadat poptávku | |
| A20 WHR47246 |
C00410080
482000006977 |
Cover | Na dotaz | Zadat poptávku | |
| A20 WHR47246 |
C00413674
482000013513 |
Cover grey | Na dotaz | Zadat poptávku | |
| A21 WHR47246 |
C00413744
482000013583 |
Grille | Na dotaz | Zadat poptávku | |
| A21 WHR47246 |
C00413760
482000013599 |
Grille grey | Na dotaz | Zadat poptávku | |
| A22 WHR47246 |
C00494769
481953228268 |
Washer | Na dotaz | Zadat poptávku | |
| A23 WHR47246 |
C00494775
481953268667 |
Washer | Na dotaz | Zadat poptávku | |
| A25 WHR47246 |
C00413677
482000013516 |
Cover hinge white | Na dotaz | Zadat poptávku | |
| A25 WHR47246 |
C00413678
482000013517 |
Cover hinge white | Na dotaz | Zadat poptávku | |
| A25 WHR47246 |
C00413679
482000013518 |
Cover hinge grey | Na dotaz | Zadat poptávku | |
| A25 WHR47246 |
C00413680
482000013519 |
Cover hinge grey | Na dotaz | Zadat poptávku | |
| B02 WHR47246 |
C00491970
481246818045 |
Grommet,leather | Na dotaz | Zadat poptávku | |
| B03 WHR47246 |
C00410100
482000006997 |
Gasket evaporator cover | Na dotaz | Zadat poptávku | |
| B04 WHR47246 |
C00413761
482000013600 |
Regulator hercules | Na dotaz | Zadat poptávku | |
| B05 WHR47246 |
C00413682
482000013521 |
User board | Na dotaz | Zadat poptávku | |
| B06 WHR47246 |
C00413634
482000013471 |
Tube FC | Na dotaz | Zadat poptávku | |
| B07 WHR47246 |
C00413687
482000013526 |
Holder lens | Na dotaz | Zadat poptávku | |
| B08 WHR47246 |
C00413684
482000013523 |
Holder lamp | Na dotaz | Zadat poptávku | |
| B09 WHR47246 |
C00413693
482000013532 |
Holder control | Na dotaz | Zadat poptávku | |
| B10 WHR47246 |
C00410103
482000007000 |
Motor fan | Na dotaz | Zadat poptávku | |
| B11 WHR47246 |
C00636346
481902200509 |
Vrtule ventilátoru mrazničky | 242 Kč
€ 10.60 |
||
| B12 WHR47246 |
C00413685
482000013524 |
Control box | Na dotaz | Zadat poptávku | |
| B13 WHR47246 |
C00413688
482000013527 |
Insert | Na dotaz | Zadat poptávku | |
| B14 WHR47246 |
C00413686
482000013525 |
Thermister | Na dotaz | Zadat poptávku | |
| B15 WHR47246 |
C00336767
481950318156 |
Screw | Na dotaz | Zadat poptávku | |
| B16 WHR47246 |
C00413746
482000013585 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| B17 WHR47246 |
C00413689
482000013528 |
Lamp | Na dotaz | Zadat poptávku | |
| B18 WHR47246 |
C00413690
482000013529 |
Thermister FC | Na dotaz | Zadat poptávku | |
| B19 WHR47246 |
C00317266
481927618293 |
1118894 ROCKER ARM SWITCH-N.C. | Na dotaz | Zadat poptávku | |
| B20 WHR47246 |
C00413702
482000013541 |
Conveyor RC | Na dotaz | Zadat poptávku | |
| B21 WHR47246 |
C00413692
482000013531 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| B22 WHR47246 |
C00413695
482000013534 |
Cover lamp RC | Na dotaz | Zadat poptávku | |
| B23 WHR47246 |
C00413629
482000013466 |
Tube air regul. | Na dotaz | Zadat poptávku | |
| B24 WHR47246 |
C00413694
482000013533 |
Grille air filter bottom | Na dotaz | Zadat poptávku | |
| B25 WHR47246 |
C00413699
482000013538 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| B26 WHR47246 |
C00413701
482000013540 |
Conveyor | Na dotaz | Zadat poptávku | |
| B27 WHR47246 |
C00410213
482000007112 |
Heat shield | Na dotaz | Zadat poptávku | |
| B28 WHR47246 |
C00413633
482000013470 |
Bracket fan motor | Na dotaz | Zadat poptávku | |
| B29 WHR47246 |
C00332799
481900489478 |
Screw | Na dotaz | Zadat poptávku | |
| B30 WHR47246 |
C00410112
482000007009 |
Bracket evap. fan, rear | Na dotaz | Zadat poptávku | |
| B31 WHR47246 |
C00314703
481936058609 |
Valve | Na dotaz | Zadat poptávku | |
| B32 WHR47246 |
C00413697
482000013536 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| B34 WHR47246 |
C00413696
482000013535 |
Lamp | Na dotaz | Zadat poptávku | |
| B35 WHR47246 |
C00413762
482000013601 |
Housing light, FC | Na dotaz | Zadat poptávku | |
| B36 WHR47246 |
C00413691
482000013530 |
Cable harness evaporator fan | Na dotaz | Zadat poptávku | |
| C01 WHR47246 |
C00413751
482000013590 |
Shelf 30" | Na dotaz | Zadat poptávku | |
| C02 WHR47246 |
C00413752
482000013591 |
Crisper 12" | Na dotaz | Zadat poptávku | |
| C03 WHR47246 |
C00413657
482000013496 |
Rail Guide center | Na dotaz | Zadat poptávku | |
| C04 WHR47246 |
C00413763
482000013602 |
Shelf glass freezer | Na dotaz | Zadat poptávku | |
| C05 WHR47246 |
C00413706
482000013545 |
Rail Guide right | Na dotaz | Zadat poptávku | |
| C06 WHR47246 |
C00413707
482000013546 |
Rail Guide left | Na dotaz | Zadat poptávku | |
| C07 WHR47246 |
C00413764
482000013603 |
Tray meat | Na dotaz | Zadat poptávku | |
| C08 WHR47246 |
C00413704
482000013543 |
Crisper 16" | Na dotaz | Zadat poptávku | |
| C09 WHR47246 |
C00413765
482000013604 |
Shelf 2/3 flip, 33" | Na dotaz | Zadat poptávku | |
| C10 WHR47246 |
C00413713
482000013552 |
Support freezer shelf, right | Na dotaz | Zadat poptávku | |
| C11 WHR47246 |
C00413710
482000013549 |
Shelf 2/3 flip | Na dotaz | Zadat poptávku | |
| C12 WHR47246 |
C00413712
482000013551 |
Support freezer shelf, left | Na dotaz | Zadat poptávku | |
| C13 WHR47246 |
C00413714
482000013553 |
Holder filter | Na dotaz | Zadat poptávku | |
| C14 WHR47246 |
C00413715
482000013554 |
Filter produce preserver | Na dotaz | Zadat poptávku | |
| D01 WHR47246 |
C00413766
482000013605 |
Door freezer white | Na dotaz | Zadat poptávku | |
| D01 WHR47246 |
C00413767
482000013606 |
Door freezer sparkle | Na dotaz | Zadat poptávku | |
| D02 WHR47246 |
C00484199
481902189202 |
Bracket | Na dotaz | Zadat poptávku | |
| D04 WHR47246 |
C00413718
482000013557 |
Plug | Na dotaz | Zadat poptávku | |
| D05 WHR47246 |
C00621948
481246228607 |
Stopper | Na dotaz | Zadat poptávku | |
| D05 WHR47246 |
C00413719
482000013558 |
Plug grey | Na dotaz | Zadat poptávku | |
| D06 WHR47246 |
C00410092
482000006989 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| D06 WHR47246 |
C00413768
482000013607 |
Gasket.fre.door magnetic, grey | Na dotaz | Zadat poptávku | |
| D07 WHR47246 |
C00410094
482000006991 |
Screw | Na dotaz | Zadat poptávku | |
| D08 WHR47246 |
C00413769
482000013608 |
Trim door shelf | Na dotaz | Zadat poptávku | |
| D09 WHR47246 |
C00413520
482000013317 |
Nameplate white | Na dotaz | Zadat poptávku | |
| D09 WHR47246 |
C00413521
482000013318 |
Nameplate grey | Na dotaz | Zadat poptávku | |
| D10 WHR47246 |
C00413722
482000013561 |
Handle door white | Na dotaz | Zadat poptávku | |
| D10 WHR47246 |
C00413723
482000013562 |
Handle door titanium sparkle | Na dotaz | Zadat poptávku | |
| D12 WHR47246 |
C00498908
481931038734 |
Screw. | Na dotaz | Zadat poptávku | |
| D13 WHR47246 |
C00413726
482000013565 |
Screw | Na dotaz | Zadat poptávku | |
| D14 WHR47246 |
C00583993
481900489357 |
Screw | Na dotaz | Zadat poptávku | |
| D15 WHR47246 |
C00413725
482000013564 |
End cap trim left hand | Na dotaz | Zadat poptávku | |
| D15 WHR47246 |
C00413724
482000013563 |
End cap trim right hand | Na dotaz | Zadat poptávku | |
| E01 WHR47246 |
C00413770
482000013609 |
Door refriger. white | Na dotaz | Zadat poptávku | |
| E01 WHR47246 |
C00413771
482000013610 |
Door refriger. sparkle | Na dotaz | Zadat poptávku | |
| E04 WHR47246 |
C00413731
482000013570 |
Door dairy large | Na dotaz | Zadat poptávku | |
| E06 WHR47246 |
C00410086
482000006983 |
Gasket ref.door (mist beige) | Na dotaz | Zadat poptávku | |
| E06 WHR47246 |
C00413772
482000013611 |
Gasket ref.door magnetic, grey | Na dotaz | Zadat poptávku | |
| E07 WHR47246 |
C00413730
482000013569 |
Door dairy | Na dotaz | Zadat poptávku | |
| E10 WHR47246 |
C00413748
482000013587 |
Door dairy medium | Na dotaz | Zadat poptávku | |
| E11 WHR47246 |
C00413733
482000013572 |
Door dairy tilt out | Na dotaz | Zadat poptávku | |
| E12 WHR47246 |
C00413734
482000013573 |
Door flap | Na dotaz | Zadat poptávku | |
| E13 WHR47246 |
C00413773
482000013612 |
Trim door shelf | Na dotaz | Zadat poptávku | |
| F01 WHR47246 |
C00413758
482000013597 |
Plate mounting | Na dotaz | Zadat poptávku | |
| F02 WHR47246 |
C00336737
481256018043 |
Screw | Na dotaz | Zadat poptávku | |
| F03 WHR47246 |
C00413640
482000013477 |
Condenser | Na dotaz | Zadat poptávku | |
| F04 WHR47246 |
C00413641
482000013478 |
heater def | Na dotaz | Zadat poptávku | |
| F05 WHR47246 |
C00413642
482000013479 |
Evaporator | Na dotaz | Zadat poptávku | |
| F06 WHR47246 |
C00410155
482000007054 |
Screw | Na dotaz | Zadat poptávku | |
| F07 WHR47246 |
C00413643
482000013480 |
Heat shield | Na dotaz | Zadat poptávku | |
| F08 WHR47246 |
C00413639
482000013476 |
Tray leak | Na dotaz | Zadat poptávku | |
| F09 WHR47246 |
C00493742
481253029321 |
Tube | Na dotaz | Zadat poptávku | |
| F10 WHR47246 |
C00413649
482000013487 |
Tube suction | Na dotaz | Zadat poptávku | |
| F11 WHR47246 |
C00413646
482000013483 |
Strap | Na dotaz | Zadat poptávku | |
| F12 WHR47246 |
C00413647
482000013484 |
Fan | Na dotaz | Zadat poptávku | |
| F13 WHR47246 |
C00413645
482000013482 |
Cable harness | Na dotaz | Zadat poptávku | |
| F14 WHR47246 |
C00334700
482000013485 |
Grommet | Na dotaz | Zadat poptávku | |
| F15 WHR47246 |
C00413648
482000013486 |
PTC-Unit | Na dotaz | Zadat poptávku | |
| F16 WHR47246 |
C00333723
482000006762 |
Grommet | Na dotaz | Zadat poptávku | |
| F17 WHR47246 |
C00413736
482000013575 |
Roller | Na dotaz | Zadat poptávku | |
| F18 WHR47246 |
C00622708
481953538136 |
RIVET. | Na dotaz | Zadat poptávku | |
| F19 WHR47246 |
C00413759
482000013598 |
Cover condenser bottom | Na dotaz | Zadat poptávku | |
| F20 WHR47246 |
C00413445
482000013233 |
Strap compressor | Na dotaz | Zadat poptávku | |
| F21 WHR47246 |
C00334701
482000013491 |
condenser clip | Na dotaz | Zadat poptávku | |
| F22 WHR47246 |
C00313606
481212028006 |
Capacitor | Na dotaz | Zadat poptávku | |
| F23 WHR47246 |
C00413737
482000013576 |
Dryer | Na dotaz | Zadat poptávku | |
| F24 WHR47246 |
C00332038
482000006446 |
bale Strap | Na dotaz | Zadat poptávku | |
| F25 WHR47246 |
C00413644
482000013481 |
Cover air | Na dotaz | Zadat poptávku | |
| F26 WHR47246 |
C00410124
482000007022 |
Motor | Na dotaz | Zadat poptávku | |
| F27 WHR47246 |
C00413738
482000013577 |
Drainpipe | Na dotaz | Zadat poptávku | |
| F28 WHR47246 |
C00311754
481936038573 |
W10183407 COMPRESSOR | Na dotaz | Zadat poptávku | |
