| Komerční kód: | 5WRS25KNBF |
| Kód 12NC: | 850543978010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

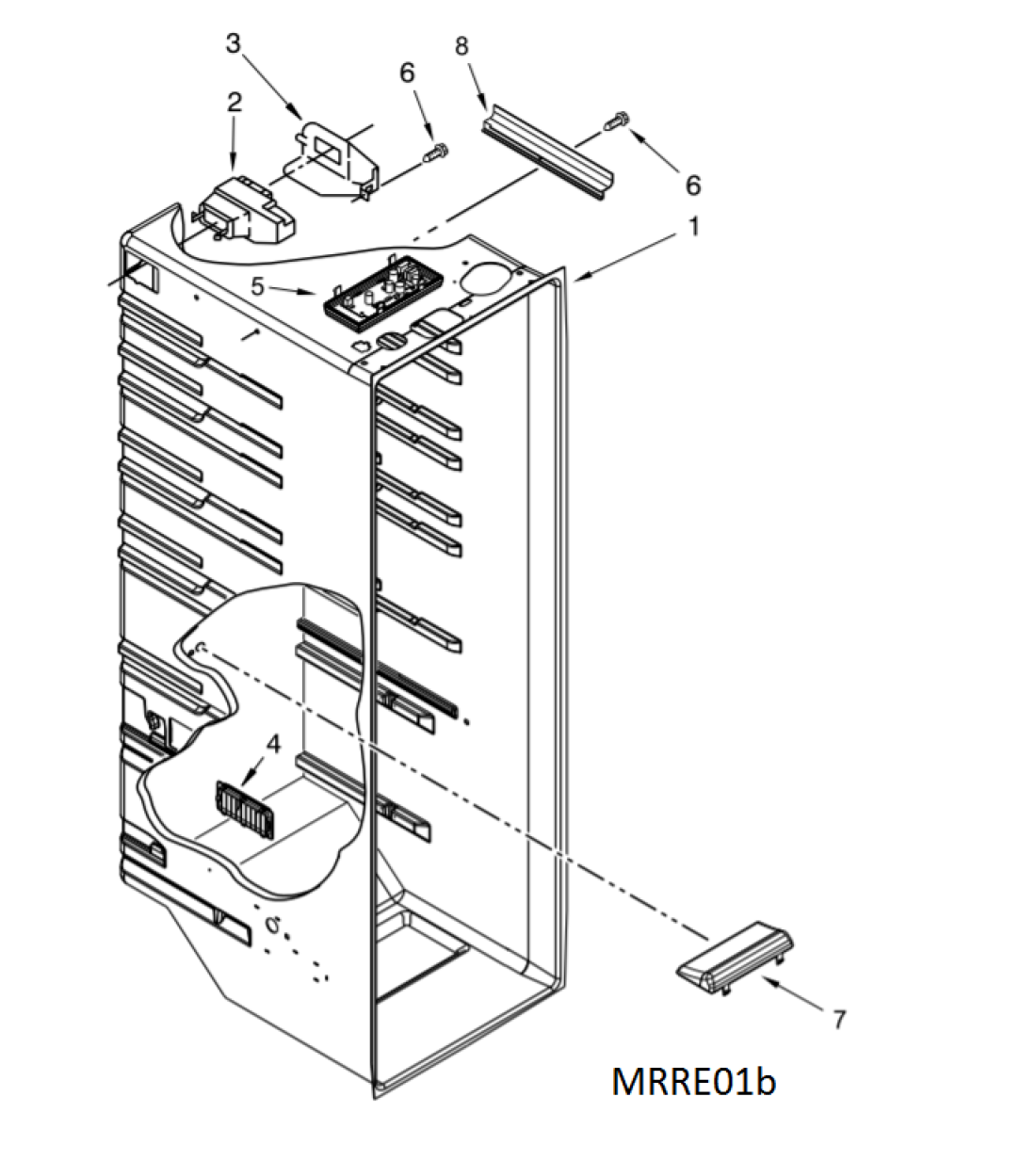

| 002 MRRE01b |
C00522578
482000099055 |
Air diffuser assy | Na dotaz | Zadat poptávku | |
| 003 MRRE01b |
C00522579
482000099056 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| 004 MRRE01b |
C00616888
488000616888 |
Louver | Na dotaz | Zadat poptávku | |
| 005 MRRE01b |
C00534220
488000534220 |
LED Light Assembly | Na dotaz | Zadat poptávku | |
| 007 MRRE01b |
C00522597
482000099075 |
Lamp LED assembly | Na dotaz | Zadat poptávku | |
| 008 MRRE01b |
C00536541
482000099059 |
Cover wiring | Na dotaz | Zadat poptávku | |
| 001 MRRE01c |
C00522582
482000099060 |
Shelf assembly | Na dotaz | Zadat poptávku | |
| 002 MRRE01c |
C00616859
488000616859 |
Shelf Stud | Na dotaz | Zadat poptávku | |
| 003 MRRE01c |
C00616861
488000616861 |
pan cover | Na dotaz | Zadat poptávku | |
| 005 MRRE01c |
C00317340
481945069971 |
Glass cover | Na dotaz | Zadat poptávku | |
| 006 MRRE01c |
C00534222
488000534222 |
Snack Pan trim | Na dotaz | Zadat poptávku | |
| 007 MRRE01c |
C00342282
481245088057 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 008 MRRE01c |
C00342300
481255028002 |
zasuvka USA | 3 085 Kč
€ 135.60 |
||
| 009 MRRE01c |
C00616855
488000616855 |
Shelf Stud | Na dotaz | Zadat poptávku | |
| 011 MRRE01c |
C00616865
488000616865 |
pan trim | Na dotaz | Zadat poptávku | |
| 012 MRRE01c |
C00316080
481241818372 |
meat drawer | Na dotaz | Zadat poptávku | |
| 013 MRRE01c |
C00522591
482000099069 |
Slide humidity control | Na dotaz | Zadat poptávku | |
| 014 MRRE01c |
C00522592
482000099070 |
Slide humidity control | Na dotaz | Zadat poptávku | |
| 015 MRRE01c |
C00522593
482000099071 |
Pan trim | Na dotaz | Zadat poptávku | |
| 016 MRRE01c |
C00616869
488000616869 |
snack drawer | Na dotaz | Zadat poptávku | |
| 017 MRRE01c |
C00522595
482000099073 |
Pan shelf snack | Na dotaz | Zadat poptávku | |
| 004 MRRE01d |
C00522598
482000099076 |
Plug fill tube | Na dotaz | Zadat poptávku | |
| 006 MRRE01d |
C00410239
482000007138 |
Clip | Na dotaz | Zadat poptávku | |
| 007 MRRE01d |
C00522600
482000099078 |
Shelf wire | Na dotaz | Zadat poptávku | |
| 008 MRRE01d |
C00522601
482000099079 |
Shelf wire | Na dotaz | Zadat poptávku | |
| 009 MRRE01d |
C00522602
482000099080 |
Shelf cup | Na dotaz | Zadat poptávku | |
| 010 MRRE01d |
C00522603
482000099081 |
Shelf wire | Na dotaz | Zadat poptávku | |
| 011 MRRE01d |
C00616856
488000616856 |
bin | Na dotaz | Zadat poptávku | |
| 012 MRRE01d |
C00522605
482000099083 |
Shelf wire | Na dotaz | Zadat poptávku | |
| 014 MRRE01d |
C00522606
482000099084 |
Cover wiring | Na dotaz | Zadat poptávku | |
| 015 MRRE01d |
C00536542
482000099085 |
Switch rocker arm | Na dotaz | Zadat poptávku | |
| 001 MRRE01e |
C00616853
488000616853 |
Refrigerator Door White | Na dotaz | Zadat poptávku | |
| 003 MRRE01e |
C00522608
482000099087 |
Door compartment | Na dotaz | Zadat poptávku | |
| 004 MRRE01e |
C00522609
482000099088 |
Potm,triple | Na dotaz | Zadat poptávku | |
| 006 MRRE01e |
C00336412
481941879274 |
police USA | 1 690 Kč
€ 74.30 |
||
| 009 MRRE01e |
C00522615
482000099094 |
Handle white | Na dotaz | Zadat poptávku | |
| 010 MRRE01e |
C00522616
482000099095 |
Socket | Na dotaz | Zadat poptávku | |
| 012 MRRE01e |
C00616852
488000616852 |
Cam Thimble | Na dotaz | Zadat poptávku | |
| 013 MRRE01e |
C00522612
482000099091 |
Bracket door stop | Na dotaz | Zadat poptávku | |
| 014 MRRE01e |
C00522613
482000099092 |
Nameplate white | Na dotaz | Zadat poptávku | |
| 001 MRRE01f |
C00616851
488000616851 |
Freezer Door White | Na dotaz | Zadat poptávku | |
| 008 MRRE01f |
C00522617
482000099096 |
Socket triple | Na dotaz | Zadat poptávku | |
| 011 MRRE01f |
C00522619
482000099098 |
Bracket door stop silver | Na dotaz | Zadat poptávku | |
| 001 MRRE01g |
C00522620
482000099099 |
Fan scroll | Na dotaz | Zadat poptávku | |
| 002 MRRE01g |
C00522622
482000099100 |
Fan motor retainer | Na dotaz | Zadat poptávku | |
| 003 MRRE01g |
C00616848
488000616848 |
Air Scoop | Na dotaz | Zadat poptávku | |
| 004 MRRE01g |
C00522624
482000099102 |
Defrost bi-metal | Na dotaz | Zadat poptávku | |
| 005 MRRE01g |
C00522625
482000099103 |
Grid freezer air duct | Na dotaz | Zadat poptávku | |
| 007 MRRE01g |
C00522626
482000099104 |
Fan motor | Na dotaz | Zadat poptávku | |
| 008 MRRE01g |
C00536543
482000099105 |
Fan blade | Na dotaz | Zadat poptávku | |
| 009 MRRE01g |
C00522627
482000099106 |
Gasket | Na dotaz | Zadat poptávku | |
| 010 MRRE01g |
C00522628
482000099107 |
Grommet motor | Na dotaz | Zadat poptávku | |
| 012 MRRE01g |
C00522629
482000099108 |
Cable harness fan evaporator | Na dotaz | Zadat poptávku | |
| 013 MRRE01g |
C00522630
482000099109 |
Gasket unit | Na dotaz | Zadat poptávku | |
| 014 MRRE01g |
C00616849
488000616849 |
Gasket | Na dotaz | Zadat poptávku | |
| 015 MRRE01g |
C00522632
482000099111 |
Cover evaporator | Na dotaz | Zadat poptávku | |
| 017 MRRE01g |
C00616850
488000616850 |
Fan Scroll Support | Na dotaz | Zadat poptávku | |
| 001 MRRE01h |
C00522634
482000099113 |
Box control | Na dotaz | Zadat poptávku | |
| 002 MRRE01h |
C00522635
482000099114 |
Thermostat slide | Na dotaz | Zadat poptávku | |
| 004 MRRE01h |
C00522636
482000099115 |
Switch light | Na dotaz | Zadat poptávku | |
| 005 MRRE01h |
C00339446
481902196003 |
hadice | 287 Kč
€ 12.60 |
||
| 006 MRRE01h |
C00312871
481228218669 |
spinac casovy | 2 204 Kč
€ 96.90 |
||
| 007 MRRE01h |
C00522639
482000099118 |
2321305 THERMOSTAT-EATON,IEC | Na dotaz | Zadat poptávku | |
| 008 MRRE01h |
C00522640
482000099119 |
Thermostat FC | Na dotaz | Zadat poptávku | |
| 009 MRRE01h |
C00522641
482000099120 |
Cable harness control box | Na dotaz | Zadat poptávku | |
| 002 MRRE01k |
C00454692
481201231042 |
W10156818 BLADE-FAN | Na dotaz | Zadat poptávku | |
| 003 MRRE01k |
C00536545
482000099123 |
Condenser assembly | Na dotaz | Zadat poptávku | |
| 005 MRRE01k |
C00334701
482000013491 |
condenser clip | Na dotaz | Zadat poptávku | |
| 007 MRRE01k |
C00522644
482000099125 |
Heat shield and drain pan | Na dotaz | Zadat poptávku | |
| 008 MRRE01k |
C00522645
482000099126 |
Tube suction | Na dotaz | Zadat poptávku | |
| 009 MRRE01k |
C00410372
482000007277 |
Tube process | Na dotaz | Zadat poptávku | |
| 010 MRRE01k |
C00522647
482000099128 |
Starter | Na dotaz | Zadat poptávku | |
| 011 MRRE01k |
C00522648
482000099129 |
Strap bale | Na dotaz | Zadat poptávku | |
| 012 MRRE01k |
C00432041
480132100838 |
Fastener Condenser | Na dotaz | Zadat poptávku | |
| 014 MRRE01k |
C00522649
482000099130 |
Clip defrost heater | Na dotaz | Zadat poptávku | |
| 015 MRRE01k |
C00522650
482000099131 |
Fan guard | Na dotaz | Zadat poptávku | |
| 016 MRRE01k |
C00592521
488000592521 |
rukáv | Na dotaz | Zadat poptávku | |
| 017 MRRE01k |
C00522652
482000099133 |
Capacitor | Na dotaz | Zadat poptávku | |
| 020 MRRE01k |
C00522653
482000099134 |
Cover unit bottom | Na dotaz | Zadat poptávku | |
| 021 MRRE01k |
C00522654
482000099135 |
Clip | Na dotaz | Zadat poptávku | |
| 022 MRRE01k |
C00522655
482000099136 |
Evaporator assembly | Na dotaz | Zadat poptávku | |
| 023 MRRE01k |
C00414360
482000014920 |
Clip | Na dotaz | Zadat poptávku | |
| 024 MRRE01k |
C00616847
488000616847 |
Motor Fan | Na dotaz | Zadat poptávku | |
| 025 MRRE01k |
C00318065
481941878471 |
evaporator tray | Na dotaz | Zadat poptávku | |
| 026 MRRE01k |
C00522658
482000099139 |
Cable harness unit | Na dotaz | Zadat poptávku | |
| 027 MRRE01k |
C00522659
482000099140 |
Dryer | Na dotaz | Zadat poptávku | |
| 028 MRRE01k |
C00311754
481936038573 |
W10183407 COMPRESSOR | Na dotaz | Zadat poptávku | |
| 029 MRRE01k |
C00522661
482000099142 |
Frame unit mounting | Na dotaz | Zadat poptávku | |
| 030 MRRE01k |
C00522662
482000099143 |
Bracket fan motor | Na dotaz | Zadat poptávku | |
| 031 MRRE01k |
C00522663
482000099144 |
Defrost heater | Na dotaz | Zadat poptávku | |
| 033 MRRE01k |
C00334700
482000013485 |
Grommet | Na dotaz | Zadat poptávku | |
| 034 MRRE01k |
C00522665
482000099146 |
Air guide baffle | Na dotaz | Zadat poptávku | |
| 035 MRRE01k |
C00534226
488000534226 |
Unit Mounting Rail | Na dotaz | Zadat poptávku | |
| 002 MRRE14 |
C00522562
482000099039 |
Roller | Na dotaz | Zadat poptávku | |
| 004 MRRE14 |
C00522563
482000099040 |
Roller | Na dotaz | Zadat poptávku | |
| 005 MRRE14 |
C00410120
482000007017 |
Rivet | Na dotaz | Zadat poptávku | |
| 006 MRRE14 |
C00522565
482000099042 |
Clip grille | Na dotaz | Zadat poptávku | |
| 009 MRRE14 |
C00522566
482000099043 |
Roller clip | Na dotaz | Zadat poptávku | |
| 011 MRRE14 |
C00526259
482000099635 |
Plate screw | Na dotaz | Zadat poptávku | |
| 012 MRRE14 |
C00522567
482000099044 |
Hinge door assy | Na dotaz | Zadat poptávku | |
| 013 MRRE14 |
C00616882
488000616882 |
Hinge Bottom RC | Na dotaz | Zadat poptávku | |
| 016 MRRE14 |
C00616883
488000616883 |
Hinge Bottom FC | Na dotaz | Zadat poptávku | |
| 017 MRRE14 |
C00522570
482000099047 |
Roller front right | Na dotaz | Zadat poptávku | |
| 018 MRRE14 |
C00522571
482000099048 |
Filling piece wrapper | Na dotaz | Zadat poptávku | |
| 019 MRRE14 |
C00522572
482000099049 |
Grille | Na dotaz | Zadat poptávku | |
| 022 MRRE14 |
C00522573
482000099050 |
Drain strip fitting | Na dotaz | Zadat poptávku | |
| 023 MRRE14 |
C00522574
482000099051 |
Drain strip extension | Na dotaz | Zadat poptávku | |
| 024 MRRE14 |
C00616885
488000616885 |
unit cover | Na dotaz | Zadat poptávku | |
| 026 MRRE14 |
C00522576
482000099053 |
Door closer freezer | Na dotaz | Zadat poptávku | |
| 027 MRRE14 |
C00410186
482000007085 |
Clamp cable | Na dotaz | Zadat poptávku | |
