| Komerční kód: | 70145170 PRO D20 AN |
| Kód 12NC/I.C. kód: | 852340022000 |
| Značka: | IKEA |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

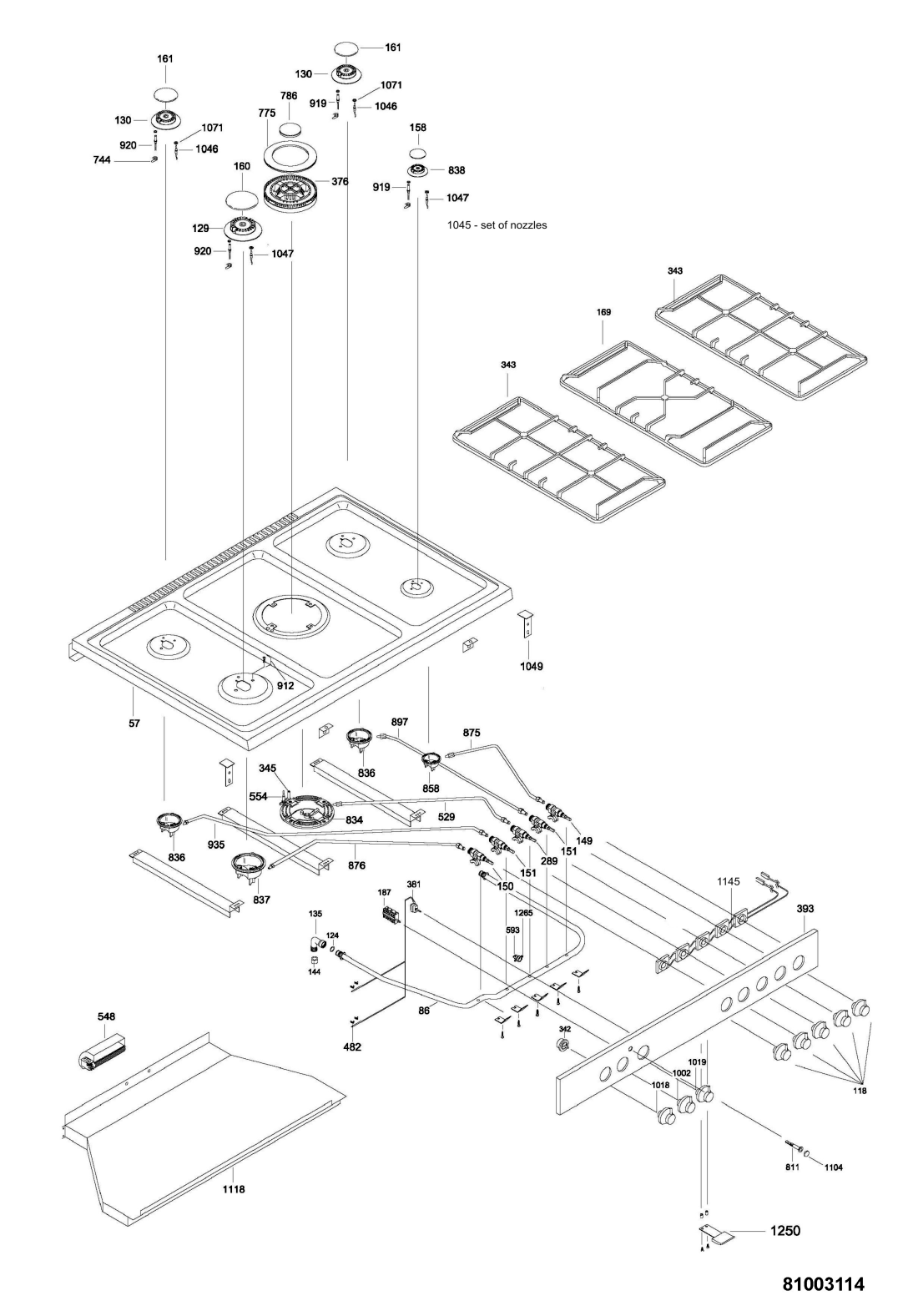

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1002 WHR20630 |
C00321961
480121101002 |
Knob elec.oven | Na dotaz | Zadat poptávku | |
| 1018 WHR20630 |
C00321962
480121101003 |
Knob clock | Na dotaz | Zadat poptávku | |
| 1019 WHR20630 |
C00321960
480121101001 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 1045 WHR20630 |
C00322039
480121101942 |
Set of nozzles G20 | Na dotaz | Zadat poptávku | |
| 1045 WHR20630 |
C00327653
481231038981 |
Set of nozzles LPG(G30/31) | Na dotaz | Zadat poptávku | |
| 1046 WHR20630 |
C00317875
481225268038 |
termoclanek | Na dotaz | Zadat poptávku | |
| 1046 WHR20630 |
C00327110
481225268072 |
Safety device left/right rear SR burner | Na dotaz | Zadat poptávku | |
| 1047 WHR20630 |
C00318339
481225268039 |
termoclanek | Na dotaz | Zadat poptávku | |
| 1049 WHR20630 |
C00328996
481240418593 |
Bracket Hob | Na dotaz | Zadat poptávku | |
| 1071 WHR20630 |
C00332101
481250218666 |
Screw | Na dotaz | Zadat poptávku | |
| 1104 WHR20630 |
C00317822
481238118258 |
kryt signalky oranz. | 149 Kč
€ 6.10 |
||
| 1118 WHR20630 |
C00321972
480121101029 |
Air conveyor | Na dotaz | Zadat poptávku | |
| 1131 WHR20630 |
C00331772
482000002634 |
Baking tray | Na dotaz | Zadat poptávku | |
| 1145 WHR20630 |
C00316177
480121101038 |
Switch ignition | Na dotaz | Zadat poptávku | |
| 118 WHR20630 |
C00321959
480121100999 |
nob tap | Na dotaz | Zadat poptávku | |
| 1196 WHR20630 |
C00332715
481253538111 |
Support foot | Na dotaz | Zadat poptávku | |
| 123 WHR20630 |
C00321967
480121101011 |
Foot | Na dotaz | Zadat poptávku | |
| 1250 WHR20630 |
C00344969
481249148048 |
Spring door fixing | Na dotaz | Zadat poptávku | |
| 1250 WHR20630 |
C00345742
481249148047 |
Spring door fixing black | Na dotaz | Zadat poptávku | |
| 1251 WHR20630 |
C00327637
481231038873 |
Door lock | Na dotaz | Zadat poptávku | |
| 1265 WHR20630 |
C00330343
481246049825 |
Plate for thermoswitch | Na dotaz | Zadat poptávku | |
| 129 WHR20630 |
C00328643
481236068273 |
ROZPTYLOVAC PLA | Na dotaz | Zadat poptávku | |
| 130 WHR20630 |
C00328642
481236068272 |
ROZPTYLOVAC PLA | Na dotaz | Zadat poptávku | |
| 135 WHR20630 |
C00328644
481236068282 |
Tube bend | Na dotaz | Zadat poptávku | |
| 144 WHR20630 |
C00328695
481236068796 |
Tube connector | Na dotaz | Zadat poptávku | |
| 149 WHR20630 |
C00430456
480121101019 |
Valve 190 (0,24) | Na dotaz | Zadat poptávku | |
| 150 WHR20630 |
C00430454
480121101017 |
Valve 190 (0,36) | Na dotaz | Zadat poptávku | |
| 151 WHR20630 |
C00430455
480121101018 |
Valve 190 (0,29) | Na dotaz | Zadat poptávku | |
| 158 WHR20630 |
C00318332
481236068657 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 160 WHR20630 |
C00318348
481236068658 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 161 WHR20630 |
C00313783
481236068659 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 165 WHR20630 |
C00321912
480121100571 |
Hinge | Na dotaz | Zadat poptávku | |
| 169 WHR20630 |
C00330157
481245848389 |
Grid for hob centre | Na dotaz | Zadat poptávku | |
| 177 WHR20630 |
C00330104
481245819398 |
Oven shelf wire | Na dotaz | Zadat poptávku | |
| 180 WHR20630 |
C00331775
482000002638 |
Grid support | Na dotaz | Zadat poptávku | |
| 187 WHR20630 |
C00315119
481227618471 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 191 WHR20630 |
C00326874
481214528043 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 197 WHR20630 |
C00322338
480121103605 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| 201 WHR20630 |
C00327586
481229068164 |
Connection block | Na dotaz | Zadat poptávku | |
| 212 WHR20630 |
C00321965
480121101008 |
Door complete | Na dotaz | Zadat poptávku | |
| 28 WHR20630 |
C00329129
481240449818 |
Support upper grill heating elem | Na dotaz | Zadat poptávku | |
| 289 WHR20630 |
C00430457
480121101021 |
Valve 190 (0,48) | Na dotaz | Zadat poptávku | |
| 290 WHR20630 |
C00321924
480121100667 |
Inner glass | Na dotaz | Zadat poptávku | |
| 312 WHR20630 |
C00331043
481244229266 |
Cover oven fan | Na dotaz | Zadat poptávku | |
| 318 WHR20630 |
C00321966
480121101009 |
Handle | Na dotaz | Zadat poptávku | |
| 322 WHR20630 |
C00328973
481240418454 |
Bracket oven shelf | Na dotaz | Zadat poptávku | |
| 325 WHR20630 |
C00322038
480121101766 |
profile ,DOOR, BOTTOM | Na dotaz | Zadat poptávku | |
| 326 WHR20630 |
C00311613
480121101033 |
Heating element circular | Na dotaz | Zadat poptávku | |
| 329 WHR20630 |
C00457527
481236178044 |
Motor oven fan cpl. | Na dotaz | Zadat poptávku | |
| 337 WHR20630 |
C00327169
481225948167 |
Topné těleso trouby – spodní | Na dotaz | Zadat poptávku | |
| 338 WHR20630 |
C00327170
481225948168 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 342 WHR20630 |
C00332848
481928218475 |
Time switch | Na dotaz | Zadat poptávku | |
| 343 WHR20630 |
C00319151
481245848391 |
Grid for hob right/left | Na dotaz | Zadat poptávku | |
| 345 WHR20630 |
C00327107
481225268068 |
Spark plug triple crown | Na dotaz | Zadat poptávku | |
| 376 WHR20630 |
C00328672
481236068665 |
Burner ring triple crown | Na dotaz | Zadat poptávku | |
| 381 WHR20630 |
C00312002
481228238149 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 393 WHR20630 |
C00321969
480121101016 |
Control panel | Na dotaz | Zadat poptávku | |
| 449 WHR20630 |
C00333316
481953238099 |
RING | Na dotaz | Zadat poptávku | |
| 47 WHR20630 |
C00331774
482000002637 |
Frame oven | Na dotaz | Zadat poptávku | |
| 482 WHR20630 |
C00345740
481249148007 |
Clip fix thermostat | Na dotaz | Zadat poptávku | |
| 484 WHR20630 |
C00322015
480121101368 |
Support left/right | Na dotaz | Zadat poptávku | |
| 508 WHR20630 |
C00328395
481244089076 |
Drawer counter door | Na dotaz | Zadat poptávku | |
| 529 WHR20630 |
C00322346
480121103634 |
Pipe | Na dotaz | Zadat poptávku | |
| 535 WHR20630 |
C00332989
481941719425 |
Hinge drawer | Na dotaz | Zadat poptávku | |
| 548 WHR20630 |
C00321888
480121100444 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 55 WHR20630 |
C00322470
480121104483 |
Side panel | Na dotaz | Zadat poptávku | |
| 554 WHR20630 |
C00327108
481225268069 |
Safety device TC | Na dotaz | Zadat poptávku | |
| 57 WHR20630 |
C00321968
480121101015 |
Hob | Na dotaz | Zadat poptávku | |
| 59 WHR20630 |
C00321964
480121101007 |
Drawer door | Na dotaz | Zadat poptávku | |
| 593 WHR20630 |
C00327235
481227128588 |
Temper.limiter | Na dotaz | Zadat poptávku | |
| 625 WHR20630 |
C00330709
481246268901 |
Spacer tubular handle nirosta | Na dotaz | Zadat poptávku | |
| 625 WHR20630 |
C00333333
481953268891 |
Spacer glass/tubular handle | Na dotaz | Zadat poptávku | |
| 632 WHR20630 |
C00327517
481228158001 |
Magnet | Na dotaz | Zadat poptávku | |
| 662 WHR20630 |
C00315662
480121100568 |
Těsnění | 1 179 Kč
€ 48.50 |
||
| 737 WHR20630 |
C00430458
480121101022 |
Microswitch | Na dotaz | Zadat poptávku | |
| 744 WHR20630 |
C00332673
481253258016 |
Spring | Na dotaz | Zadat poptávku | |
| 775 WHR20630 |
C00317625
481236068667 |
Burner cap triple crown outer | Na dotaz | Zadat poptávku | |
| 786 WHR20630 |
C00328674
481236068668 |
Burner cap triple crown inner | Na dotaz | Zadat poptávku | |
| 811 WHR20630 |
C00326838
481213448353 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 834 WHR20630 |
C00328771
481236078126 |
Burner body triple crown | Na dotaz | Zadat poptávku | |
| 836 WHR20630 |
C00328761
481236078072 |
Burner SR | Na dotaz | Zadat poptávku | |
| 837 WHR20630 |
C00328772
481236078127 |
Burner R | Na dotaz | Zadat poptávku | |
| 838 WHR20630 |
C00328641
481236068271 |
ROZPTYLOVAC PLA | Na dotaz | Zadat poptávku | |
| 850 WHR20630 |
C00333001
481941758151 |
Hinge run.mech. | Na dotaz | Zadat poptávku | |
| 858 WHR20630 |
C00328760
481236078071 |
Burner A | Na dotaz | Zadat poptávku | |
| 86 WHR20630 |
C00321971
480121101028 |
Pipe | Na dotaz | Zadat poptávku | |
| 875 WHR20630 |
C00322345
480121103633 |
Tube front right | Na dotaz | Zadat poptávku | |
| 876 WHR20630 |
C00322344
480121103632 |
Tube front left | Na dotaz | Zadat poptávku | |
| 897 WHR20630 |
C00321970
480121101023 |
Pipe rear right | Na dotaz | Zadat poptávku | |
| 919 WHR20630 |
C00327105
481225268019 |
Spark plug semi rapid | Na dotaz | Zadat poptávku | |
| 920 WHR20630 |
C00327109
481225268071 |
Spark plug L=900 | Na dotaz | Zadat poptávku | |
| 922 WHR20630 |
C00328941
481240118884 |
Clamp ,spacer | Na dotaz | Zadat poptávku | |
| 935 WHR20630 |
C00322342
480121103627 |
Tube rear left | Na dotaz | Zadat poptávku | |
| 999 WHR20630 |
C00317684
481245059791 |
Glass triple | Na dotaz | Zadat poptávku | |
| 999 WHR20632 |
C00560487 | Gastable WHP | Na dotaz | Zadat poptávku | |
