| Komerční kód: | IBS324PVS |
| Kód 12NC/I.C. kód: | 857922297000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857922297001 |
Potřebujete servis? Jsme tady pro Vás

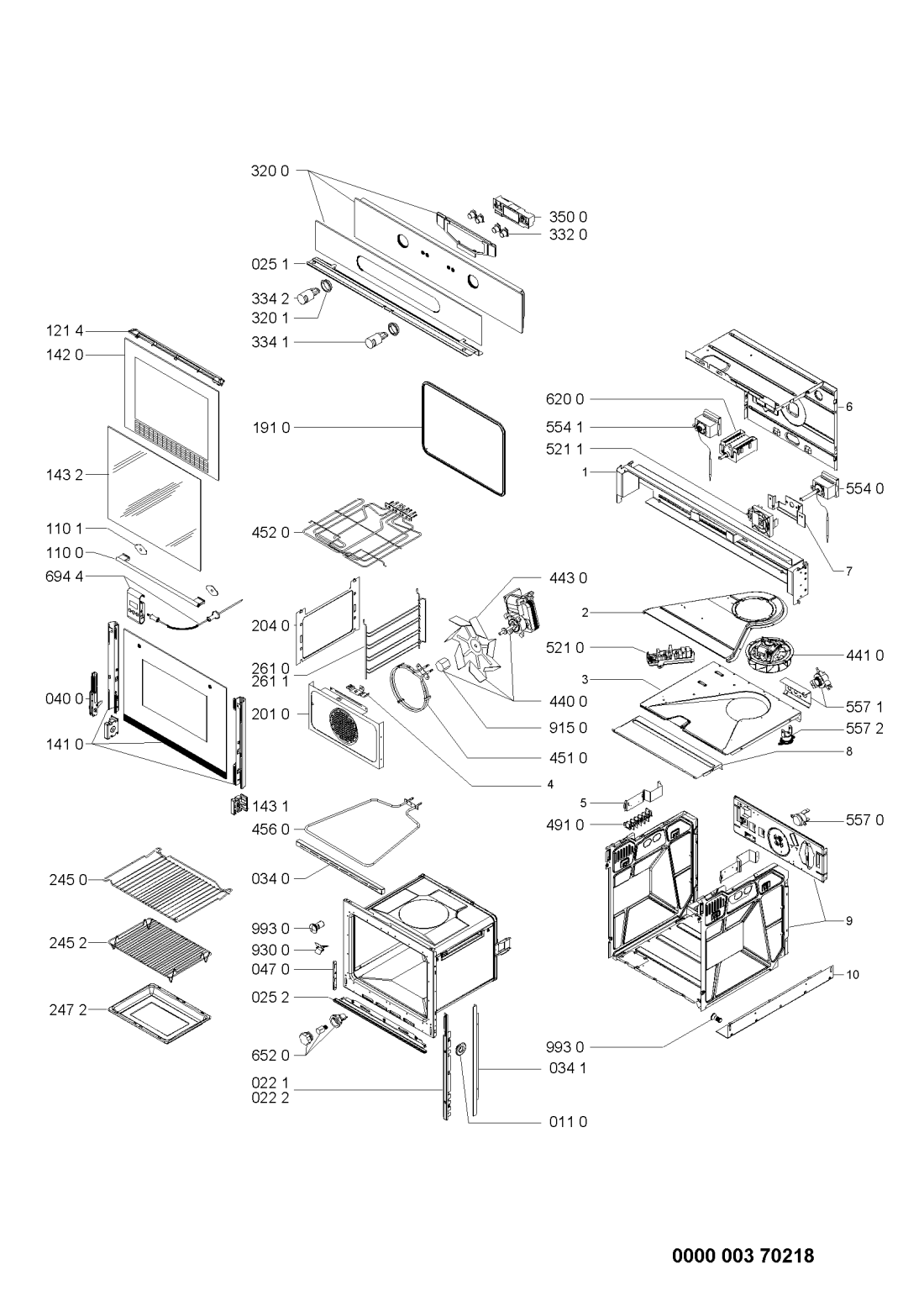

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR32580 |
C00389654
480121100468 |
Distance sleeve | Na dotaz | Zadat poptávku | |
| 022 1 WHR32580 |
C00404572
481246049792 |
Trim side left glass | Na dotaz | Zadat poptávku | |
| 022 2 WHR32580 |
C00404571
481246049791 |
Trim side right glass | Na dotaz | Zadat poptávku | |
| 025 1 WHR32580 |
C00330416
481246079229 |
panel | Na dotaz | Zadat poptávku | |
| 025 2 WHR32580 |
C00319309
481246068641 |
Lišta spodní trouby NB | 1 047 Kč
€ 43.10 |
||
| 034 0 WHR32580 |
C00404694
481246079222 |
Trim upper | Na dotaz | Zadat poptávku | |
| 034 1 WHR32580 |
C00402157
481240478864 |
Trim side | Na dotaz | Zadat poptávku | |
| 040 0 WHR32580 |
C00312864
481241719437 |
Hinge 3 V | Na dotaz | Zadat poptávku | |
| 047 0 WHR32580 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR32580 |
C00345779
481249868298 |
Madlo dveří trouby Náhrada 480121100147 |
Na dotaz | Zadat poptávku | |
| 110 1 WHR32580 |
C00312913
481246668928 |
Podložka gumová | 50 Kč
€ 2.10 |
||
| 121 4 WHR32580 |
C00311017
481246058418 |
Exhaust fume | Na dotaz | Zadat poptávku | |
| 141 0 WHR32580 |
C00430323
480121100471 |
Oven glass + supports | Na dotaz | Zadat poptávku | |
| 142 0 WHR32580 |
C00430322
480121100469 |
Inner glass | Na dotaz | Zadat poptávku | |
| 143 1 WHR32580 |
C00314180
481240438808 |
Podpěra | 793 Kč
€ 32.60 |
||
| 143 2 WHR32580 |
C00312271
481245059599 |
sklo dveří | 2 275 Kč
€ 93.50 |
||
| 191 0 WHR32580 |
C00311697
481246688912 |
Těsnění dveří trouby náhrada C00311697 | Na dotaz | Zadat poptávku | |
| 201 0 WHR32580 |
C00403511
481244058335 |
Panel rear | Na dotaz | Zadat poptávku | |
| 204 0 WHR32580 |
C00328118
481244019702 |
stěna boční | Na dotaz | Zadat poptávku | |
| 245 0 WHR32580 |
C00333059
481945868752 |
Rošt trouby | Na dotaz | Zadat poptávku | |
| 245 2 WHR32580 |
C00315603
481945819538 |
Grid | Na dotaz | Zadat poptávku | |
| 247 2 WHR32580 |
C00317041
481241838149 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR32580 |
C00333057
481945868282 |
mrizka prava | 339 Kč
€ 13.90 |
||
| 261 1 WHR32580 |
C00333058
481945868283 |
mrizka leva | 339 Kč
€ 13.90 |
||
| 320 0 WHR32580 |
C00430324
480121100472 |
Glass panel + supports | Na dotaz | Zadat poptávku | |
| 320 1 WHR32580 |
C00313222
481252888106 |
Kroužek knoflíku | 309 Kč
€ 12.70 |
||
| 332 0 WHR32580 |
C00312301
480121100151 |
Tlačítka-sestava | Na dotaz | Zadat poptávku | |
| 334 1 WHR32580 |
C00389653
480121100467 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 334 2 WHR32580 |
C00389652
480121100466 |
Knob oven | Na dotaz | Zadat poptávku | |
| 350 0 WHR32580 |
C00389655
480121100473 |
Display Ampere | Na dotaz | Zadat poptávku | |
| 440 0 WHR32580 |
C00401680
481236118585 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR32580 |
C00401681
481236118586 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR32580 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 451 0 WHR32580 |
C00400836
481225998559 |
Heating element forced air | Na dotaz | Zadat poptávku | |
| 452 0 WHR32580 |
C00400838
481225998562 |
Heating element dual grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR32580 |
C00400837
481225998561 |
Topné těleso trouby - spodní | Na dotaz | Zadat poptávku | |
| 491 0 WHR32580 |
C00345145
481229068346 |
svorkovnice | 219 Kč
€ 9.00 |
||
| 521 0 WHR32580 |
C00430325
480121100476 |
Power unit | Na dotaz | Zadat poptávku | |
| 521 1 WHR32580 |
C00311584
481221458616 |
prepinac | 960 Kč
€ 39.50 |
||
| 554 0 WHR32580 |
C00312501
480121100475 |
termostat | 1 451 Kč
€ 59.70 |
||
| 554 1 WHR32580 |
C00400986
481228208679 |
Thermostat | Na dotaz | Zadat poptávku | |
| 557 0 WHR32580 |
C00311539
481228228315 |
Termostat 130 °C | 1 019 Kč
€ 41.90 |
||
| 557 1 WHR32580 |
C00456847
481228228342 |
Thermostat | Na dotaz | Zadat poptávku | |
| 557 2 WHR32580 |
C00401010
481228228343 |
Thermostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR32580 |
C00342068
481227328281 |
Oven switch | Na dotaz | Zadat poptávku | |
| 652 0 WHR32580 |
C00399840
481213488082 |
Lamp oven rear complete | Na dotaz | Zadat poptávku | |
| 694 4 WHR32580 |
C00315241
480121100477 |
Temperature sensor meat probe | Na dotaz | Zadat poptávku | |
| 915 0 WHR32580 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 930 0 WHR32580 |
C00312854
481240418649 |
Držák NTC | 229 Kč
€ 9.40 |
||
| 993 0 WHR32580 |
C00405441
481250238379 |
Set screw | Na dotaz | Zadat poptávku | |
