IKEA ICS500WB
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ICS500WB |
| Kód 12NC/I.C. kód: | 857939597000 |
| Značka: | IKEA |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

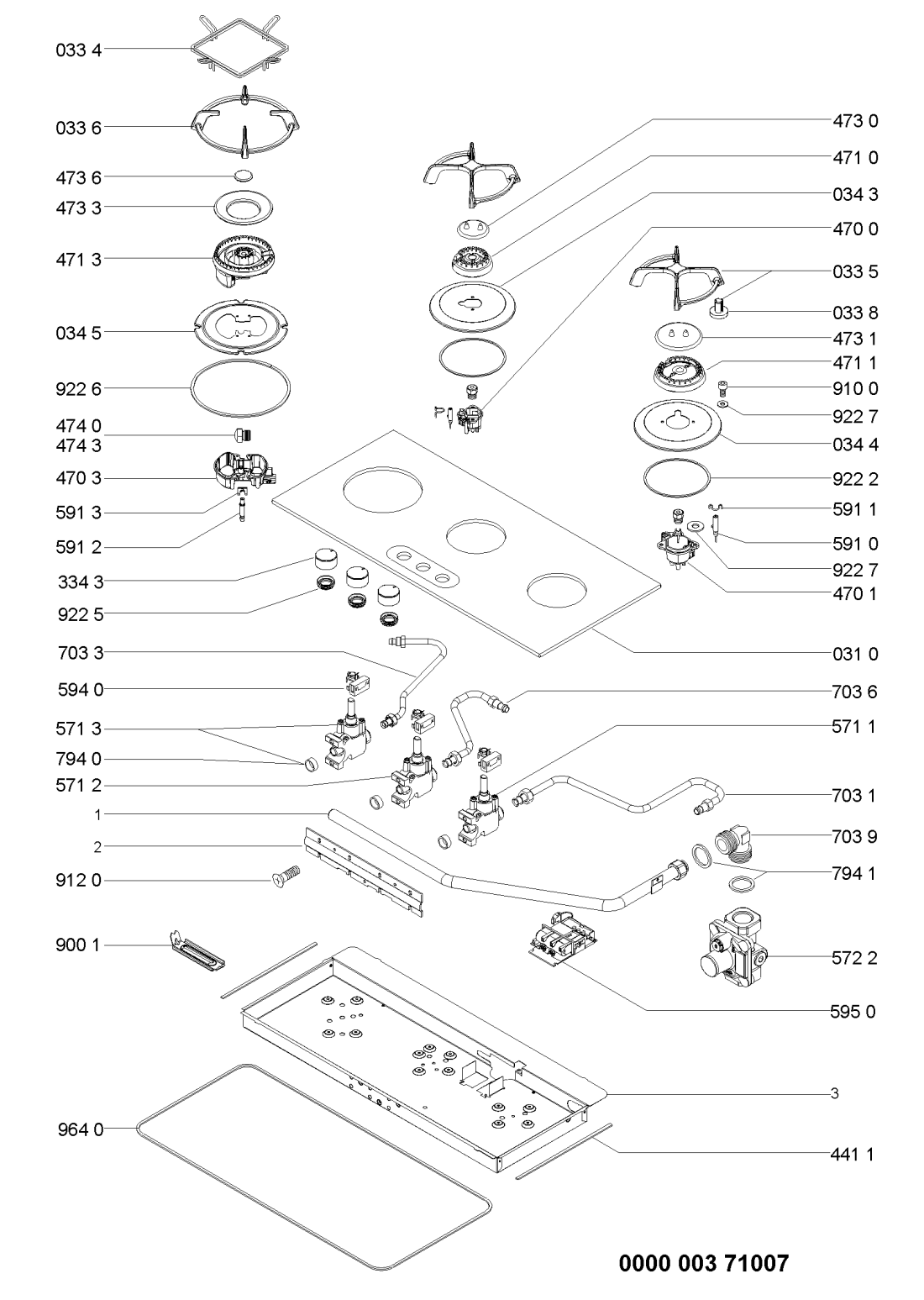

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 031 0 WHR32966 |
C00430398
480121100643 |
Hob plate glass | Na dotaz | Zadat poptávku | |
| 033 4 WHR32966 |
C00333046
481945819279 |
mrizka horaku | Na dotaz | Zadat poptávku | |
| 033 5 WHR32966 |
C00330196
481245858538 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 033 6 WHR32966 |
C00321916
480121100611 |
Mřížka hořáku-vyřazeno | Na dotaz | Zadat poptávku | |
| 033 8 WHR32966 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 61 Kč
€ 2.50 |
||
| 034 3 WHR32966 |
C00404894
481246258106 |
Ring fixation A | Na dotaz | Zadat poptávku | |
| 034 4 WHR32966 |
C00404892
481246258104 |
Ring | Na dotaz | Zadat poptávku | |
| 034 5 WHR32966 |
C00389684
480121100641 |
Cover MWK | Na dotaz | Zadat poptávku | |
| 334 3 WHR32966 |
C00321923
480121100646 |
knob | Na dotaz | Zadat poptávku | |
| 441 1 WHR32966 |
C00333162
481946818387 |
tesneni-náhrada C00522524 | Na dotaz | Zadat poptávku | |
| 470 0 WHR32966 |
C00389689
480121100648 |
Injector holder A | Na dotaz | Zadat poptávku | |
| 470 1 WHR32966 |
C00389690
480121100649 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 470 3 WHR32966 |
C00389688
480121100647 |
Injector holder MWK | Na dotaz | Zadat poptávku | |
| 471 0 WHR32966 |
C00482810
481236078139 |
Burner body A | Na dotaz | Zadat poptávku | |
| 471 1 WHR32966 |
C00482811
481236078141 |
teleso horaku | Na dotaz | Zadat poptávku | |
| 471 3 WHR32966 |
C00313733
480121100582 |
horak | Na dotaz | Zadat poptávku | |
| 473 0 WHR32966 |
C00322204
480121102895 |
Víko hořáku - malé | 601 Kč
€ 24.70 |
||
| 473 1 WHR32966 |
C00320361
480121102894 |
Víko hořáku - strední | 887 Kč
€ 36.50 |
||
| 473 3 WHR32966 |
C00328794
481236078189 |
Burner cap outer MWK | Na dotaz | Zadat poptávku | |
| 473 6 WHR32966 |
C00313801
481236068964 |
viko horaku vnitřní Náhrada C00313801 |
Na dotaz | Zadat poptávku | |
| 474 0 WHR32966 |
C00430397
480121100639 |
Set of nozzles natural gas A | Na dotaz | Zadat poptávku | |
| 474 3 WHR32966 |
C00430399
480121100652 |
Set of nozzles LPG | Na dotaz | Zadat poptávku | |
| 571 1 WHR32966 |
C00401468
481236058558 |
Gas cock SR | Na dotaz | Zadat poptávku | |
| 571 2 WHR32966 |
C00401467
481236058557 |
Gas cock A | Na dotaz | Zadat poptávku | |
| 571 3 WHR32966 |
C00389691
480121100651 |
Gas cock MWK | Na dotaz | Zadat poptávku | |
| 572 2 WHR32966 |
C00400726
481222318448 |
Pressure regulator | Na dotaz | Zadat poptávku | |
| 591 0 WHR32966 |
C00327111
481225268081 |
Svíčka zapalovací | 337 Kč
€ 13.90 |
||
| 591 1 WHR32966 |
C00316649
481249268204 |
Spring spark plug | Na dotaz | Zadat poptávku | |
| 591 2 WHR32966 |
C00327104
481225228066 |
Spark plug | Na dotaz | Zadat poptávku | |
| 591 3 WHR32966 |
C00345757
481249268206 |
pružina | 405 Kč
€ 16.60 |
||
| 594 0 WHR32966 |
C00389692
480121100653 |
Electron.ignit. 3F | Na dotaz | Zadat poptávku | |
| 595 0 WHR32966 |
C00401061
481229068337 |
Terminal block + ignition generator | Na dotaz | Zadat poptávku | |
| 703 1 WHR32966 |
C00389685
480121100642 |
Gas pipe SR | Na dotaz | Zadat poptávku | |
| 703 3 WHR32966 |
C00389687
480121100645 |
Gas pipe MWK | Na dotaz | Zadat poptávku | |
| 703 6 WHR32966 |
C00389686
480121100644 |
Gas pipe A | Na dotaz | Zadat poptávku | |
| 703 9 WHR32966 |
C00405591
481253018083 |
Manifold | Na dotaz | Zadat poptávku | |
| 794 0 WHR32966 |
C00333119
481946668874 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 1 WHR32966 |
C00314988
481953258229 |
Těsnění | Na dotaz | Zadat poptávku | |
| 900 1 WHR32966 |
C00317971
481931018528 |
drzak desky+srouby | Na dotaz | Zadat poptávku | |
| 910 0 WHR32966 |
C00312965
481250218757 |
Šroubek | Na dotaz | Zadat poptávku | |
| 912 0 WHR32966 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 922 2 WHR32966 |
C00333306
481953058068 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 922 5 WHR32966 |
C00333308
481953058102 |
Těsnění knoflíku plynové varné desky Whirlpool AKM 262 IX, GOA 6423/NB, AKM 203/IX. | 325 Kč
€ 13.40 |
||
| 922 6 WHR32966 |
C00331516
481246688854 |
Těsnění pod varné desky | 242 Kč
€ 9.90 |
||
| 922 7 WHR32966 |
C00333313
481953228281 |
podlozka | 55 Kč
€ 2.30 |
||
| 964 0 WHR32966 |
C00311601
481246688967 |
Gasket | Na dotaz | Zadat poptávku | |
