IKEA 80182299 PRO A81 S
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 80182299 PRO A81 S |
| Kód 12NC: | 852756001000 |
| Značka: | IKEA |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

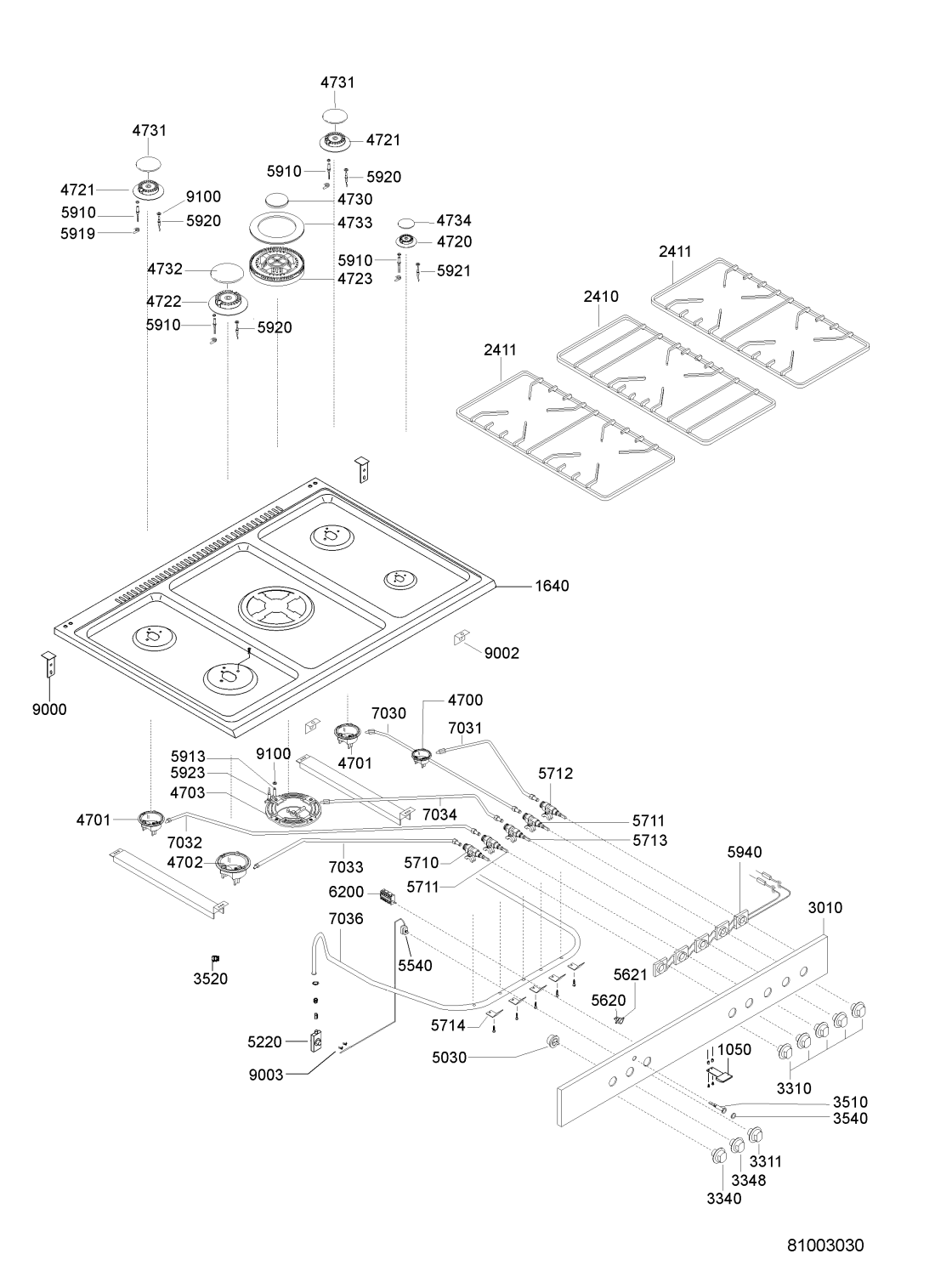

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 100 0 WHR23482 |
C00322365
480121103765 |
Door glass | Na dotaz | Zadat poptávku | |
| 105 0 WHR23482 |
C00344969
481249148048 |
Spring door fixing | Na dotaz | Zadat poptávku | |
| 105 0 WHR23482 |
C00345742
481249148047 |
Spring door fixing black | Na dotaz | Zadat poptávku | |
| 110 0 WHR23482 |
C00322366
480121103766 |
Handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR23482 |
C00322462
480121104457 |
Support handle | Na dotaz | Zadat poptávku | |
| 110 2 WHR23482 |
C00322367
480121103767 |
Cap for hole handle | Na dotaz | Zadat poptávku | |
| 110 3 WHR23482 |
C00330709
481246268901 |
Spacer tubular handle nirosta | Na dotaz | Zadat poptávku | |
| 110 3 WHR23482 |
C00333333
481953268891 |
Spacer glass/tubular handle | Na dotaz | Zadat poptávku | |
| 110 3 WHR23482 |
C00330728
481246268987 |
Spacer handle support | Na dotaz | Zadat poptávku | |
| 141 9 WHR23482 |
C00322374
480121103776 |
support door | Na dotaz | Zadat poptávku | |
| 142 0 WHR23482 |
C00317659
480121103978 |
Glass outer | Na dotaz | Zadat poptávku | |
| 144 0 WHR23482 |
C00431010
480121103979 |
Oven glass inner | Na dotaz | Zadat poptávku | |
| 162 0 WHR23482 |
C00431207
480121104458 |
Side panel | Na dotaz | Zadat poptávku | |
| 164 0 WHR23482 |
C00322364
480121103763 |
Hob | Na dotaz | Zadat poptávku | |
| 185 0 WHR23482 |
C00457692
481240478904 |
Foot high regulator | Na dotaz | Zadat poptávku | |
| 185 1 WHR23482 |
C00332715
481253538111 |
Support foot | Na dotaz | Zadat poptávku | |
| 187 0 WHR23482 |
C00322372
480121103773 |
Frame black | Na dotaz | Zadat poptávku | |
| 188 0 WHR23482 |
C00311383
480121103764 |
hinge oven door | Na dotaz | Zadat poptávku | |
| 188 1 WHR23482 |
C00430981
480121103805 |
Cabinet Hinge | Na dotaz | Zadat poptávku | |
| 191 0 WHR23482 |
C00314389
480121103777 |
gasket door | Na dotaz | Zadat poptávku | |
| 201 0 WHR23482 |
C00322375
480121103778 |
Cover Fan | Na dotaz | Zadat poptávku | |
| 241 0 WHR23482 |
C00330157
481245848389 |
Grid for hob centre | Na dotaz | Zadat poptávku | |
| 241 1 WHR23482 |
C00319151
481245848391 |
Grid for hob right/left | Na dotaz | Zadat poptávku | |
| 241 3 WHR23482 |
C00322373
480121103775 |
Drawer complete | Na dotaz | Zadat poptávku | |
| 245 0 WHR23482 |
C00431256
480121104643 |
Grid | Na dotaz | Zadat poptávku | |
| 245 1 WHR23482 |
C00322377
480121103781 |
Grid Fat pan | Na dotaz | Zadat poptávku | |
| 247 0 WHR23482 |
C00322378
480121103782 |
Plech na pečení | 2 280 Kč
€ 100.20 |
||
| 247 1 WHR23482 |
C00322379
480121103783 |
Grip Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR23482 |
C00322391
480121103797 |
Rail Frame | Na dotaz | Zadat poptávku | |
| 301 0 WHR23482 |
C00318941
481245350403 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR23482 |
C00314552
481241129097 |
Knob gas | Na dotaz | Zadat poptávku | |
| 331 1 WHR23482 |
C00316720
481241129099 |
Knob oven | Na dotaz | Zadat poptávku | |
| 334 0 WHR23482 |
C00315415
481241129101 |
Knob timer | Na dotaz | Zadat poptávku | |
| 334 8 WHR23482 |
C00316718
481241129098 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 351 0 WHR23482 |
C00326838
481213448353 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 352 0 WHR23482 |
C00430407
480121100669 |
Cursor Pressure regul. | Na dotaz | Zadat poptávku | |
| 354 0 WHR23482 |
C00317822
481238118258 |
kryt signalky oranz. | 289 Kč
€ 12.70 |
||
| 440 0 WHR23482 |
C00457527
481236178044 |
Motor oven fan cpl. | Na dotaz | Zadat poptávku | |
| 451 0 WHR23482 |
C00311613
480121101033 |
Heating element circular | Na dotaz | Zadat poptávku | |
| 452 0 WHR23482 |
C00322390
480121103796 |
heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR23482 |
C00322463
480121104459 |
heating element 1700W | Na dotaz | Zadat poptávku | |
| 470 0 WHR23482 |
C00457462
481236068903 |
Burner body AUX | Na dotaz | Zadat poptávku | |
| 470 1 WHR23482 |
C00457463
481236068904 |
Burner body SR | Na dotaz | Zadat poptávku | |
| 470 2 WHR23482 |
C00457464
481236068906 |
Burner body R | Na dotaz | Zadat poptávku | |
| 470 3 WHR23482 |
C00431257
480121104644 |
Burner body central | Na dotaz | Zadat poptávku | |
| 472 0 WHR23482 |
C00328641
481236068271 |
ROZPTYLOVAC PLA | 863 Kč
€ 37.90 |
||
| 472 1 WHR23482 |
C00328642
481236068272 |
ROZPTYLOVAC PLA | 921 Kč
€ 40.50 |
||
| 472 2 WHR23482 |
C00328643
481236068273 |
ROZPTYLOVAC PLA | 935 Kč
€ 41.10 |
||
| 472 3 WHR23482 |
C00322387
480121103793 |
Burner cap TR | Na dotaz | Zadat poptávku | |
| 473 0 WHR23482 |
C00322389
480121103795 |
Burner cap TC | Na dotaz | Zadat poptávku | |
| 473 1 WHR23482 |
C00313783
481236068659 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 473 2 WHR23482 |
C00318348
481236068658 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 473 3 WHR23482 |
C00317625
481236068667 |
Burner cap triple crown outer | Na dotaz | Zadat poptávku | |
| 473 4 WHR23482 |
C00318332
481236068657 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 483 0 WHR23482 |
C00457466
481236068909 |
Pipe connection-female-F.1/2 | Na dotaz | Zadat poptávku | |
| 491 0 WHR23482 |
C00320079
481229068226 |
Terminal block | Na dotaz | Zadat poptávku | |
| 503 0 WHR23482 |
C00332848
481928218475 |
Time switch | Na dotaz | Zadat poptávku | |
| 522 0 WHR23482 |
C00456425
481222318449 |
Manometer | Na dotaz | Zadat poptávku | |
| 554 0 WHR23482 |
C00312002
481228238149 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 562 0 WHR23482 |
C00318366
480121103774 |
Switch thermostat | Na dotaz | Zadat poptávku | |
| 562 1 WHR23482 |
C00330343
481246049825 |
Plate for thermoswitch | Na dotaz | Zadat poptávku | |
| 571 0 WHR23482 |
C00321973
480121101034 |
Valve gas R | Na dotaz | Zadat poptávku | |
| 571 1 WHR23482 |
C00321974
480121101035 |
Valve gas SR | Na dotaz | Zadat poptávku | |
| 571 2 WHR23482 |
C00321975
480121101036 |
Ventil plynu | 1 549 Kč
€ 68.10 |
||
| 571 3 WHR23482 |
C00431300
480122101035 |
Valve TC | Na dotaz | Zadat poptávku | |
| 571 4 WHR23482 |
C00322036
480121101619 |
Holder TAP | Na dotaz | Zadat poptávku | |
| 591 0 WHR23482 |
C00327109
481225268071 |
Spark plug L=900 | Na dotaz | Zadat poptávku | |
| 591 0 WHR23482 |
C00322384
480121103789 |
Spark plug L=370 | Na dotaz | Zadat poptávku | |
| 591 3 WHR23482 |
C00322385
480121103791 |
spark plug WOK | Na dotaz | Zadat poptávku | |
| 591 9 WHR23482 |
C00332673
481253258016 |
Spring | Na dotaz | Zadat poptávku | |
| 592 0 WHR23482 |
C00317875
481225268038 |
termoclanek | 1 462 Kč
€ 64.30 |
||
| 592 0 WHR23482 |
C00327110
481225268072 |
Safety device left/right rear SR burner | Na dotaz | Zadat poptávku | |
| 592 1 WHR23482 |
C00318339
481225268039 |
termoclanek | 1 254 Kč
€ 55.10 |
||
| 592 3 WHR23482 |
C00322383
480121103788 |
safety device | Na dotaz | Zadat poptávku | |
| 594 0 WHR23482 |
C00316177
480121101038 |
Switch ignition | Na dotaz | Zadat poptávku | |
| 595 0 WHR23482 |
C00322369
480121103769 |
Electron.ignit. | Na dotaz | Zadat poptávku | |
| 620 0 WHR23482 |
C00315119
481227618471 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 651 0 WHR23482 |
C00322338
480121103605 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| 703 0 WHR23482 |
C00322343
480121103628 |
Tube rear right | Na dotaz | Zadat poptávku | |
| 703 1 WHR23482 |
C00322345
480121103633 |
Tube front right | Na dotaz | Zadat poptávku | |
| 703 2 WHR23482 |
C00322342
480121103627 |
Tube rear left | Na dotaz | Zadat poptávku | |
| 703 3 WHR23482 |
C00322344
480121103632 |
Tube front left | Na dotaz | Zadat poptávku | |
| 703 4 WHR23482 |
C00322386
480121103792 |
Tube central burner | Na dotaz | Zadat poptávku | |
| 703 6 WHR23482 |
C00322370
480121103771 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 900 0 WHR23482 |
C00322455
480121104328 |
Holder Hob | Na dotaz | Zadat poptávku | |
| 900 1 WHR23482 |
C00322371
480121103772 |
Support Igniter | Na dotaz | Zadat poptávku | |
| 900 3 WHR23482 |
C00345740
481249148007 |
Clip fix thermostat | Na dotaz | Zadat poptávku | |
| 904 0 WHR23482 |
C00330346
481246049832 |
Plate cover frame fixing | Na dotaz | Zadat poptávku | |
| 904 2 WHR23482 |
C00327660
481231039044 |
Cover for turnspit hole | Na dotaz | Zadat poptávku | |
| 910 0 WHR23482 |
C00332101
481250218666 |
Screw | Na dotaz | Zadat poptávku | |
| 910 0 WHR23482 |
C00322381
480121103786 |
Screw TERMOC. TC | Na dotaz | Zadat poptávku | |
| 930 0 WHR23482 |
C00345741
481249148045 |
Spring for double glass | Na dotaz | Zadat poptávku | |
