| Komerční kód: | WBR 3712 W2 REFRIGERATOR |
| Kód 12NC: | 850122301000 |
| I.C. kód: | 850122301005 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850122301000, 850122301001, 850122301003, 850122301002 |
Potřebujete servis? Jsme tady pro Vás

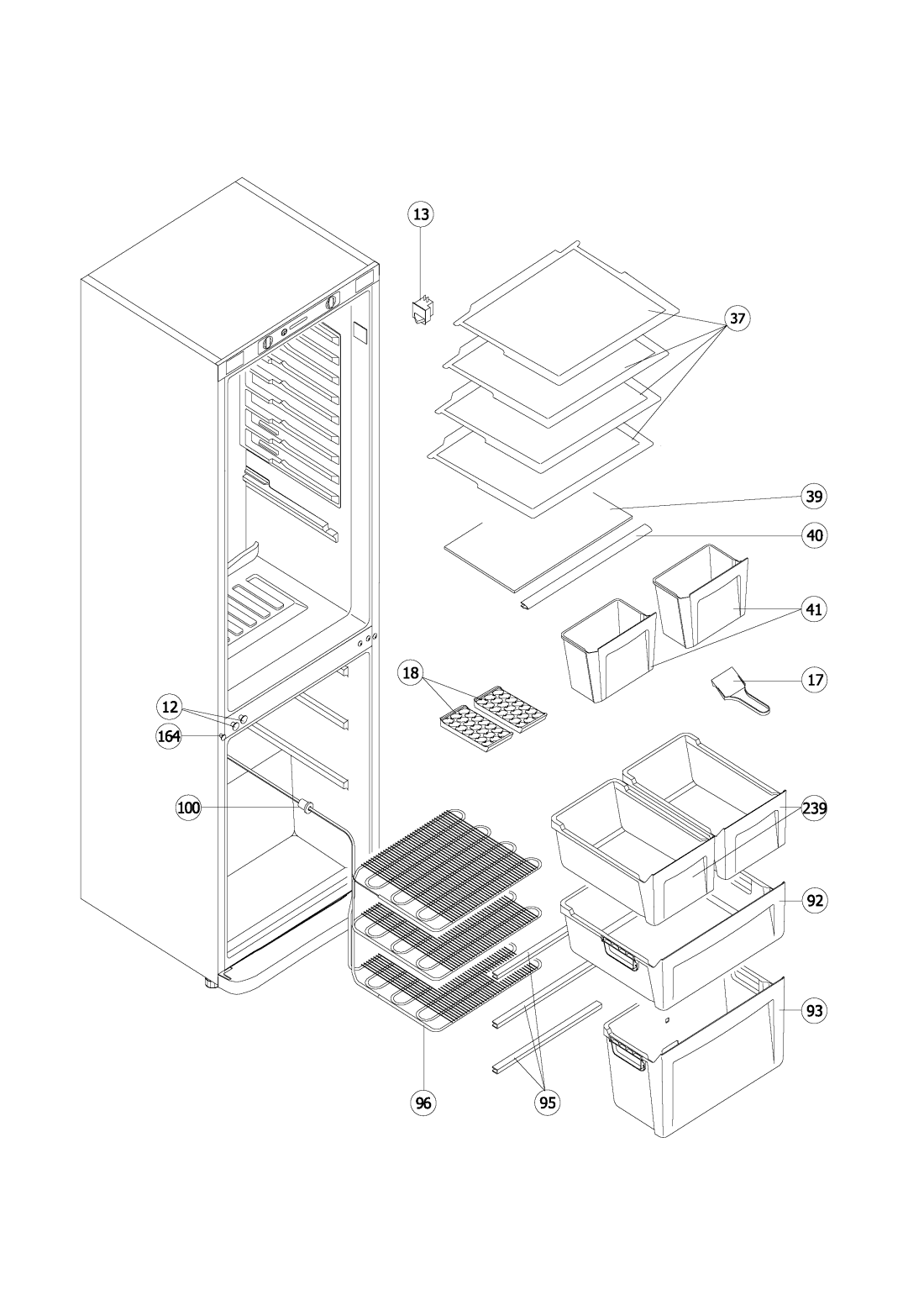

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 2 WHR92903 |
C00738945
480188800209 |
Hinge top | Na dotaz | Zadat poptávku | |
| 000 6 WHR92903 |
C00738946
480188800281 |
Panel head | Na dotaz | Zadat poptávku | |
| 000 9 WHR92903 |
C00738947
480188800093 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 001 1 WHR92903 |
C00738948
480188800212 |
Screw cap | Na dotaz | Zadat poptávku | |
| 001 2 WHR92903 |
C00738949
480188800213 |
Screw cap | Na dotaz | Zadat poptávku | |
| 001 3 WHR92903 |
C00378492
480188800001 |
Switch door | Na dotaz | Zadat poptávku | |
| 001 5 WHR92903 |
C00738950
480188800261 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 001 6 WHR92903 |
C00738951
480188800262 |
Foot | Na dotaz | Zadat poptávku | |
| 001 7 WHR92903 |
C00738952
480188800108 |
Swab | Na dotaz | Zadat poptávku | |
| 001 8 WHR92903 |
C00738953
480188800109 |
Ice maker | Na dotaz | Zadat poptávku | |
| 002 2 WHR92903 |
C00738954
480188800119 |
Lamp | Na dotaz | Zadat poptávku | |
| 002 3 WHR92903 |
C00738955
480188800022 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 002 8 WHR92903 |
C00738956
480188800023 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 002 9 WHR92903 |
C00738957
480188800263 |
Knob | Na dotaz | Zadat poptávku | |
| 003 5 WHR92903 |
C00738958
480188800237 |
Cable harness | Na dotaz | Zadat poptávku | |
| 003 7 WHR92903 |
C00738959
480188800111 |
Shelf | Na dotaz | Zadat poptávku | |
| 003 9 WHR92903 |
C00738960
480188800112 |
Cover Crisper | Na dotaz | Zadat poptávku | |
| 004 0 WHR92903 |
C00738961
480188800264 |
Trim Crisper cover | Na dotaz | Zadat poptávku | |
| 004 1 WHR92903 |
C00738962
480188800113 |
Crisper | Na dotaz | Zadat poptávku | |
| 005 8 WHR92903 |
C00738963
480188800265 |
Holder lower Panel | Na dotaz | Zadat poptávku | |
| 006 0 WHR92903 |
C00738964
480188800028 |
Panel lower | Na dotaz | Zadat poptávku | |
| 009 2 WHR92903 |
C00738965
480188800135 |
Drawer middle | Na dotaz | Zadat poptávku | |
| 009 3 WHR92903 |
C00738966
480188800116 |
Drawer lower | Na dotaz | Zadat poptávku | |
| 009 5 WHR92903 |
C00738967
480188800266 |
Trim Evaporator | Na dotaz | Zadat poptávku | |
| 009 6 WHR92903 |
C00738968
480188800142 |
Evaporator | Na dotaz | Zadat poptávku | |
| 010 0 WHR92903 |
C00738969
480188800238 |
Damper | Na dotaz | Zadat poptávku | |
| 010 2 WHR92903 |
C00738970
480188800239 |
Panel head | Na dotaz | Zadat poptávku | |
| 010 4 WHR92903 |
C00738971
480188800167 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 010 5 WHR92903 |
C00738972
480188800147 |
Thermostat refriger. | Na dotaz | Zadat poptávku | |
| 010 7 WHR92903 |
C00738973
480188800241 |
Thermostat freezer | Na dotaz | Zadat poptávku | |
| 011 1 WHR92903 |
C00738974
480188800267 |
Support Lamp assembly | Na dotaz | Zadat poptávku | |
| 011 2 WHR92903 |
C00738975
480188800151 |
Support Lamp | Na dotaz | Zadat poptávku | |
| 011 3 WHR92903 |
C00738976
480188800169 |
Insulation | Na dotaz | Zadat poptávku | |
| 011 4 WHR92903 |
C00738977
480188800171 |
Switch | Na dotaz | Zadat poptávku | |
| 011 6 WHR92903 |
C00738978
480188800268 |
Support Evaporator | Na dotaz | Zadat poptávku | |
| 011 9 WHR92903 |
C00738979
480188800269 |
Support Evaporator | Na dotaz | Zadat poptávku | |
| 012 1 WHR92903 |
C00738980
480188800271 |
Cap Bracket | Na dotaz | Zadat poptávku | |
| 012 2 WHR92903 |
C00738981
480188800272 |
Lamp Indicator (red) | Na dotaz | Zadat poptávku | |
| 012 3 WHR92903 |
C00738982
480188800273 |
Lamp Indicator (green) | Na dotaz | Zadat poptávku | |
| 012 4 WHR92903 |
C00738983
480188800274 |
Lamp Indicator (orange) | Na dotaz | Zadat poptávku | |
| 013 2 WHR92903 |
C00738984
480188800092 |
Sleeve Tube | Na dotaz | Zadat poptávku | |
| 015 1 WHR92903 |
C00738985
480188800049 |
Bushing Door | Na dotaz | Zadat poptávku | |
| 015 2 WHR92903 |
C00738986
480188800051 |
Cap Door | Na dotaz | Zadat poptávku | |
| 015 3 WHR92903 |
C00378509
480188800257 |
Door freezer | Na dotaz | Zadat poptávku | |
| 015 4 WHR92903 |
C00378498
480188800125 |
Nameplate | Na dotaz | Zadat poptávku | |
| 015 5 WHR92903 |
C00378510
480188800258 |
Door refrigerator | Na dotaz | Zadat poptávku | |
| 015 9 WHR92903 |
C00738987
480188800183 |
Egg rack | Na dotaz | Zadat poptávku | |
| 016 1 WHR92903 |
C00378494
480188800057 |
Door handle refriger | Na dotaz | Zadat poptávku | |
| 016 3 WHR92903 |
C00738988
480188800063 |
Door handle freezer | Na dotaz | Zadat poptávku | |
| 016 4 WHR92903 |
C00738989
480188800218 |
Cap | Na dotaz | Zadat poptávku | |
| 016 5 WHR92903 |
C00738990
480188800079 |
Cap Door handle | Na dotaz | Zadat poptávku | |
| 016 6 WHR92903 |
C00738991
480188800078 |
Cap Door handle | Na dotaz | Zadat poptávku | |
| 017 4 WHR92903 |
C00738993
480188800058 |
Stopper | Na dotaz | Zadat poptávku | |
| 017 5 WHR92903 |
C00738994
480188800187 |
Door dairy | Na dotaz | Zadat poptávku | |
| 017 7 WHR92903 |
C00738995
480188800188 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 019 1 WHR92903 |
C00738996
480188800062 |
Bushing Door | Na dotaz | Zadat poptávku | |
| 020 1 WHR92903 |
C00738997
480188800085 |
Condenser | Na dotaz | Zadat poptávku | |
| 020 3 WHR92903 |
C00738998
480188800065 |
Spacer | Na dotaz | Zadat poptávku | |
| 020 7 WHR92903 |
C00738999
480188800066 |
Damper Condenser | Na dotaz | Zadat poptávku | |
| 021 1 WHR92903 |
C00739000
480188800242 |
Protect motor S53CY | Na dotaz | Zadat poptávku | |
| 021 1 WHR92903 |
C00739001
480188800243 |
Protect motor LU76CY | Na dotaz | Zadat poptávku | |
| 021 2 WHR92903 |
C00739002
480188800244 |
Capacitor 5ÁF/400V | Na dotaz | Zadat poptávku | |
| 021 4 WHR92903 |
C00739003
480188800069 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 021 5 WHR92903 |
C00378497
480188800086 |
Dryer | Na dotaz | Zadat poptávku | |
| 021 7 WHR92903 |
C00378505
480188800245 |
Compressor S53CY | Na dotaz | Zadat poptávku | |
| 021 7 WHR92903 |
C00378506
480188800246 |
Compressor LU76CY | Na dotaz | Zadat poptávku | |
| 021 8 WHR92903 |
C00739004
480188800091 |
Base Compressor | Na dotaz | Zadat poptávku | |
| 022 5 WHR92903 |
C00378503
480188800219 |
Compressor | Na dotaz | Zadat poptávku | |
| 022 7 WHR92903 |
C00739005
480188800074 |
Roller | Na dotaz | Zadat poptávku | |
| 022 8 WHR92903 |
C00739006
480188800275 |
Shaft Roller | Na dotaz | Zadat poptávku | |
| 022 9 WHR92903 |
C00739007
480188800193 |
Insulation | Na dotaz | Zadat poptávku | |
| 023 0 WHR92903 |
C00739008
480188800247 |
Holder Capacitor | Na dotaz | Zadat poptávku | |
| 023 1 WHR92903 |
C00739009
480188800248 |
Bracket | Na dotaz | Zadat poptávku | |
| 023 5 WHR92903 |
C00739010
480188800194 |
Holder Evaporator | Na dotaz | Zadat poptávku | |
| 023 6 WHR92903 |
C00739011
480188800195 |
Holder Evaporator | Na dotaz | Zadat poptávku | |
| 023 7 WHR92903 |
C00739012
480188800222 |
Cap | Na dotaz | Zadat poptávku | |
| 023 8 WHR92903 |
C00739013
480188800223 |
Cap | Na dotaz | Zadat poptávku | |
| 023 9 WHR92903 |
C00739014
480188800198 |
Basket freezer | Na dotaz | Zadat poptávku | |
| 024 0 WHR92903 |
C00739015
480188800249 |
Insert LEXAN | Na dotaz | Zadat poptávku | |
| 024 1 WHR92903 |
C00739016
480188800277 |
Frame | Na dotaz | Zadat poptávku | |
| 024 3 WHR92903 |
C00739017
480188800202 |
Bottle holder | Na dotaz | Zadat poptávku | |
| 024 4 WHR92903 |
C00739018
480188800224 |
Cap | Na dotaz | Zadat poptávku | |
| 024 5 WHR92903 |
C00739019
480188800225 |
Cap | Na dotaz | Zadat poptávku | |
| 025 0 WHR92903 |
C00739020
480188800205 |
Cover Relay | Na dotaz | Zadat poptávku | |
| 025 2 WHR92903 |
C00739021
480188800206 |
Control box Relay | Na dotaz | Zadat poptávku | |
| 025 3 WHR92903 |
C00739022
480188800207 |
Cable holder | Na dotaz | Zadat poptávku | |
| 025 4 WHR92903 |
C00739023
480188800208 |
Clip Cable | Na dotaz | Zadat poptávku | |
