| Komerční kód: | WTH 5244 NFX AQUA |
| Kód 12NC/I.C. kód: | 850144611210 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850144611211 |
Potřebujete servis? Jsme tady pro Vás

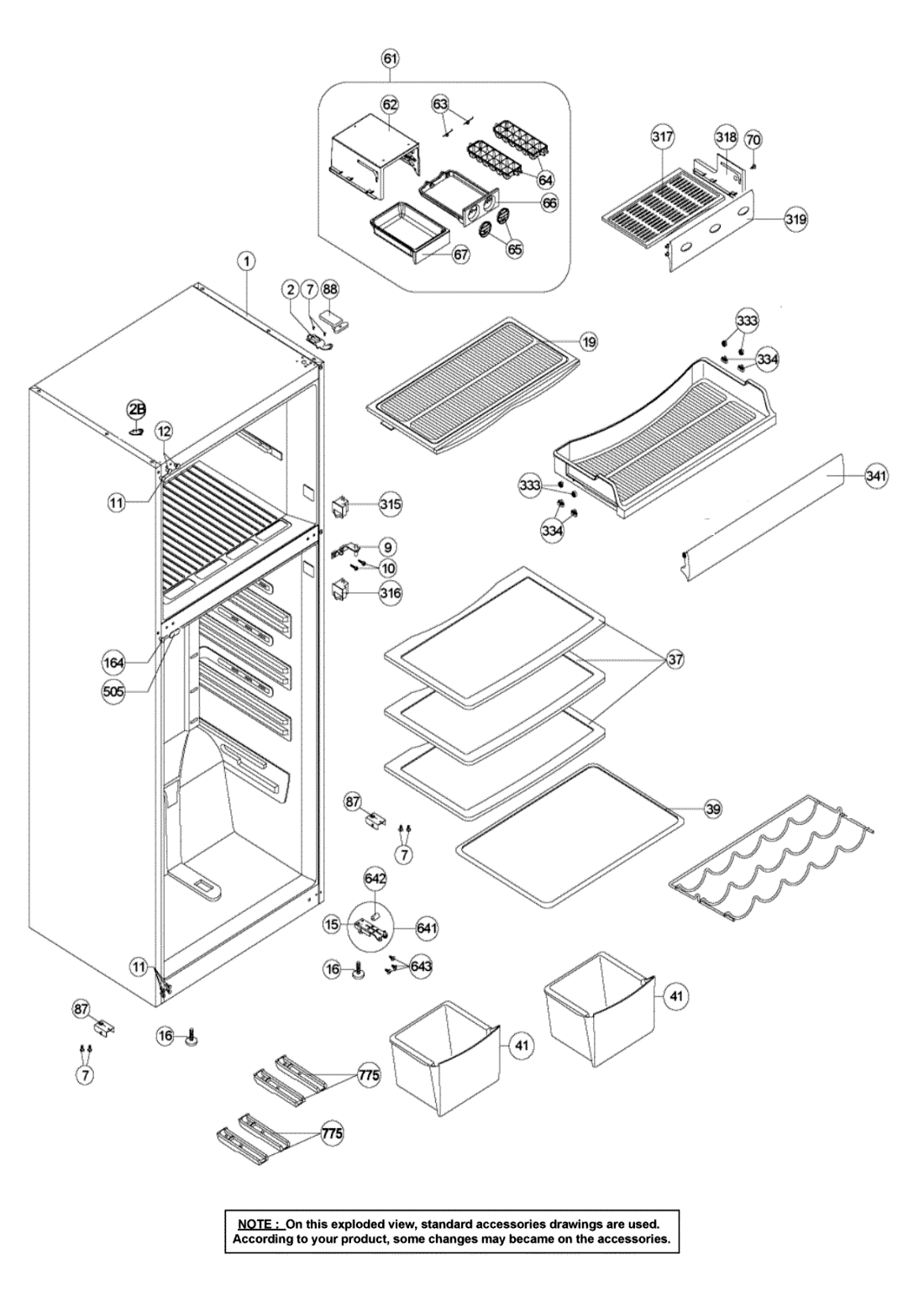

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 WHR48738 |
C00410595
482000007554 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 002B WHR48738 |
C00412861
482000012197 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 007 WHR48738 |
C00416393
482000019077 |
Screw M5x14 | Na dotaz | Zadat poptávku | |
| 007 WHR48738 |
C00513148
482000018651 |
Screw M5x14 YSB-F | Na dotaz | Zadat poptávku | |
| 009 WHR48738 |
C00344983
482000007555 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 010 WHR48738 |
C00416396
482000019080 |
Screw TT M5x14 | Na dotaz | Zadat poptávku | |
| 011 WHR48738 |
C00270034
482000002929 |
ZÁTKA KRYTKA ŠROUBU | Na dotaz | Zadat poptávku | |
| 012 WHR48738 |
C00306359
482000019481 |
Screw cap | Na dotaz | Zadat poptávku | |
| 015 WHR48738 |
C00416628
482000019375 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 016 WHR48738 |
C00345128
482000013074 |
Adjust. foot M8x35 Grey | Na dotaz | Zadat poptávku | |
| 019 WHR48738 |
C00417387
482000021097 |
Shelf Freezing | Na dotaz | Zadat poptávku | |
| 025 WHR48738 |
C00416110
482000018670 |
Screw 40x13 YSB-R-C-INOX | Na dotaz | Zadat poptávku | |
| 037 WHR48738 |
C00306431
482000021037 |
Glass shelf w. frame | Na dotaz | Zadat poptávku | |
| 039 WHR48738 |
C00306430
482000021038 |
Crisper cover w. frame | Na dotaz | Zadat poptávku | |
| 041 WHR48738 |
C00417335
482000021039 |
Crisper | Na dotaz | Zadat poptávku | |
| 061 WHR48738 |
C00306422
482000021040 |
KOMPLE ICEMAKER | Na dotaz | Zadat poptávku | |
| 062 WHR48738 |
C00417336
482000021041 |
Cover crisper | Na dotaz | Zadat poptávku | |
| 063 WHR48738 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
| 064 WHR48738 |
C00417337
482000021042 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 065 WHR48738 |
C00417338
482000021043 |
Knob Icecube tray | Na dotaz | Zadat poptávku | |
| 066 WHR48738 |
C00417339
482000021044 |
Frame Icecube tray | Na dotaz | Zadat poptávku | |
| 067 WHR48738 |
C00417340
482000021045 |
Tray Icecube tray | Na dotaz | Zadat poptávku | |
| 070 WHR48738 |
C00410597
482000007557 |
Screw Inox | Na dotaz | Zadat poptávku | |
| 087 WHR48738 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
| 088 WHR48738 |
C00411858
482000010054 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 089 WHR48738 |
C00416954
482000020132 |
Screw | Na dotaz | Zadat poptávku | |
| 1026 WHR48738 |
C00417380
482000021090 |
Rubber Compressor | Na dotaz | Zadat poptávku | |
| 103 WHR48738 |
C00281792
480132102201 |
Gasket tapes | Na dotaz | Zadat poptávku | |
| 131 WHR48738 |
C00416978
482000020157 |
Screw KA 40x14 | Na dotaz | Zadat poptávku | |
| 151 WHR48738 |
C00281739
482000010055 |
Bushing | Na dotaz | Zadat poptávku | |
| 152 WHR48738 |
C00281741
482000010056 |
Bushing | Na dotaz | Zadat poptávku | |
| 153 WHR48738 |
C00417392
482000021102 |
Door freezer IX | Na dotaz | Zadat poptávku | |
| 154 WHR48738 |
C00411878
482000010081 |
Nameplate Whirlpool | Na dotaz | Zadat poptávku | |
| 155 WHR48738 |
C00417393
482000021103 |
Door refriger. IX /Dispenser | Na dotaz | Zadat poptávku | |
| 159 WHR48738 |
C00621637
482000019457 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 164 WHR48738 |
C00416629
482000019376 |
Cap | Na dotaz | Zadat poptávku | |
| 164B WHR48738 |
C00411865
482000010066 |
Cap door handle edge dark grey | Na dotaz | Zadat poptávku | |
| 171 WHR48738 |
C00281736
482000010060 |
POUZDÉRKO UZÁVĚR DVEŘÍ PRAVÝ /CE-W | Na dotaz | Zadat poptávku | |
| 172 WHR48738 |
C00416980
482000020159 |
Screw KA 35x12 | Na dotaz | Zadat poptávku | |
| 173 WHR48738 |
C00300370
482000021048 |
Catcher left | Na dotaz | Zadat poptávku | |
| 173 WHR48738 |
C00413964
482000014070 |
Catcher left | Na dotaz | Zadat poptávku | |
| 174 WHR48738 |
C00408106
482000002937 |
Stop door | Na dotaz | Zadat poptávku | |
| 176 WHR48738 |
C00285219
482000014062 |
PROFIL ZARÁŽKA LAHVÍ | Na dotaz | Zadat poptávku | |
| 177 WHR48738 |
C00417343
482000021049 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 187 WHR48738 |
C00281740
482000020591 |
Bushing | Na dotaz | Zadat poptávku | |
| 189 WHR48738 |
C00281737
482000010062 |
Bushing | Na dotaz | Zadat poptávku | |
| 193A WHR48738 |
C00417381
482000021091 |
Door dairy Freezing bottom | Na dotaz | Zadat poptávku | |
| 193B WHR48738 |
C00417382
482000021092 |
Door dairy Freezing upper | Na dotaz | Zadat poptávku | |
| 201 WHR48738 |
C00306411
482000014065 |
HLAVNÍ CONDANSER | Na dotaz | Zadat poptávku | |
| 203 WHR48738 |
C00345215
482000018659 |
Spacer | Na dotaz | Zadat poptávku | |
| 204 WHR48738 |
C00329057
481240448969 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 205 WHR48738 |
C00402055
481240449788 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 207 WHR48738 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 209 WHR48738 |
C00416986
482000020166 |
Mains cable cpl. | Na dotaz | Zadat poptávku | |
| 210 WHR48738 |
C00413990
482000014131 |
Cable mains | Na dotaz | Zadat poptávku | |
| 211 WHR48738 |
C00202847
480132103355 |
Protect motor | Na dotaz | Zadat poptávku | |
| 212 WHR48738 |
C00407422
482000001629 |
Capacitor | Na dotaz | Zadat poptávku | |
| 213 WHR48738 |
C00416424
482000019109 |
Screw ST 4.2x9.5 | Na dotaz | Zadat poptávku | |
| 213 WHR48738 |
C00513220
482000018662 |
Screw 4.2x9.5 YSB-C | Na dotaz | Zadat poptávku | |
| 214 WHR48738 |
C00344934
480132102178 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 215 WHR48738 |
C00513807
482000019380 |
Dryer | Na dotaz | Zadat poptávku | |
| 216 WHR48738 |
C00513218
482000007565 |
Holder | Na dotaz | Zadat poptávku | |
| 217 WHR48738 |
C00416987
482000020167 |
Compressor NLX13KK3 | Na dotaz | Zadat poptávku | |
| 218 WHR48738 |
C00280285
481246448229 |
TRAVERZA KOMPRESORU CELEK | Na dotaz | Zadat poptávku | |
| 224 WHR48738 |
C00416109
482000018669 |
Screw KA50x14 YSB-F | Na dotaz | Zadat poptávku | |
| 225 WHR48738 |
C00287942
480132103191 |
Tube LOKRING (105*6*0,7)TYPE B | Na dotaz | Zadat poptávku | |
| 226 WHR48738 |
C00306237
480132103192 |
Tube | Na dotaz | Zadat poptávku | |
| 227 WHR48738 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 228 WHR48738 |
C00280300
480132101057 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 242 WHR48738 |
C00417344
482000021050 |
Timer NFTF/LED | Na dotaz | Zadat poptávku | |
| 244 WHR48738 |
C00416988
482000020168 |
Cover | Na dotaz | Zadat poptávku | |
| 314 WHR48738 |
C00285193
480132102179 |
ZÁTKA | Na dotaz | Zadat poptávku | |
| 315 WHR48738 |
C00345050
480132102174 |
Switch door freezer | Na dotaz | Zadat poptávku | |
| 316 WHR48738 |
C00345094
480132102175 |
Switch door refrigerator | Na dotaz | Zadat poptávku | |
| 317 WHR48738 |
C00416989
482000020169 |
Shelf fast freez. | Na dotaz | Zadat poptávku | |
| 318 WHR48738 |
C00345088
482000007566 |
Partition | Na dotaz | Zadat poptávku | |
| 319 WHR48738 |
C00416990
482000020170 |
Cover shelf fast freez. | Na dotaz | Zadat poptávku | |
| 333 WHR48738 |
C00281750
480132102192 |
KOLEČKO DRAWER CHILLER | Na dotaz | Zadat poptávku | |
| 334 WHR48738 |
C00281752
480132102193 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 341 WHR48738 |
C00535630
488000535630 |
CHIL. KRYT KRYT / 640YY (TRANSNAT) WHSRR | Na dotaz | Zadat poptávku | |
| 401 WHR48738 |
C00306238
481251138362 |
FIN EVAPORATOR | Na dotaz | Zadat poptávku | |
| 406 WHR48738 |
C00417178
482000020601 |
Holder Evaporator kit | Na dotaz | Zadat poptávku | |
| 407 WHR48738 |
C00306398
482000019129 |
VENTILÁTOR S MOTOREM | Na dotaz | Zadat poptávku | |
| 408 WHR48738 |
C00306399
482000020206 |
ODVADĚČ VZDUCHU ÚPLNÝ | Na dotaz | Zadat poptávku | |
| 409 WHR48738 |
C00306457
482000002948 |
VRTULE | Na dotaz | Zadat poptávku | |
| 411 WHR48738 |
C00306444
482000002956 |
PODPĚRA MOTORU VENTILÁTORU | Na dotaz | Zadat poptávku | |
| 413 WHR48738 |
C00306402
482000002949 |
Motor fan | Na dotaz | Zadat poptávku | |
| 419 WHR48738 |
C00417394
482000021104 |
Cover LED Freezing | Na dotaz | Zadat poptávku | |
| 420 WHR48738 |
C00417346
482000021054 |
Box therm. cpl. | Na dotaz | Zadat poptávku | |
| 421 WHR48738 |
C00417347
482000021055 |
Casing | Na dotaz | Zadat poptávku | |
| 424 WHR48738 |
C00281773
480132102204 |
Air guide | Na dotaz | Zadat poptávku | |
| 427 WHR48738 |
C00306243
482000020176 |
Insulation cpl. | Na dotaz | Zadat poptávku | |
| 432 WHR48738 |
C00417395
482000021105 |
Cover LED refr. | Na dotaz | Zadat poptávku | |
| 433B WHR48738 |
C00306415
482000019139 |
Sensor ambient/electromechanic | Na dotaz | Zadat poptávku | |
| 434 WHR48738 |
C00377477
481221848159 |
freezer SENSOR | Na dotaz | Zadat poptávku | |
| 435 WHR48738 |
C00417349
482000021057 |
Cover Casing | Na dotaz | Zadat poptávku | |
| 439 WHR48738 |
C00377809
481246378024 |
DAMPER THERMOSTAT | Na dotaz | Zadat poptávku | |
| 443 WHR48738 |
C00405137
481246688968 |
Insulation | Na dotaz | Zadat poptávku | |
| 444 WHR48738 |
C00402160
481240478877 |
Cover | Na dotaz | Zadat poptávku | |
| 445 WHR48738 |
C00306365
481244079281 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 446 WHR48738 |
C00306366
481244079282 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 447 WHR48738 |
C00306361
481244079283 |
Insulation Conveyor | Na dotaz | Zadat poptávku | |
| 448 WHR48738 |
C00394424
480132103342 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 449 WHR48738 |
C00345179
480131100432 |
Cap | Na dotaz | Zadat poptávku | |
| 454 WHR48738 |
C00416985
482000020165 |
Display | Na dotaz | Zadat poptávku | |
| 455 WHR48738 |
C00417350
482000021058 |
Screw Cover f. lamp | Na dotaz | Zadat poptávku | |
| 456 WHR48738 |
C00416631
482000019385 |
Control board | Na dotaz | Zadat poptávku | |
| 459 WHR48738 |
C00413991
482000014132 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| 460 WHR48738 |
C00413992
482000014133 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
| 461 WHR48738 |
C00413330
482000013072 |
Handle Door freezer | Na dotaz | Zadat poptávku | |
| 463 WHR48738 |
C00416966
482000020144 |
Screw TT M5x20 | Na dotaz | Zadat poptávku | |
| 464 WHR48738 |
C00413331
482000013073 |
Handle Door refriger. | Na dotaz | Zadat poptávku | |
| 466 WHR48738 |
C00281783
480132102195 |
MULTIFLOW PRAVY | Na dotaz | Zadat poptávku | |
| 467 WHR48738 |
C00281784
480132102194 |
MULTIFLOW LEVY | Na dotaz | Zadat poptávku | |
| 468 WHR48738 |
C00281785
480132102196 |
MULTIFLOW PŘÍČNÝCH | Na dotaz | Zadat poptávku | |
| 485 WHR48738 |
C00417351
482000021059 |
Fixation Installation | Na dotaz | Zadat poptávku | |
| 499 WHR48738 |
C00417189
482000020623 |
Thermal fuse 260mm | Na dotaz | Zadat poptávku | |
| 500 WHR48738 |
C00408122
482000002958 |
Support motor | Na dotaz | Zadat poptávku | |
| 505 WHR48738 |
C00411862
482000010063 |
Cap | Na dotaz | Zadat poptávku | |
| 533 WHR48738 |
C00318912
481225928966 |
Heating element | Na dotaz | Zadat poptávku | |
| 606 WHR48738 |
C00417352
482000021061 |
Tank cpl. | Na dotaz | Zadat poptávku | |
| 607 WHR48738 |
C00417353
482000021062 |
Tank | Na dotaz | Zadat poptávku | |
| 611 WHR48738 |
C00417354
482000021063 |
Spring Tank | Na dotaz | Zadat poptávku | |
| 614A WHR48738 |
C00417383
482000021093 |
Lid Tank | Na dotaz | Zadat poptávku | |
| 614B WHR48738 |
C00417384
482000021094 |
Cover Cover tank | Na dotaz | Zadat poptávku | |
| 614C WHR48738 |
C00417385
482000021095 |
Lock Cover tank | Na dotaz | Zadat poptávku | |
| 616 WHR48738 |
C00417388
482000021098 |
Tray leak Dispenser syst. | Na dotaz | Zadat poptávku | |
| 623 WHR48738 |
C00417356
482000021065 |
Bushing Dispenser | Na dotaz | Zadat poptávku | |
| 624 WHR48738 |
C00417389
482000021099 |
Cover Outdoor sensor grey | Na dotaz | Zadat poptávku | |
| 626 WHR48738 |
C00306453
482000002957 |
FREEZER FAN MOTOR RUBBER | Na dotaz | Zadat poptávku | |
| 640 WHR48738 |
C00416968
482000020146 |
Screw TT M5x16 | Na dotaz | Zadat poptávku | |
| 641 WHR48738 |
C00416969
482000020147 |
Hinge lower with wheel | Na dotaz | Zadat poptávku | |
| 642 WHR48738 |
C00411852
482000010035 |
Wheel | Na dotaz | Zadat poptávku | |
| 643 WHR48738 |
C00416997
482000020178 |
Screw TT M5x25 | Na dotaz | Zadat poptávku | |
| 695 WHR48738 |
C00416632
482000019389 |
Cover base left | Na dotaz | Zadat poptávku | |
| 696 WHR48738 |
C00416633
482000019390 |
Cover base right | Na dotaz | Zadat poptávku | |
| 736 WHR48738 |
C00417357
482000021067 |
LED Strip 466-566/12V | Na dotaz | Zadat poptávku | |
| 743 WHR48738 |
C00417358
482000021068 |
Door dairy | Na dotaz | Zadat poptávku | |
| 745 WHR48738 |
C00417359
482000021069 |
Door dairy | Na dotaz | Zadat poptávku | |
| 755 WHR48738 |
C00417360
482000021070 |
Cover top Dispenser | Na dotaz | Zadat poptávku | |
| 756 WHR48738 |
C00417361
482000021071 |
Filter Deodorant | Na dotaz | Zadat poptávku | |
| 757 WHR48738 |
C00417362
482000021072 |
Gasket border Dispenser | Na dotaz | Zadat poptávku | |
| 758 WHR48738 |
C00417363
482000021073 |
Tap Dispenser | Na dotaz | Zadat poptávku | |
| 759 WHR48738 |
C00417364
482000021074 |
Sealing Dispenser | Na dotaz | Zadat poptávku | |
| 760 WHR48738 |
C00417365
482000021075 |
Outlet Stud Dispenser | Na dotaz | Zadat poptávku | |
| 761 WHR48738 |
C00417366
482000021076 |
Link inner, Tap | Na dotaz | Zadat poptávku | |
| 762 WHR48738 |
C00417367
482000021077 |
Outlet Stud Einspuelsystem | Na dotaz | Zadat poptávku | |
| 763 WHR48738 |
C00417368
482000021078 |
Frame Dispenser syst. | Na dotaz | Zadat poptávku | |
| 763A WHR48738 |
C00417391
482000021101 |
Front Dispenser syst. grey | Na dotaz | Zadat poptávku | |
| 764 WHR48738 |
C00417390
482000021100 |
Lever Dispenser syst. dgr | Na dotaz | Zadat poptávku | |
| 767 WHR48738 |
C00417370
482000021080 |
Spring left lever Dispense | Na dotaz | Zadat poptávku | |
| 768 WHR48738 |
C00417371
482000021081 |
Spring right lever Dispens | Na dotaz | Zadat poptávku | |
| 769 WHR48738 |
C00417372
482000021082 |
Gasket Tap 8,5x2,8x2,2x2 | Na dotaz | Zadat poptávku | |
| 770 WHR48738 |
C00417373
482000021083 |
Gasket Tap big | Na dotaz | Zadat poptávku | |
| 771 WHR48738 |
C00417374
482000021084 |
Gasket inside Tap | Na dotaz | Zadat poptávku | |
| 772 WHR48738 |
C00417375
482000021085 |
Gasket outside Tap | Na dotaz | Zadat poptávku | |
| 775 WHR48738 |
C00417376
482000021086 |
Rail Crisper | Na dotaz | Zadat poptávku | |
| 800 WHR48738 |
C00417396
482000021106 |
LED + Housing refr. | Na dotaz | Zadat poptávku | |
| 801 WHR48738 |
C00417397
482000021107 |
Housing LED refr. | Na dotaz | Zadat poptávku | |
