WHIRLPOOL WTMS 640 IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WTMS 640 IX |
| Kód 12NC/I.C. kód: | 850192265010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

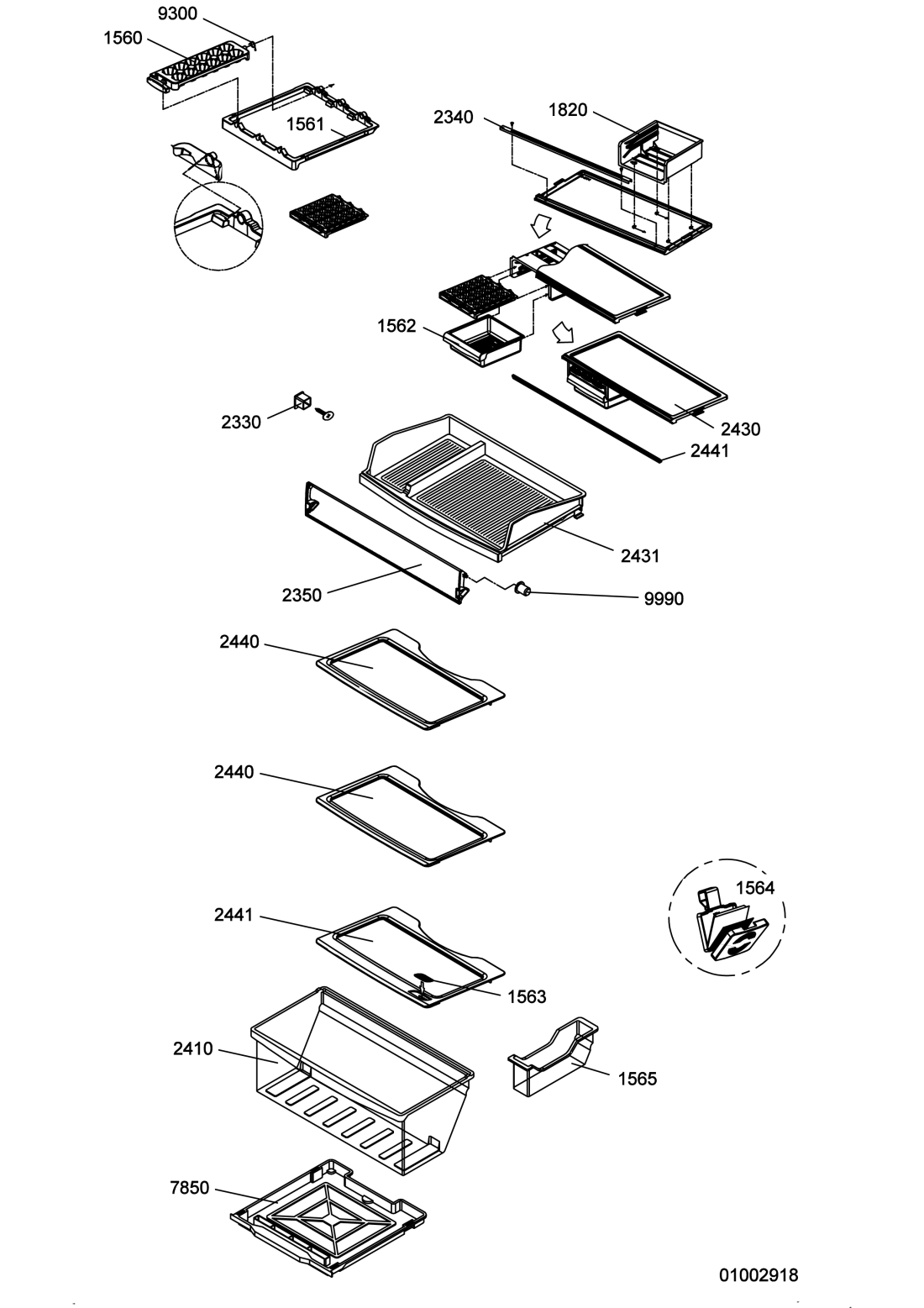

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1020 WHR17618 |
C00408726
482000004311 |
Door freezer u-foam set F | Na dotaz | Zadat poptávku | |
| 1021 WHR17618 |
C00408717
482000004302 |
Door freezer compl. u-foam assy F | Na dotaz | Zadat poptávku | |
| 1040 WHR17618 |
C00408728
482000004313 |
Door refriger. foam set R | Na dotaz | Zadat poptávku | |
| 1041 WHR17618 |
C00408724
482000004309 |
Door refriger. compl. u-foam assy R | Na dotaz | Zadat poptávku | |
| 1100 WHR17618 |
C00407610
482000002046 |
Handle door | Na dotaz | Zadat poptávku | |
| 1101 WHR17618 |
C00407707
482000002143 |
Handle cover IX | Na dotaz | Zadat poptávku | |
| 1520 WHR17618 |
C00408714
482000004299 |
Police | Na dotaz | Zadat poptávku | |
| 1521 WHR17618 |
C00408718
482000004303 |
Door dairy rack R-T door | Na dotaz | Zadat poptávku | |
| 1522 WHR17618 |
C00408719
482000004304 |
Door dairy rack R-T up | Na dotaz | Zadat poptávku | |
| 1523 WHR17618 |
C00408720
482000004305 |
Door dairy rack R-T egg lo | Na dotaz | Zadat poptávku | |
| 1530 WHR17618 |
C00408721
482000004306 |
Door dairy rack R-B 002 | Na dotaz | Zadat poptávku | |
| 1560 WHR17618 |
C00407724
482000002161 |
Ice maker | Na dotaz | Zadat poptávku | |
| 1561 WHR17618 |
C00407725
482000002162 |
Holder tray | Na dotaz | Zadat poptávku | |
| 1562 WHR17618 |
C00407726
482000002163 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 1563 WHR17618 |
C00407727
482000002164 |
Separator | Na dotaz | Zadat poptávku | |
| 1564 WHR17618 |
C00407728
482000002165 |
Holder | Na dotaz | Zadat poptávku | |
| 1565 WHR17618 |
C00408699
482000004284 |
Holder crisper partion | Na dotaz | Zadat poptávku | |
| 1566 WHR17618 |
C00407730
482000002167 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 1567 WHR17618 |
C00407729
482000002166 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 1640 WHR17618 |
C00407731
482000002168 |
Electronic box | Na dotaz | Zadat poptávku | |
| 1641 WHR17618 |
C00407732
482000002169 |
Cover plate | Na dotaz | Zadat poptávku | |
| 1642 WHR17618 |
C00407626
482000002062 |
Cover protect. | Na dotaz | Zadat poptávku | |
| 1700 WHR17618 |
C00408708
482000004293 |
Front panel kick pl | Na dotaz | Zadat poptávku | |
| 1710 WHR17618 |
C00407628
482000002064 |
Screw cap | Na dotaz | Zadat poptávku | |
| 1711 WHR17618 |
C00407629
482000002065 |
Cap for hole SL | Na dotaz | Zadat poptávku | |
| 1720 WHR17618 |
C00407801
482000002238 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 1730 WHR17618 |
C00407736
482000002173 |
Cover plate | Na dotaz | Zadat poptávku | |
| 1731 WHR17618 |
C00408711
482000004296 |
Cover plate cover thermo | Na dotaz | Zadat poptávku | |
| 1732 WHR17618 |
C00407738
482000002175 |
Cover | Na dotaz | Zadat poptávku | |
| 1770 WHR17618 |
C00407632
482000002068 |
Štítek | Na dotaz | Zadat poptávku | |
| 1810 WHR17618 |
C00407740
482000002177 |
Damper | Na dotaz | Zadat poptávku | |
| 1811 WHR17618 |
C00407741
482000002178 |
Damper | Na dotaz | Zadat poptávku | |
| 1815 WHR17618 |
C00407635
482000002071 |
Damper | Na dotaz | Zadat poptávku | |
| 1816 WHR17618 |
C00407636
482000002072 |
Damper | Na dotaz | Zadat poptávku | |
| 1817 WHR17618 |
C00407637
482000002073 |
Damper | Na dotaz | Zadat poptávku | |
| 1820 WHR17618 |
C00407742
482000002179 |
Support | Na dotaz | Zadat poptávku | |
| 1830 WHR17618 |
C00407743
482000002180 |
Mounting frame | Na dotaz | Zadat poptávku | |
| 1840 WHR17618 |
C00408731
482000004316 |
Base plate cabinet | Na dotaz | Zadat poptávku | |
| 1850 WHR17618 |
C00407639
482000002075 |
Foot | Na dotaz | Zadat poptávku | |
| 1851 WHR17618 |
C00407640
482000002076 |
Bracket foot | Na dotaz | Zadat poptávku | |
| 1880 WHR17618 |
C00408703
482000004288 |
Hinge kit top | Na dotaz | Zadat poptávku | |
| 1881 WHR17618 |
C00408704
482000004289 |
Hinge kit F-R | Na dotaz | Zadat poptávku | |
| 1882 WHR17618 |
C00407747
482000002184 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 1910 WHR17618 |
C00408715
482000004300 |
Magnetic seal assy up | Na dotaz | Zadat poptávku | |
| 1911 WHR17618 |
C00408722
482000004307 |
Magnetic seal assy low 766x1029mm | Na dotaz | Zadat poptávku | |
| 2030 WHR17618 |
C00408712
482000004297 |
Sound insulat. 001 | Na dotaz | Zadat poptávku | |
| 2031 WHR17618 |
C00408713
482000004298 |
Sound insulat. 002 | Na dotaz | Zadat poptávku | |
| 2032 WHR17618 |
C00407752
482000002189 |
Insulation | Na dotaz | Zadat poptávku | |
| 2033 WHR17618 |
C00407753
482000002190 |
Insulation | Na dotaz | Zadat poptávku | |
| 2110 WHR17618 |
C00407650
482000002086 |
Wheel | Na dotaz | Zadat poptávku | |
| 2111 WHR17618 |
C00407754
482000002191 |
Wheel basket | Na dotaz | Zadat poptávku | |
| 2115 WHR17618 |
C00407651
482000002087 |
Wheel | Na dotaz | Zadat poptávku | |
| 2116 WHR17618 |
C00408732
482000004317 |
Sleeve comp FXG | Na dotaz | Zadat poptávku | |
| 2120 WHR17618 |
C00407652
482000002088 |
Axle | Na dotaz | Zadat poptávku | |
| 2121 WHR17618 |
C00407653
482000002089 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 2122 WHR17618 |
C00407755
482000002192 |
Axle | Na dotaz | Zadat poptávku | |
| 2330 WHR17618 |
C00407654
482000002090 |
Support | Na dotaz | Zadat poptávku | |
| 2340 WHR17618 |
C00408701
482000004286 |
Trim | Na dotaz | Zadat poptávku | |
| 2341 WHR17618 |
C00408702
482000004287 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 2350 WHR17618 |
C00408695
482000004280 |
Flap front door | Na dotaz | Zadat poptávku | |
| 2410 WHR17618 |
C00408700
482000004285 |
Crisper | Na dotaz | Zadat poptávku | |
| 2430 WHR17618 |
C00408694
482000004279 |
Shelf freezer conner | Na dotaz | Zadat poptávku | |
| 2431 WHR17618 |
C00408696
482000004281 |
Shelf tray chiller 001 | Na dotaz | Zadat poptávku | |
| 2440 WHR17618 |
C00408697
482000004282 |
Shelf tray chiller 002 | Na dotaz | Zadat poptávku | |
| 2441 WHR17618 |
C00408698
482000004283 |
Shelf tray crisper 003 | Na dotaz | Zadat poptávku | |
| 2560 WHR17618 |
C00407765
482000002202 |
Air regulator | Na dotaz | Zadat poptávku | |
| 2561 WHR17618 |
C00407664
482000002100 |
Air adjust.tube | Na dotaz | Zadat poptávku | |
| 3500 WHR17618 |
C00407766
482000002203 |
Display board | Na dotaz | Zadat poptávku | |
| 3560 WHR17618 |
C00407767
482000002204 |
Display | Na dotaz | Zadat poptávku | |
| 3561 WHR17618 |
C00407768
482000002205 |
Cover transpar. | Na dotaz | Zadat poptávku | |
| 4020 WHR17618 |
C00407665
482000002101 |
Compressor | Na dotaz | Zadat poptávku | |
| 4200 WHR17618 |
C00407666
482000002102 |
Capacitor | Na dotaz | Zadat poptávku | |
| 4400 WHR17618 |
C00407769
482000002206 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 4401 WHR17618 |
C00407770
482000002207 |
Clamp ring | Na dotaz | Zadat poptávku | |
| 4402 WHR17618 |
C00407771
482000002208 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 4403 WHR17618 |
C00407772
482000002209 |
Clamp ring | Na dotaz | Zadat poptávku | |
| 4410 WHR17618 |
C00407773
482000002210 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4411 WHR17618 |
C00407774
482000002211 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4510 WHR17618 |
C00408730
482000004315 |
Heating element 156V,160W glass tube | Na dotaz | Zadat poptávku | |
| 4800 WHR17618 |
C00408733
482000004318 |
Cable harness comp | Na dotaz | Zadat poptávku | |
| 4900 WHR17618 |
C00408706
482000004291 |
Cable mains CY | Na dotaz | Zadat poptávku | |
| 5210 WHR17618 |
C00407776
482000002213 |
Control board | Na dotaz | Zadat poptávku | |
| 5620 WHR17618 |
C00407673
482000002109 |
Protect motor | Na dotaz | Zadat poptávku | |
| 6140 WHR17618 |
C00407674
482000002110 |
Relay | Na dotaz | Zadat poptávku | |
| 6220 WHR17618 |
C00407777
482000002214 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 6221 WHR17618 |
C00407779
482000002216 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 6225 WHR17618 |
C00407778
482000002215 |
Regulator | Na dotaz | Zadat poptávku | |
| 6330 WHR17618 |
C00407678
482000002114 |
Switch door | Na dotaz | Zadat poptávku | |
| 6520 WHR17618 |
C00407682
482000002118 |
Lamp | Na dotaz | Zadat poptávku | |
| 6521 WHR17618 |
C00407780
482000002217 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 6522 WHR17618 |
C00407781
482000002218 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 6525 WHR17618 |
C00407782
482000002219 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 6526 WHR17618 |
C00407684
482000002120 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 6527 WHR17618 |
C00407685
482000002121 |
Housing | Na dotaz | Zadat poptávku | |
| 6910 WHR17618 |
C00407785
482000002222 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 6911 WHR17618 |
C00407786
482000002223 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 6915 WHR17618 |
C00407787
482000002224 |
Thermal fuse | Na dotaz | Zadat poptávku | |
| 7400 WHR17618 |
C00407788
482000002225 |
Condenser | Na dotaz | Zadat poptávku | |
| 7410 WHR17618 |
C00407789
482000002226 |
Housing | Na dotaz | Zadat poptávku | |
| 7411 WHR17618 |
C00407790
482000002227 |
Support motor | Na dotaz | Zadat poptávku | |
| 7431 WHR17618 |
C00408709
482000004294 |
Air guide f.f. cover | Na dotaz | Zadat poptávku | |
| 7432 WHR17618 |
C00407793
482000002230 |
Air guide | Na dotaz | Zadat poptávku | |
| 7433 WHR17618 |
C00408710
482000004295 |
Air guide plate mtg motor 001 | Na dotaz | Zadat poptávku | |
| 7450 WHR17618 |
C00408729
482000004314 |
Evaporator | Na dotaz | Zadat poptávku | |
| 7630 WHR17618 |
C00407694
482000002130 |
Dryer | Na dotaz | Zadat poptávku | |
| 7850 WHR17618 |
C00407795
482000002232 |
Tray drip | Na dotaz | Zadat poptávku | |
| 9000 WHR17618 |
C00407698
482000002134 |
Clip | Na dotaz | Zadat poptávku | |
| 9040 WHR17618 |
C00408705
482000004290 |
Hinge support SHIM 019 | Na dotaz | Zadat poptávku | |
| 9041 WHR17618 |
C00407797
482000002234 |
Hinge support | Na dotaz | Zadat poptávku | |
| 9300 WHR17618 |
C00407702
482000002138 |
Spring | Na dotaz | Zadat poptávku | |
| 9990 WHR17618 |
C00407703
482000002139 |
Blocking pin | Na dotaz | Zadat poptávku | |
| 9991 WHR17618 |
C00407704
482000002140 |
Tank | Na dotaz | Zadat poptávku | |
