| Komerční kód: | KHDD 3030 |
| Kód 12NC/I.C. kód: | 851339238000 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 851339212000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

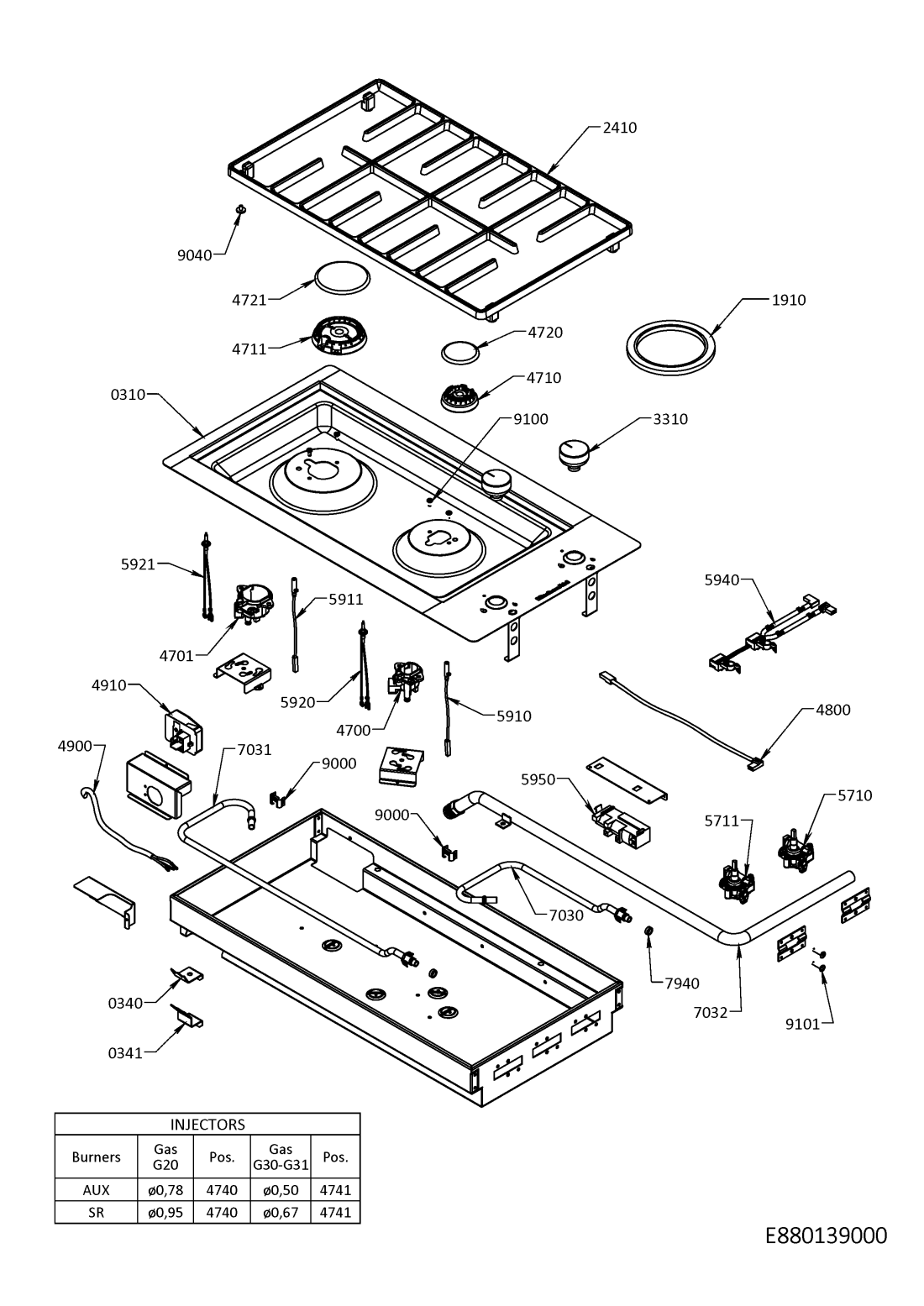

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0310 WHR10817 |
C00407026
482000000576 |
Hob | Na dotaz | Zadat poptávku | |
| 0340 WHR10817 |
C00329146
481240449874 |
Bracket frame | Na dotaz | Zadat poptávku | |
| 0341 WHR10817 |
C00329147
481240449875 |
Holder frame | Na dotaz | Zadat poptávku | |
| 1910 WHR10817 |
C00331572
481246699085 |
Gasket soft | Na dotaz | Zadat poptávku | |
| 2410 WHR10817 |
C00407027
482000000577 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 3310 WHR10817 |
C00407028
482000000578 |
Knob | Na dotaz | Zadat poptávku | |
| 4700 WHR10817 |
C00328737
481236068977 |
Injector holder AUX | Na dotaz | Zadat poptávku | |
| 4701 WHR10817 |
C00328738
481236068978 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 4710 WHR10817 |
C00328740
481236068982 |
Spreader,burner AUX | Na dotaz | Zadat poptávku | |
| 4711 WHR10817 |
C00328741
481236068983 |
Spreader,burner SR | Na dotaz | Zadat poptávku | |
| 4720 WHR10817 |
C00328743
481236068985 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 4721 WHR10817 |
C00328744
481236068986 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 4740 WHR10817 |
C00407082
482000000671 |
cet of nozzles G20 | Na dotaz | Zadat poptávku | |
| 4741 WHR10817 |
C00407083
482000000672 |
Set of nozzles G30-31 | Na dotaz | Zadat poptávku | |
| 4800 WHR10817 |
C00327307
481229068367 |
Cable terminal board-generator | Na dotaz | Zadat poptávku | |
| 4900 WHR10817 |
C00321852
480121100326 |
Cable mains | Na dotaz | Zadat poptávku | |
| 4910 WHR10817 |
C00327308
481229068368 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 5710 WHR10817 |
C00328629
481236058607 |
Gas cock AUX | Na dotaz | Zadat poptávku | |
| 5710 WHR10817 |
C00328630
481236058608 |
Gas cock SR | Na dotaz | Zadat poptávku | |
| 5910 WHR10817 |
C00327115
481225268091 |
Spark plug l=300 mm | Na dotaz | Zadat poptávku | |
| 5911 WHR10817 |
C00327116
481225268092 |
Spark plug l=675 mm | Na dotaz | Zadat poptávku | |
| 5920 WHR10817 |
C00313590
481213838056 |
Thermo couple l=410 mm | Na dotaz | Zadat poptávku | |
| 5921 WHR10817 |
C00326867
481213838057 |
Thermo couple l=800 mm | Na dotaz | Zadat poptávku | |
| 5940 WHR10817 |
C00407030
482000000580 |
Pushbuttonswit. | Na dotaz | Zadat poptávku | |
| 5950 WHR10817 |
C00390248
480121101663 |
Transf,puls | Na dotaz | Zadat poptávku | |
| 7030 WHR10817 |
C00407033
482000000583 |
Gas pipe MAIN | Na dotaz | Zadat poptávku | |
| 7030 WHR10817 |
C00407031
482000000581 |
Pipe AUX. | Na dotaz | Zadat poptávku | |
| 7031 WHR10817 |
C00407032
482000000582 |
Pipe SEMIRAPID | Na dotaz | Zadat poptávku | |
| 7940 WHR10817 |
C00331573
481246699086 |
Gasket pipe | Na dotaz | Zadat poptávku | |
| 9000 WHR10817 |
C00329006
481240418632 |
Fixation | Na dotaz | Zadat poptávku | |
| 9040 WHR10817 |
C00321869
480121100392 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 9100 WHR10817 |
C00332142
481250218813 |
Screw burner | Na dotaz | Zadat poptávku | |
| 9101 WHR10817 |
C00321848
480121100321 |
Screw | Na dotaz | Zadat poptávku | |
| 999 WHR10817 |
C00541015 | Gastable WHP | Na dotaz | Zadat poptávku | |
