KITCHENAID KHDP1 38510
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KHDP1 38510 |
| Kód 12NC: | 851349312100 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 851349301000, Q0938130000, 859991538660 |
Potřebujete servis? Jsme tady pro Vás

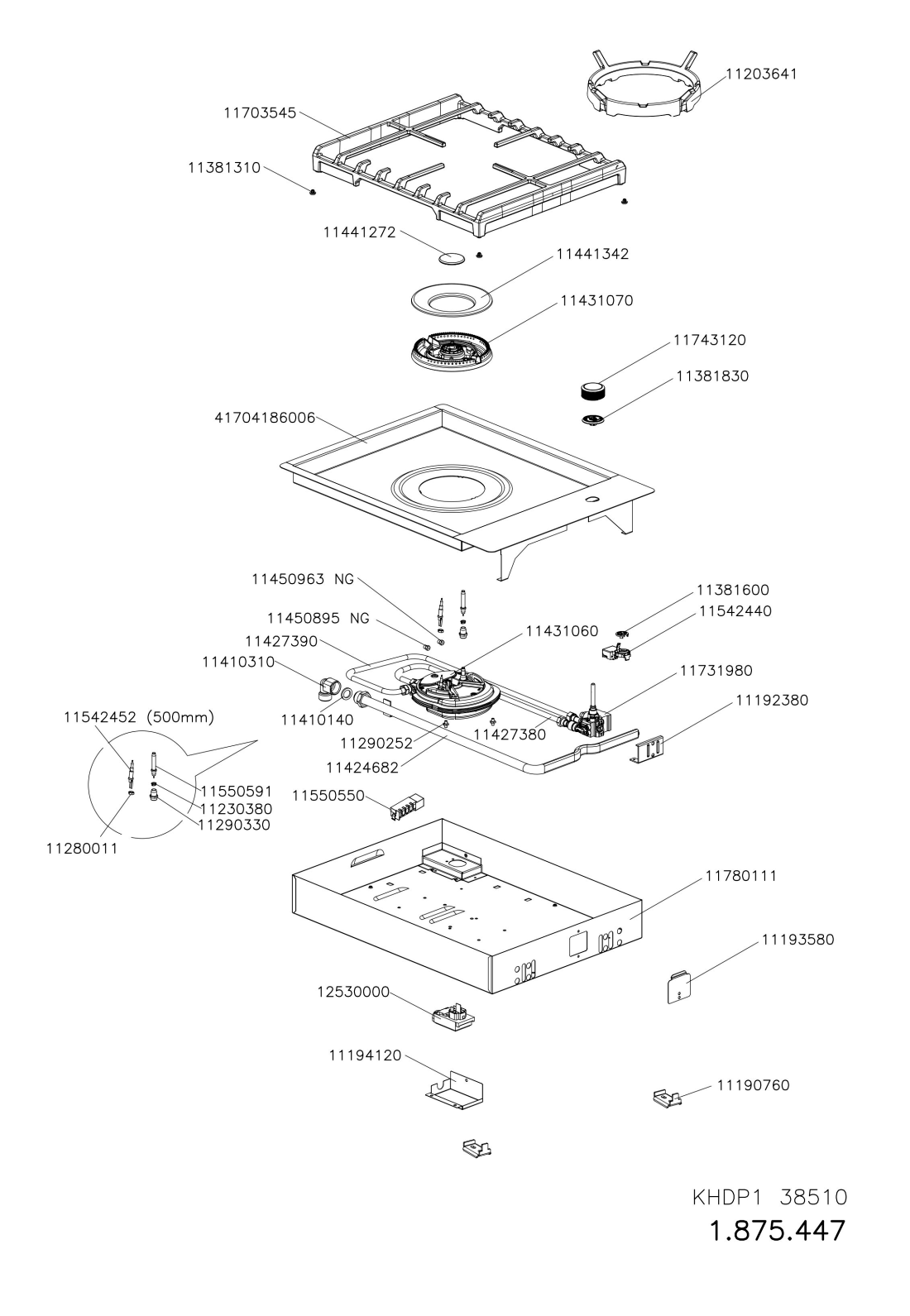

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 11190760 WHR20536 |
C00113469
481240478832 |
FIXING BRACKET | Na dotaz | Zadat poptávku | |
| 11192380 WHR20536 |
C00416556
482000019255 |
Bracket Gas cock | Na dotaz | Zadat poptávku | |
| 11193580 WHR20536 |
C00416533
482000019230 |
Cover base | Na dotaz | Zadat poptávku | |
| 11194120 WHR20536 |
C00417895
482000021774 |
Cover Connectionblock | Na dotaz | Zadat poptávku | |
| 11203641 WHR20536 |
C00417863
482000021733 |
Grid for hob wok | Na dotaz | Zadat poptávku | |
| 11230380 WHR20536 |
C00417891
482000021761 |
Spring sparkplug | Na dotaz | Zadat poptávku | |
| 11280011 WHR20536 |
C00332177
481250518404 |
Thermocouple nut | Na dotaz | Zadat poptávku | |
| 11290252 WHR20536 |
C00416557
482000019256 |
Spacer | Na dotaz | Zadat poptávku | |
| 11290330 WHR20536 |
C00417892
482000021762 |
Nut sparkplug | Na dotaz | Zadat poptávku | |
| 11381310 WHR20536 |
C00417864
482000021734 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 11381600 WHR20536 |
C00416535
482000019232 |
Ring ignition switch | Na dotaz | Zadat poptávku | |
| 11381830 WHR20536 |
C00417865
482000021735 |
Threaded ring button | Na dotaz | Zadat poptávku | |
| 11410140 WHR20536 |
C00332675
481253268097 |
Těsnění | Na dotaz | Zadat poptávku | |
| 11410310 WHR20536 |
C00332506
481253048294 |
Spojka kónická | Na dotaz | Zadat poptávku | |
| 11424682 WHR20536 |
C00417968
482000021853 |
Manifold | Na dotaz | Zadat poptávku | |
| 11427380 WHR20536 |
C00417969
482000021854 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11427390 WHR20536 |
C00417970
482000021855 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11431060 WHR20536 |
C00417871
482000021741 |
Burner | Na dotaz | Zadat poptávku | |
| 11431070 WHR20536 |
C00417872
482000021742 |
Spreader,burner | Na dotaz | Zadat poptávku | |
| 11441272 WHR20536 |
C00417876
482000021746 |
Burner cap | Na dotaz | Zadat poptávku | |
| 11441342 WHR20536 |
C00417877
482000021747 |
Burner cap ext. | Na dotaz | Zadat poptávku | |
| 11450895 WHR20536 |
C00417880
482000021750 |
Nozzle NG 0.71 | Na dotaz | Zadat poptávku | |
| 11450963 WHR20536 |
C00417884
482000021754 |
Nozzle NG | Na dotaz | Zadat poptávku | |
| 11542440 WHR20536 |
C00417971
482000021856 |
Switch ignition | Na dotaz | Zadat poptávku | |
| 11542452 WHR20536 |
C00417885
482000021755 |
Thermocouple | Na dotaz | Zadat poptávku | |
| 11550550 WHR20536 |
C00081715
480121102446 |
SPARK IGNITION TRANSFORMER | Na dotaz | Zadat poptávku | |
| 11550591 WHR20536 |
C00417963
482000021848 |
Spark plug | Na dotaz | Zadat poptávku | |
| 11703545 WHR20536 |
C00417972
482000021857 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 11731980 WHR20536 |
C00417888
482000021758 |
Gas cock 0.29/0.57 | Na dotaz | Zadat poptávku | |
| 11743120 WHR20536 |
C00417889
482000021759 |
Knob | Na dotaz | Zadat poptávku | |
| 11780111 WHR20536 |
C00417954
482000021839 |
Cabinet | Na dotaz | Zadat poptávku | |
| 12530000 WHR20536 |
C00322176
480121102442 |
Svorkovnice+upevnění kabelu 16A | 438 Kč
€ 19.30 |
||
| 4170418600 WHR20536 |
C00417973
482000021858 |
Hob | Na dotaz | Zadat poptávku | |
| G25-20 WHR20536 |
C00419651
482000091803 |
Set of nozzles G25-20 3INJ. 6kW | Na dotaz | Zadat poptávku | |
